• Phase I: Lexical Analysis. Scan the characters of the input source program, group them into meaningful units tokens, and classify the tokens. The process is akin to reading the characters of an English sentence, grouping them into words, and classifying each word as a noun, verb, adjective, etc.

• Phase II: Parsing. Check the tokens produced by Phase I to see if they satisfy the syntax of the programming language. This is akin to checking that the words in English form a grammatically-correct sentence.

• Phase III: Semantic Analysis and Code Generation. Analyze the meaning of the syntactically-correct input and generate the machine code to perform the necessary actions.

• Phase IV: Code Optimization. Check the generated code to see if it can be made to run faster.

(10.2.1) Phase I: Lexical Analysis

The scanner or lexical analyzer scans the characters in the source program, groups them into single, indivisible objects called tokens and classifies the tokens. As an example we consider the following statement in C++:

        Omega = 60 * (Beta + Gamma) ;

Another action of the scanner is to build a symbol table containing the lexemes of every variable it finds - in this example the symbol table contains Omega, Beta, and Gamma. The scanner also builds a number table which in this example contains 60.

(10.2.2) Phase II: Parsing

The parser assembles the tokens found by the scanner together in a way that satisfies the grammar of the source language. The grammar of the source language is specified by a set of productions expressed in Backus-Naur Form (BNF). The left-side of each production is the name of a grammatical construct, followed by a ::= symbol which means is defined as, followed by a string of grammatical constructs on the right-side. For example the following table shows 10 productions that are part of the grammar for C++:

Productions (2), (3), and (4) in the table say that an <expression> is:

• a single <term> or
• an <expression> followed by a plus-sign followed by a <term> or
• an <expression> followed by a minus-sign followed by a <term>.

Productions (5), (6), and (7) in the table say that a <term> is:

• a single <factor> or
• a <term> followed by a times-sign followed by a <factor> or
• a <term> followed by a divide-sign followed by a <factor>.

Productions (8), (9) ,and (10) in the table say that <factor> is:

• an <expression> enclosed in parentheses or
• a <variable> or
• a <number>.

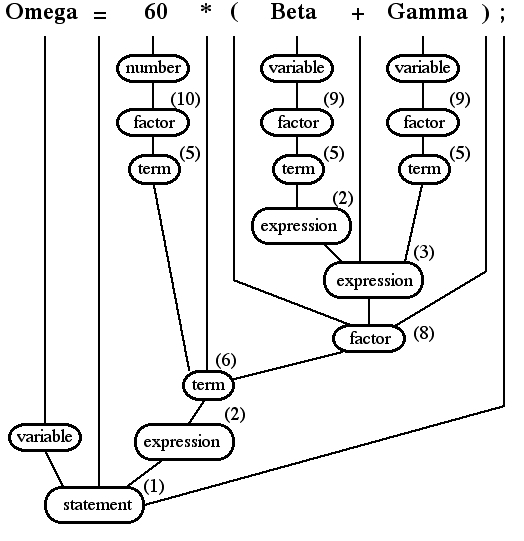

The parser uses the productions in the grammar to build a parse-tree from the tokens supplied by the scanner. For example, the parse tree for:

        Omega = 60 * (Beta + Gamma) ;

• The addition enclosed by the parentheses must be done first and only the right-side of production (3) contains the plus-sign. In order to use the right-side of production (3) the Beta variable must become an expression and the Gamma variable must become a term so productions (9), (5), and (2) are performed before production (3).

• Only the right-side of production (8) contains parentheses so it is performed next.

• Only the right-side of production (6) contains the times-sign. In order to use the right-side of production (6) the number 60 must become a term so productions (10) and (5) are performed before production (6).

• Production (1) can now be performed.

• All multiplications and divisions must be performed before any additions and subtractions can be performed because:
  1. an expression can only be a single term, a sum of terms, and/or a difference of terms; and
  2. a term can only be a single factor, a product of factors, and/or a quotient of factors.

• But Production (8) says that any operations enclosed inside parentheses must be performed before any operations outside the parentheses can be performed.

• Additions and subtractions must be performed in left-to-right order since an expression can't be a term followed by a plus-sign or minus-sign followed by an expression. For example, the subtraction in 9 - 5 + 2 must be performed before the addition to get the correct value of 6 - performing the addition before the subtraction will get the wrong value of 2.

(10.2.3) Phase III: Semantic Analysis and Code Generation

Semantic Analysis: The parser only examines the syntax of the source language, i.e., does the sequence of tokens look correct. Semantic analysis makes sure that the meaning is correct. For example, the English sentence, The man bit the dog., has the correct syntax as shown by the following parse tree:

but the semantics is questionable - the man bit the dog instead of the dog biting the man.

Semantic analysis for programming languages makes sure:

• that all variables have the correct data types;
• that the argument-list and return value of every function-call agrees with the definition of the called function; etc.

Code Generation: Code can be generated as the productions of the grammar are performed. The code generated when the statement:

        Omega = 60 * (Beta + Gamma) ;

LOAD   Beta
ADD    Gamma
STORE  Temp1

LOAD   Temp1
MULT   N60
STORE  Temp2

LOAD   Temp2
STORE  Omega

(10.2.4) Phase IV: Code Optimization

Code optimization simplifies the code by eliminating wasteful instructions. In our example, the code generated by Phase III is simplified to be:

        LOAD   Beta
        ADD    Gamma
        MULT   N60
        STORE  Omega

Omega:  .DATA  0
N60:    .DATA  60
Beta:   .DATA  0
Gamma:  .DATA  0
