It's much easier to write a program in assembly language than in machine language but a programmer must still consider all the intricate details of the machine: what is the instruction set? how many registers? how many bits are in each register? how are conditions treated?, etc., etc.

As the cost of computers came down, more and more of them were sold and the number of computer programmers increased dramatically. Rather than insist that every programmer learn assembly language and machine details, high-level languages were developed to further simplify the programming task.

An assembly-language programmer must take a very microscopic view of the task being programmed. For example, the simple pseudocode statement:

is coded in assembly language as:

Assembly language has the following problems:

1. The movement of data items must be coded explicitly.
2. Even a simple operation like addition must be coded as a number of subtasks.
3. An assembly-language program is specific to one machine.
4. Statements are not like English.

High-level programming languages overcome these deficiencies:

1. The programmer need not manage the details of data movement or pay attention to where the items are stored.
2. The programmer can take a macroscopic view of the problem.
3. Programs written in a high-level language can be run on many different machines.
4. Statements are closer to the English language and use standard mathematical notation.

1. The source program written in a high-level language is run through a language translator called the compiler to produce an intermediate program in a low-level code.
2. The intermediate program is run through a second translator (the assembler) to produce an object program in machine language.
3. The linker combines the object program with code modules from the system library to produce an executable module.
4. The loader loads the executable module into memory.
5. The machine hardware runs the code to produce the results.

In this chapter we use C++ to illustrate the concepts of a high-level language - the next chapter describes other high-level languages.

As an example, Fig. 8.2 shows a very simple C++ program.

//program numerology
//this program gets the user's favorite number
//and prints a greeting.

#include < iostream >
using namespace std;

void main()
{
    int your_number; //stores the number entered by the user

    cout << "Please enter your favorite number: ";
    cin  >> your_number;
    cout << endl;
    cout << "Your favorite number is " << your_number << "."
                   << endl;
    cout << "That is a nice number." << endl;
}

//program numerology                                           //Line  1
//this program gets the user's favorite number                 //Line  2
//and prints a greeting.                                       //Line  3

#include < iostream >                                          //Line  4
using namespace std;                                           //Line  5

void main()                                                    //Line  6
{                                                              //Line  7
    int your_number; //stores the number entered by the user   //Line  8

    cout << "Please enter your favorite number: ";             //Line  9
    cin  >> your_number;                                       //Line 10
    cout << endl;                                              //Line 11
    cout << "Your favorite number is " << your_number << "."   //Line 12
                   << endl;
    cout << "That is a nice number." << endl;                  //Line 13
}                                                              //Line 14

prologue comment   [optional]
include directives [optional]
using directive    [optional]
functions          [optional]
main function
{
      declarations [optional]
      main function body
}

    double Radius, Circumference ;

     const double PI = 3.1416;

    int Hits[12];

Lines 9 and 10 in the numerology program is an example of a prompt followed by an input statement.

Line 12 in the numerology program is an output statement sending four items to the console screen:

1. the literal string of characters,

   Your favorite number is

   (including the space at the end;)
2. the value of your_number;
3. a period; and
4. the end-of-line character, endl.

Outputting Real Numbers: The C++ statement:

    cout.setf(ios::fixed) ;

    cout.setf(ios::scientific) ;

For example, 1234.56789 in fixed-point format is printed as 1.23456789e+3 in scientific notation.

The C++ statement:

    cout.precision(2)

(8.5.2) - The Assignment Statement

The C++ assignment statement corresponds to the computation operation in pseudocode -

in pseudocode corresponds to:

                  variable = expression;

   int A, B, C;

   B = 2;     //sets the value of B to 2
   C = 5;     //sets the value of C to 5
   A = B + C; //sets the value of A to 7
   A = A + 1; //changes the value of A to 8
   B = A + B; //changes the value of B to 10

   int A, B, C, D;

   A = 20 + 5;   //sets the value of A to 25
   B = 20 - 5;   //sets the value of B to 15
   C = 20 * 5;   //sets the value of C to 100
   D = 20 / 5;   //sets the value of D to 4

   int A, B, C, D;

   A = 17;
   B = 6;
   C = A / B ; //sets the value of C to the quotient, 2
   D = A % B ; //sets the value of D to the remainder, 5

   double A, B, C, D, E, F;

   A = 6.75 ;
   B = 4.5 ;
   C = A + B;  //sets the value of C to 11.25
   D = A - B;  //sets the value of D to 2.25
   E = A * B;  //sets the value of E to 30.375
   F = A / B;  //sets the value of F to 1.5

If the variable on the left side of an assignment statement is real and the value of an expression is an integer then the expression value is converted to a real value as it is stored in the variable.

If the variable on the left side of an assignment statement is an integer and the value of an expression is real then the expression value is truncated (by removing the digits of the fraction part) to an integer when it is stored. For example,

double A, B ;
int C ;
A = 4.125 ;
B = 1.5 ;
C = A / B ; // C is set to 2 since that is the integer part of 2.75

The assignment statement can also set the value of a character variable to a particular character:

   char  A, B, C, D ;

   A = 'm' ; //Sets the value of A to the lower-case m
   B = '4' ; //Sets the value of B to the digit 4
   C = ' ' ; //Sets the value of C to the space character
   D = '&' ; //Sets the value of D to the ampersand character

  int count = 0 ;

(8.5.3) - Control Statements

A C++ if-else statement corresponds to a conditional operation in pseudocode and a C++ while statement corresponds to an iterative operation in pseudocode. Both statements evaluate a Boolean condition and modify the flow of control in a program based on the truth or falsehood of that condition.

Boolean Conditions: A Boolean condition can compare two arithmetic values with any of the six comparison operators shown in the following table:

The following table shows some examples of Boolean conditions:

C++ has three Boolean operators, AND, OR, and NOT, to build complex Boolean conditions from simple coonditions. The symbols of the Boolean operators and examples are shown in the following table:

Conditional Statements: The flow chart for a conditional operation in pseudocode is:

   if(Boolean condition)
        Statement1;
   else
        Statement2;

First the Boolean condition is evaluated. If the condition is true then Statement1 is performed - else (i.e., if the condition is false) then Statement2 is performed. Consider the following example where A, B, and C are integer variables:

   if( 2*B < (A + C))
       A = B ;
   else
       C = B ;

But now suppose that A = 2, B = 5, and C = 7 when the condition is evaluated, then 2*B = 10 is not less than (A + C) = 9 so the second statement, C = B, is performed to set C to 5.

An if statement in C++ is an if-else statement without the else clause - no statement is performed if the Boolean condition is false. For example:

  if ( A > LargestSoFar )
      LargestSoFar = A ;

A compound statement is a sequence of C++ statements put between curly braces, { and }. For example, the following C++ code sets Max to the larger of A and B and Min to the smaller of A and B:

  if( A > B )
    {
      Max = A ;
      Min = B ;
    }
  else
    {
      Max = B ;
      Min = A ;
    }

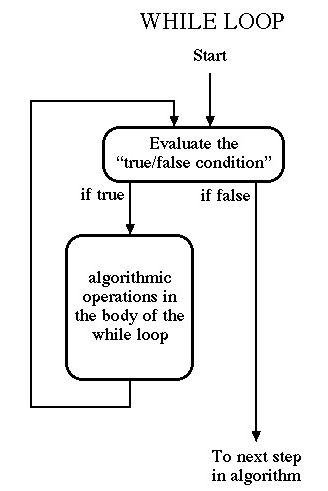

Looping (Iterative) Statements: The left side of the following diagram shows the flowchart of a While Loop in pseudocode and the right side shows the corresponding while statement in C++:

while(Boolean Condition) { ... ... Body of the While Loop ... ... }

As an example, a while loop is used in the following C++ code that adds a series of non-negative numbers together.

Sum = 0; //Initialize Sum
cout << "Please enter numbers to add; ";
cout << "terminate with a negative number." << endl ;
cin  >> Number ; //Get the first number
while(Number => 0)
{
    Sum = Sum + Number;
    cin >> Number; //Get another number
}
cout << "The total is " << Sum << endl ;

Figure 8.16 is pseudocode for a program to process circles.

Get user's choice about continuing
While the user wants to continue
    Get the value of the radius
    Get value for the user's choice of task
    If task choice is circumference then compute and print circumference
        otherwise compute and print area
    Get user's choice about continuing

//program circle - Allows the user to compute the
//circumference or area of circles from their radii.
#include < iostream>
using namespace std;
void main()
{   const double PI = 3.1416;
    double Radius, Circumference, Area ;
    char Task_to_do, More;
    cout.setf(ios::fixed);
    cout.precision(2);
    cout << "Do you want to process a circle? (Y or N): "
    cin  >> More;
    cout << endl;
    while((More == 'Y') || (More == 'y')) //if the shift key is forgotten
    {   cout << "Enter the radius of the circle: "
        cin  >> Radius;
        cout << endl ;
        cout << "Enter your choice of task. << endl ;
        cout << "C to compute circumference, "
             << "A to compute area: ";
        cin  >> Task_to_do ;
        cout << endl ;
        if((Task_to_do=='C')||(Task_to_do=='c')) //if the shift key is forgotten
        {   Circumference = 2 * PI * Radius ;
            cout << "A circle of radius << Radius
                 << " has a circumference of " << Circumference << endl ;
        }
        else
        {   Area = PI * Radius * Radius ;
            cout << "A circle of radius << Radius
                 << " has an area of " << Area << endl ;
        }
        cout << endl ;
        cout << "Do you want to process more circles? (Y or N): "
        cin  >> More;
        cout << endl ;
    }
    cout << "Program will now terminate." << endl ;
}

As an example, we divide the circle program of Fig. 8.14 into three modules (Get input, Compute area, and Compute circumference) as shown in the structure chart of Fig. 8.19.

The pseudocode for the main function of the circle program is shown in Fig. 8.20.

To write the C++ code for the main function we need to give each sub-function an identifier and decide what information is passed between the main function and the sub-function. For the circle program we decide that:

• the Get input sub-task will be performed by the Get_Input function which will ask the user for the Radius and the Task_to_do and pass that information back to the main function;

• the Compute circumference sub-task will be performed by the Do_Circumference function which will get Radius from the main function and compute and output the circumference; and

• the Compute area sub-task will be performed by the Do_Area function which will get Radius from the main function and compute and output the area.

        Get_Input(Radius, Task_to_do) ;
        Do_Circumference(Radius) ;
        Do_Area(Radius) ;

Each call statement contains the identifier for the called function followed by the argument list enclosed in parentheses - the argument list shows all variables pertaining to the called function. Each call statement is a sequential statement - control is passed to the code in the called function and when that code is completed, then control is passed back to the statement following the call statement in the main function.

Figure 8.21 shows the main function of the circle program using these call statements.

void main()
{
    double Radius ;
    char   Task_to_do, More ;
    cout.setf(ios::fixed) ;
    cout.precision(2) ;
    cout << "Do you want to process a circle? (Y or N): " ;
    cin  >> More ;
    cout << endl ;
    while((More == 'Y') || (More == 'y'))
    {
        Get_Input(Radius, Task_to_do) ;
        if((Task_to_do == 'C') || (Task_to_do == 'c'))
        {
            Do_Circumference(Radius) ;
        }
        else
        {
            Do_Area(Radius) ;
        }
        cout << endl ;
        cout << "Do you want to process more circles? "
             << "(Y or N): "
        cin  >> More ;
        cout << endl ;
    }
    cout << "Program will now terminate." << endl ;
}

(8.7.3) - Writing Functions

Here we consider how to write functions. The general outline for any function is:

        function header
        {
            local declarations //optional
            function body
        }

where the function header has three parts:

1. A return indicator to indicate whether the function returns the value of a variable or not. The return indicator is void if the function doesn't return any value.

2. The function identifier which can be any legal C++ identifier.

3. A parameter list enclosed in parentheses corresponding to the argument lists of any statements calling the function. For each argument in an argument list the parameter list contains the type of the information being passed (int, double, char, etc.) followed by an identifier. If the parameter is passing information from the called function to the caller then the identifier must be preceded by an ampersand (&) - no ampersand is required if the parameter is only passing information from the caller to the called function.

void Get_Input(double &Radius, char &Task_to_do )
//The ampersands are required because Radius and Task_to_do
//are passed from Get_Input to the caller.
{
    cout << "Enter the value of the radius of the circle: " ;
    cin  >> Radius ;
    cout << endl ;

    cout << "Enter your choice of task to do." << endl ;
    cout << "C to compute circumference, "
         << "A to compute Area: " ;
    cin  >> Task_to_do ;
    cout << endl ;
}

void Do_Circumference(double Radius)
//No ampersand is required because Radius is only passed from the
//caller to Do_Circumference.
{
    double Circumference ;
    Circumference = 2 * PI * Radius ;
    cout << "If the radius of a circle is " << Radius
         << " then the circumference is " << Circumference << endl ;
}

void Do_Area(double Radius)
//No ampersand is required because Radius is only passed from the
//caller to Do_Area.
{
    double Area ;
    Area = PI * Radius * Radius ;
    cout << "If the radius of a circle is " << Radius
         << " then the area is " << Area << endl ;
}

Nonvoid Functions: The Do_Circumference function described earlier computes the circumference of a circle and then outputs it to cout. The Circumference function shown below just computes the circumference:

double Circumference(double Radius)
{
    return 2 * PI * Radius ;
}

A nonvoid function is invoked whenever its return value is used. For example, the following statement in the main function invokes the Circumference function:

    cout << "If the radius of a circle is " << Radius
         << " then the circumference is "
         << Circumference(Radius) << endl ;

The traditional approach to programming is divide-and-conquer - break the overall task up into simpler sub-tasks that are easily programmed. A different approach is Object-Oriented Programming (OOP) - consider the program as manipulating objects in some domain of interest. As examples:

• objects in a banking system might be checking accounts, savings accounts, and loans;
• objects in the personnel system of a company might be employees; and
• objects in a medical office might be patients, doctors, and nurses.

The idea of a class of objects is similar to the idea of a data type in C++. In the circle program Radius, Circumference, and Area are objects in the double class with one property, numeric quantity - each object in this class has its own specific value for that property.

But in OOP each class of objects may also have some subtasks associated with it - each object in the class can perform those subtasks. For example, a subtask in the savings account class may compute the compound interest - each savings account in the class can compute the interest due on its balance whenever it receives a request to perform that service.

Three terms associated with OOP are:

• Encapsulation: Each class has its own program modules to perform each of its subtasks. The main program (or any other user of the class) can ask an object in the class to perform one of these subtasks but the detailed code for performing the subtask is known only to the class. For example, to change the way a bank computes interest on savings accounts only the code for that subtask in the savings accounts class needs to be changed. Each class has two components, properties and subtasks, bundled (encapsulated) together.

• Inheritance: A class B of objects can be defined to be a subclass of some other already defined class A. Objects in class B inherit all the properties and subtasks of objects in class A but may also be given other properties and/or subtasks. For example, a Senior Citizens Savings Account class may be a subclass of the Savings Account class.

• Polymorphism: Objects in different classes may perform the same subtask but the details of how they perform the subtask may differ. For example, the Compute Interest subtask for Savings Accounts may be different than the Compute Interest subtask for Checking Accounts.

(8.8.1) - A C++ Example

Figure 8.29 shows a C++ program with four classes: Circle, Rectangle, Square, and Square2. After

#include < iostream>
using namespace std ;

• The Circle class has two subtasks, Set_Radius and Do_Area, which are public so users can ask a Circle to perform them. The one property, Radius, is private so no users can read it or change it by mistake.

  ---

  class Circle
  {
  public:
      void Set_Radius(double value) ;
      //Sets the radius of the circle to value
      void Do_Area() ;
      //Computes and prints out the area of the circle
  private:
      double Radius ;
  }


  ---

• The Rectangle class has three subtasks, Set_Width, Set_Height, and Do_Area, which are public so users can ask a Rectangle to perform them. The two properties, Width and Height, are protected so only a Rectangle or a member of a subclass can read and/or change them.

  ---

  class Rectangle
  {
  public:
      void Set_Width(double value) ;
      //Sets the width of the rectangle to value
      void Set_Height(double value) ;
      //Sets the height of the rectangle to value
      void Do_Area() ;
      //Computes and prints out the area of the rectangle
  protected:
      double Width ;
      double Height ;
  }


  ---

• The Square class has two subtasks, Set_Side and Do_Area, which are public so users can ask a Square to perform them. The one property, Side, is private so no users can read it or change it by mistake.

  ---

  class Square
  {
  public:
      void Set_Side(double value) ;
      //Sets the side of the squaree to value
      void Do_Area() ;
      //Computes and prints out the area of the square
  private:
      double Side ;
  }


  ---

• The Square2 class is a subclass of the Rectangle class so it inherits the Do_Area subtask of the Rectangle class. The Set_Side subtask is public so users can ask a Square2 to perform it. There is no property in this class because the code for Set_Side sets both the Width and Height of the Rectangle to the value.

  ---

  class Square2: public Rectangle
  {
  public:
      void Set_Side(double value) ;
      //Sets the side of the square to value
  }


  ---

void main()
{
    Circle Joe ;
    Joe.Set_Radius(23.5) ;
    Joe.Do_Area() ;

    Rectangle Luis ;
    Luis.Set_Width(12.4) ;
    Luis.Set_Height(18.1) ;
    Luis.Do_Area() ;

    Square Anastasia ;
    Anastasia.Set_Side(3) ;
    Anastasia.Do_Area() ;

    Square2 Tyler ;
    Tyler.Set_Side(4.2) ;
    Tyler.Do_Area() ;
}

void Circle::Set_Radius(double value)
{
    Radius = value ;
}

void Circle::Do_Area()
{
    double Area ;
    Area = PI * Radius * Radius ;
    cout << "A circle with radius " << Radius << " has an area of "
         << Area << endl ;
}

void Rectangle::Set_Width(double value)
{
    Width = value ;
}

void Square2::Set_Side(double value) ;
{
    Width = value ;
    Height = value ;
}

(8.8.2) - What Have We Gained?

OOP is a popular way of programming because it has these advantages:

• Software reuse: Once a class has been coded and proven to work correctly then it can be saved in a library for use in other programs. Using a tried-and-true class from the library is faster and more reliable than writing it again from the start.

• A more natural world view: Instead of thinking about tasks, subtasks, and algorithms; a programmer can think about the objects in the domain of interest and how they interact with each other.

User input and output in early computers was text-oriented - users would enter data on a keyboard and see the output as text on a screen. Now we have graphical user interfaces (GUIs) that display output as imagery on a screen and allow the user to use a mouse to enter input.

For example, to copy, edit, delete, move, and print files, users don't have to learn dozens of text-oriented commands - a GUI can present users with a simple, easy to understand image like the one on page 398 of the text.

(8.9.1) - Graphics Primitives

A modern terminal screen uses a bitmapped display - thousands or millions of pixels (picture elements) arranged in a two-dimensional array as shown in Figure 8.32.

A high-resolution (1560 x 1280) display has 1280 horizontal lines (maxY = 1279) and 1560 pixels in each line (maxX = 1559) for a total of 1,996,800 pixels.

The image on the display is stored internally in a frame buffer. The color of each pixel is some mixture of the three primary colors, red, blue, and green so each pixel requires three bytes of storage. The frame buffer for a high-resolution display needs 5,990,400 bytes. Figure 8.33 shows that if the three bytes in column 24 of row 47 of the frame buffer all have zero values, then the color of pixel (24, 47) on the screen is black.

The typical graphics library contains hundreds of functions that can be used to draw an image on the screen. The text describes a simple black-and-white graphics library with the following ten functions:

1. clearscreen(I): Clears the graphics window to an all-white background if integer I = 0 or to an all-black background if I = 1.

2. moveto(x, y): Moves the pen to pixel (x, y) on the screen without drawing anything.

3. getmaxx(): Returns the integer value of maxX to show the width of the graphics window.

4. getmaxy(): Returns the integer value of maxY to show the height of the graphics window.

   For example the following code moves the pen to the middle of the graphics window:

       X = getmaxx() ;
       Y = getmaxy() ;
       moveto(X/2, Y/2) ;


5. setcolor(I): Sets the color of the pen to white if I = 0 or to black if I = 1. Setting the pen color to the color of the background will erase part of an image.

6. lineto(x, y): Draws a straight line from the current pen position to pixel (x, y). For example, the code:

       clearscreen(0) ;
       setcolor(1) ;
       moveto(20, 20) ;
       lineto(100, 100) ;


   draws a black line from pixel (20, 20) to pixel (100, 100).

7. rectangle(x1, y1, x2, y2): Draws a rectangle with pixels (x1, y1) and (x2, y2) in the upper-left and lower-right corners. For example, the code:

       rectangle(25, 60, 75, 100) ;


   or the code:

       rectangle(75, 100, 25, 60) ;


   draws a rectangle with corners at pixels (25, 60), (75, 60), (75, 100), and (25, 100).

8. circle(x, y, r): Draws a circle of radius r centered at pixel (x, y). For example, the code:

       circle(100, 150, 125) ;


   draws a circle where every part that is beyond the window boundaries being clipped.

9. writedraw(value, x, y): Displays the value of an integer or a text-string starting at pixel (x, y) in the lower-left corner. For example, the code:

       circle(200, 200, 40) ;
       writedraw("Stop", 186, 200) ;


   draws a circle with the message "Stop" in the middle.

10. getmouse(x, y): Inputs the pixel coordinates (x, y) of the last mouse click. For example, if earlier code:

        rectangle(100, 100, 150, 200) ;
        writedraw("Stop", 111, 150) ;


    drew a rectangle labelled "Stop";

    then this code will test to see if the user clicked the mouse inside the rectangle:

        getmouse(X, Y) ;
        if( (X >= 100) && (X <= 150) && (Y >= 100) && (Y <= 200) )
        {
            //the user clicked inside the rectangle
            //and wants to Stop
        }
        else
        {
           // the user clicked somewhere else
        }


Hint: Use the Pythagorean Theorem for right triangles - the square of the hypotenuse equals the sum of the squares of the other two sides.

(8.9.2) - An Example of Graphics Programming

Here we show the code for drawing a titled window.

This code draws a narrow Title rectangle with a large rectangle below it:

    clearscreen(0) ;
    setcolor(1) ;
    rectangle(50, 50, 350, 80) ;
    rectangle(50, 80, 350, 330) ;

Then this code draws four lines to divide the top rectangle into thirds horizontally and vertically:

    moveto(50, 60);  lineto(150, 60) ;
    moveto(50, 70);  lineto(150, 70) ;
    moveto(250, 60); lineto(350, 60) ;
    moveto(250, 70); lineto(350, 70) ;

and then a writedraw command is added to insert the title:

    clearscreen(0) ;
    setcolor(1) ;
    rectangle(50, 50, 350, 80) ;
    rectangle(50, 80, 350, 300 ) ;
    moveto(50, 60) ;  lineto(150, 60) ;
    moveto(50, 70) ;  lineto(150, 70) ;
    moveto(250, 60) ; lineto(350, 60) ;
    moveto(250, 70) ; lineto(350, 70) ;
    writedraw("Title", 180, 70 ) ;
