Piggyback server invalidation for proxy cache coherency
Balachander Krishnamurthya and Craig
E. Willsb
aAT&T Labs–Research,
Florham Park, NJ 07932 USA
bala@research.att.com
bWorcester Polytechnic Institute,
Worcester, MA 01609 USA
cew@cs.wpi.edu
-
Abstract
-
We present a piggyback server invalidation (PSI) mechanism for maintaining
stronger cache coherency in Web proxy caches while reducing overall costs.
The basic idea is for servers to piggyback on a reply to a proxy client,
the list of resources that have changed since the last access by the client.
The proxy client invalidates cached entries on the list and can extend
the lifetime of entries not on the list. This continues our prior work
on piggyback cache validation (PCV) where we focused on piggybacking validation
requests from the proxy cache to the server. Trace-driven simulation of
PSI on two large, independent proxy log data sets, augmented with data
from several server logs, shows PSI provides close to strong cache coherency
while reducing the request traffic compared to existing cache coherency
techniques. The best overall performance is obtained when the PSI and PCV
techniques are combined. Compared to the best TTL-based policy, this hybrid
policy reduces the average cost (considering response latency, request
messages and bandwidth) by 7–9%, reduces the staleness ratio by 82–86%,
yielding a staleness ratio of 0.001.
-
Keywords
-
Cache coherency; Proxy cache; Server invalidation
1. Introduction
Caching is widely used in the Web at the browser and proxy level. Previously,
we studied piggyback cache validation (PCV) [7],
a technique to improve cache coherency and reduce the cache validation
traffic between proxy caches and servers. We focused on using the information
available in the cache and partitioned resources on the basis of originating
server. When a server is contacted again, the proxy client piggybacked
a list of cached, but potentially stale, resources obtained from that server
for validation. The server replied with the subset of resources that are
no longer valid. PCV yielded stronger cache coherency and reduced costs
by using the validations to extend the expiration time for cached resources
and reduce the need for GET If-Modified-Since (IMS) requests.
In this work, we combine resource information available to servers with
the piggybacking technique to create a mechanism called piggyback server
invalidation (PSI). Servers partition the set of resources at a site into
volumes, either a single site-wide volume or related subsets of
resources and maintain version information for each volume. When a server
receives a request from a proxy client containing the client's last known
version of the volume, it piggybacks a list of volume resources modified
since the client-supplied version. The proxy client invalidates cached
entries on the list and can extend the lifetime of entries not on the list.
Servers maintain volume, but no proxy-specific information. While the mechanism
could be used by browser clients, we focus our discussion on its use by
proxy clients, where there are more cached resources.
The aim of the PCV and PSI mechanisms is the same — use piggybacking
to eliminate stale entries from a proxy cache while extending the lifetime
of valid entries without introducing additional network traffic. However,
the mechanisms differ in their use of resource information and piggybacking.
The PCV mechanism uses resource information available only to a proxy while
PSI can group resources based on access patterns and modification characteristics
known only to a server. The PSI mechanism does require changes to existing
Web servers for implementation. The PCV mechanism piggybacks a list of
resources in the proxy cache for validation, which can cause validation
checks for resources that have not changed. The PSI piggybacks a list invalidated
resources, which have changed at the server, but may not be cached at the
proxy. For both mechanisms, this unused piggybacked information creates
additional bandwidth and latency overhead.
In this work, we study the PSI approach, comparing its performance and
overhead to the PCV approach and existing cache coherency techniques. The
study was carried out using trace driven simulation on two large independent
proxy log data sets. Proxy logs do not have the information regarding when
resources change on the server and thus the number of invalidations that
would be generated between client accesses. In the absence of such end-to-end
logs we studied a number of representative server logs to obtain a measure
of invalidations that do occur between successive client accesses and used
this measure in the simulation.
The rest of this paper is organized as follows: we begin with a discussion
of related work in the field of file systems and the Web in Section 2.
Section 3 describes piggyback server invalidation
in more detail and discusses approaches for its implementation. Section
4 presents the environment and evaluation criteria
for studying various PSI-based cache coherency policies. Section 5
provides the results of this study. Section 6
summarizes the results and discusses alternative approaches.
2. Related work
Previous work on server invalidation [8], explored
server invalidation by propagating resource changes to all clients that
accessed a resource since its previous modification. While this was to
guarantee strong cache coherency. it required the server to maintain a
client list for each resource, which could become out-of-date as clients
may no longer have previously accessed resources in their cache. In addition,
invalidations are sent as separate messages, thus generating more network
traffic. In the event of network failures, even the guarantee of strong
cache coherency could be lost. The number of invalidations can be reduced
by using the concept of ``leases'' where a server grants a lease whenever
a client uses an GET IMS request indicating a subsequent access for the
resource. This approach reduces the number of invalidation messages generated
by a server at the expense of more GET IMS requests generated by clients.
In file systems, the Andrew File System [5] introduced
the concept of volume validation whereby a group of files could be checked
for modification. Jeff Mogul's work on callback-based caching in NFS [10]
dealt with revocation (indicating that a cached instance has changed on
the disk). He also proposed volumes [11]
as a way to partition the collection of Web resources on the basis of some
shared characteristic: proximal existence on the file system (same directory),
identical content types, similar rate of change etc. This proposal suggested
piggybacking an invalidation of the entire volume if any volume resource
changed. In contrast, our work piggybacks the list of resources that have
changed in the volume.
In terms of cache coherency, client validation is another approach to
ensure strong cache coherency. In this approach, the proxy treats cached
resources as potentially out-of-date on each access and sends a GET IMS
request to the server on each access of the resource resulting in many
304 (Not Modified) responses. A common weak consistency approach is for
the proxy to adopt an adaptive time-to-live (TTL) expiration time (also
called the Alex protocol [1] based on the last modified
time [4]). The older the resource, the longer the time
period between validations.
3. Piggyback server invalidation
In implementing the PSI mechanism servers group resources into volumes
as suggested in [11]. Each volume has a unique
identifier and a current version. Whenever a resource changes within a
volume, the server updates the volume version and records the resource(s)
that changed between the previous and current version.
Each proxy client maintains the current set of server volume identifiers
and versions for resources in its cache. When a proxy needs to request
a resource from a server, it looks up the current volume identifier and
version for the resource and piggybacks this information as part of the
request. If the volume identifier is unknown or if the proxy does not have
a version for the volume, then it requests such information to be piggybacked
in the reply.
In response, the server piggybacks the volume identifier, the current
volume version and a list of resources from this volume that have changed
between the proxy-supplied and current version. The proxy client updates
its volume version, uses the list to invalidate cached entries from this
volume and possibly extends the expiration time for volume resources that
were not invalidated.
The basic description of the PSI mechanism leads to a number of questions
for its implementation, which we explore in this work. Grouping sets of
resources into volumes is a central question. The simplest approach is
to group all resources at a server site into a single volume. Another approach
is to group resources based on the first level prefix of the resource pathname.
Other questions concern how a proxy client should combine server invalidations
with a cache validation policy. The client could do no additional validation
of cache contents and depend solely on server invalidations to maintain
cache coherency or use a TTL-based coherency approach to explicitly validate
potentially stale entries that have not been invalidated. Another question
is whether a proxy client should treat the lack of an invalidation message
from a server as an implicit validation of all cached resources from that
volume and extend the expiration time for these resources according to
the client validation policy in effect. A proxy client could also combine
the PSI mechanism with PCV to create a hybrid approach where the choice
of the mechanism depends on the time since the proxy last requested invalidations
for the volume and the number of cached resources in the volume.
4. Study
4.1. Proxy cache logs
We studied the relative merits of various PSI policy implementations using
a trace-driven simulation with two independent proxy log data sets — one
from AT&T Labs–Research [12] and one from Digital
Equipment Corporation [2]. Characteristics
of these client logs are summarized in Table 1.
The change ratio value in Table 1 is defined
in [3] as the ratio of new instances to total references
for a resource (the fraction of references to a resource that yield a changed
instance). In our work this value was determined by comparing the last
modification time of successive instances of a resource if known or by
looking for size changes if the time is unknown.
Table 1. Proxy log characteristics
Log |
Time period |
Requests (mill.) |
Requests/hour |
Repeat ref. ratio |
Change ratio |
Digital |
Sep 16–22, 1996 |
6.41 |
40031 |
0.69 |
0.088 |
AT&T |
Nov 8–25, 1996 |
1.11 |
2806 |
0.56 |
0.125 |
4.2. Server generated invalidations
For the PSI-based policies, the proxy logs contain information to determine
if a resource in the cache is invalidated. However, the proxy logs lack
information regarding when resources change on the server and thus the
total number of invalidations that would be generated between successive
client accesses. To compensate for the unavailable information, we studied
representative server logs to obtain the number of resource modifications
that occur at a server for each minute interval between accesses by a client.
This number is used in the proxy log simulation in conjunction with the
time between successive accesses to a server to determine an expected
number of invalidations that would be piggybacked on the reply. This expected
number is used to estimate the bandwidth overhead of the PSI mechanism.
We analyzed the number of server generated invalidations for a variety
of relatively recent (all logs include 1997 data) server logs. We obtained
server logs from Sun Microsystems, the Apache HTTP Server Project, the
National Center for Supercomputer Applications (NCSA) and the Victoria
University of Wellington, New Zealand School of Mathematical and Computing
Sciences (VUW). Characteristics of the server logs are summarized in Table
2.
Table 2. Server log characteristics
Log (days) |
Requests (mill.) |
Requests/
hour |
Repeat ref. ratio |
Change ratio |
Invalidations
/min.
interval |
Invocation./
min. interval (top-level prefix) |
Sun (9) |
1.20 |
55606 |
0.23 |
0.012 |
2.12 |
0.09 |
Apache (49) |
2.93 |
2493 |
0.37 |
0.078 |
0.51 |
0.07 |
NCSA (10) |
0.38 |
1568 |
0.11 |
0.010 |
0.01 |
0.00 |
VUW (40) |
0.36 |
378 |
0.53 |
0.051 |
0.06 |
0.01 |
VUWlmod (40) |
0.36 |
378 |
0.53 |
0.077 |
0.10 |
0.02 |
Analysis of the server logs shows a near direct correlation between the
number of resources that changed in a server volume and the interval since
a client last accessed the volume. The second-to-last column in Table 2
captures this relationship by showing the number of invalidations that
occur in a volume relative to the number of minutes between accesses to
the volume from the same client. The numbers in this column assume that
all resources at a server are treated as a single volume. The last column
in the table shows the number of invalidations if the resources at a server
are grouped into volumes according to the top-level prefix of the resource
pathname. The number of invalidations drops, particularly for the Sun logs.
We used these results to determine a representative number of invalidations
per minute of access interval for servers in our simulation study. by considering
how resource changes are detected in the server logs. In all but one case
of the server logs we obtained, last modification time information was
not available. Thus, resource changes for the server logs are detected
when the size changes between successive accesses of a resource and this
change is not the result of an aborted client connection (when the size
returned is a multiple of 8K bytes). Obviously this approach for detecting
changes misses the case where a resource is modified, but unchanged in
size.
The VUW server logs were augmented to include last modification time
information for the files. The results using last modification times to
detect resource changes are shown in the last row of Table 2.
The change ratio values for the two VUW results show that about two-thirds
of the changes detected using the modification times were detected using
size-only changes. Moreover, analysis of the AT&T and Digital proxy
logs shows that 80% and 95% of the resource changes detected using last
modification times also indicate a change in resource size. These comparisons
showed that to use only the resource size to detect changes misses up to
a third of the actual changes. Further analysis of the VUW site shows that
only another 8% of the resources were modified in the file system between
the their last entry in the server log and the end of the study.
Based on these results, our simulation uses a base value of 2.0 invalidations
per each minute interval for site-wide volumes and 0.1 invalidations per
minute for volumes determined by the top-level prefix of a resource. These
values are closest to the Sun server logs, but not as high as if we adjusted
the Sun values because it uses only size-based changes. As part of our
presentation of results we show the sensitivity of these results to the
number of generated invalidations.
4.3. Baseline policies and evaluation
criteria
As part of the study, four baseline cache coherency policies were established
for comparison with PSI-based policies. The pcvadapt policy implements
piggyback cache validation where on a request to a server, a proxy client
piggybacks a list (maximum size of 50 used in study) of cached, but potentially
stale resources from that server for validation [7].
The pcvadapt policy uses an adaptive TTL expiration time based on a fraction
(0.1 used in study) of the age of the resource with a maximum expiration
time of one hour. The ttladapt policy uses an adaptive time-to-live expiration
time based on resource age with no piggybacking. The upper bound for a
resource expiration time is fixed at one day. The alwaysvalidate policy
generates a GET IMS request for every access of a cached resource ensuring
strong coherency, but causes a request to the server for every resource
access. The nevervalidate policy has an infinite expiration time; cached
resources are never validated. This policy minimizes costs by always using
the cached copy of a resource, but results in the most use of stale copies.
These baseline policies are compared with PSI-based policies using the
costs for three evaluation criteria: response latency, bandwidth and number
of requests [7]. We use a normalized cost model
for each of the three evaluation criteria where each of these costs is
defined to be 0.0 if a GET request can be retrieved from the proxy cache;
1.0 for an average GET request to a server with full resource reply (status
200). In the Digital logs, the average values are 12279 bytes of bandwidth
usage (includes contents and headers), 3.5 seconds of latency and one request
for an average retrieval. In the AT&T logs, the average values are
8822 bytes of bandwidth, 2.5 seconds of latency and one request.
The cost of a Validate (GET IMS) request, which returns a validation
of the current cache copy (304 response), is computed relative to the cost
of a full GET request for the log. This request is just as expensive as
a full GET request in terms of requests, of intermediate cost (0.36 Digital,
0.12 AT&T) in terms of response latency and of little cost (0.03 Digital,
0.04 AT&T) in terms of bandwidth. A fourth evaluation criterion, the
average of the costs for the other three criterion, is used as a composite
criterion.
The total cost for each criterion for a simulation run using a cache
coherency policy is computed by multiplying each normalized cost by the
relative proportion of requests requiring GET, Validate, and cache retrieval
actions.
In addition to costs, staleness is evaluated as the ratio of the known
stale cache hits divided by the number of total requests (both serviced
from cache and retrieved from the server). This definition deflates ratios
in comparison to the traditional measure of stale in-cache hits, but allows
fairer comparison of the policies, which differ in their in-cache ratios.
4.4. PSI implementation costs
The detection of resource changes at the server is a potentially significant
cost in implementing the PSI mechanism. One approach is for the server
to maintain a list of resources that have been recently accessed, and use
an external mechanism, such as COLA [6], to notify
the server when any of these resources change. The cost of detection could
be controlled by limiting the list to resources accessed over a fixed time
such as the last day and tagging dynamically generated resources as uncacheable.
The presence of this detection mechanism was assumed in our simulation
results. Its overhead is estimated by determining the number of resources
on the recently accessed list that change, each of which causes COLA to
incur two checks on the file modification time. As a measure of this cost,
the Sun server logs indicate a rate of 18 changes per minute or 0.04 checks
per request. No direct cost was charged for this overhead in the simulation.
An alternate approach for detecting changes is discussed in Section 6.
Charges are incurred in the simulation for the additional piggybacked
bytes sent on the network for the PSI mechanism. These charges are for
the proxy client to request invalidations by sending a volume identifier
and version along with the piggybacked server reply containing the volume
identifier, version and list of invalidated resources. In the simulation,
20 bytes is added for each piggybacked field and 25 bytes for each piggybacked
resource name. These charges are conservative and techniques such as prefix
sharing can reduce them. In addition a byte latency of 0.25 ms, derived
from our data, is added to the response latency for each additional byte
(this is consistent with [9]).
5. Results
We created scenarios to test the implementation approaches outlined in
Section 3 for studying PSI-based cache coherency
policies. We used a standard LRU cache replacement policy for all simulations
and varied the proxy cache size from 1MB to 8GB. In order to restrict proxy
client requests for invalidations to situations in which more useful invalidation
information would be received, invalidations are not requested if the volume
of the current request has been accessed within the last minute. Results
show that this restriction limits invalidation requests and replies to
10–25% (depending on simulation parameters and policy) of total GET requests.
Similarly, requests for invalidations are not generated if the last access
to a volume has been over 24 hours.
5.1. PSI with different proxy
cache coherency strategies
Our first scenario tested the combination of the PSI mechanism with different
proxy cache coherency policies. Three variations were tested (all use a
single site-wide server volume):
-
nevervalidate-psi — This policy implements piggyback server invalidation
with the proxy client taking no other action for cache coherency. A previously
cached resource is always used unless it has been invalidated by the PSI
mechanism.
-
ttladapt-psi — This policy implements PSI to invalidate cached resources,
but in addition the proxy cache uses the ttladapt policy to maintain additional
coherency.
-
ttladapt-psicv — This policy implements PSI to invalidate cached
resources and uses the ttladapt policy at the proxy client to maintain
additional coherency. In addition, the proxy client treats the lack of
an invalidation from a server as an implicit validation of cached resources
from that server volume and extends the expiration times according to the
ttladapt policy.

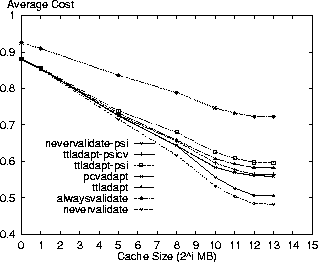

Figure 1 shows the average cost for these three
policies along with the four baseline policies. As found in [7],
the performance differences between policies is primarily a function of
the proportion of Validate requests. Graphs for the request, response latency
and bandwidth costs (not shown) show similar shapes with more distinction
between the policies for request costs and less for the other two costs.
As expected, the alwaysvalidate policy performs the worst, while the nevervalidate
policies incur the least costs because they never validate the cache contents.
The ttladapt-psicv policy incurs the least cost of the PSI-based policies

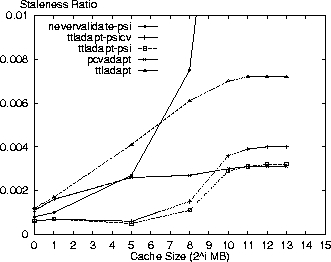

doing proxy validation — comparable to pcvadapt. Figure 2
shows the staleness for the policies under study. The PSI-based policies
combined with ttladapt perform the best, degrading a little with a bigger
cache as more stale resources reside in cache without the proxy receiving
a piggybacked invalidation. The nevervalidate-psi policy reaches a staleness
ratio of 0.03 for an 8GB cache. As a benchmark, the nevervalidate policy
(not shown) reaches a staleness ratio of 0.07 for an 8GB cache.
The high staleness ratio of the nevervalidate-psi policy indicates the
PSI mechanism needs to be augmented with client validation. Ttladapt-psicv
and ttladapt-psi are the two best PSI-based policies with the former incurring
lower costs and the latter lower staleness. Selecting ttladapt-psicv for
comparison, it reduces the average cost by 3% and staleness by 44% in relation
to the ttladapt policy, the best existing policy, for an 8GB cache. It
has a 1% higher average cost and a 29% higher staleness than the pcvadapt
policy.
Fig. 1. Average cost versus cache size for AT&T logs using
PSI with different proxy cache coherency strategies.
Fig. 2. Staleness ratio versus cache size for AT&T logs using
PSI with different proxy cache coherency strategies.
The same tests were performed on the Digital logs with similar results.
The nevervalidate policy results in a staleness ratio of 0.04 for an 8GB
cache with the nevervalidate-psi policy yielding a much lower staleness
ratio (less than 0.01) than for the AT&T logs because of the lower
change ratio in the Digital logs. For an 8GB cache, the ttladapt-psicv
policy reduces the average cost by 6% and staleness by 75% over ttladapt.
The policy has a 1% increase in average cost and a 30% decrease in staleness
in comparison to pcvadapt. The policy costs are lower for the Digital logs
because fewer Validate requests are generated.
5.2. PSI with different volume
strategies
The next scenario tested the PSI mechanism using the top-level prefix to
group resources into volumes. Using multiple volumes at a server reduces
the number of server invalidations as shown in the last column of Table
2. Two policies were tested:
-
ttladapt-psicv-cur — This policy implements PSI to invalidate cached resources
in the volume of the current resource being requested. Otherwise,
the proxy client uses the ttladapt policy with the lack of invalidation
for cached resources in the same volume as the current resource treated
as an implicit validation to extend the expiration time.
-
ttladapt-psicv-cli — This policy implements PSI to invalidate cached
resources by including the identifier and version for all server
volumes currently containing cached resources at the proxy client.
This policy potentially invalidates all cached resources from the server,
but increases the overhead of sending volume identifier and version information.
Figures 3 and 4 show
the performance of these policies along with ttladapt-psicv, which uses
site-wide volumes, and the baseline policies. The results show that the
ttladapt-psicv-cur policy provides comparable performance to ttladapt-psicv
in reducing the average cost by 4% and the staleness by 38% when compared
to the ttladapt policy for an 8GB cache. The ttladapt-psicv-cli policy
performs worse as the increased overhead for volume invalidations does
not result in significantly better staleness results. The Digital logs
contain anonymous entries and cannot be used to test alternate volume strategies.

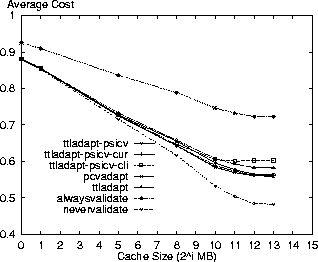

Fig. 3. Average cost versus cache size for AT&T logs using
PSI with different volume strategies.

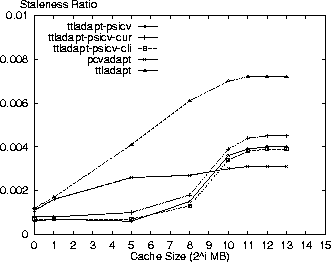

Fig. 4. Staleness ratio versus cache size for AT&T logs using
PSI with different volume strategies.
5.3. PSI with piggyback cache
validation
The third scenario we investigated looks at the potential of combining
server invalidation with proxy client validation to maintain proxy cache
coherency. Different variations were tested using site-wide volumes with
the best variation as follows:
-
pcvadapt-psicv-hy — This policy is a hybrid of PSI and PCV policies where
the proxy client requests invalidations to be sent if the time since the
last access to a volume is less than one hour (maximum resource expiration
time), otherwise the proxy client uses the pcvadapt policy to do client
validation of cached resources.
The simulation results show that the hybrid policy reduces the average
cost by 3% and the staleness ratio by 68% in comparison to the pcvadapt
policy for an 8GB cache using the AT&T logs. In absolute terms, the
staleness ratio is 0.001 — the policy is close to strongly coherent. In
comparison to ttladapt, average costs are reduced 7% and the staleness
ratio by 86%. The Digital logs show similar results with a 2% average cost
and 50% staleness reduction compared to pcvadapt, and a 9% cost and 82%
staleness reduction compared to the ttladapt policy. Again the staleness
ratio for an 8GB cache is 0.001.
5.4. Sensitivity analysis
The final scenario we tested was the sensitivity of the results to changes
in the number of invalidations per minute interval. The base values we
used were 2.0 invalidations for each minute interval with site-wide volumes
and 0.1 invalidations per minute for volumes based on the top-level prefix.
For an 8GB cache with the AT&T logs, the costs for the ttladapt-psicv
policy increase by 2% if the number of invalidations doubles to 4.0 for
each minute interval and increase by 6% if the number doubles again to
8.0. In contrast, the average cost of the pcvadapt-psicv-hy policy increases
by less than 1% when the number of invalidations is increased. Similar
analysis for top-level volumes also yielded virtually no change for generated
invalidations values of 0.2 and 0.4. The insensitivity of the latter two
results suggests PSI is a cost-stable mechanism when there is a tight limit
on the interval between invalidation requests or related resources are
grouped together.
6. Summary and future work
The results of this work show that the piggyback server invalidation mechanism
can be combined with a proxy TTL-based coherency policy to yield close
to strong cache coherency at a lower cost than current cache coherency
policies. Cache coherency is improved by invalidating stale resources and
costs are reduced by extending the expiration time of cached resources
to reduce the number of GET IMS requests. In the simplest implementation,
all the resources at a site are treated as a single site-wide volume, but
this approach can generate a large number of piggybacked invalidations
from sites with frequently changing resources. This sensitivity is sharply
reduced when resources are grouped into volumes, such as using the top-level
prefix of a resource pathname. The best results using the PSI mechanism
come when it is combined with piggyback cache validation. This hybrid policy
provides nearly strong cache coherency with a staleness ratio of 0.001
and a 6–9% reduction in overall costs in comparison to the best TTL-based
policy. In contrast to the PCV mechanism, the PSI mechanism does require
changes to existing Web servers for implementation.
Our work thus far on the PSI mechanism suggests a number of directions
for future work. One issue with the PSI mechanism is how servers detect
changes to resources. An interesting alternate approach for detecting changes
is for a server to store the last modification time for each resource on
its list of resources that have recently been accessed. Rather than use
an external mechanism for detection, it could compare the last modification
times of successive resource requests to detect changes. This approach
introduces potential delay between when a resource change occurs and the
server discovers it, but avoids an external mechanism.
Other techniques to construct volumes could also be studied. These techniques
include looking at the rate of change of resources and grouping resources
that change with similar frequency into a volume, thus maximizing the usefulness
of the invalidation information. From related work [3],
we know that there is correlation between content type and rate of change
of pages; for example, image types change less often than text pages. This
correlation argues for a grouping based on content type. Construction of
volumes with tighter relationships between the resource elements could
lead to exploration of invalidating entire volumes rather than selective
resources within such volumes as suggested in [11].
This approach reduces the amount of piggybacked traffic, but could result
in more GET IMS requests from a client if valid cached resources are marked
as potentially stale.
Acknowledgments
We thank Jeff Mogul for discussions regarding volumes early on and for
comments on a draft version of the paper. Jennifer Rexford's detailed comments
helped with the presentation. We also thank Anja Feldmann, Pawan Goyal
and Misha Rabinovich for reviewing a draft version of the paper. This work
would be impossible but for the various logs provided by Digital Equipment
Corporation, Sun Microsystems, AT&T, Victoria University of Wellington,
the National Center for Supercomputer Applications and the Apache Group.
We thank them all.
References
-
[1]
-
V. Cate, Alex — a global filesystem, in: Proceedings of the USENIX
File System Workshop, USENIX Association, May 1992, pp. 1–12.
-
[2]
-
Digital Equipment Corporation, Proxy cache log traces, September
1996,
ftp://ftp.digital.com/pub/DEC/traces/proxy/webtraces.html.
-
[3]
-
F. Douglis, A. Feldmann, B. Krishnamurthy, and J. Mogul, Rate of
change and other metrics: a live study of the World Wide Web, in: Symposium
on Internet Technology and Systems, USENIX Association, December 1997,
http://www.usenix.org/publications/library/proceedings/usits97/douglis_rate.html.
-
[4]
-
J. Gwertzman and M. Seltzer, World-Wide Web cache consistency, in:
Proceedings of the USENIX Technical Conference, USENIX Association,
January 1996, pp. 141–152,
http://www.usenix.org/publications/library/proceedings/sd96/seltzer.html.
-
[5]
-
J.H. Howard, M.L. Kazar, S.G. Menees, D.A. Nichols, M. Satyanarayanan,
and R.N. Sidebotham, Scale and performance in a distributed file system,
ACM Transactions on Computer Systems, 6(1): 55–81, February 1988.
-
[6]
-
E. Krell and B. Krishnamurthy, COLA: customized overlaying, in: USENIX
San Francisco Winter 1992 Conference Proceedings, 1992, pp. 3–7.
-
[7]
-
B. Krishnamurthy and C.E. Wills, Study of piggyback cache validation
for proxy caches in the World Wide Web, in: Symposium on Internet Technology
and Systems, USENIX Association, December 1997,
http://www.usenix.org/publications/library/proceedings/usits97/krishnamurthy.html.
-
[8]
-
C. Liu and P. Cao, Maintaining strong cache consistency in the World-Wide
Web, in: Proc. of the 17th IEEE International Conference on Distributed
Computing Systems, May 1997,
http://www.cs.wisc.edu/~cao/papers/icache.html.
-
[9]
-
S. Manley and M. Seltzer, Web facts and fantasy, in: Symposium
on Internet Technology and Systems, USENIX Association, December 1997,
http://www.usenix.org/publications/library/proceedings/usits97/manley.html.
-
[10]
-
J. Mogul, Recovery in spritely NFS, Computing Systems, 7(2):
201–262, Spring 1994, http://www.research.digital.com/wrl/techreports/abstracts/93.2.html.
-
[11]
-
J. Mogul, An alternative to explicit revocation? January 1996,
http://weeble.lut.ac.uk/lists/http-caching/0045.html.
-
[12]
-
J.C. Mogul, F. Douglis, A. Feldmann, and B. Krishnamurthy, Potential
benefits of delta-encoding and data compression for HTTP, in: ACM SIGCOMM'97
Conference, September 1997,
http://www.acm.org/sigcomm/sigcomm97/papers/p156.html.
Vitae
Balachander Krishnamurthy is a Senior Member
of Technical Staff at AT&T Labs–Research in Florham Park, New Jersey,
USA.
Craig E. Wills is an associate professor in
the Computer Science Department at Worcester Polytechnic Institute. His
research interests include distributed computing, operating systems, networking
and user interfaces.
