RakNet::BitStream Class Reference

#include <BitStream.h>

List of all members.

Public Member Functions
	BitStream ()
	Default Constructor.
	BitStream (const unsigned int initialBytesToAllocate)
	Create the bitstream, with some number of bytes to immediately allocate.
	BitStream (unsigned char *_data, const unsigned int lengthInBytes, bool _copyData)
	Initialize the BitStream, immediately setting the data it contains to a predefined pointer.
	~BitStream ()
void	Reset (void)
	Resets the bitstream for reuse.
template<class templateType >

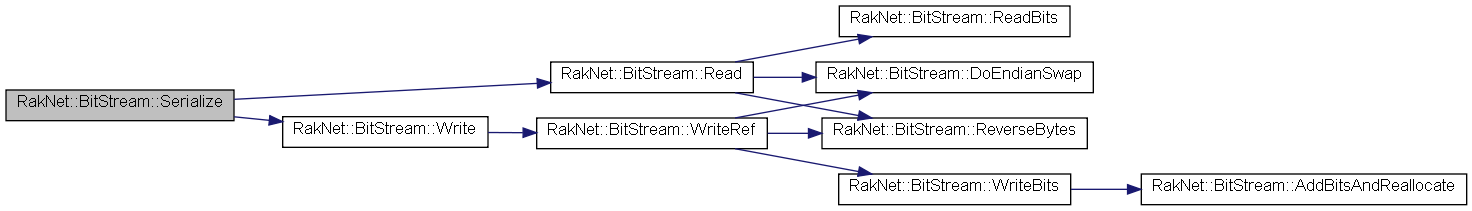

bool	Serialize (bool writeToBitstream, templateType &inOutTemplateVar)
	Bidirectional serialize/deserialize any integral type to/from a bitstream.
template<class templateType >

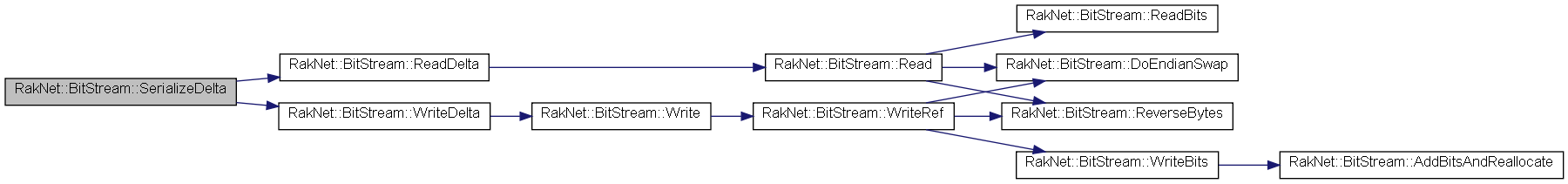

bool	SerializeDelta (bool writeToBitstream, templateType &inOutCurrentValue, templateType lastValue)
	Bidirectional serialize/deserialize any integral type to/from a bitstream.
template<class templateType >
bool	SerializeDelta (bool writeToBitstream, templateType &inOutCurrentValue)
	Bidirectional version of SerializeDelta when you don't know what the last value is, or there is no last value.
template<class templateType >
bool	SerializeCompressed (bool writeToBitstream, templateType &inOutTemplateVar)
	Bidirectional serialize/deserialize any integral type to/from a bitstream.
template<class templateType >

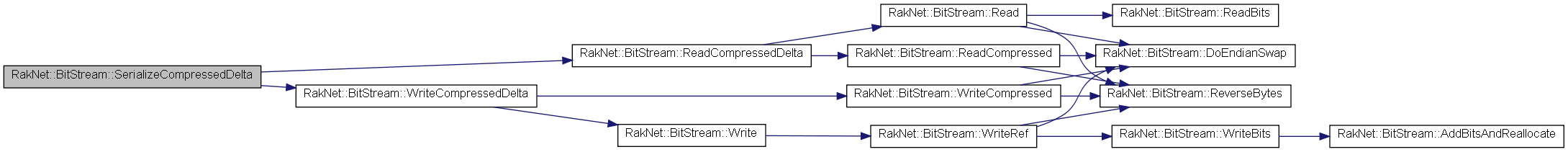

bool	SerializeCompressedDelta (bool writeToBitstream, templateType &inOutCurrentValue, templateType lastValue)
	Bidirectional serialize/deserialize any integral type to/from a bitstream.
template<class templateType >
bool	SerializeCompressedDelta (bool writeToBitstream, templateType &inOutTemplateVar)
	Save as SerializeCompressedDelta(templateType &currentValue, templateType lastValue) when we have an unknown second parameter.
bool	Serialize (bool writeToBitstream, char *inOutByteArray, const unsigned int numberOfBytes)
	Bidirectional serialize/deserialize an array or casted stream or raw data. This does NOT do endian swapping.

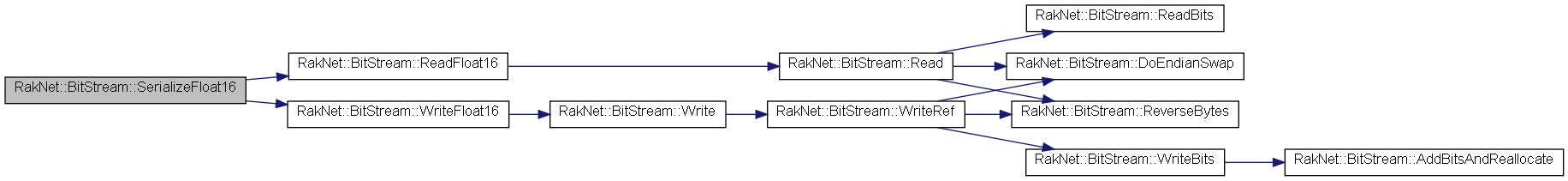

bool	SerializeFloat16 (bool writeToBitstream, float &inOutFloat, float floatMin, float floatMax)
	Serialize a float into 2 bytes, spanning the range between floatMin and floatMax.
template<class serializationType , class sourceType >
bool	SerializeCasted (bool writeToBitstream, sourceType &value)
template<class templateType , class rangeType >
bool	SerializeBitsFromIntegerRange (bool writeToBitstream, templateType &value, const rangeType minimum, const rangeType maximum, bool allowOutsideRange=false)
template<class templateType , class rangeType >
bool	SerializeBitsFromIntegerRange (bool writeToBitstream, templateType &value, const rangeType minimum, const rangeType maximum, const int requiredBits, bool allowOutsideRange=false)
template<class templateType >

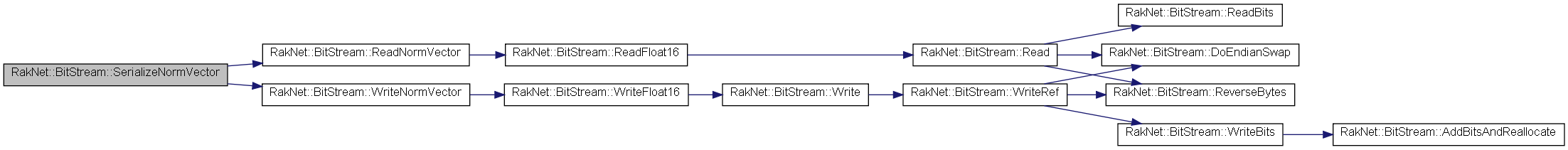

bool	SerializeNormVector (bool writeToBitstream, templateType &x, templateType &y, templateType &z)
	Bidirectional serialize/deserialize a normalized 3D vector, using (at most) 4 bytes + 3 bits instead of 12-24 bytes.
template<class templateType >

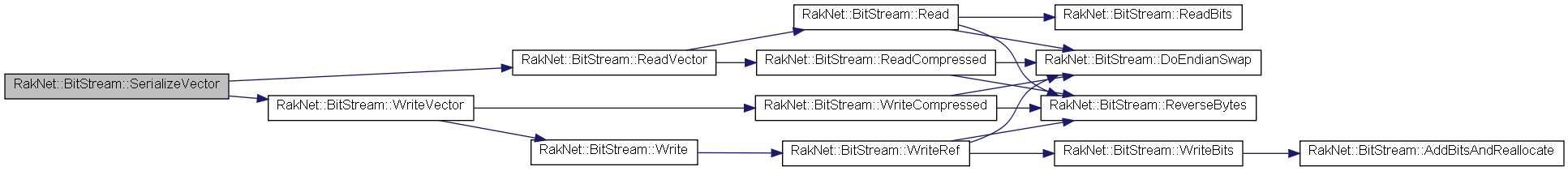

bool	SerializeVector (bool writeToBitstream, templateType &x, templateType &y, templateType &z)
	Bidirectional serialize/deserialize a vector, using 10 bytes instead of 12.
template<class templateType >

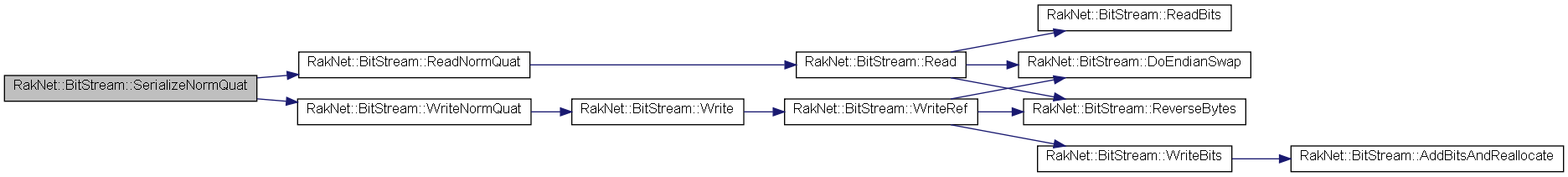

bool	SerializeNormQuat (bool writeToBitstream, templateType &w, templateType &x, templateType &y, templateType &z)
	Bidirectional serialize/deserialize a normalized quaternion in 6 bytes + 4 bits instead of 16 bytes. Slightly lossy.
template<class templateType >
bool	SerializeOrthMatrix (bool writeToBitstream, templateType &m00, templateType &m01, templateType &m02, templateType &m10, templateType &m11, templateType &m12, templateType &m20, templateType &m21, templateType &m22)
	Bidirectional serialize/deserialize an orthogonal matrix by creating a quaternion, and writing 3 components of the quaternion in 2 bytes each.
bool	SerializeBits (bool writeToBitstream, unsigned char *inOutByteArray, const BitSize_t numberOfBitsToSerialize, const bool rightAlignedBits=true)
	Bidirectional serialize/deserialize numberToSerialize bits to/from the input.
template<class templateType >

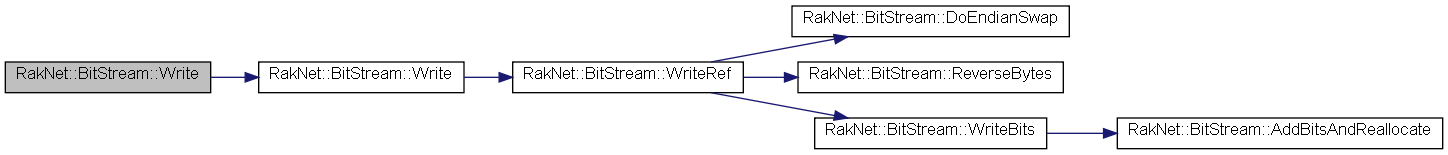

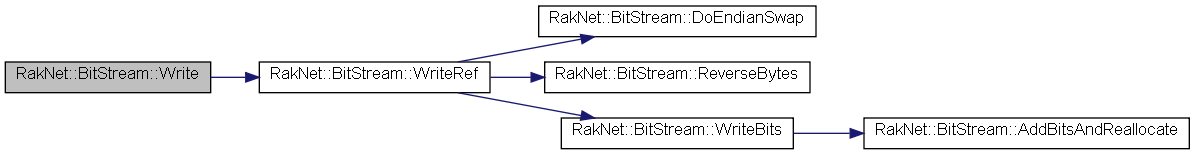

void	Write (templateType inTemplateVar)
	Write any integral type to a bitstream.
template<class templateType >

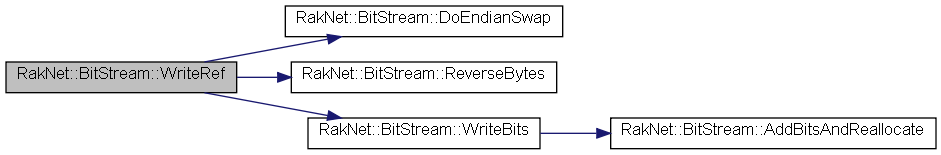

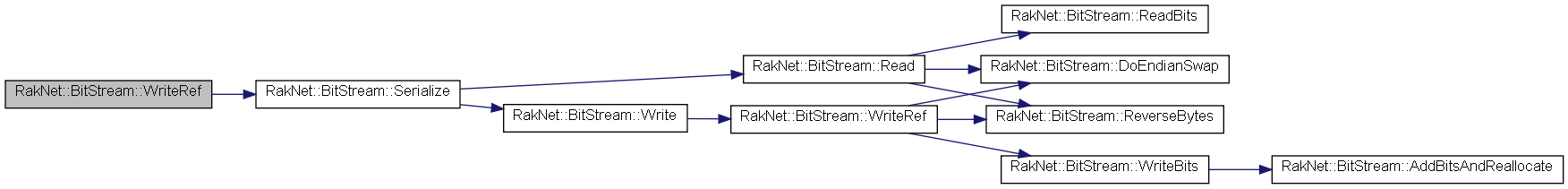

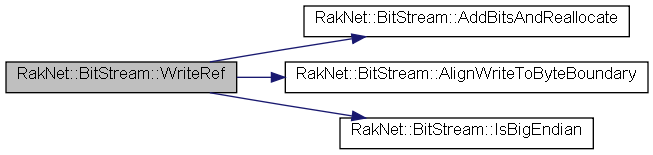

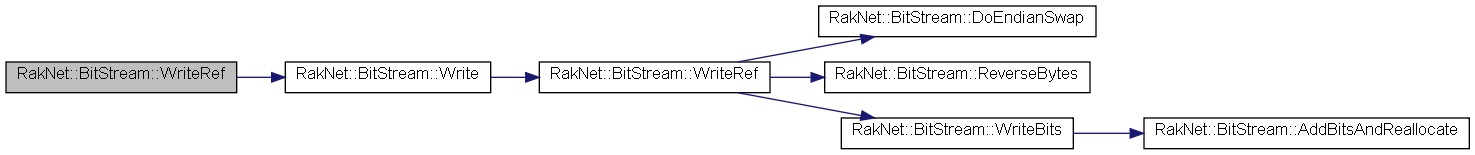

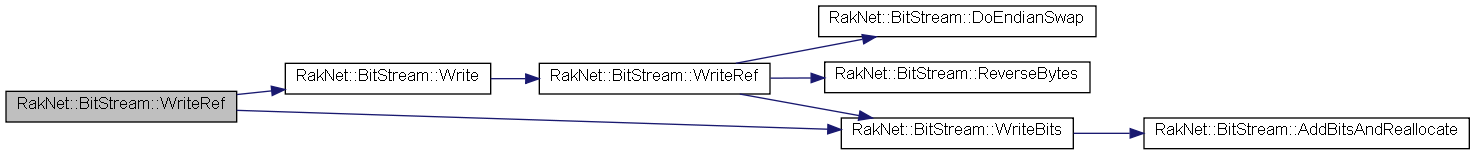

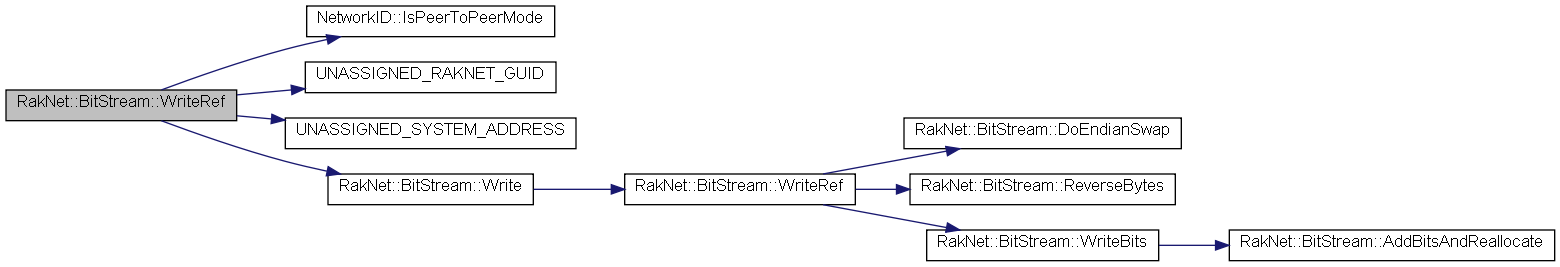

void	WriteRef (const templateType &inTemplateVar)
template<class templateType >

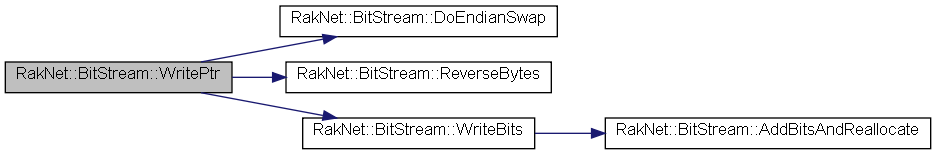

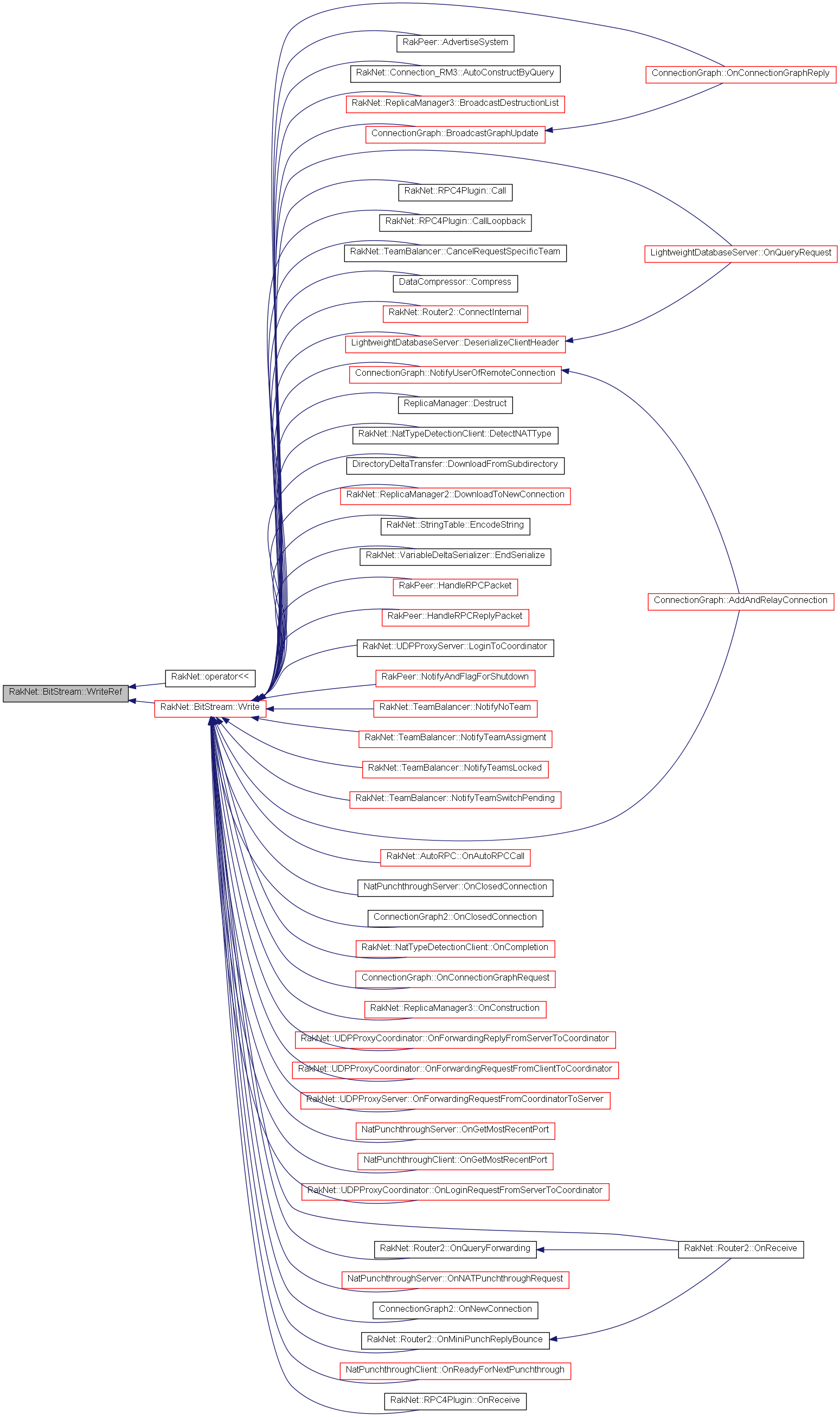

void	WritePtr (templateType *inTemplateVar)
	Write the dereferenced pointer to any integral type to a bitstream.
template<class templateType >

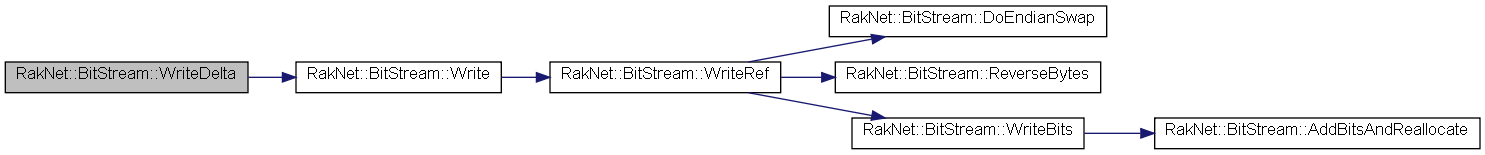

void	WriteDelta (templateType currentValue, templateType lastValue)
	Write any integral type to a bitstream.
template<class templateType >
void	WriteDelta (templateType currentValue)
	WriteDelta when you don't know what the last value is, or there is no last value.
template<class templateType >

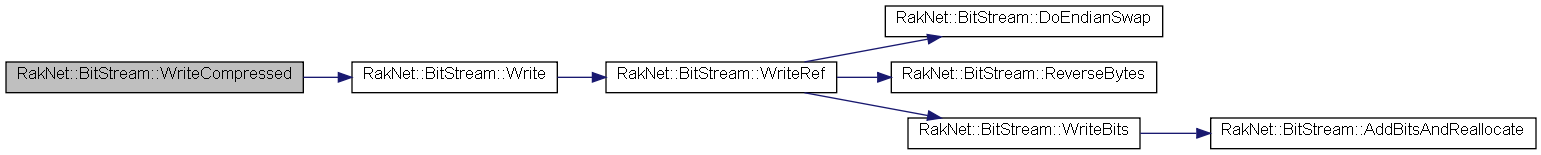

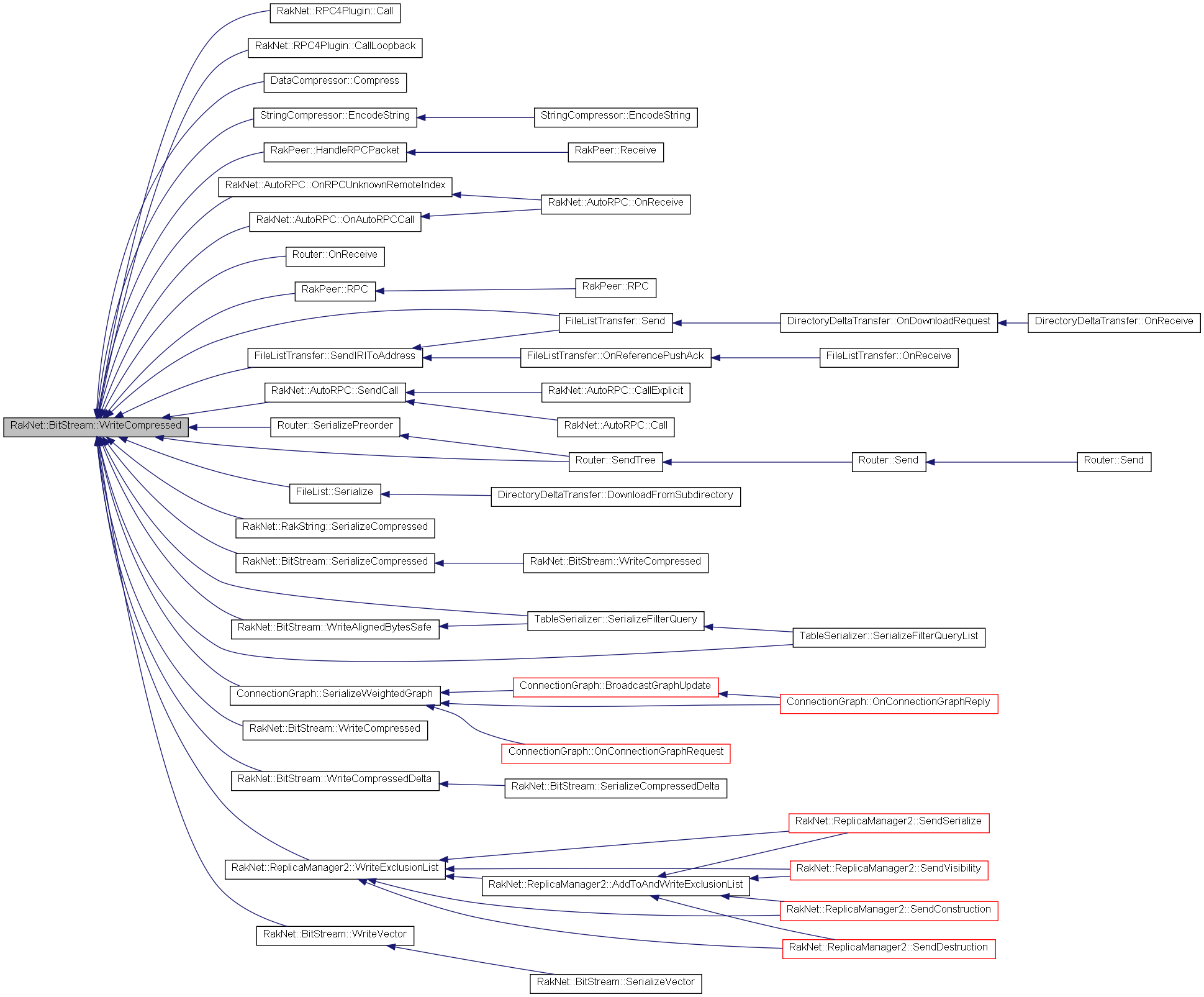

void	WriteCompressed (templateType inTemplateVar)
	Write any integral type to a bitstream.
template<class templateType >

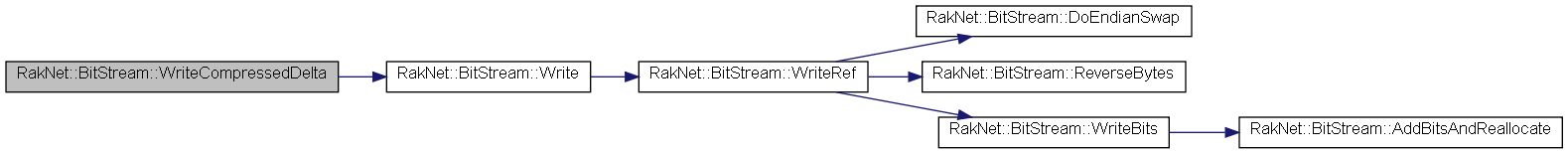

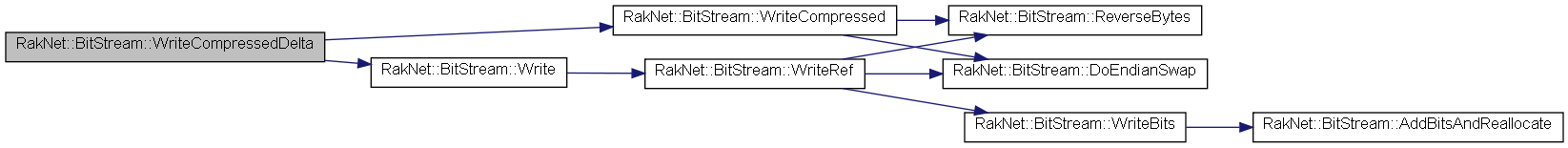

void	WriteCompressedDelta (templateType currentValue, templateType lastValue)
	Write any integral type to a bitstream.
template<class templateType >
void	WriteCompressedDelta (templateType currentValue)
	Save as WriteCompressedDelta(templateType currentValue, templateType lastValue) when we have an unknown second parameter.
template<class templateType >

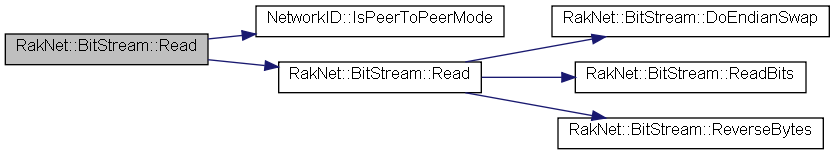

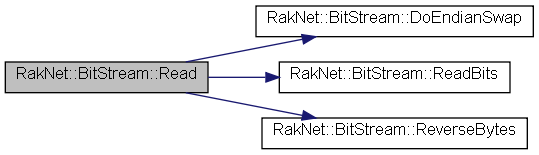

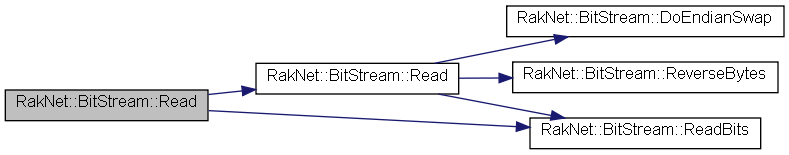

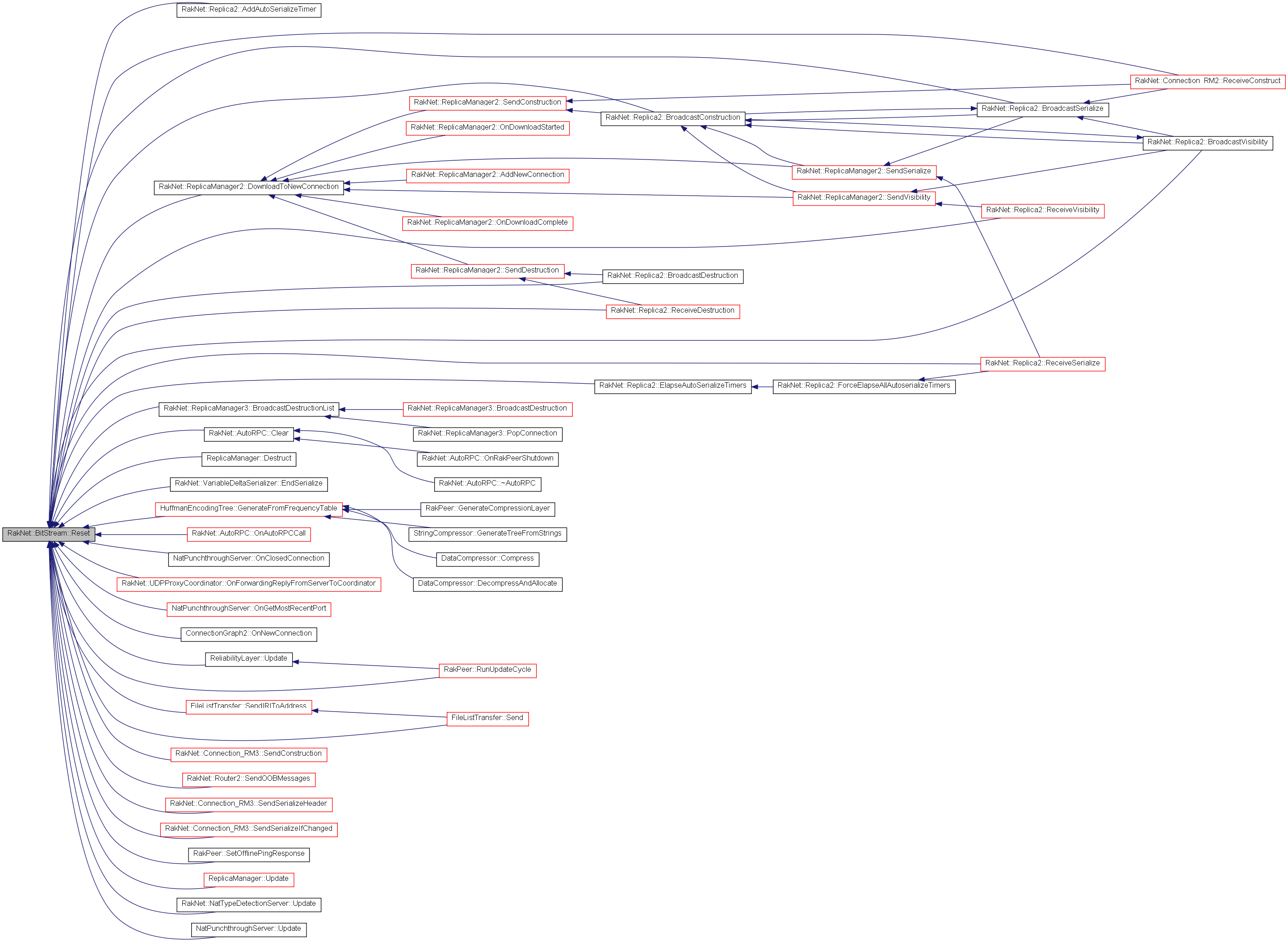

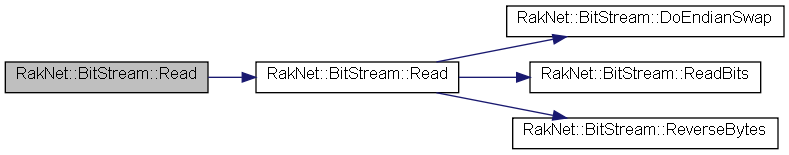

bool	Read (templateType &outTemplateVar)
	Read any integral type from a bitstream.
template<class templateType >

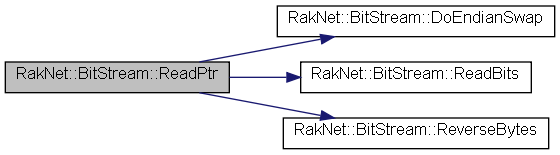

bool	ReadPtr (templateType *outTemplateVar)
	Read into a pointer to any integral type from a bitstream.
template<class templateType >

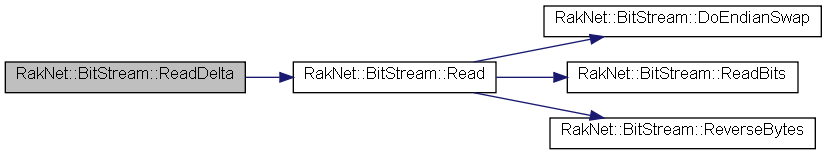

bool	ReadDelta (templateType &outTemplateVar)
	Read any integral type from a bitstream.
template<class templateType >

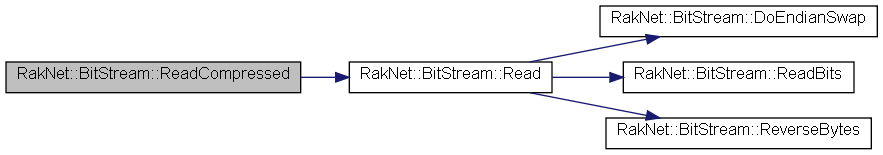

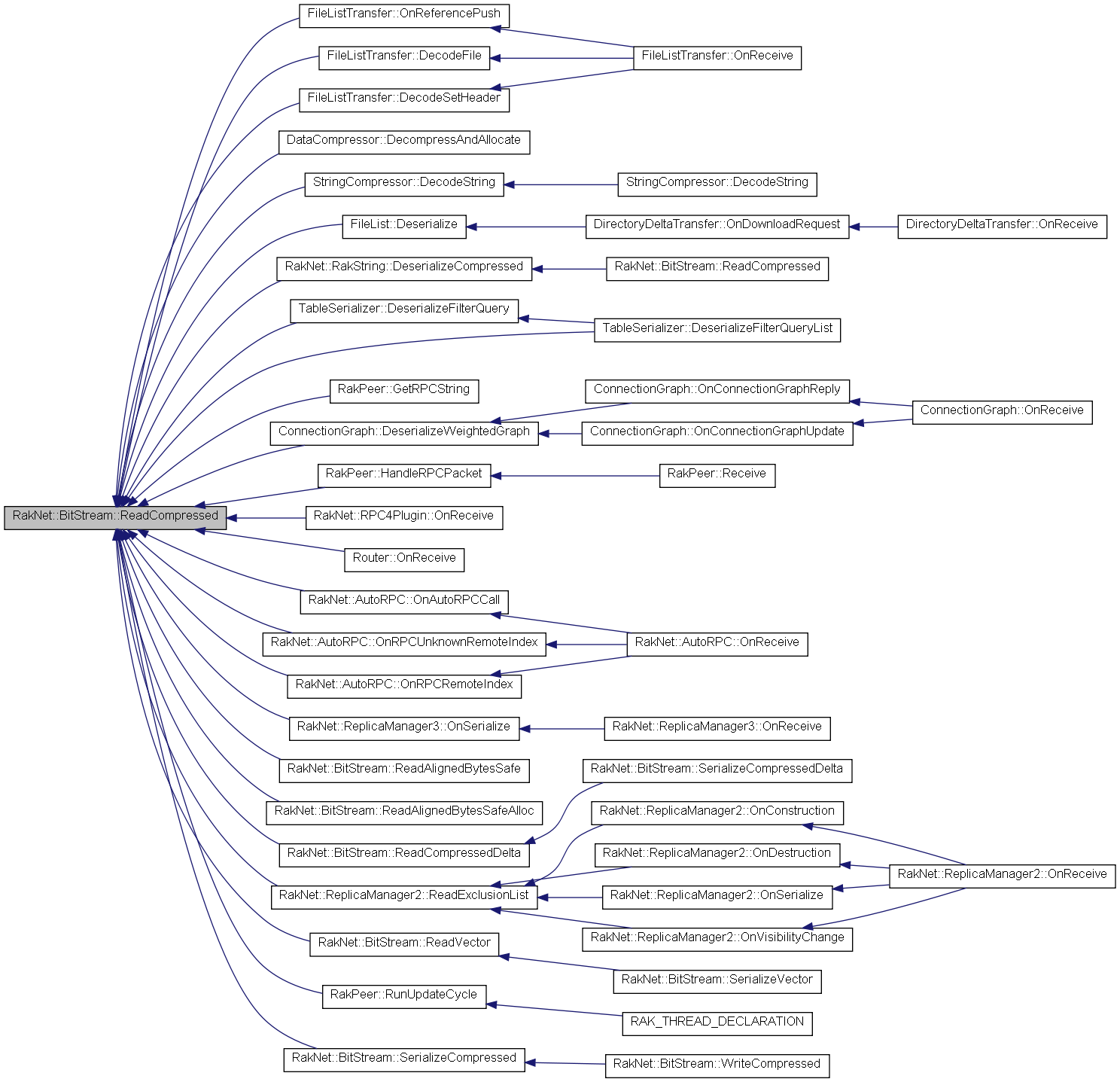

bool	ReadCompressed (templateType &outTemplateVar)
	Read any integral type from a bitstream.
template<class templateType >

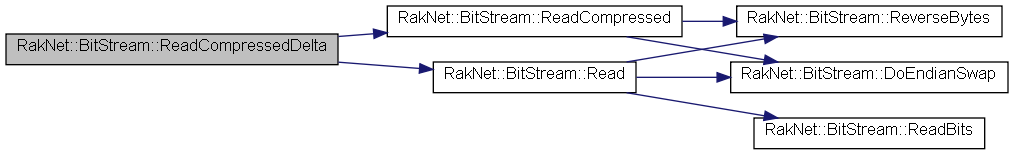

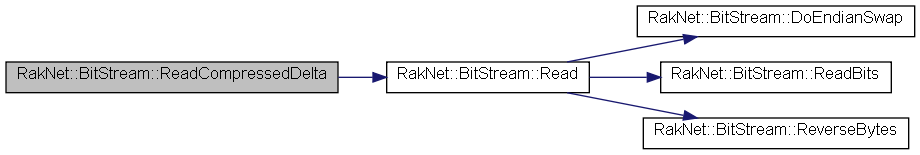

bool	ReadCompressedDelta (templateType &outTemplateVar)
	Read any integral type from a bitstream.

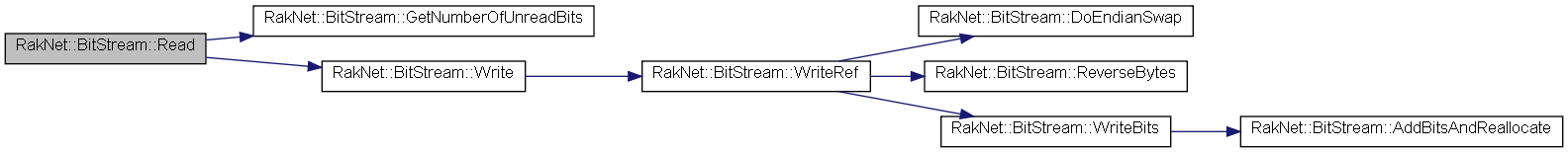

bool	Read (BitStream *bitStream, BitSize_t numberOfBits)
	Read one bitstream to another.
bool	Read (BitStream *bitStream)
bool	Read (BitStream &bitStream, BitSize_t numberOfBits)
bool	Read (BitStream &bitStream)

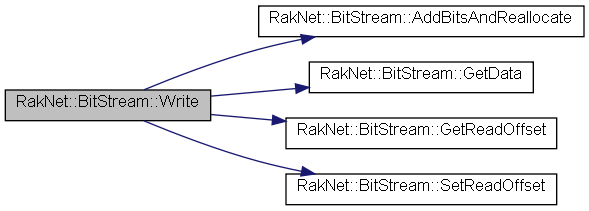

void	Write (const char *inputByteArray, const unsigned int numberOfBytes)
	Write an array or casted stream or raw data. This does NOT do endian swapping.

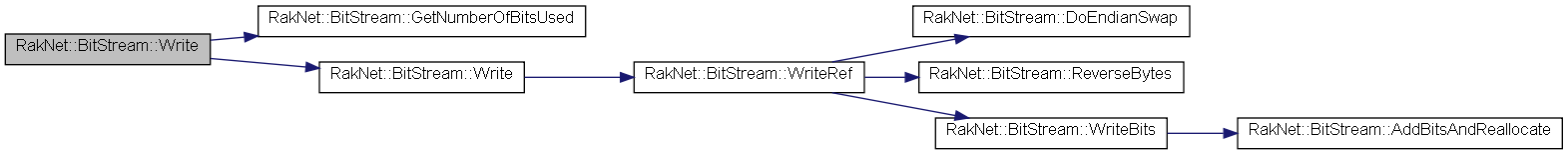

void	Write (BitStream *bitStream, BitSize_t numberOfBits)
	Write one bitstream to another.
void	Write (BitStream *bitStream)
void	Write (BitStream &bitStream, BitSize_t numberOfBits)
void	Write (BitStream &bitStream)
void	WriteFloat16 (float x, float floatMin, float floatMax)
	Write a float into 2 bytes, spanning the range between floatMin and floatMax.
template<class serializationType , class sourceType >

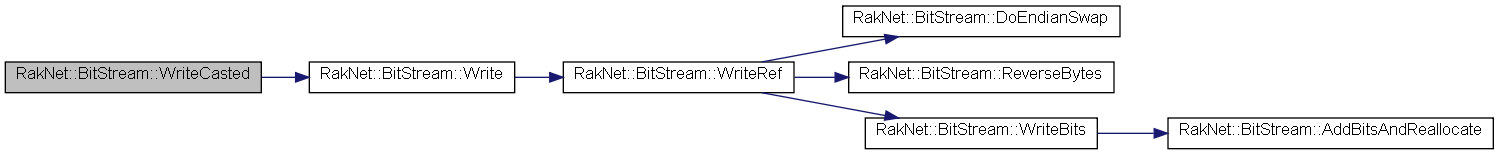

void	WriteCasted (const sourceType &value)
template<class templateType , class rangeType >

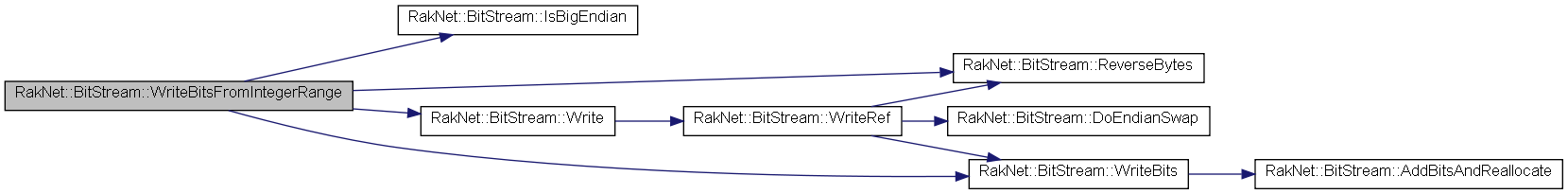

void	WriteBitsFromIntegerRange (const templateType value, const rangeType minimum, const rangeType maximum, bool allowOutsideRange=false)
template<class templateType , class rangeType >
void	WriteBitsFromIntegerRange (const templateType value, const rangeType minimum, const rangeType maximum, const int requiredBits, bool allowOutsideRange=false)
template<class templateType >

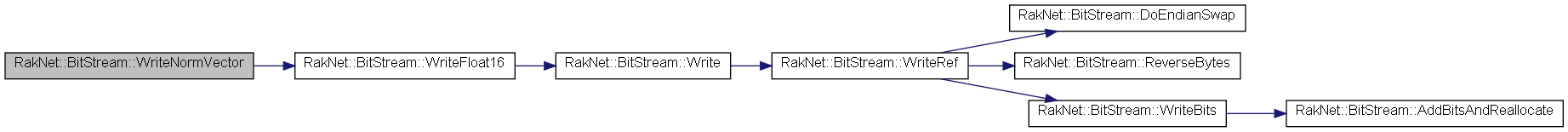

void	WriteNormVector (templateType x, templateType y, templateType z)
	Write a normalized 3D vector, using (at most) 4 bytes + 3 bits instead of 12-24 bytes.
template<class templateType >

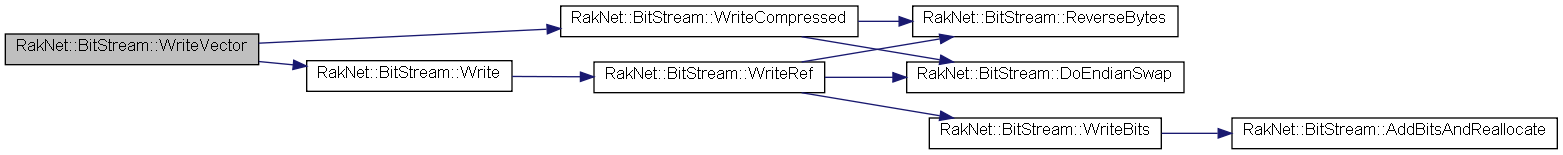

void	WriteVector (templateType x, templateType y, templateType z)
	Write a vector, using 10 bytes instead of 12.
template<class templateType >

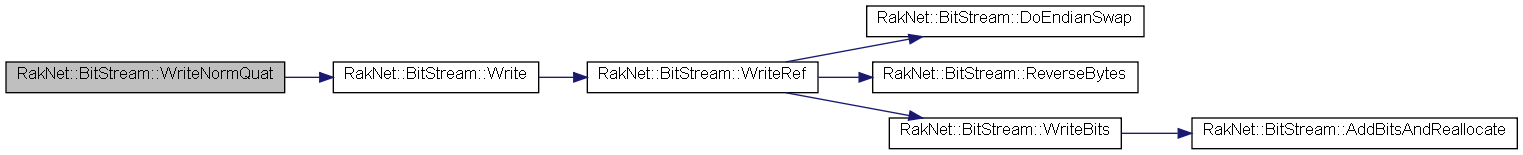

void	WriteNormQuat (templateType w, templateType x, templateType y, templateType z)
	Write a normalized quaternion in 6 bytes + 4 bits instead of 16 bytes. Slightly lossy.
template<class templateType >

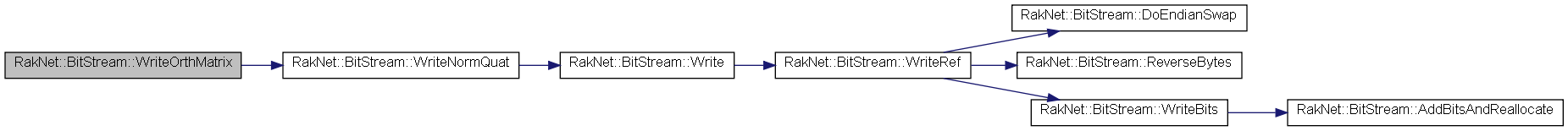

void	WriteOrthMatrix (templateType m00, templateType m01, templateType m02, templateType m10, templateType m11, templateType m12, templateType m20, templateType m21, templateType m22)
	Write an orthogonal matrix by creating a quaternion, and writing 3 components of the quaternion in 2 bytes each.
bool	Read (char *output, const unsigned int numberOfBytes)
	Read an array or casted stream of byte.
bool	ReadFloat16 (float &outFloat, float floatMin, float floatMax)
	Read a float into 2 bytes, spanning the range between floatMin and floatMax.
template<class serializationType , class sourceType >

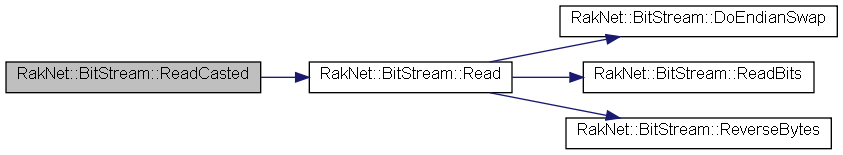

bool	ReadCasted (sourceType &value)
template<class templateType , class rangeType >

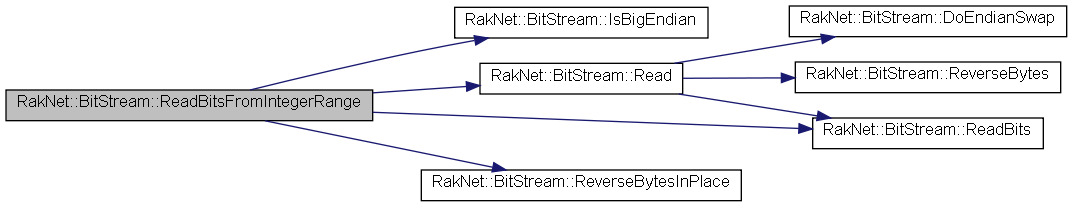

bool	ReadBitsFromIntegerRange (templateType &value, const rangeType minimum, const rangeType maximum, bool allowOutsideRange=false)
template<class templateType , class rangeType >
bool	ReadBitsFromIntegerRange (templateType &value, const rangeType minimum, const rangeType maximum, const int requiredBits, bool allowOutsideRange=false)
template<class templateType >
bool	ReadNormVector (templateType &x, templateType &y, templateType &z)
	Read a normalized 3D vector, using (at most) 4 bytes + 3 bits instead of 12-24 bytes.
template<class templateType >

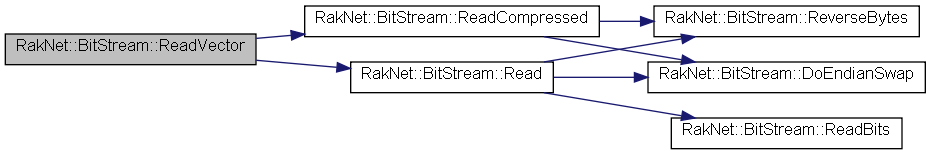

bool	ReadVector (templateType &x, templateType &y, templateType &z)
	Read 3 floats or doubles, using 10 bytes, where those float or doubles comprise a vector.
template<class templateType >

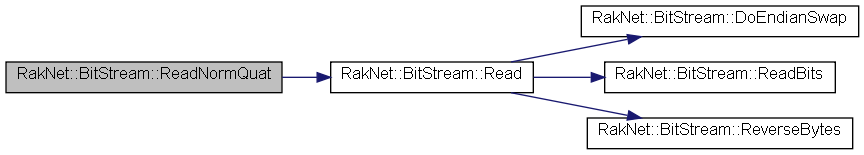

bool	ReadNormQuat (templateType &w, templateType &x, templateType &y, templateType &z)
	Read a normalized quaternion in 6 bytes + 4 bits instead of 16 bytes.
template<class templateType >

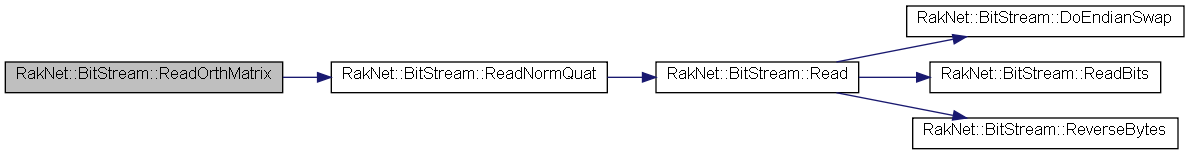

bool	ReadOrthMatrix (templateType &m00, templateType &m01, templateType &m02, templateType &m10, templateType &m11, templateType &m12, templateType &m20, templateType &m21, templateType &m22)
	Read an orthogonal matrix from a quaternion, reading 3 components of the quaternion in 2 bytes each and extrapolatig the 4th.

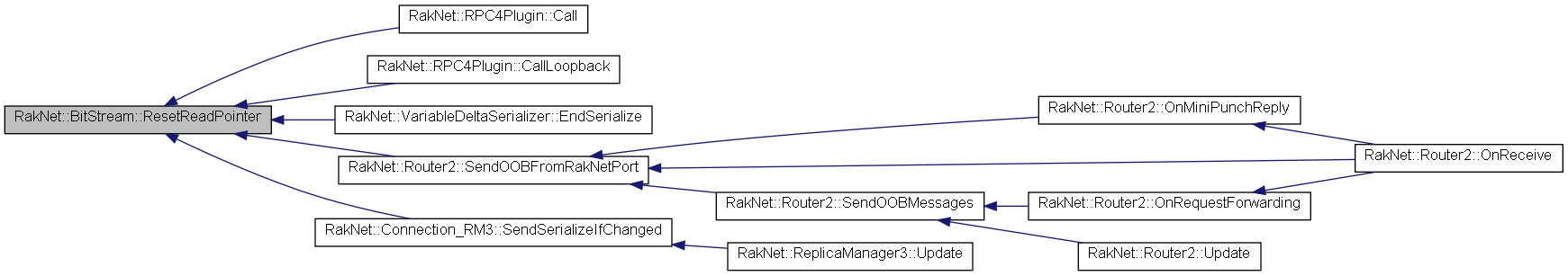

void	ResetReadPointer (void)
	Sets the read pointer back to the beginning of your data.
void	ResetWritePointer (void)
	Sets the write pointer back to the beginning of your data.
void	AssertStreamEmpty (void)
	This is good to call when you are done with the stream to make sure you didn't leave any data left over void.
void	PrintBits (char *out) const
	RAKNET_DEBUG_PRINTF the bits in the stream. Great for debugging.
void	PrintBits (void) const
void	PrintHex (char *out) const
void	PrintHex (void) const

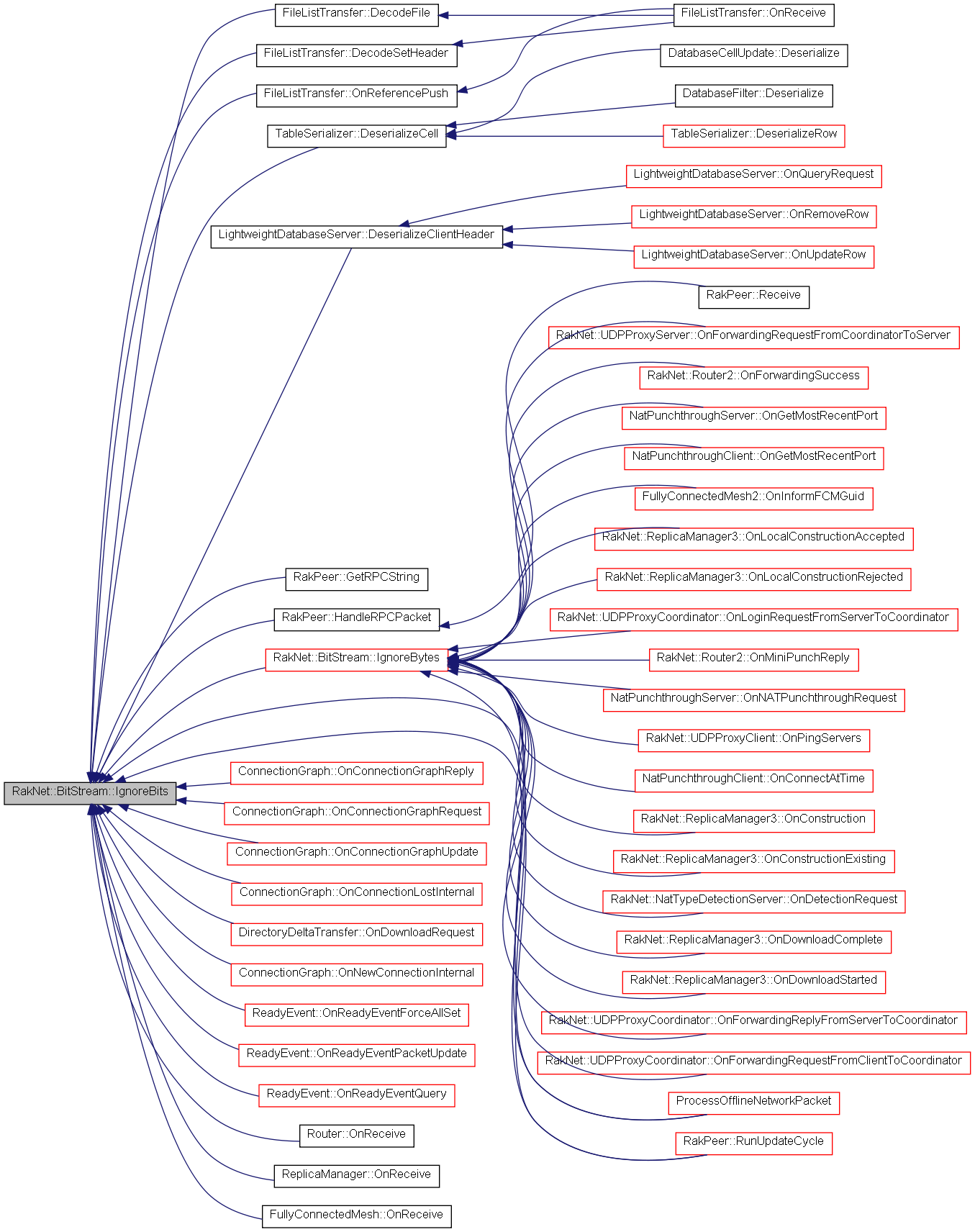

void	IgnoreBits (const BitSize_t numberOfBits)
	Ignore data we don't intend to read.
void	IgnoreBytes (const unsigned int numberOfBytes)
	Ignore data we don't intend to read.

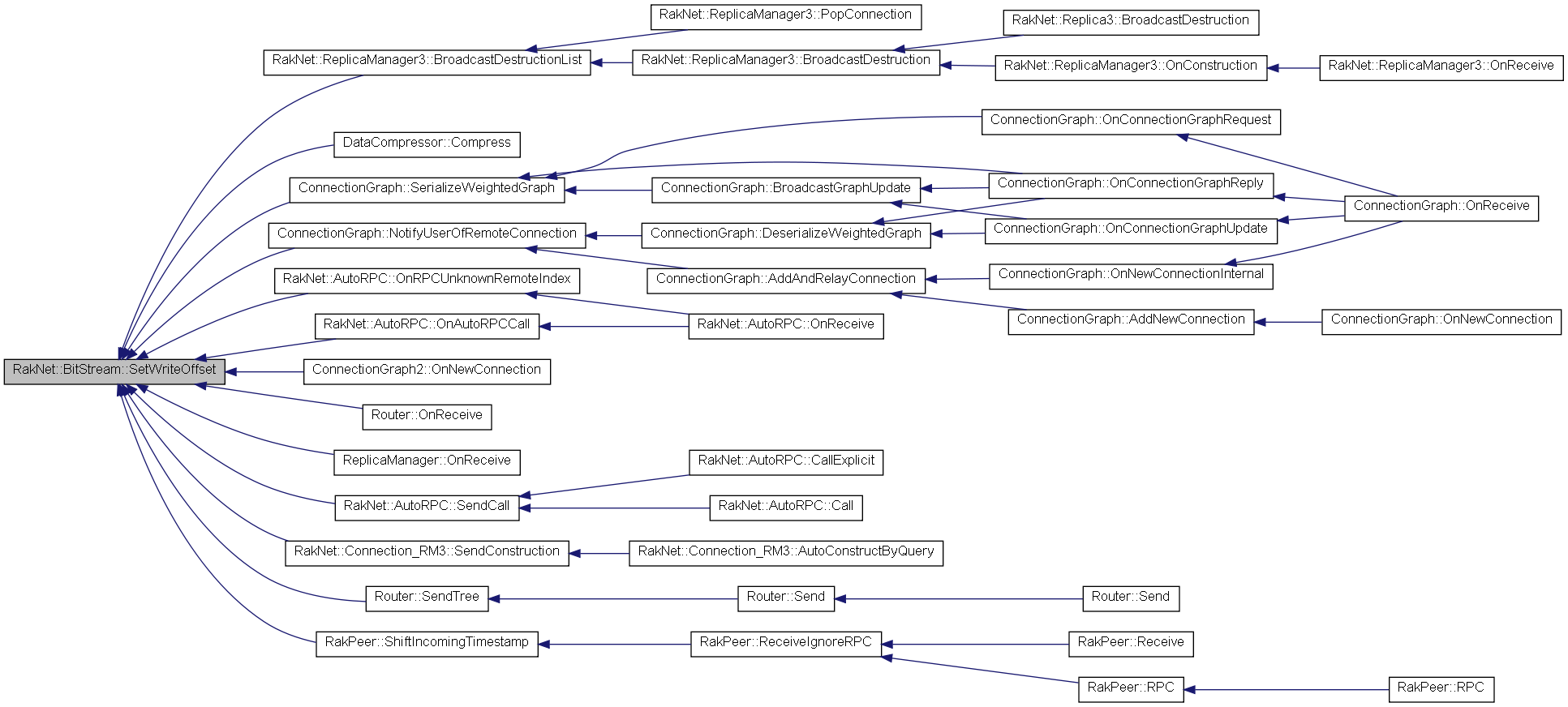

void	SetWriteOffset (const BitSize_t offset)
	Move the write pointer to a position on the array.

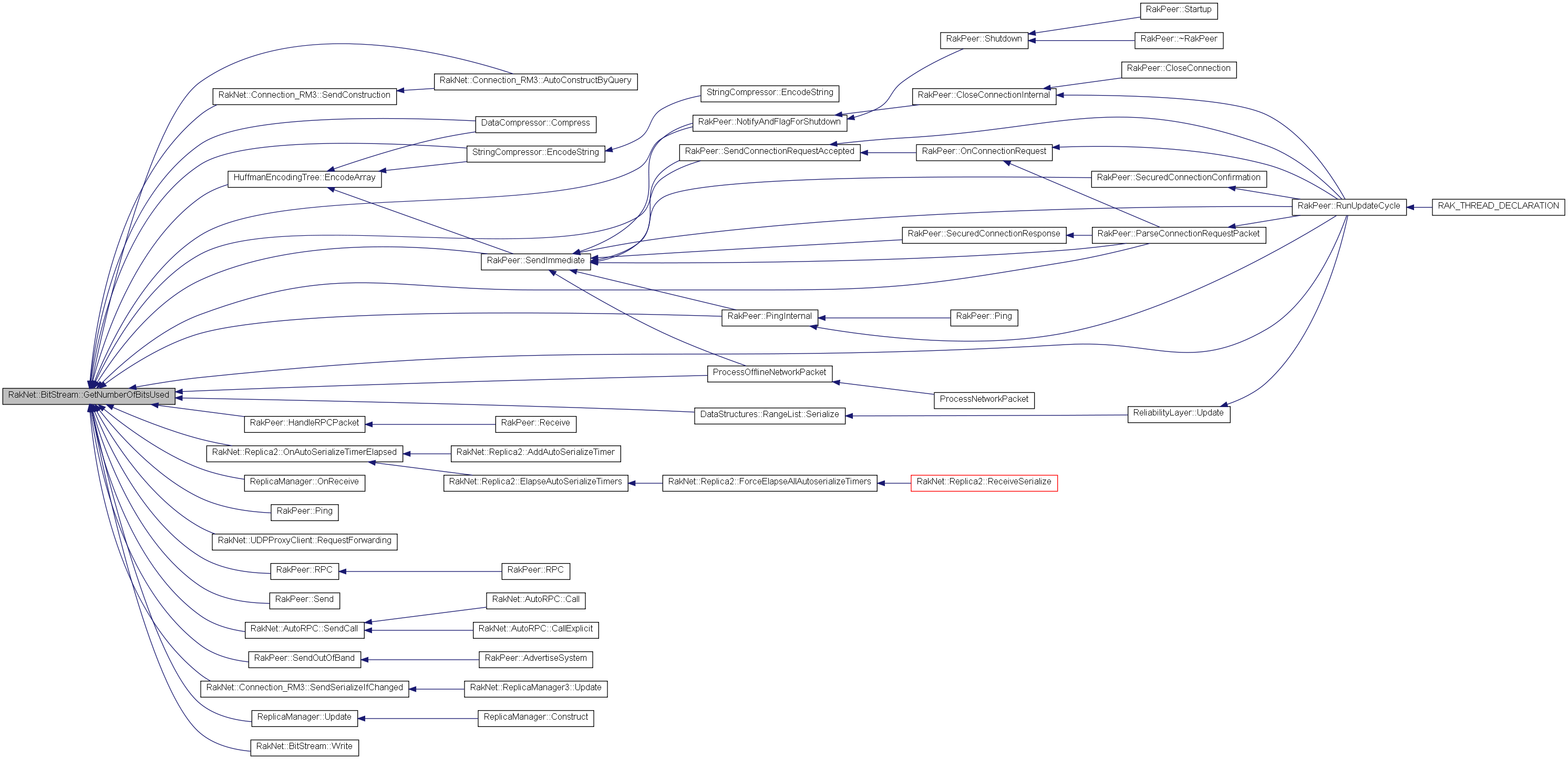

BitSize_t	GetNumberOfBitsUsed (void) const
	Returns the length in bits of the stream.

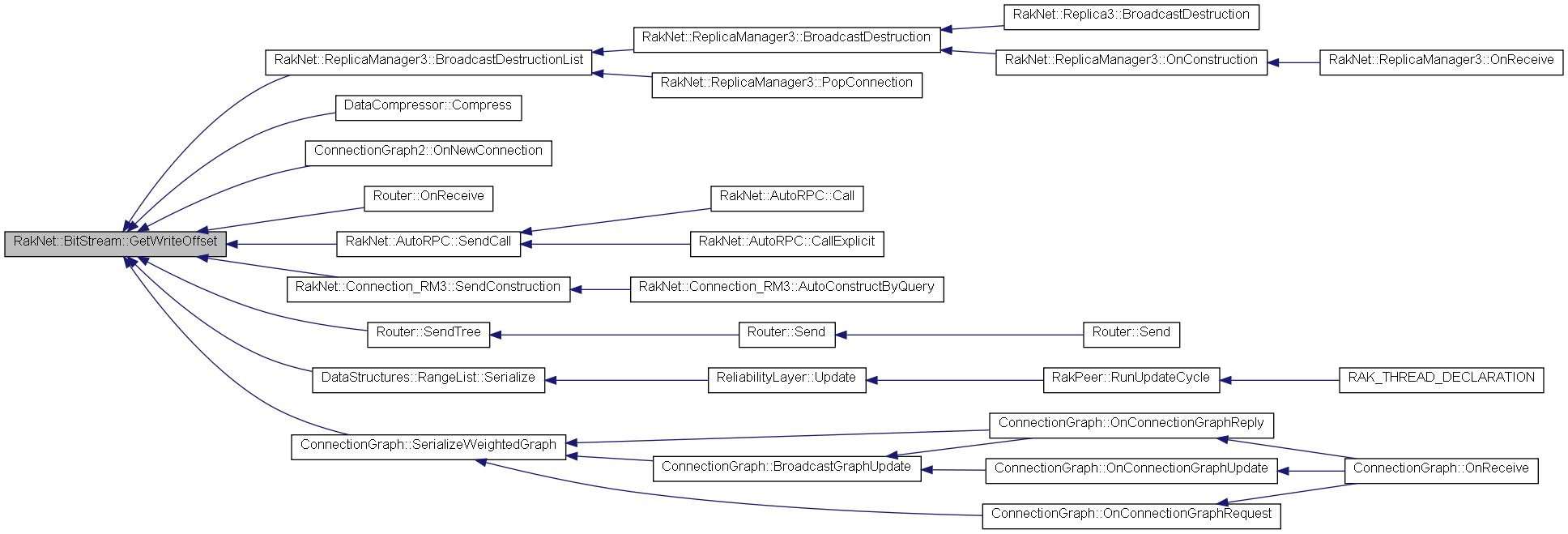

BitSize_t	GetWriteOffset (void) const

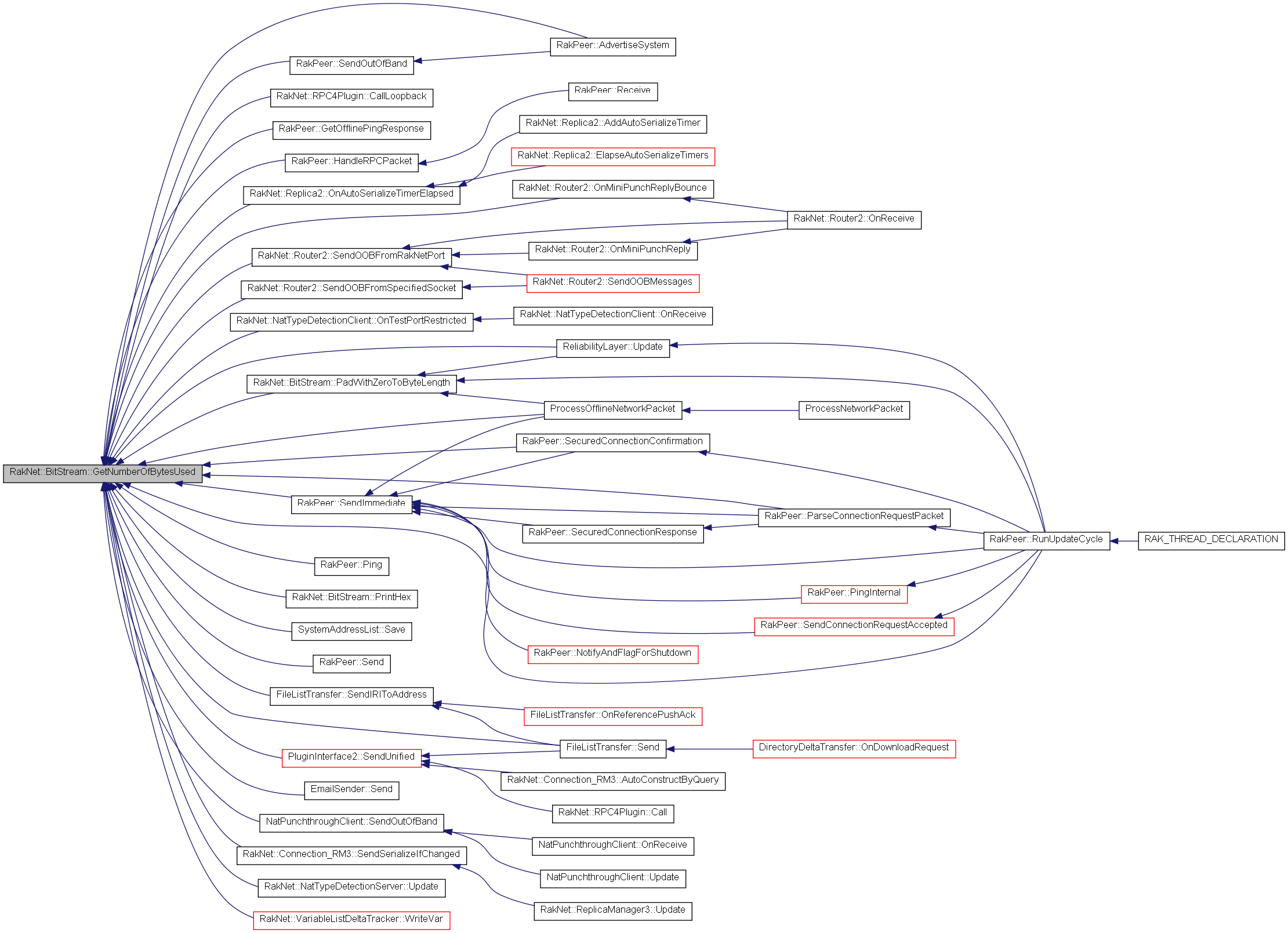

BitSize_t	GetNumberOfBytesUsed (void) const
	Returns the length in bytes of the stream.

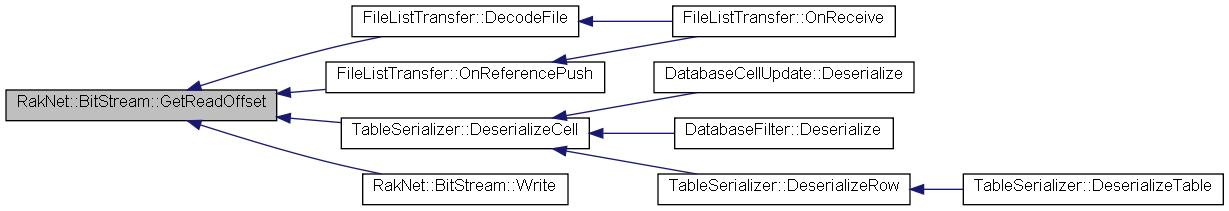

BitSize_t	GetReadOffset (void) const
	Returns the number of bits into the stream that we have read.
void	SetReadOffset (const BitSize_t newReadOffset)
	Sets the read bit index.

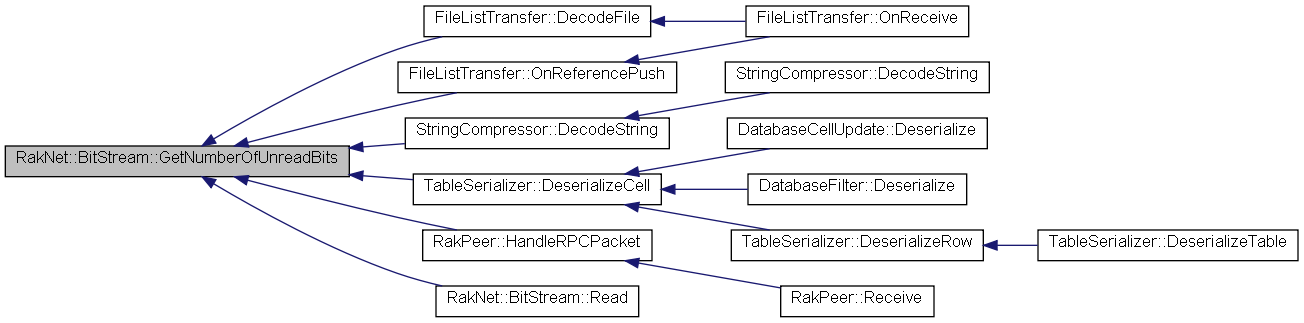

BitSize_t	GetNumberOfUnreadBits (void) const
	Returns the number of bits left in the stream that haven't been read.

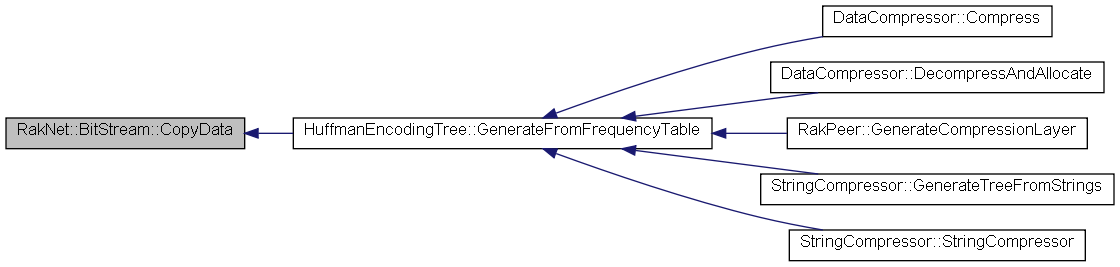

BitSize_t	CopyData (unsigned char **_data) const
	Makes a copy of the internal data for you _data will point to the stream. Partial bytes are left aligned.
void	SetData (unsigned char *inByteArray)

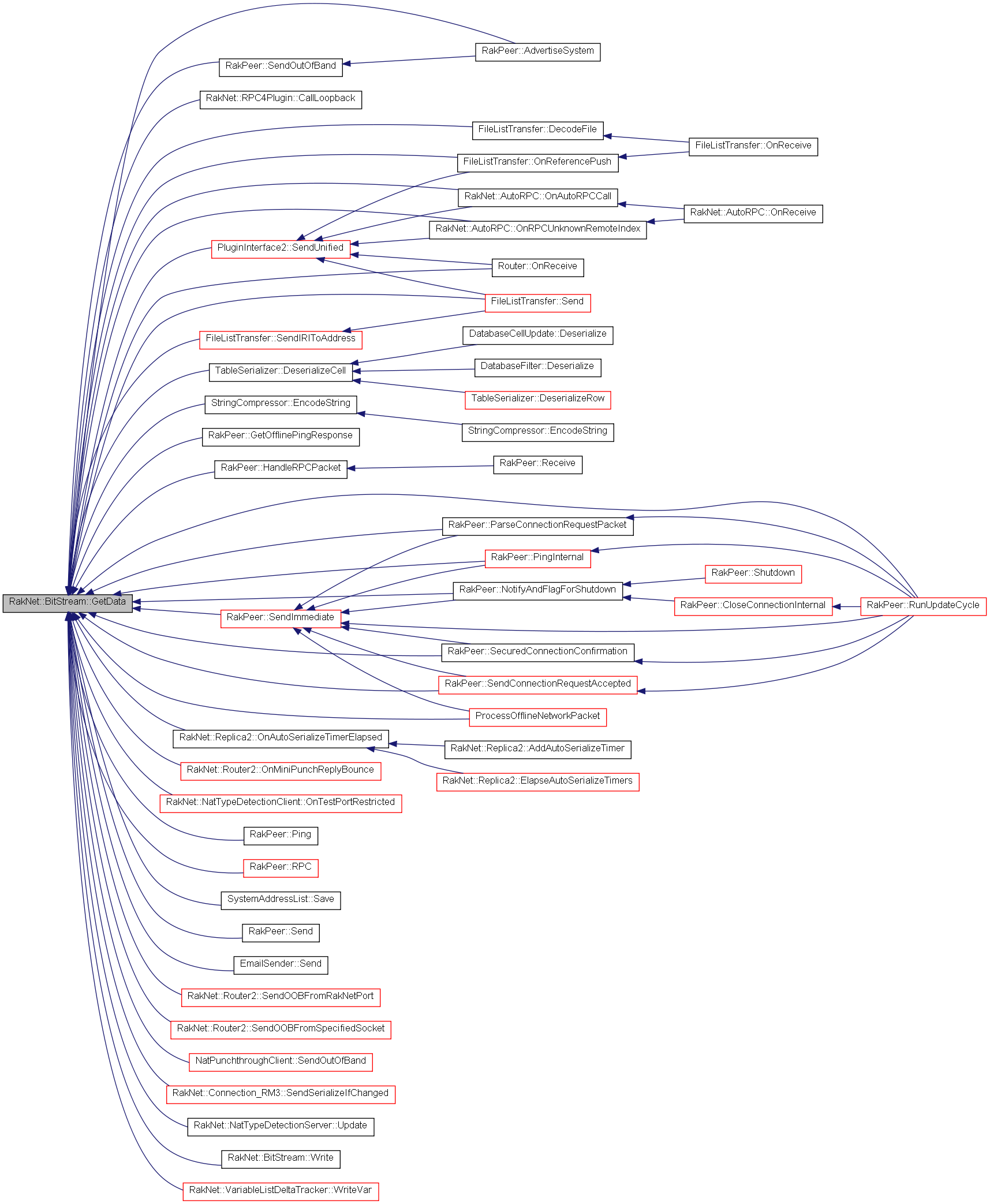

unsigned char *	GetData (void) const

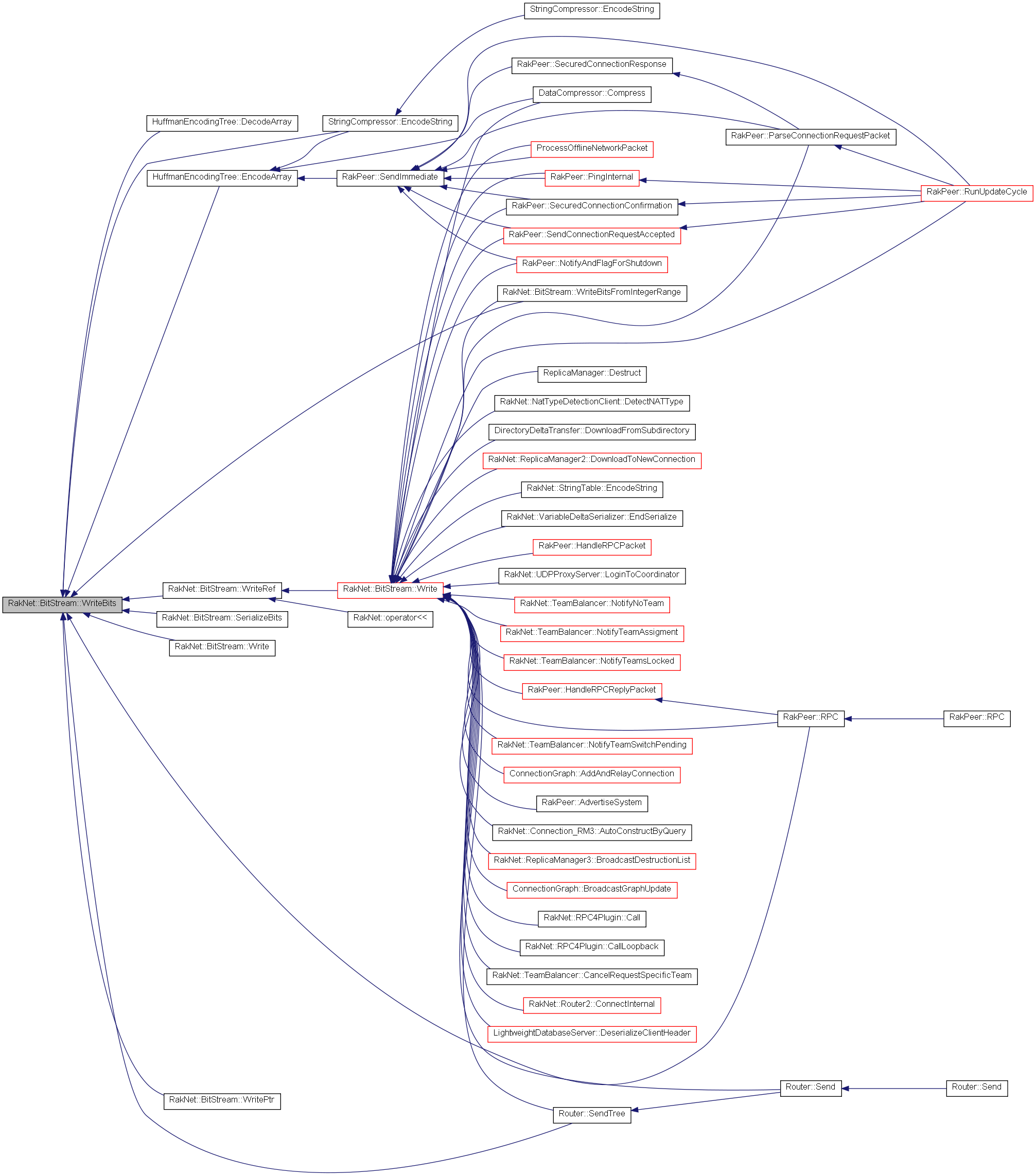

void	WriteBits (const unsigned char *inByteArray, BitSize_t numberOfBitsToWrite, const bool rightAlignedBits=true)
	Write numberToWrite bits from the input source.

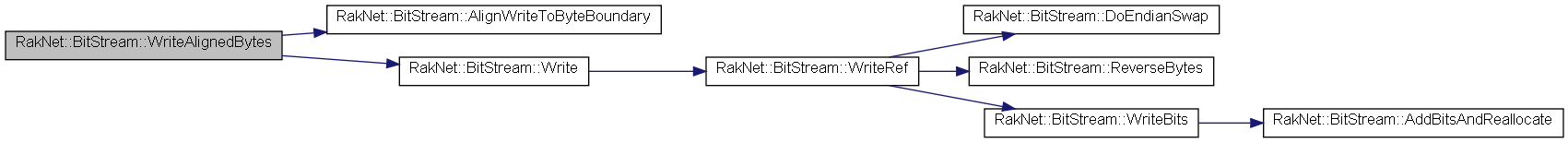

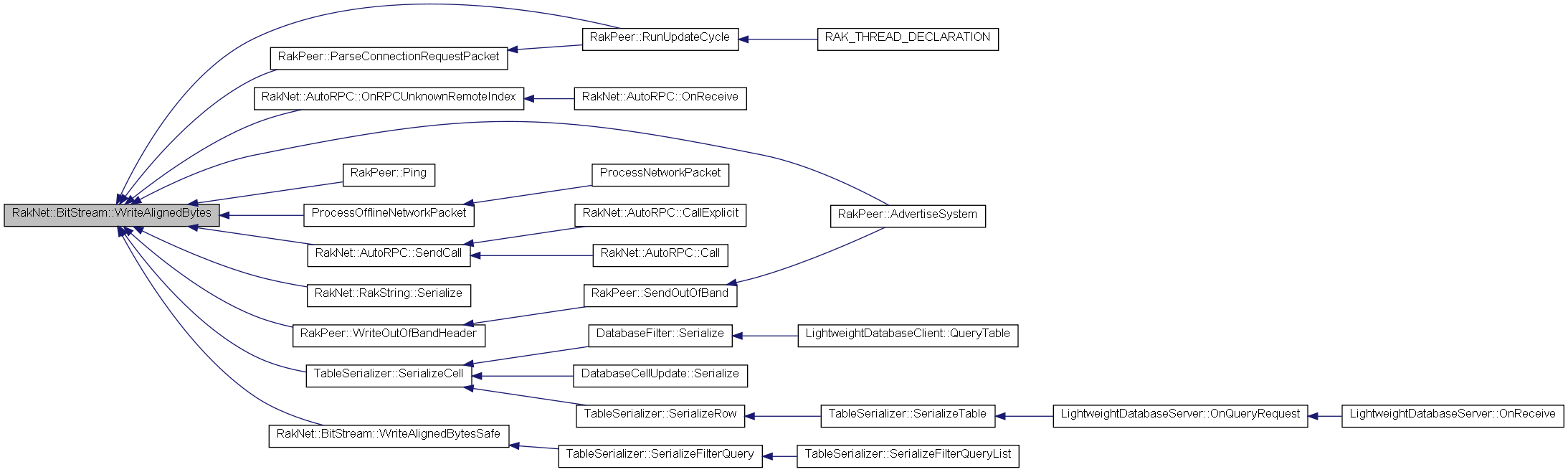

void	WriteAlignedBytes (const unsigned char *inByteArray, const unsigned int numberOfBytesToWrite)
	Align the bitstream to the byte boundary and then write the specified number of bits.
void	EndianSwapBytes (int byteOffset, int length)

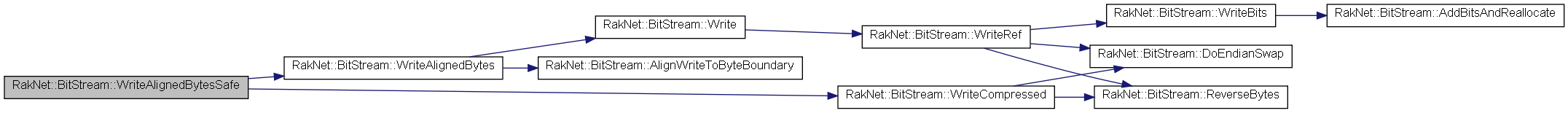

void	WriteAlignedBytesSafe (const char *inByteArray, const unsigned int inputLength, const unsigned int maxBytesToWrite)
	Aligns the bitstream, writes inputLength, and writes input. Won't write beyond maxBytesToWrite.

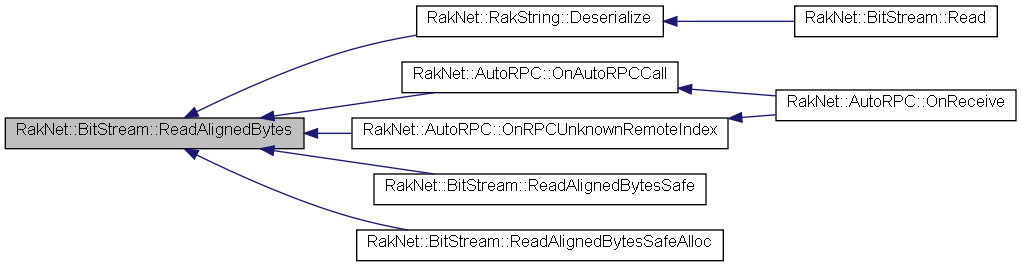

bool	ReadAlignedBytes (unsigned char *inOutByteArray, const unsigned int numberOfBytesToRead)
	Read bits, starting at the next aligned bits.

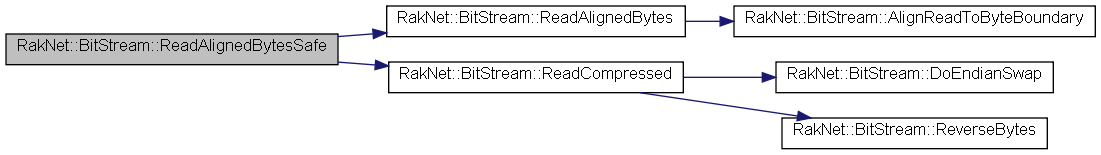

bool	ReadAlignedBytesSafe (char *inOutByteArray, int &inputLength, const int maxBytesToRead)
	Reads what was written by WriteAlignedBytesSafe.
bool	ReadAlignedBytesSafe (char *inOutByteArray, unsigned int &inputLength, const unsigned int maxBytesToRead)

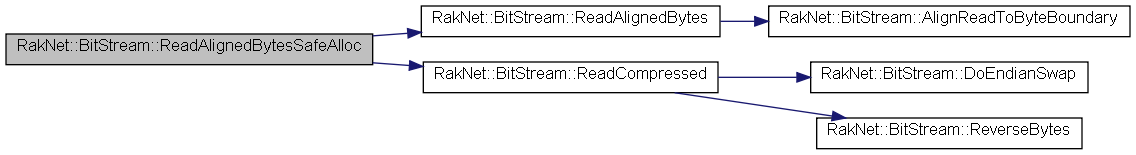

bool	ReadAlignedBytesSafeAlloc (char **outByteArray, int &inputLength, const unsigned int maxBytesToRead)
	Same as ReadAlignedBytesSafe() but allocates the memory for you using new, rather than assuming it is safe to write to.
bool	ReadAlignedBytesSafeAlloc (char **outByteArray, unsigned int &inputLength, const unsigned int maxBytesToRead)
void	AlignWriteToByteBoundary (void)
	Align the next write and/or read to a byte boundary.

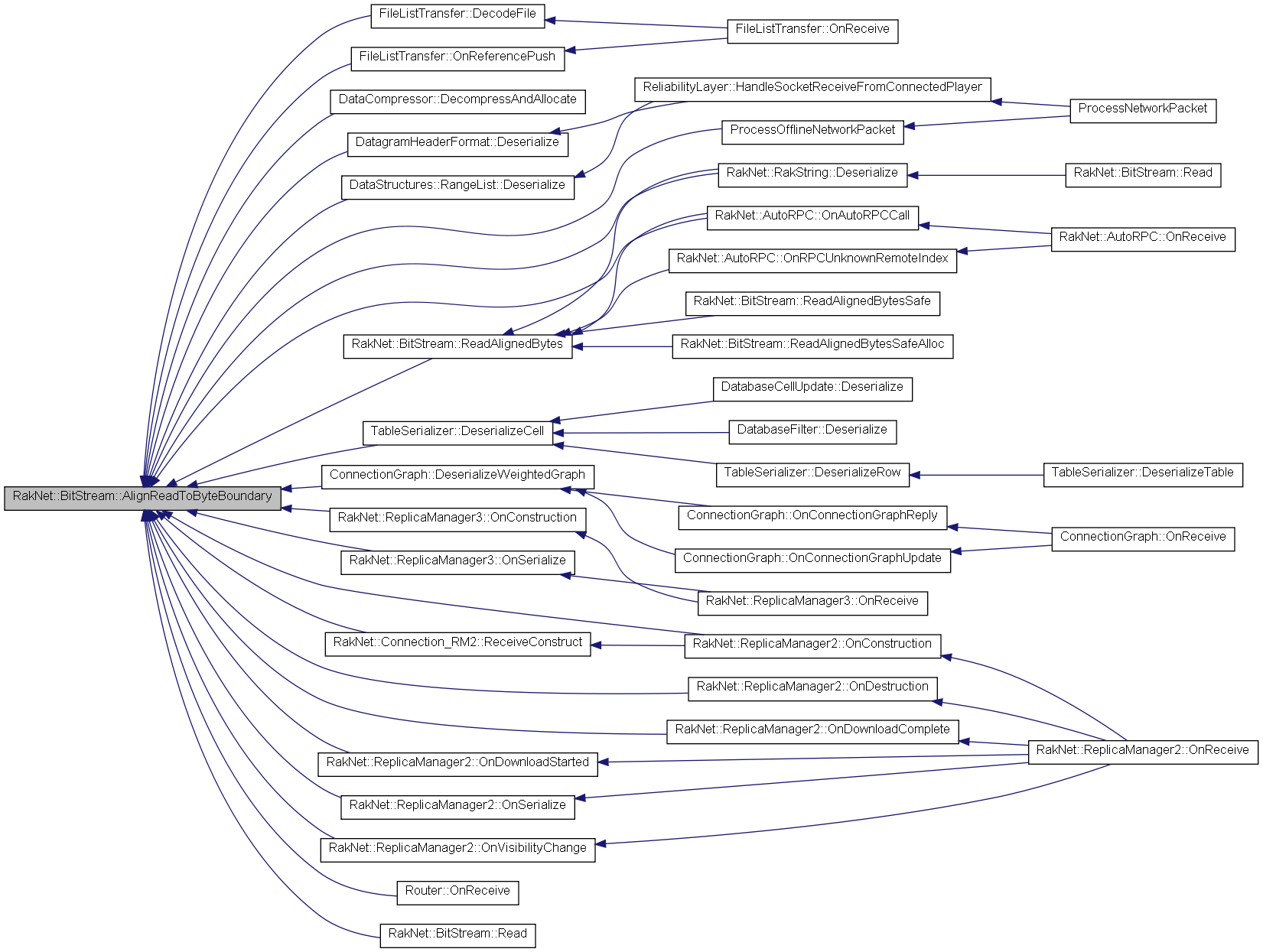

void	AlignReadToByteBoundary (void)
	Align the next write and/or read to a byte boundary.

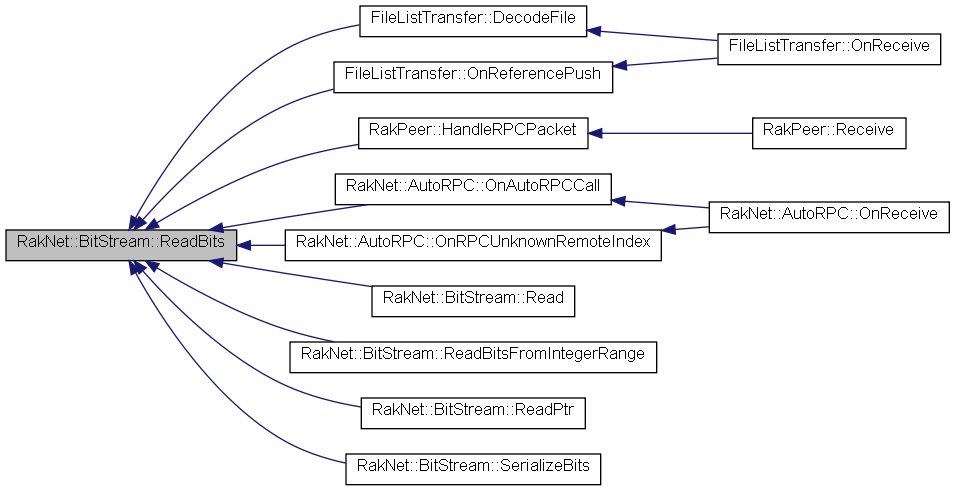

bool	ReadBits (unsigned char *inOutByteArray, BitSize_t numberOfBitsToRead, const bool alignBitsToRight=true)
	Read numberOfBitsToRead bits to the output source.
void	Write0 (void)
	Write a 0.

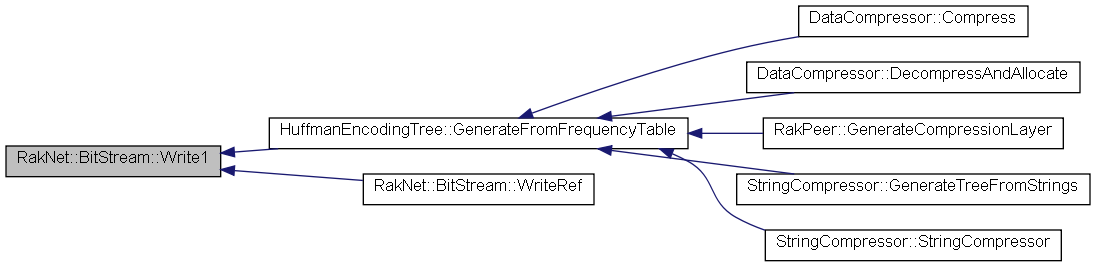

void	Write1 (void)
	Write a 1.

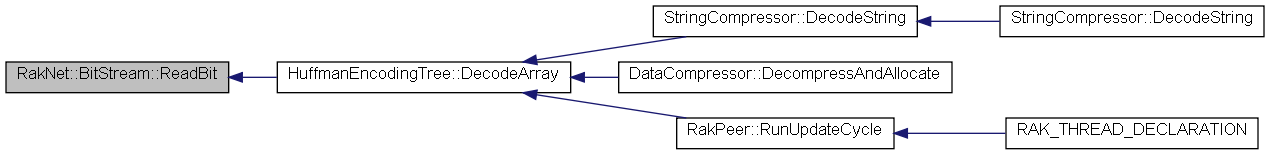

bool	ReadBit (void)
	Reads 1 bit and returns true if that bit is 1 and false if it is 0.
void	AssertCopyData (void)
	If we used the constructor version with copy data off, this makes sure it is set to on and the data pointed to is copied.
void	SetNumberOfBitsAllocated (const BitSize_t lengthInBits)
	Use this if you pass a pointer copy to the constructor (_copyData==false) and want to overallocate to prevent reallocation.

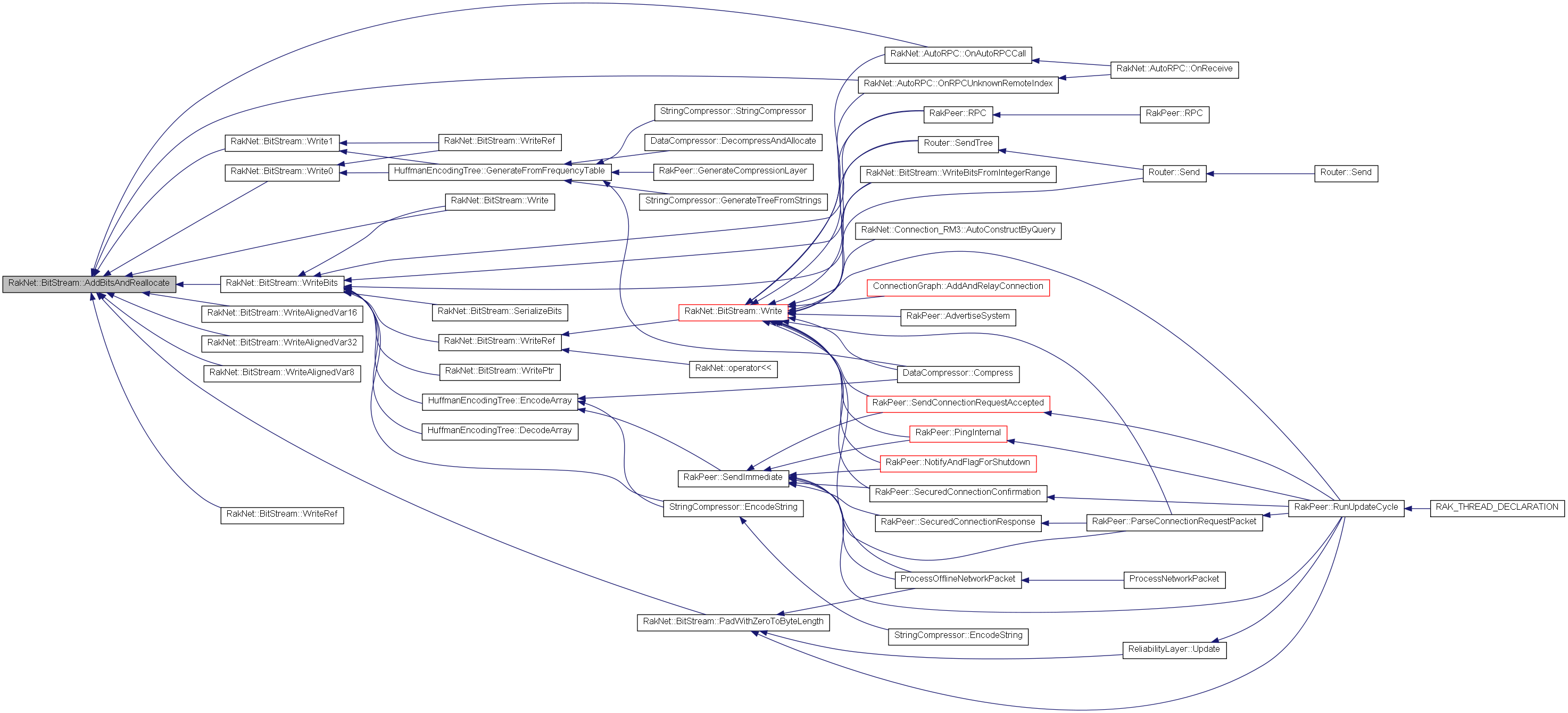

void	AddBitsAndReallocate (const BitSize_t numberOfBitsToWrite)
	Reallocates (if necessary) in preparation of writing numberOfBitsToWrite.
BitSize_t	GetNumberOfBitsAllocated (void) const

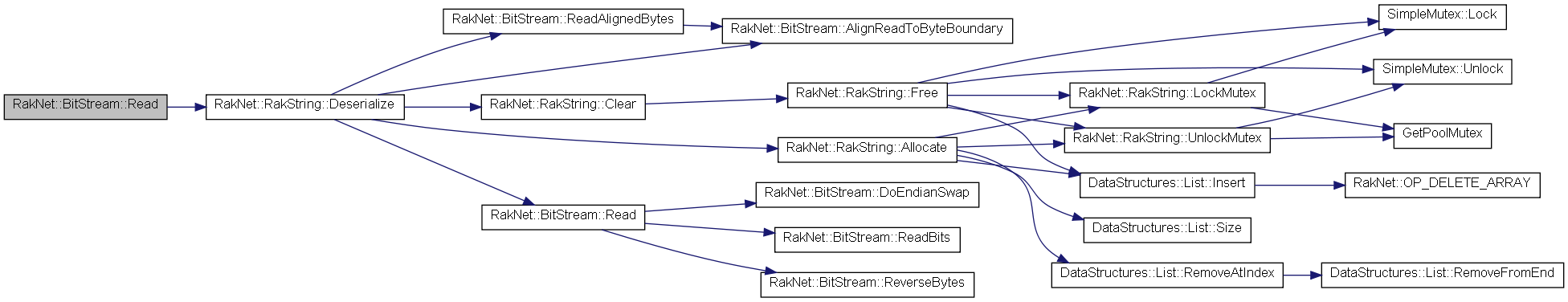

bool	Read (char *varString)
	Read strings, non reference.
bool	Read (unsigned char *varString)

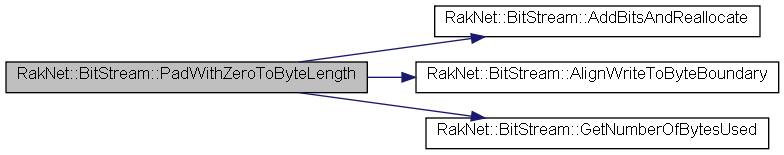

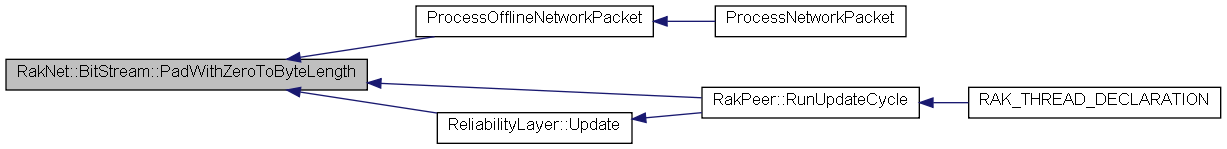

void	PadWithZeroToByteLength (unsigned int bytes)
	Write zeros until the bitstream is filled up to bytes.
void	WriteAlignedVar8 (const char *inByteArray)
bool	ReadAlignedVar8 (char *inOutByteArray)
void	WriteAlignedVar16 (const char *inByteArray)
bool	ReadAlignedVar16 (char *inOutByteArray)
void	WriteAlignedVar32 (const char *inByteArray)
bool	ReadAlignedVar32 (char *inOutByteArray)
template<>
void	WriteRef (const bool &inTemplateVar)
	Write a bool to a bitstream.
template<>
void	WriteRef (const SystemAddress &inTemplateVar)
	Write a systemAddress to a bitstream.
template<>
void	WriteRef (const uint24_t &inTemplateVar)
template<>
void	WriteRef (const RakNetGUID &inTemplateVar)
template<>
void	WriteRef (const NetworkID &inTemplateVar)
	Write an networkID to a bitstream.
template<>
void	WriteRef (const RakString &inTemplateVar)
	Write a string to a bitstream.
template<>
void	WriteRef (const char *const &inStringVar)
template<>
void	WriteRef (const unsigned char *const &inTemplateVar)
template<>
void	WriteRef (char *const &inTemplateVar)
template<>
void	WriteRef (unsigned char *const &inTemplateVar)
template<>
void	WriteDelta (bool currentValue, bool lastValue)
	Write a bool delta. Same thing as just calling Write.
template<>
void	WriteCompressed (SystemAddress inTemplateVar)
template<>
void	WriteCompressed (RakNetGUID inTemplateVar)
template<>
void	WriteCompressed (uint24_t var)
template<>
void	WriteCompressed (NetworkID inTemplateVar)
template<>
void	WriteCompressed (bool inTemplateVar)
template<>
void	WriteCompressed (float inTemplateVar)
	For values between -1 and 1.
template<>
void	WriteCompressed (double inTemplateVar)
	For values between -1 and 1.
template<>
void	WriteCompressed (RakString inTemplateVar)
	Compress the string.
template<>
void	WriteCompressed (const char *inStringVar)
template<>
void	WriteCompressed (const unsigned char *inTemplateVar)
template<>
void	WriteCompressed (char *inTemplateVar)
template<>
void	WriteCompressed (unsigned char *inTemplateVar)
template<>
void	WriteCompressedDelta (bool currentValue, bool lastValue)
	Write a bool delta. Same thing as just calling Write.
template<>
void	WriteCompressedDelta (bool currentValue)
	Save as WriteCompressedDelta(bool currentValue, templateType lastValue) when we have an unknown second bool.
template<>
bool	Read (bool &outTemplateVar)
	Read a bool from a bitstream.
template<>
bool	Read (SystemAddress &outTemplateVar)
	Read a systemAddress from a bitstream.
template<>
bool	Read (uint24_t &outTemplateVar)
template<>
bool	Read (RakNetGUID &outTemplateVar)
template<>
bool	Read (NetworkID &outTemplateVar)
	Read an networkID from a bitstream.
template<>
bool	Read (RakString &outTemplateVar)
	Read an networkID from a bitstream.
template<>
bool	Read (char *&varString)
template<>
bool	Read (unsigned char *&varString)
template<>
bool	ReadDelta (bool &outTemplateVar)
	Read a bool from a bitstream.
template<>
bool	ReadCompressed (SystemAddress &outTemplateVar)
template<>
bool	ReadCompressed (uint24_t &outTemplateVar)
template<>
bool	ReadCompressed (RakNetGUID &outTemplateVar)
template<>
bool	ReadCompressed (NetworkID &outTemplateVar)
template<>
bool	ReadCompressed (bool &outTemplateVar)
template<>
bool	ReadCompressed (float &outTemplateVar)
	For values between -1 and 1.
template<>
bool	ReadCompressed (double &outTemplateVar)
	For values between -1 and 1.
template<>
bool	ReadCompressed (RakString &outTemplateVar)
	For strings.
template<>
bool	ReadCompressed (char *&outTemplateVar)
template<>
bool	ReadCompressed (unsigned char *&outTemplateVar)
template<>
bool	ReadCompressedDelta (bool &outTemplateVar)
	Read a bool from a bitstream.
Static Public Member Functions
static int	NumberOfLeadingZeroes (uint8_t x)
static int	NumberOfLeadingZeroes (uint16_t x)
static int	NumberOfLeadingZeroes (uint32_t x)
static int	NumberOfLeadingZeroes (uint64_t x)
static int	NumberOfLeadingZeroes (int8_t x)
static int	NumberOfLeadingZeroes (int16_t x)
static int	NumberOfLeadingZeroes (int32_t x)
static int	NumberOfLeadingZeroes (int64_t x)
static bool	DoEndianSwap (void)
	---- Member function template specialization declarations ----
static bool	IsBigEndian (void)
static bool	IsNetworkOrder (void)
static bool	IsNetworkOrderInternal (void)
static void	ReverseBytes (unsigned char *inByteArray, unsigned char *inOutByteArray, const unsigned int length)
static void	ReverseBytesInPlace (unsigned char *inOutData, const unsigned int length)

---

Detailed Description

This class allows you to write and read native types as a string of bits. BitStream is used extensively throughout RakNet and is designed to be used by users as well.

See also:

BitStreamSample.txt

Definition at line 41 of file BitStream.h.

---

Constructor & Destructor Documentation

BitStream::BitStream

(

)

Default Constructor.

Definition at line 48 of file BitStream.cpp.

BitStream::BitStream

(

const unsigned int

initialBytesToAllocate

)

Create the bitstream, with some number of bytes to immediately allocate.

There is no benefit to calling this, unless you know exactly how many bytes you need and it is greater than BITSTREAM_STACK_ALLOCATION_SIZE. In that case all it does is save you one or more realloc calls.

Parameters:

[in]

initialBytesToAllocate

the number of bytes to pre-allocate.

Definition at line 64 of file BitStream.cpp.

BitStream::BitStream	(	unsigned char *	_data,
		const unsigned int	lengthInBytes,
		bool	_copyData
	)

Initialize the BitStream, immediately setting the data it contains to a predefined pointer.

Set _copyData to true if you want to make an internal copy of the data you are passing. Set it to false to just save a pointer to the data. You shouldn't call Write functions with _copyData as false, as this will write to unallocated memory 99% of the time you will use this function to cast Packet::data to a bitstream for reading, in which case you should write something as follows:

 RakNet::BitStream bs(packet->data, packet->length, false);

Parameters:

[in]	_data	An array of bytes.
[in]	lengthInBytes	Size of the _data.
[in]	_copyData	true or false to make a copy of _data or not.

Definition at line 85 of file BitStream.cpp.

BitStream::~BitStream

(

)

Definition at line 126 of file BitStream.cpp.

---

Member Function Documentation

void BitStream::AddBitsAndReallocate

(

const BitSize_t

numberOfBitsToWrite

)

Reallocates (if necessary) in preparation of writing numberOfBitsToWrite.

Cap to 1 meg buffer to save on huge allocations

Definition at line 678 of file BitStream.cpp.

Here is the caller graph for this function:

void RakNet::BitStream::AlignReadToByteBoundary

(

void

)

[inline]

Align the next write and/or read to a byte boundary.

This can be used to 'waste' bits to byte align for efficiency reasons It can also be used to force coalesced bitstreams to start on byte boundaries so so WriteAlignedBits and ReadAlignedBits both calculate the same offset when aligning.

Definition at line 595 of file BitStream.h.

Here is the caller graph for this function:

void RakNet::BitStream::AlignWriteToByteBoundary

(

void

)

[inline]

Align the next write and/or read to a byte boundary.

This can be used to 'waste' bits to byte align for efficiency reasons It can also be used to force coalesced bitstreams to start on byte boundaries so so WriteAlignedBits and ReadAlignedBits both calculate the same offset when aligning.

Definition at line 588 of file BitStream.h.

Here is the caller graph for this function:

void BitStream::AssertCopyData

(

void

)

If we used the constructor version with copy data off, this makes sure it is set to on and the data pointed to is copied.

Definition at line 957 of file BitStream.cpp.

void BitStream::AssertStreamEmpty

(

void

)

This is good to call when you are done with the stream to make sure you didn't leave any data left over void.

Definition at line 821 of file BitStream.cpp.

BitSize_t BitStream::CopyData

(

unsigned char **

_data

)

const

Makes a copy of the internal data for you _data will point to the stream. Partial bytes are left aligned.

Parameters:

[out]

_data

The allocated copy of GetData()

Returns:

The length in bits of the stream.

Definition at line 884 of file BitStream.cpp.

Here is the caller graph for this function:

static bool RakNet::BitStream::DoEndianSwap

(

void

)

[inline, static]

---- Member function template specialization declarations ----

Definition at line 857 of file BitStream.h.

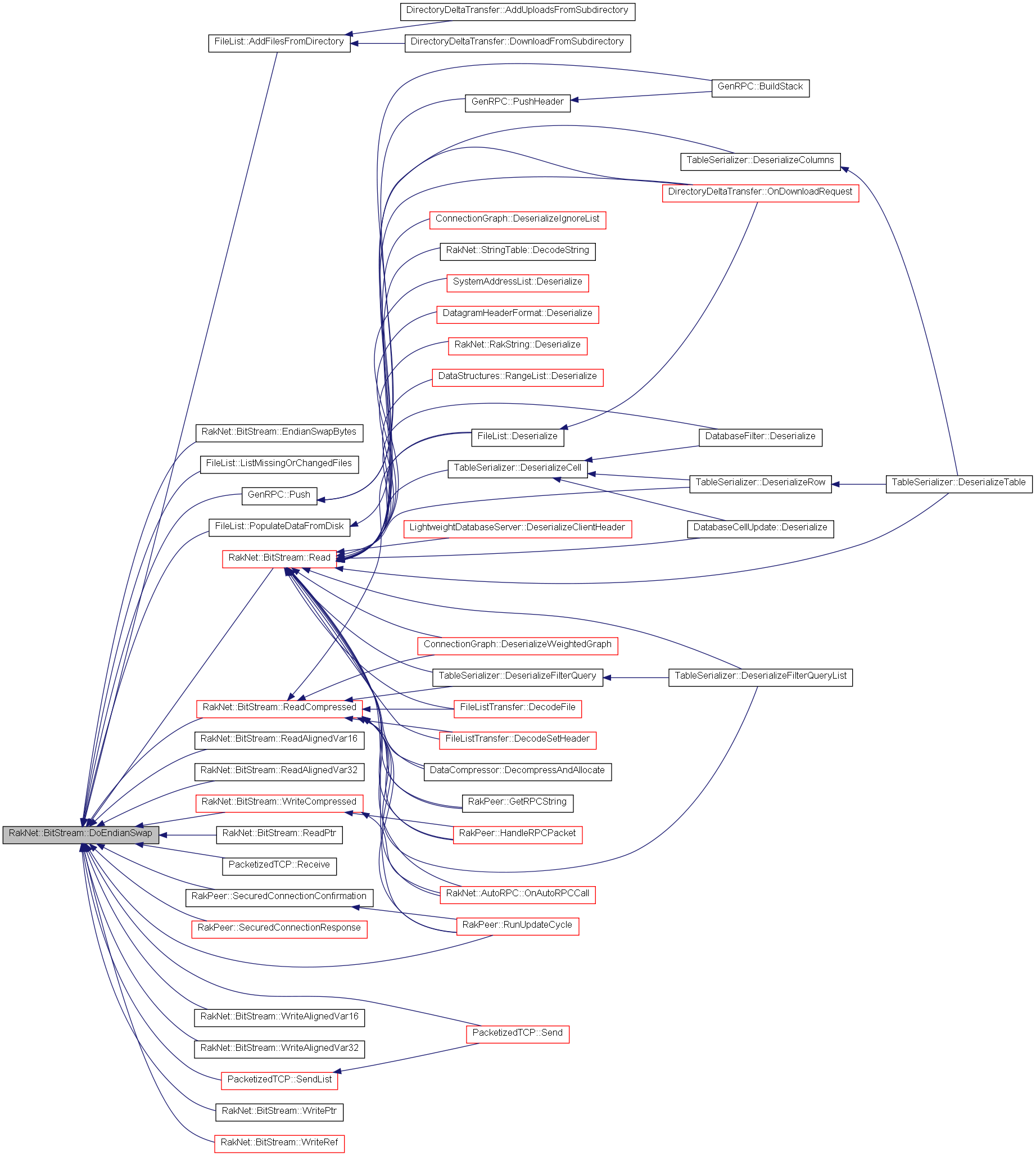

Here is the caller graph for this function:

void BitStream::EndianSwapBytes	(	int	byteOffset,
		int	length
	)

Definition at line 332 of file BitStream.cpp.

Here is the call graph for this function:

unsigned char* RakNet::BitStream::GetData

(

void

)

const [inline]

Gets the data that BitStream is writing to / reading from. Partial bytes are left aligned.

Returns:

A pointer to the internal state

Definition at line 530 of file BitStream.h.

Here is the caller graph for this function:

BitSize_t BitStream::GetNumberOfBitsAllocated

(

void

)

const

Definition at line 724 of file BitStream.cpp.

Here is the caller graph for this function:

BitSize_t RakNet::BitStream::GetNumberOfBitsUsed

(

void

)

const [inline]

Returns the length in bits of the stream.

Definition at line 502 of file BitStream.h.

Here is the caller graph for this function:

BitSize_t RakNet::BitStream::GetNumberOfBytesUsed

(

void

)

const [inline]

Returns the length in bytes of the stream.

Definition at line 506 of file BitStream.h.

Here is the caller graph for this function:

BitSize_t RakNet::BitStream::GetNumberOfUnreadBits

(

void

)

const [inline]

Returns the number of bits left in the stream that haven't been read.

Definition at line 515 of file BitStream.h.

Here is the caller graph for this function:

BitSize_t RakNet::BitStream::GetReadOffset

(

void

)

const [inline]

Returns the number of bits into the stream that we have read.

Definition at line 509 of file BitStream.h.

Here is the caller graph for this function:

BitSize_t RakNet::BitStream::GetWriteOffset

(

void

)

const [inline]

Definition at line 503 of file BitStream.h.

Here is the caller graph for this function:

void BitStream::IgnoreBits

(

const BitSize_t

numberOfBits

)

Ignore data we don't intend to read.

Parameters:

[in]

numberOfBits

The number of bits to ignore

Definition at line 896 of file BitStream.cpp.

Here is the caller graph for this function:

void BitStream::IgnoreBytes

(

const unsigned int

numberOfBytes

)

Ignore data we don't intend to read.

Parameters:

[in]

numberOfBits

The number of bytes to ignore

Definition at line 901 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

static bool RakNet::BitStream::IsBigEndian

(

void

)

[inline, static]

Definition at line 864 of file BitStream.h.

Here is the caller graph for this function:

static bool RakNet::BitStream::IsNetworkOrder

(

void

)

[inline, static]

Definition at line 868 of file BitStream.h.

Here is the caller graph for this function:

bool BitStream::IsNetworkOrderInternal

(

void

)

[static]

Definition at line 979 of file BitStream.cpp.

int BitStream::NumberOfLeadingZeroes

(

uint16_t

x

)

[static]

Definition at line 778 of file BitStream.cpp.

int BitStream::NumberOfLeadingZeroes

(

uint32_t

x

)

[static]

Definition at line 791 of file BitStream.cpp.

int BitStream::NumberOfLeadingZeroes

(

uint64_t

x

)

[static]

Definition at line 805 of file BitStream.cpp.

int BitStream::NumberOfLeadingZeroes

(

int8_t

x

)

[static]

Definition at line 765 of file BitStream.cpp.

Here is the call graph for this function:

int BitStream::NumberOfLeadingZeroes

(

int16_t

x

)

[static]

Definition at line 777 of file BitStream.cpp.

Here is the call graph for this function:

int BitStream::NumberOfLeadingZeroes

(

int32_t

x

)

[static]

Definition at line 790 of file BitStream.cpp.

Here is the call graph for this function:

int BitStream::NumberOfLeadingZeroes

(

int64_t

x

)

[static]

Definition at line 804 of file BitStream.cpp.

Here is the call graph for this function:

int BitStream::NumberOfLeadingZeroes

(

uint8_t

x

)

[static]

Get the number of leading zeros for a number

Parameters:

[in]

x

Number to test

Definition at line 766 of file BitStream.cpp.

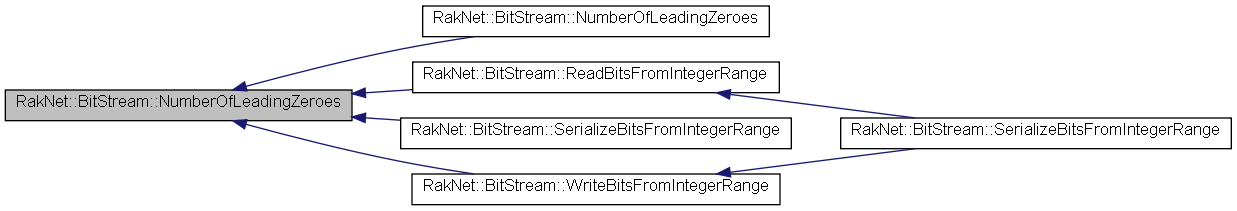

Here is the caller graph for this function:

void BitStream::PadWithZeroToByteLength

(

unsigned int

bytes

)

Write zeros until the bitstream is filled up to bytes.

Definition at line 728 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::PrintBits

(

char *

out

)

const

RAKNET_DEBUG_PRINTF the bits in the stream. Great for debugging.

Definition at line 825 of file BitStream.cpp.

void BitStream::PrintBits

(

void

)

const

Definition at line 861 of file BitStream.cpp.

void BitStream::PrintHex

(

char *

out

)

const

Definition at line 867 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::PrintHex

(

void

)

const

Definition at line 875 of file BitStream.cpp.

bool BitStream::Read

(

BitStream *

bitStream

)

Definition at line 238 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::Read

(

BitStream &

bitStream

)

Definition at line 250 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::Read	(	BitStream &	bitStream,
		BitSize_t	numberOfBits
	)

Definition at line 243 of file BitStream.cpp.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

bool &

outTemplateVar

)

[inline]

Read a bool from a bitstream.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1537 of file BitStream.h.

template<>

bool RakNet::BitStream::Read

(

SystemAddress &

outTemplateVar

)

[inline]

Read a systemAddress from a bitstream.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1556 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

uint24_t &

outTemplateVar

)

[inline]

Definition at line 1567 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

RakNetGUID &

outTemplateVar

)

[inline]

Definition at line 1594 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

NetworkID &

outTemplateVar

)

[inline]

Read an networkID from a bitstream.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1602 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

RakString &

outTemplateVar

)

[inline]

Read an networkID from a bitstream.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1631 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

char *&

varString

)

[inline]

Definition at line 1636 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::Read

(

unsigned char *&

varString

)

[inline]

Definition at line 1641 of file BitStream.h.

Here is the call graph for this function:

bool BitStream::Read

(

char *

varString

)

Read strings, non reference.

Definition at line 1005 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::Read	(	char *	output,
		const unsigned int	numberOfBytes
	)

Read an array or casted stream of byte.

The array is raw data. There is no automatic endian conversion with this function

Parameters:

[in]	output	The result byte array. It should be larger than numberOfBytes.
[in]	numberOfBytes	The number of byte to read

Returns:

true on success false if there is some missing bytes.

Definition at line 257 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::Read

(

unsigned char *

varString

)

Definition at line 1009 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::Read	(	BitStream *	bitStream,
		BitSize_t	numberOfBits
	)

Read one bitstream to another.

Parameters:

[in]	numberOfBits	bits to read
	bitStream	the bitstream to read into from

Returns:

true on success, false on failure.

Definition at line 231 of file BitStream.cpp.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::Read

(

templateType &

outTemplateVar

)

[inline]

Read any integral type from a bitstream.

Read any integral type from a bitstream. Define __BITSTREAM_NATIVE_END if you need endian swapping.

Define __BITSTREAM_NATIVE_END if you need endian swapping.

Parameters:

[in]

outTemplateVar

The value to read

Returns:

true on success, false on failure.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1475 of file BitStream.h.

Here is the call graph for this function:

bool BitStream::ReadAlignedBytes	(	unsigned char *	inOutByteArray,
		const unsigned int	numberOfBytesToRead
	)

Read bits, starting at the next aligned bits.

Note that the modulus 8 starting offset of the sequence must be the same as was used with WriteBits. This will be a problem with packet coalescence unless you byte align the coalesced packets.

Parameters:

[in]	inOutByteArray	The byte array larger than numberOfBytesToRead
[in]	numberOfBytesToRead	The number of byte to read from the internal state

Returns:

true if there is enough byte.

Definition at line 354 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool BitStream::ReadAlignedBytesSafe	(	char *	inOutByteArray,
		unsigned int &	inputLength,
		const unsigned int	maxBytesToRead
	)

Definition at line 380 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::ReadAlignedBytesSafe	(	char *	inOutByteArray,
		int &	inputLength,
		const int	maxBytesToRead
	)

Reads what was written by WriteAlignedBytesSafe.

Parameters:

[in]	inOutByteArray	The data
[in]	maxBytesToRead	Maximum number of bytes to read

Returns:

true on success, false on failure.

Definition at line 376 of file BitStream.cpp.

bool BitStream::ReadAlignedBytesSafeAlloc	(	char **	outByteArray,
		int &	inputLength,
		const unsigned int	maxBytesToRead
	)

Same as ReadAlignedBytesSafe() but allocates the memory for you using new, rather than assuming it is safe to write to.

Parameters:

[in]

outByteArray

outByteArray will be deleted if it is not a pointer to 0

Returns:

true on success, false on failure.

Definition at line 390 of file BitStream.cpp.

Here is the caller graph for this function:

bool BitStream::ReadAlignedBytesSafeAlloc	(	char **	outByteArray,
		unsigned int &	inputLength,
		const unsigned int	maxBytesToRead
	)

Definition at line 394 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::ReadAlignedVar16

(

char *

inOutByteArray

)

Definition at line 1049 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::ReadAlignedVar32

(

char *

inOutByteArray

)

Definition at line 1093 of file BitStream.cpp.

Here is the call graph for this function:

bool BitStream::ReadAlignedVar8

(

char *

inOutByteArray

)

Definition at line 1020 of file BitStream.cpp.

bool BitStream::ReadBit

(

void

)

Reads 1 bit and returns true if that bit is 1 and false if it is 0.

Definition at line 317 of file BitStream.cpp.

Here is the caller graph for this function:

bool BitStream::ReadBits	(	unsigned char *	inOutByteArray,
		BitSize_t	numberOfBitsToRead,
		const bool	alignBitsToRight = true
	)

Read numberOfBitsToRead bits to the output source.

alignBitsToRight should be set to true to convert internal bitstream data to userdata. It should be false if you used WriteBits with rightAlignedBits false

Parameters:

[in]	inOutByteArray	The resulting bits array
[in]	numberOfBitsToRead	The number of bits to read
[in]	alignBitsToRight	if true bits will be right aligned.

Returns:

true if there is enough bits to read

Definition at line 536 of file BitStream.cpp.

Here is the caller graph for this function:

template<class templateType , class rangeType >

bool RakNet::BitStream::ReadBitsFromIntegerRange	(	templateType &	value,
		const rangeType	minimum,
		const rangeType	maximum,
		bool	allowOutsideRange = false
	)

Given the minimum and maximum values for an integer type, figure out the minimum number of bits to represent the range Then read only those bits

Note:

A static is used so that the required number of bits for (maximum-minimum) is only calculated once. This does require that minimum and are fixed values for a given line of code for the life of the program

Parameters:

[in]	value	Integer value to read, which should be between minimum and maximum
[in]	minimum	Minimum value of value
[in]	maximum	Maximum value of value
[in]	allowOutsideRange	If true, all sends will take an extra bit, however value can deviate from outside minimum and maximum. If false, will assert if the value deviates. This should match the corresponding value passed to Write().

Definition at line 1934 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType , class rangeType >

bool RakNet::BitStream::ReadBitsFromIntegerRange	(	templateType &	value,
		const rangeType	minimum,
		const rangeType	maximum,
		const int	requiredBits,
		bool	allowOutsideRange = false
	)

Parameters:

[in]

requiredBits

Primarily for internal use, called from above function() after calculating number of bits needed to represent maximum-minimum

Definition at line 1940 of file BitStream.h.

Here is the call graph for this function:

template<class serializationType , class sourceType >

bool RakNet::BitStream::ReadCasted

(

sourceType &

value

)

Read one type serialized to another (smaller) type, to save bandwidth serializationType should be uint8_t, uint16_t, uint24_t, or uint32_t Example: int num; ReadCasted<uint8_t>(num); would read 1 bytefrom the stream, and put the value in an integer

Parameters:

[in]

value

The value to write

Definition at line 1925 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

SystemAddress &

outTemplateVar

)

[inline]

Definition at line 1704 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

uint24_t &

outTemplateVar

)

[inline]

Definition at line 1710 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

RakNetGUID &

outTemplateVar

)

[inline]

Definition at line 1716 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

bool &

outTemplateVar

)

[inline]

Definition at line 1728 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

float &

outTemplateVar

)

[inline]

For values between -1 and 1.

Definition at line 1735 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

double &

outTemplateVar

)

[inline]

For values between -1 and 1.

Definition at line 1748 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

char *&

outTemplateVar

)

[inline]

Definition at line 1766 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

unsigned char *&

outTemplateVar

)

[inline]

Definition at line 1771 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

NetworkID &

outTemplateVar

)

[inline]

Definition at line 1722 of file BitStream.h.

Here is the call graph for this function:

template<>

bool RakNet::BitStream::ReadCompressed

(

RakString &

outTemplateVar

)

[inline]

For strings.

Definition at line 1761 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadCompressed

(

templateType &

outTemplateVar

)

[inline]

Read any integral type from a bitstream.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping. For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte

Parameters:

[in]

outTemplateVar

The value to read

Returns:

true on success, false on failure.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping. For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1677 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<>

bool RakNet::BitStream::ReadCompressedDelta

(

bool &

outTemplateVar

)

[inline]

Read a bool from a bitstream.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1799 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadCompressedDelta

(

templateType &

outTemplateVar

)

[inline]

Read any integral type from a bitstream.

If the written value differed from the value compared against in the write function, var will be updated. Otherwise it will retain the current value. the current value will be updated. For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte ReadCompressedDelta is only valid from a previous call to WriteDelta

Parameters:

[in]

outTemplateVar

The value to read

Returns:

true on success, false on failure.

If the written value differed from the value compared against in the write function, var will be updated. Otherwise it will retain the current value. the current value will be updated. For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte ReadCompressedDelta is only valid from a previous call to WriteDelta

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1786 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<>

bool RakNet::BitStream::ReadDelta

(

bool &

outTemplateVar

)

[inline]

Read a bool from a bitstream.

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1665 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadDelta

(

templateType &

outTemplateVar

)

[inline]

Read any integral type from a bitstream.

If the written value differed from the value compared against in the write function, var will be updated. Otherwise it will retain the current value. ReadDelta is only valid from a previous call to WriteDelta

Parameters:

[in]

outTemplateVar

The value to read

Returns:

true on success, false on failure.

If the written value differed from the value compared against in the write function, var will be updated. Otherwise it will retain the current value. ReadDelta is only valid from a previous call to WriteDelta

Parameters:

[in]

outTemplateVar

The value to read

Definition at line 1652 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

bool BitStream::ReadFloat16	(	float &	outFloat,
		float	floatMin,
		float	floatMax
	)

Read a float into 2 bytes, spanning the range between floatMin and floatMax.

Parameters:

[in]	outFloat	The float to read
[in]	floatMin	Predetermined minimum value of f
[in]	floatMax	Predetermined maximum value of f

Definition at line 1118 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadNormQuat	(	templateType &	w,
		templateType &	x,
		templateType &	y,
		templateType &	z
	)

Read a normalized quaternion in 6 bytes + 4 bits instead of 16 bytes.

Parameters:

[in]	w	w
[in]	x	x
[in]	y	y
[in]	z	z

Returns:

true on success, false on failure.

Definition at line 2016 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadNormVector	(	templateType &	x,
		templateType &	y,
		templateType &	z
	)

Read a normalized 3D vector, using (at most) 4 bytes + 3 bits instead of 12-24 bytes.

Will further compress y or z axis aligned vectors. Accurate to 1/32767.5.

Parameters:

[in]	x	x
[in]	y	y
[in]	z	z

Returns:

true on success, false on failure.

Definition at line 1966 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadOrthMatrix	(	templateType &	m00,
		templateType &	m01,
		templateType &	m02,
		templateType &	m10,
		templateType &	m11,
		templateType &	m12,
		templateType &	m20,
		templateType &	m21,
		templateType &	m22
	)

Read an orthogonal matrix from a quaternion, reading 3 components of the quaternion in 2 bytes each and extrapolatig the 4th.

Use 6 bytes instead of 36 Lossy, although the result is renormalized

Returns:

true on success, false on failure.

Definition at line 2047 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadPtr

(

templateType *

outTemplateVar

)

[inline]

Read into a pointer to any integral type from a bitstream.

Define __BITSTREAM_NATIVE_END if you need endian swapping.

Parameters:

[in]

outTemplateVar

The value to read

Returns:

true on success, false on failure.

Definition at line 1505 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::ReadVector	(	templateType &	x,
		templateType &	y,
		templateType &	z
	)

Read 3 floats or doubles, using 10 bytes, where those float or doubles comprise a vector.

Loses accuracy to about 3/10ths and only saves 2 bytes, so only use if accuracy is not important.

Parameters:

[in]	x	x
[in]	y	y
[in]	z	z

Returns:

true on success, false on failure.

Definition at line 1979 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::Reset

(

void

)

Resets the bitstream for reuse.

Definition at line 132 of file BitStream.cpp.

Here is the caller graph for this function:

void BitStream::ResetReadPointer

(

void

)

Sets the read pointer back to the beginning of your data.

Definition at line 278 of file BitStream.cpp.

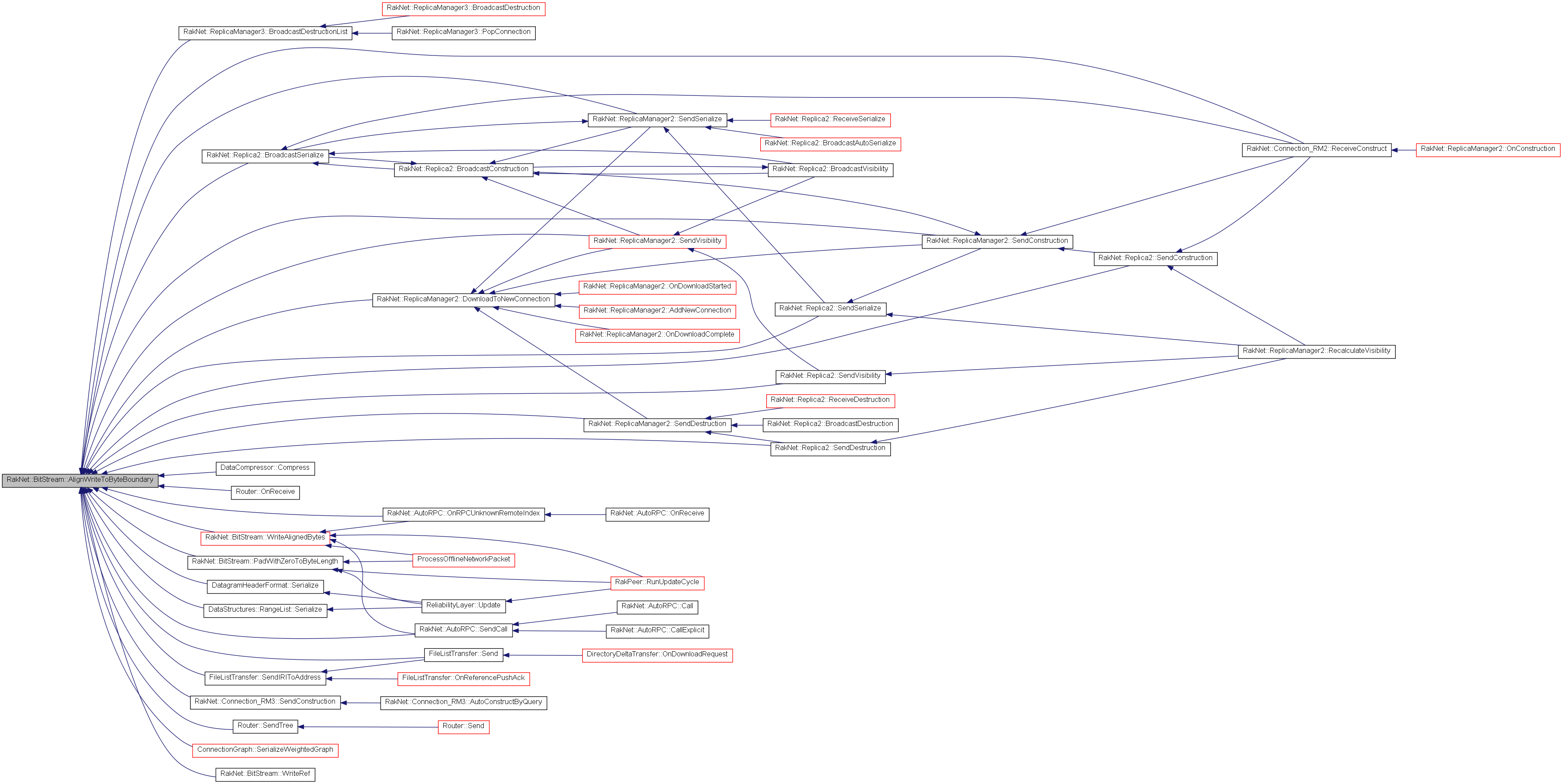

Here is the caller graph for this function:

void BitStream::ResetWritePointer

(

void

)

Sets the write pointer back to the beginning of your data.

Definition at line 284 of file BitStream.cpp.

Here is the caller graph for this function:

void BitStream::ReverseBytes	(	unsigned char *	inByteArray,
		unsigned char *	inOutByteArray,
		const unsigned int	length
	)			[static]

Definition at line 988 of file BitStream.cpp.

Here is the caller graph for this function:

void BitStream::ReverseBytesInPlace	(	unsigned char *	inOutData,
		const unsigned int	length
	)			[static]

Definition at line 993 of file BitStream.cpp.

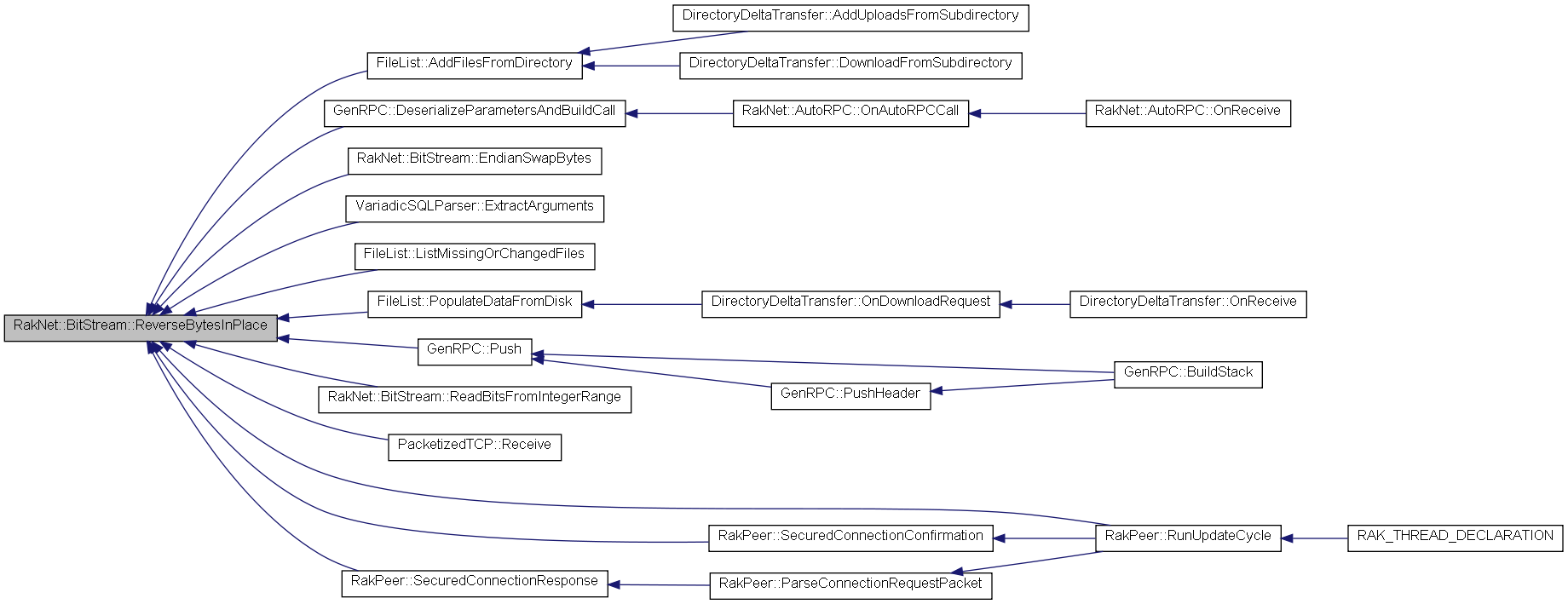

Here is the caller graph for this function:

bool RakNet::BitStream::Serialize	(	bool	writeToBitstream,
		char *	inOutByteArray,
		const unsigned int	numberOfBytes
	)			[inline]

Bidirectional serialize/deserialize an array or casted stream or raw data. This does NOT do endian swapping.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutByteArray	a byte buffer
[in]	numberOfBytes	the size of input in bytes

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 963 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::Serialize	(	bool	writeToBitstream,
		templateType &	inOutTemplateVar
	)			[inline]

Bidirectional serialize/deserialize any integral type to/from a bitstream.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutTemplateVar	The value to write

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 904 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

bool RakNet::BitStream::SerializeBits	(	bool	writeToBitstream,
		unsigned char *	inOutByteArray,
		const BitSize_t	numberOfBitsToSerialize,
		const bool	rightAlignedBits = true
	)			[inline]

Bidirectional serialize/deserialize numberToSerialize bits to/from the input.

Right aligned data means in the case of a partial byte, the bits are aligned from the right (bit 0) rather than the left (as in the normal internal representation) You would set this to true when writing user data, and false when copying bitstream data, such as writing one bitstream to another

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutByteArray	The data
[in]	numberOfBitsToSerialize	The number of bits to write
[in]	rightAlignedBits	if true data will be right aligned

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 1038 of file BitStream.h.

Here is the call graph for this function:

template<class templateType , class rangeType >

bool RakNet::BitStream::SerializeBitsFromIntegerRange	(	bool	writeToBitstream,
		templateType &	value,
		const rangeType	minimum,
		const rangeType	maximum,
		bool	allowOutsideRange = false
	)

Given the minimum and maximum values for an integer type, figure out the minimum number of bits to represent the range Then serialize only those bits

Note:

A static is used so that the required number of bits for (maximum-minimum) is only calculated once. This does require that minimum and are fixed values for a given line of code for the life of the program

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	value	Integer value to write, which should be between minimum and maximum
[in]	minimum	Minimum value of value
[in]	maximum	Maximum value of value
[in]	allowOutsideRange	If true, all sends will take an extra bit, however value can deviate from outside minimum and maximum. If false, will assert if the value deviates

Definition at line 981 of file BitStream.h.

Here is the call graph for this function:

template<class templateType , class rangeType >

bool RakNet::BitStream::SerializeBitsFromIntegerRange	(	bool	writeToBitstream,
		templateType &	value,
		const rangeType	minimum,
		const rangeType	maximum,
		const int	requiredBits,
		bool	allowOutsideRange = false
	)

Parameters:

[in]

requiredBits

Primarily for internal use, called from above function() after calculating number of bits needed to represent maximum-minimum

Definition at line 987 of file BitStream.h.

Here is the call graph for this function:

template<class serializationType , class sourceType >

bool RakNet::BitStream::SerializeCasted	(	bool	writeToBitstream,
		sourceType &	value
	)

Serialize one type casted to another (smaller) type, to save bandwidth serializationType should be uint8_t, uint16_t, uint24_t, or uint32_t Example: int num=53; SerializeCasted<uint8_t>(true, num); would use 1 byte to write what would otherwise be an integer (4 or 8 bytes)

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	value	The value to serialize

Definition at line 973 of file BitStream.h.

template<class templateType >

bool RakNet::BitStream::SerializeCompressed	(	bool	writeToBitstream,
		templateType &	inOutTemplateVar
	)			[inline]

Bidirectional serialize/deserialize any integral type to/from a bitstream.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping. If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutTemplateVar	The value to write

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 934 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeCompressedDelta	(	bool	writeToBitstream,
		templateType &	inOutCurrentValue,
		templateType	lastValue
	)			[inline]

Bidirectional serialize/deserialize any integral type to/from a bitstream.

If the current value is different from the last value the current value will be written. Otherwise, a single bit will be written For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutCurrentValue	The current value to write
[in]	lastValue	The last value to compare against. Only used if writeToBitstream is true.

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 944 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeCompressedDelta	(	bool	writeToBitstream,
		templateType &	inOutTemplateVar
	)			[inline]

Save as SerializeCompressedDelta(templateType &currentValue, templateType lastValue) when we have an unknown second parameter.

Returns:

true on data read. False on insufficient data in bitstream

Definition at line 954 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeDelta	(	bool	writeToBitstream,
		templateType &	inOutCurrentValue
	)			[inline]

Bidirectional version of SerializeDelta when you don't know what the last value is, or there is no last value.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutCurrentValue	The current value to write

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 924 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeDelta	(	bool	writeToBitstream,
		templateType &	inOutCurrentValue,
		templateType	lastValue
	)			[inline]

Bidirectional serialize/deserialize any integral type to/from a bitstream.

If the current value is different from the last value the current value will be written. Otherwise, a single bit will be written

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutCurrentValue	The current value to write
[in]	lastValue	The last value to compare against. Only used if writeToBitstream is true.

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 914 of file BitStream.h.

Here is the call graph for this function:

bool BitStream::SerializeFloat16	(	bool	writeToBitstream,
		float &	inOutFloat,
		float	floatMin,
		float	floatMax
	)

Serialize a float into 2 bytes, spanning the range between floatMin and floatMax.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	inOutFloat	The float to write
[in]	floatMin	Predetermined minimum value of f
[in]	floatMax	Predetermined maximum value of f

Definition at line 1133 of file BitStream.cpp.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeNormQuat	(	bool	writeToBitstream,
		templateType &	w,
		templateType &	x,
		templateType &	y,
		templateType &	z
	)			[inline]

Bidirectional serialize/deserialize a normalized quaternion in 6 bytes + 4 bits instead of 16 bytes. Slightly lossy.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	w	w
[in]	x	x
[in]	y	y
[in]	z	z

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 1015 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeNormVector	(	bool	writeToBitstream,
		templateType &	x,
		templateType &	y,
		templateType &	z
	)			[inline]

Bidirectional serialize/deserialize a normalized 3D vector, using (at most) 4 bytes + 3 bits instead of 12-24 bytes.

Will further compress y or z axis aligned vectors. Accurate to 1/32767.5.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	x	x
[in]	y	y
[in]	z	z

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 995 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeOrthMatrix	(	bool	writeToBitstream,
		templateType &	m00,
		templateType &	m01,
		templateType &	m02,
		templateType &	m10,
		templateType &	m11,
		templateType &	m12,
		templateType &	m20,
		templateType &	m21,
		templateType &	m22
	)			[inline]

Bidirectional serialize/deserialize an orthogonal matrix by creating a quaternion, and writing 3 components of the quaternion in 2 bytes each.

Use 6 bytes instead of 36 Lossy, although the result is renormalized

Returns:

true on success, false on failure.

Definition at line 1025 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

bool RakNet::BitStream::SerializeVector	(	bool	writeToBitstream,
		templateType &	x,
		templateType &	y,
		templateType &	z
	)			[inline]

Bidirectional serialize/deserialize a vector, using 10 bytes instead of 12.

Loses accuracy to about 3/10ths and only saves 2 bytes, so only use if accuracy is not important.

Parameters:

[in]	writeToBitstream	true to write from your data to this bitstream. False to read from this bitstream and write to your data
[in]	x	x
[in]	y	y
[in]	z	z

Returns:

true if writeToBitstream is true. true if writeToBitstream is false and the read was successful. false if writeToBitstream is false and the read was not successful.

Definition at line 1005 of file BitStream.h.

Here is the call graph for this function:

void BitStream::SetData

(

unsigned char *

inByteArray

)

Definition at line 467 of file BitStream.cpp.

void BitStream::SetNumberOfBitsAllocated

(

const BitSize_t

lengthInBits

)

Use this if you pass a pointer copy to the constructor (_copyData==false) and want to overallocate to prevent reallocation.

Definition at line 118 of file BitStream.cpp.

void RakNet::BitStream::SetReadOffset

(

const BitSize_t

newReadOffset

)

[inline]

Sets the read bit index.

Definition at line 512 of file BitStream.h.

Here is the caller graph for this function:

void BitStream::SetWriteOffset

(

const BitSize_t

offset

)

Move the write pointer to a position on the array.

Parameters:

[in]

offset

the offset from the start of the array.

Attention:

Dangerous if you don't know what you are doing! For efficiency reasons you can only write mid-stream if your data is byte aligned.

Definition at line 908 of file BitStream.cpp.

Here is the caller graph for this function:

void BitStream::Write

(

BitStream &

bitStream

)

Definition at line 227 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::Write

(

BitStream *

bitStream

)

Definition at line 174 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::Write	(	BitStream &	bitStream,
		BitSize_t	numberOfBits
	)

Definition at line 223 of file BitStream.cpp.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::Write

(

templateType

inTemplateVar

)

[inline]

Write any integral type to a bitstream.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping.

Parameters:

[in]

inTemplateVar

The value to write

Definition at line 1048 of file BitStream.h.

Here is the call graph for this function:

void BitStream::Write	(	const char *	inputByteArray,
		const unsigned int	numberOfBytes
	)

Write an array or casted stream or raw data. This does NOT do endian swapping.

Parameters:

[in]	inputByteArray	a byte buffer
[in]	numberOfBytes	the size of input in bytes

Definition at line 156 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::Write	(	BitStream *	bitStream,
		BitSize_t	numberOfBits
	)

Write one bitstream to another.

Parameters:

[in]	numberOfBits	bits to write
	bitStream	the bitstream to copy from

Definition at line 178 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::Write0

(

void

)

Write a 0.

Definition at line 290 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::Write1

(

void

)

Write a 1.

Definition at line 302 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::WriteAlignedBytes	(	const unsigned char *	inByteArray,
		const unsigned int	numberOfBytesToWrite
	)

Align the bitstream to the byte boundary and then write the specified number of bits.

This is faster than WriteBits but wastes the bits to do the alignment and requires you to call ReadAlignedBits at the corresponding read position.

Parameters:

[in]	inByteArray	The data
[in]	numberOfBytesToWrite	The size of input.

Definition at line 327 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::WriteAlignedBytesSafe	(	const char *	inByteArray,
		const unsigned int	inputLength,
		const unsigned int	maxBytesToWrite
	)

Aligns the bitstream, writes inputLength, and writes input. Won't write beyond maxBytesToWrite.

Parameters:

[in]	inByteArray	The data
[in]	inputLength	The size of input.
[in]	maxBytesToWrite	Max bytes to write

Definition at line 340 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::WriteAlignedVar16

(

const char *

inByteArray

)

Definition at line 1030 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::WriteAlignedVar32

(

const char *

inByteArray

)

Definition at line 1070 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::WriteAlignedVar8

(

const char *

inByteArray

)

Definition at line 1013 of file BitStream.cpp.

Here is the call graph for this function:

void BitStream::WriteBits	(	const unsigned char *	inByteArray,
		BitSize_t	numberOfBitsToWrite,
		const bool	rightAlignedBits = true
	)

Write numberToWrite bits from the input source.

Right aligned data means in the case of a partial byte, the bits are aligned from the right (bit 0) rather than the left (as in the normal internal representation) You would set this to true when writing user data, and false when copying bitstream data, such as writing one bitstream to another.

Parameters:

[in]	inByteArray	The data
[in]	numberOfBitsToWrite	The number of bits to write
[in]	rightAlignedBits	if true data will be right aligned

Definition at line 409 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType , class rangeType >

void RakNet::BitStream::WriteBitsFromIntegerRange	(	const templateType	value,
		const rangeType	minimum,
		const rangeType	maximum,
		bool	allowOutsideRange = false
	)

Given the minimum and maximum values for an integer type, figure out the minimum number of bits to represent the range Then write only those bits

Note:

A static is used so that the required number of bits for (maximum-minimum) is only calculated once. This does require that minimum and are fixed values for a given line of code for the life of the program

Parameters:

[in]	value	Integer value to write, which should be between minimum and maximum
[in]	minimum	Minimum value of value
[in]	maximum	Maximum value of value
[in]	allowOutsideRange	If true, all sends will take an extra bit, however value can deviate from outside minimum and maximum. If false, will assert if the value deviates. This should match the corresponding value passed to Read().

Definition at line 1812 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType , class rangeType >

void RakNet::BitStream::WriteBitsFromIntegerRange	(	const templateType	value,
		const rangeType	minimum,
		const rangeType	maximum,
		const int	requiredBits,
		bool	allowOutsideRange = false
	)

Parameters:

[in]

requiredBits

Primarily for internal use, called from above function() after calculating number of bits needed to represent maximum-minimum

Definition at line 1818 of file BitStream.h.

Here is the call graph for this function:

template<class destinationType , class sourceType >

void RakNet::BitStream::WriteCasted

(

const sourceType &

value

)

Write one type serialized as another (smaller) type, to save bandwidth serializationType should be uint8_t, uint16_t, uint24_t, or uint32_t Example: int num=53; WriteCasted<uint8_t>(num); would use 1 byte to write what would otherwise be an integer (4 or 8 bytes)

Parameters:

[in]

value

The value to write

Definition at line 1805 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

const unsigned char *

inTemplateVar

)

[inline]

Definition at line 1407 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

SystemAddress

inTemplateVar

)

[inline]

Definition at line 1339 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

double

inTemplateVar

)

[inline]

For values between -1 and 1.

Definition at line 1382 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

unsigned char *

inTemplateVar

)

[inline]

Definition at line 1417 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

RakNetGUID

inTemplateVar

)

[inline]

Definition at line 1345 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

char *

inTemplateVar

)

[inline]

Definition at line 1412 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

uint24_t

var

)

[inline]

Definition at line 1351 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

RakString

inTemplateVar

)

[inline]

Compress the string.

Definition at line 1397 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

float

inTemplateVar

)

[inline]

For values between -1 and 1.

Definition at line 1370 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::WriteCompressed

(

templateType

inTemplateVar

)

[inline]

Write any integral type to a bitstream.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping. If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type

Parameters:

[in]

inTemplateVar

The value to write

Undefine __BITSTREAM_NATIVE_END if you need endian swapping. For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte

Parameters:

[in]

inTemplateVar

The value to write

Definition at line 1312 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

const char *

inStringVar

)

[inline]

Definition at line 1402 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

bool

inTemplateVar

)

[inline]

Definition at line 1363 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressed

(

NetworkID

inTemplateVar

)

[inline]

Definition at line 1357 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::WriteCompressedDelta	(	templateType	currentValue,
		templateType	lastValue
	)			[inline]

Write any integral type to a bitstream.

If the current value is different from the last value the current value will be written. Otherwise, a single bit will be written For floating point, this is lossy, using 2 bytes for a float and 4 for a double. The range must be between -1 and +1. For non-floating point, this is lossless, but only has benefit if you use less than half the bits of the type If you are not using __BITSTREAM_NATIVE_END the opposite is true for types larger than 1 byte

Parameters:

[in]	currentValue	The current value to write
[in]	lastValue	The last value to compare against

Definition at line 1431 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<>

void RakNet::BitStream::WriteCompressedDelta	(	bool	currentValue,
		bool	lastValue
	)			[inline]

Write a bool delta. Same thing as just calling Write.

Parameters:

[in]	currentValue	The current value to write
[in]	lastValue	The last value to compare against

Definition at line 1448 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::WriteCompressedDelta

(

templateType

currentValue

)

[inline]

Save as WriteCompressedDelta(templateType currentValue, templateType lastValue) when we have an unknown second parameter.

Definition at line 1458 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteCompressedDelta

(

bool

currentValue

)

[inline]

Save as WriteCompressedDelta(bool currentValue, templateType lastValue) when we have an unknown second bool.

Definition at line 1467 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::WriteDelta

(

templateType

currentValue

)

[inline]

WriteDelta when you don't know what the last value is, or there is no last value.

Parameters:

[in]

currentValue

The current value to write

Definition at line 1299 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteDelta	(	bool	currentValue,
		bool	lastValue
	)			[inline]

Write a bool delta. Same thing as just calling Write.

Parameters:

[in]	currentValue	The current value to write
[in]	lastValue	The last value to compare against

Definition at line 1289 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::WriteDelta	(	templateType	currentValue,
		templateType	lastValue
	)			[inline]

Write any integral type to a bitstream.

If the current value is different from the last value the current value will be written. Otherwise, a single bit will be written

Parameters:

[in]	currentValue	The current value to write
[in]	lastValue	The last value to compare against

Definition at line 1218 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

void BitStream::WriteFloat16	(	float	x,
		float	floatMin,
		float	floatMax
	)

Write a float into 2 bytes, spanning the range between floatMin and floatMax.

Parameters:

[in]	x	The float to write
[in]	floatMin	Predetermined minimum value of f
[in]	floatMax	Predetermined maximum value of f

Definition at line 1141 of file BitStream.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

void RakNet::BitStream::WriteNormQuat	(	templateType	w,
		templateType	x,
		templateType	y,
		templateType	z
	)

Write a normalized quaternion in 6 bytes + 4 bits instead of 16 bytes. Slightly lossy.

Parameters:

[in]	w	w
[in]	x	x
[in]	y	y
[in]	z	z

Definition at line 1874 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

void RakNet::BitStream::WriteNormVector	(	templateType	x,
		templateType	y,
		templateType	z
	)

Write a normalized 3D vector, using (at most) 4 bytes + 3 bits instead of 12-24 bytes.

Will further compress y or z axis aligned vectors. Accurate to 1/32767.5.

Parameters:

[in]	x	x
[in]	y	y
[in]	z	z

Definition at line 1846 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

void RakNet::BitStream::WriteOrthMatrix	(	templateType	m00,
		templateType	m01,
		templateType	m02,
		templateType	m10,
		templateType	m11,
		templateType	m12,
		templateType	m20,
		templateType	m21,
		templateType	m22
	)

Write an orthogonal matrix by creating a quaternion, and writing 3 components of the quaternion in 2 bytes each.

Use 6 bytes instead of 36 Lossy, although the result is renormalized

Definition at line 1887 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

void RakNet::BitStream::WritePtr

(

templateType *

inTemplateVar

)

[inline]

Write the dereferenced pointer to any integral type to a bitstream.

Undefine __BITSTREAM_NATIVE_END if you need endian swapping.

Parameters:

[in]

inTemplateVar

The value to write

Definition at line 1077 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const char *const &

inStringVar

)

[inline]

Definition at line 1192 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const unsigned char *const &

inTemplateVar

)

[inline]

Definition at line 1197 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const bool &

inTemplateVar

)

[inline]

Write a bool to a bitstream.

Parameters:

[in]

inTemplateVar

The value to write

Definition at line 1102 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const uint24_t &

inTemplateVar

)

[inline]

Definition at line 1125 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const SystemAddress &

inTemplateVar

)

[inline]

Write a systemAddress to a bitstream.

Parameters:

[in]

inTemplateVar

The value to write

Definition at line 1114 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const NetworkID &

inTemplateVar

)

[inline]

Write an networkID to a bitstream.

Parameters:

[in]

inTemplateVar

The value to write

Definition at line 1155 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const RakString &

inTemplateVar

)

[inline]

Write a string to a bitstream.

Parameters:

[in]

var

The value to write

Definition at line 1187 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

unsigned char *const &

inTemplateVar

)

[inline]

Definition at line 1207 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

char *const &

inTemplateVar

)

[inline]

Definition at line 1202 of file BitStream.h.

Here is the call graph for this function:

template<>

void RakNet::BitStream::WriteRef

(

const RakNetGUID &

inTemplateVar

)

[inline]

Definition at line 1147 of file BitStream.h.

Here is the call graph for this function:

template<class templateType >

void RakNet::BitStream::WriteRef

(

const templateType &

inTemplateVar

)

[inline]

Definition at line 1054 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class templateType >

void RakNet::BitStream::WriteVector	(	templateType	x,
		templateType	y,
		templateType	z
	)

Write a vector, using 10 bytes instead of 12.

Loses accuracy to about 3/10ths and only saves 2 bytes, so only use if accuracy is not important.

Parameters:

[in]	x	x
[in]	y	y
[in]	z	z

Definition at line 1858 of file BitStream.h.

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• BitStream.h
• BitStream.cpp
