DS_Multilist.h File Reference

#include "RakAssert.h"
#include <string.h>
#include "Export.h"
#include "RakMemoryOverride.h"
#include "NativeTypes.h"

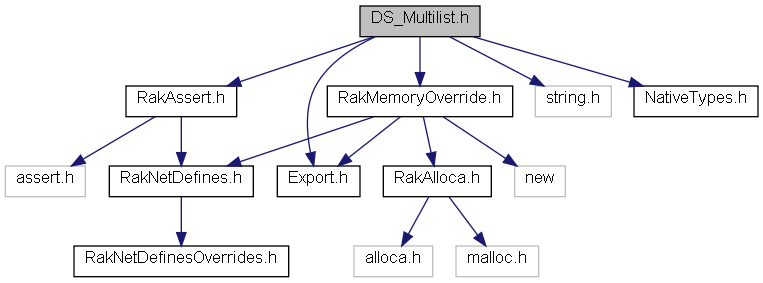

Include dependency graph for DS_Multilist.h:

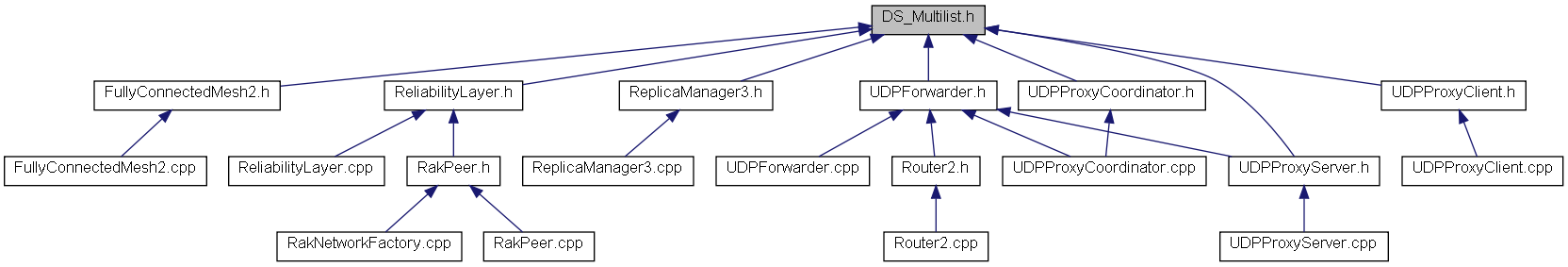

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	DataStructures::MLKeyRef< templateType >
class	DataStructures::Multilist< _MultilistType, _DataType, _KeyType, _IndexType >
	The multilist, representing an abstract data type that generally holds lists. More...
Namespaces
namespace	DataStructures
Defines
#define	DEFINE_MULTILIST_PTR_TO_MEMBER_COMPARISONS(_CLASS_NAME_, _KEY_TYPE_, _MEMBER_VARIABLE_NAME_)
Typedefs
typedef uint32_t	DataStructures::DefaultIndexType
Enumerations
enum	MultilistType {   ML_UNORDERED_LIST, ML_STACK, ML_QUEUE, ML_ORDERED_LIST,   ML_VARIABLE_DURING_RUNTIME }
	What algorithm to use to store the data for the Multilist. More...
Functions
template<class templateType >
void	DataStructures::DeletePtr_RakNet (templateType &ptr, const char *file, unsigned int line)
template<class templateType >
void	DataStructures::DeletePtr (templateType &ptr)

---

Detailed Description

Definition in file DS_Multilist.h.

---

Define Documentation

#define DEFINE_MULTILIST_PTR_TO_MEMBER_COMPARISONS	(		_CLASS_NAME_,
			_KEY_TYPE_,
			_MEMBER_VARIABLE_NAME_
	)

Value:

bool operator<( const DataStructures::MLKeyRef<_KEY_TYPE_> &inputKey, const _CLASS_NAME_ *cls ) {return inputKey.Get() < cls->_MEMBER_VARIABLE_NAME_;} \
        bool operator>( const DataStructures::MLKeyRef<_KEY_TYPE_> &inputKey, const _CLASS_NAME_ *cls ) {return inputKey.Get() > cls->_MEMBER_VARIABLE_NAME_;} \
        bool operator==( const DataStructures::MLKeyRef<_KEY_TYPE_> &inputKey, const _CLASS_NAME_ *cls ) {return inputKey.Get() == cls->_MEMBER_VARIABLE_NAME_;}

For the Multilist, when _DataType != _KeyType, you must define the comparison operators between the key and the data This is non-trivial due to the need to use MLKeyRef in case the type held is a pointer to a structure or class and the key type is not a class For convenience, this macro will implement the comparison operators under the following conditions 1. _DataType is a pointer to a class or structure 2. The key is a member variable of _DataType

Definition at line 78 of file DS_Multilist.h.

---

Enumeration Type Documentation

enum MultilistType

What algorithm to use to store the data for the Multilist.

Enumerator:

ML_UNORDERED_LIST	Removing from the middle of the list will swap the end of the list rather than shift the elements. Push and Pop operate on the tail.
ML_STACK	A normal list, with the list order preserved. Push and Pop operate on the tail.
ML_QUEUE	A queue. Push and Pop operate on the head.
ML_ORDERED_LIST	A list that is always kept in order. Elements must be unique, and compare against each other consistently using <, ==, and >
ML_VARIABLE_DURING_RUNTIME	A list whose type can change at runtime.

Definition at line 27 of file DS_Multilist.h.
