#include <TCPInterface.h>

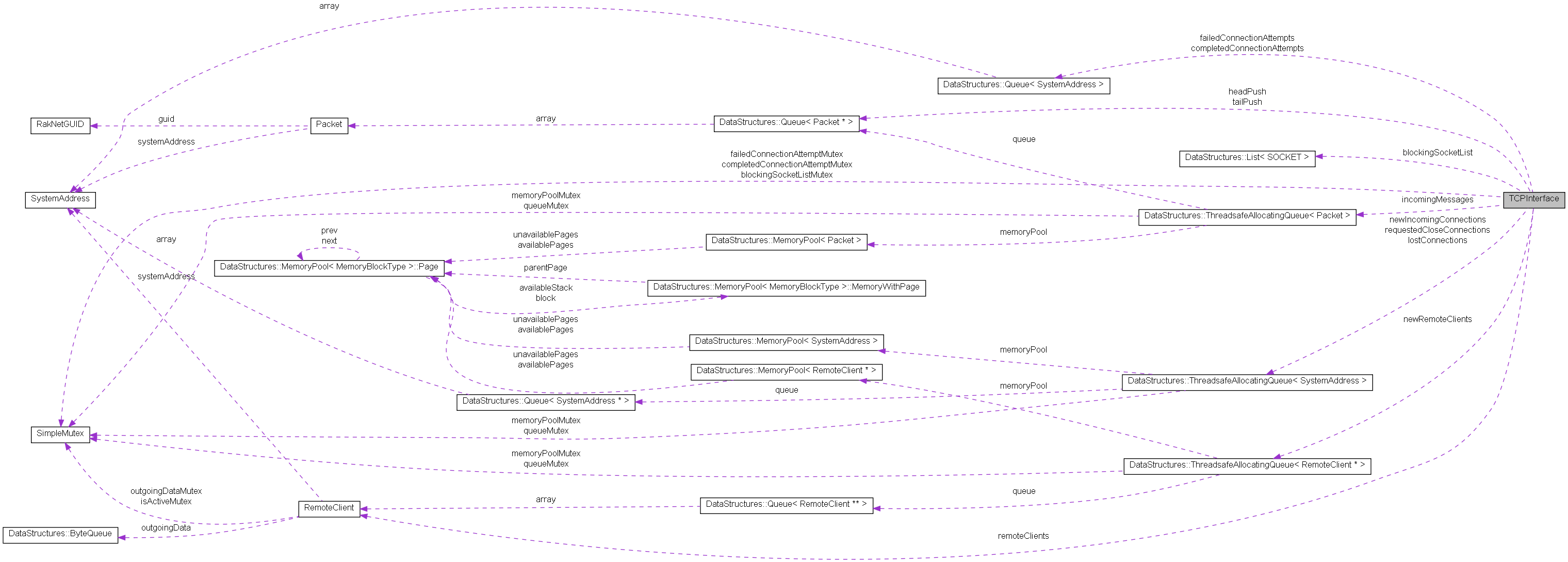

Collaboration diagram for TCPInterface:

[legend]

Classes
struct	ThisPtrPlusSysAddr
Public Member Functions
	TCPInterface ()
virtual	~TCPInterface ()
bool	Start (unsigned short port, unsigned short maxIncomingConnections, unsigned short maxConnections=0, int _threadPriority=-99999)

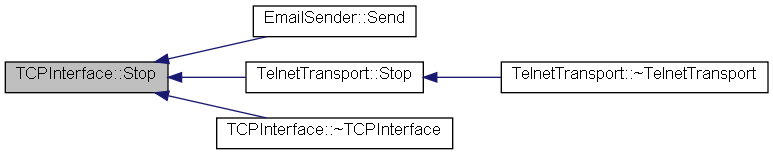

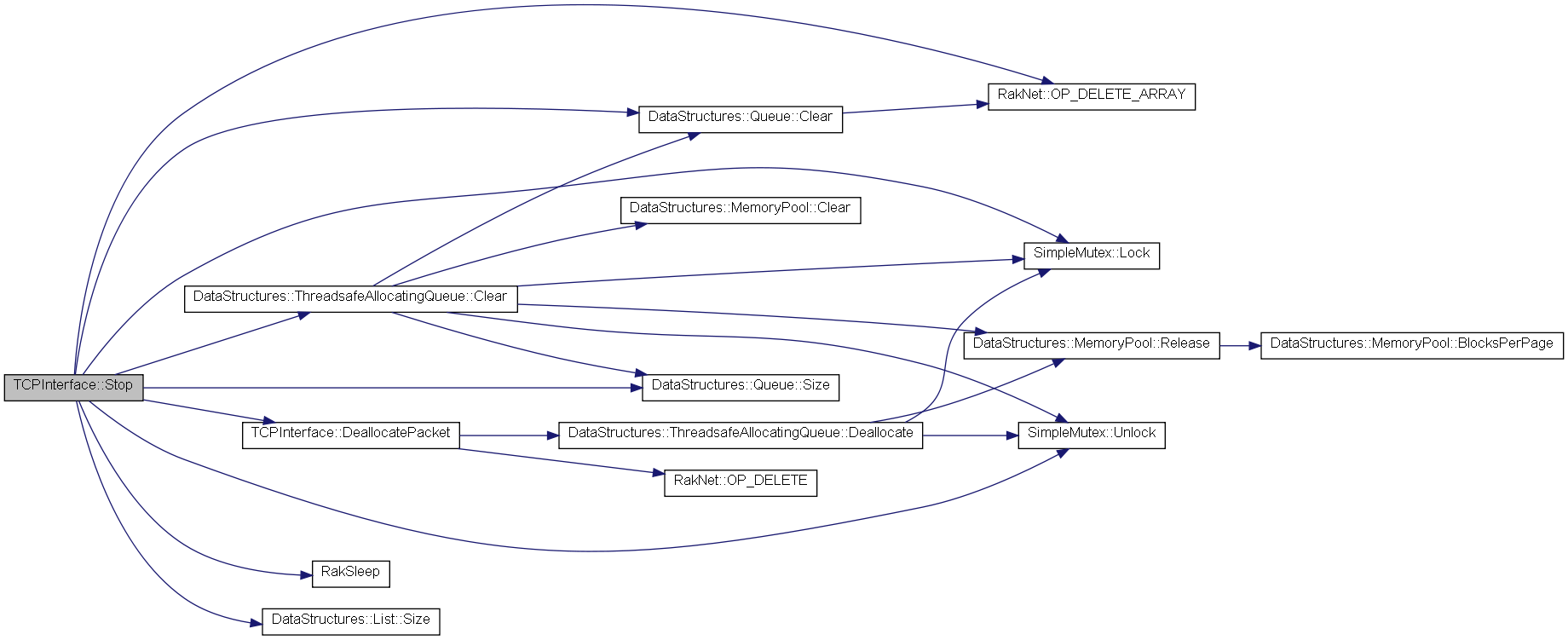

void	Stop (void)
	Stops the TCP server.
SystemAddress	Connect (const char *host, unsigned short remotePort, bool block=true)
	Connect to the specified host on the specified port.
void	Send (const char *data, unsigned int length, SystemAddress systemAddress, bool broadcast)
	Sends a byte stream.
bool	SendList (const char *data, const unsigned int lengths, const int numParameters, SystemAddress systemAddress, bool broadcast)
unsigned int	GetOutgoingDataBufferSize (SystemAddress systemAddress) const
bool	ReceiveHasPackets (void)
	Returns if Receive() will return data.
Packet *	Receive (void)
	Returns data received.
void	CloseConnection (SystemAddress systemAddress)
	Disconnects a player/address.
void	DeallocatePacket (Packet *packet)
	Deallocates a packet returned by Receive.
void	GetConnectionList (SystemAddress remoteSystems, unsigned short numberOfSystems) const
unsigned short	GetConnectionCount (void) const
	Returns just the number of connections we have.
SystemAddress	HasCompletedConnectionAttempt (void)
SystemAddress	HasFailedConnectionAttempt (void)
SystemAddress	HasNewIncomingConnection (void)
	Queued events of new incoming connections.
SystemAddress	HasLostConnection (void)
	Queued events of lost connections.
Packet *	AllocatePacket (unsigned dataSize)
	Return an allocated but empty packet, for custom use.
virtual void	PushBackPacket (Packet *packet, bool pushAtHead)
Protected Member Functions
friend	RAK_THREAD_DECLARATION (UpdateTCPInterfaceLoop)
friend	RAK_THREAD_DECLARATION (ConnectionAttemptLoop)
SOCKET	SocketConnect (const char *host, unsigned short remotePort)
Protected Attributes
bool	isStarted
bool	threadRunning
SOCKET	listenSocket
DataStructures::Queue< Packet * >	headPush
DataStructures::Queue< Packet * >	tailPush
RemoteClient *	remoteClients
int	remoteClientsLength
DataStructures::ThreadsafeAllocatingQueue < Packet >	incomingMessages
DataStructures::ThreadsafeAllocatingQueue < SystemAddress >	newIncomingConnections
DataStructures::ThreadsafeAllocatingQueue < SystemAddress >	lostConnections
DataStructures::ThreadsafeAllocatingQueue < SystemAddress >	requestedCloseConnections
DataStructures::ThreadsafeAllocatingQueue < RemoteClient * >	newRemoteClients
SimpleMutex	completedConnectionAttemptMutex
SimpleMutex	failedConnectionAttemptMutex
DataStructures::Queue < SystemAddress >	completedConnectionAttempts
DataStructures::Queue < SystemAddress >	failedConnectionAttempts
int	threadPriority
DataStructures::List< SOCKET >	blockingSocketList
SimpleMutex	blockingSocketListMutex

Detailed Description

Definition at line 38 of file TCPInterface.h.

Constructor & Destructor Documentation

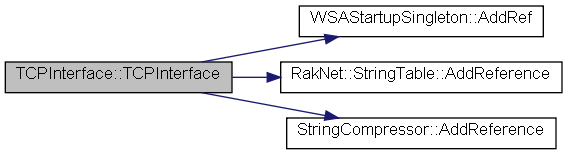

TCPInterface::TCPInterface ( )

Definition at line 42 of file TCPInterface.cpp.

Here is the call graph for this function:

TCPInterface::~TCPInterface ( ) [virtual]

Definition at line 62 of file TCPInterface.cpp.

Here is the call graph for this function:

Member Function Documentation

Packet * TCPInterface::AllocatePacket ( unsigned dataSize )

Return an allocated but empty packet, for custom use.

Definition at line 414 of file TCPInterface.cpp.

Here is the caller graph for this function:

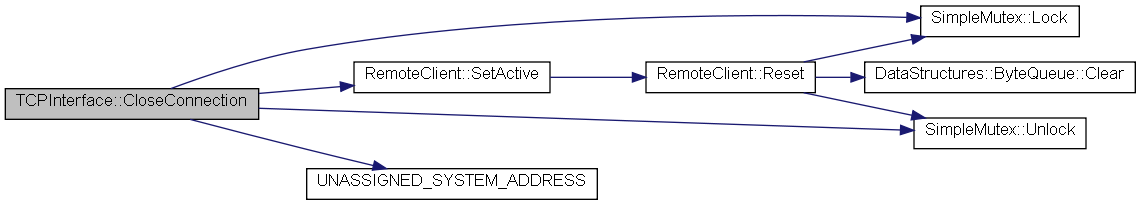

void TCPInterface::CloseConnection ( SystemAddress systemAddress )

Disconnects a player/address.

Reimplemented in PacketizedTCP.

Definition at line 365 of file TCPInterface.cpp.

Here is the call graph for this function:

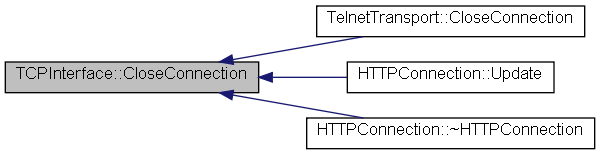

Here is the caller graph for this function:

SystemAddress TCPInterface::Connect	(	const char *	host,
		unsigned short	remotePort,
		bool	block = `true`
	)

Connect to the specified host on the specified port.

Definition at line 200 of file TCPInterface.cpp.

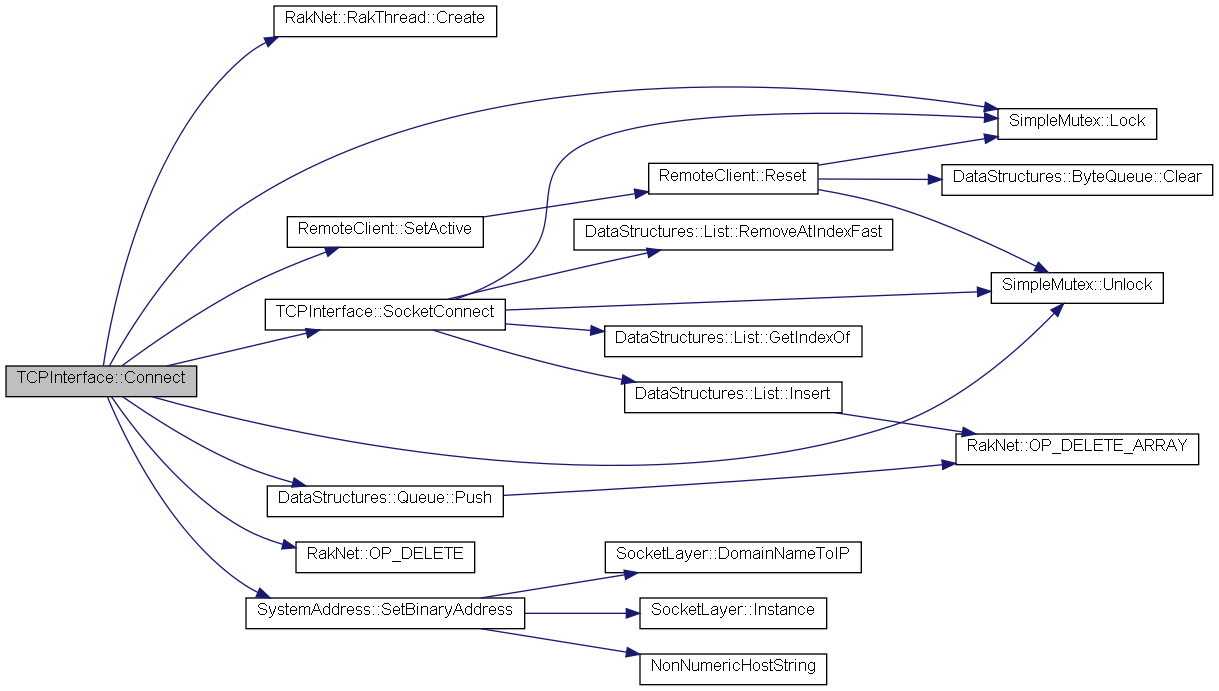

Here is the call graph for this function:

Here is the caller graph for this function:

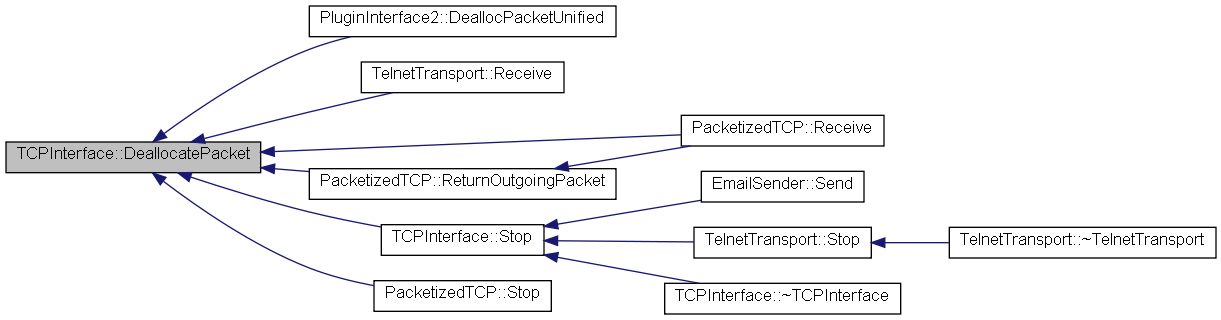

void TCPInterface::DeallocatePacket ( Packet * packet )

Deallocates a packet returned by Receive.

Definition at line 398 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned short TCPInterface::GetConnectionCount ( void ) const

Returns just the number of connections we have.

Definition at line 496 of file TCPInterface.cpp.

void TCPInterface::GetConnectionList	(	SystemAddress *	remoteSystems,
		unsigned short *	numberOfSystems
	)			const

Fills the array remoteSystems with the SystemAddress of all the systems we are connected to

Parameters:

`[out]`	remoteSystems	An array of SystemAddress structures to be filled with the SystemAddresss of the systems we are connected to. Pass 0 to remoteSystems to only get the number of systems we are connected to
`[in,out]`	numberOfSystems	As input, the size of remoteSystems array. As output, the number of elements put into the array

Definition at line 481 of file TCPInterface.cpp.

unsigned int TCPInterface::GetOutgoingDataBufferSize ( SystemAddress systemAddress ) const

Definition at line 507 of file TCPInterface.cpp.

Here is the call graph for this function:

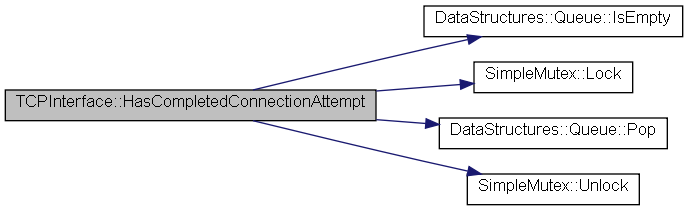

SystemAddress TCPInterface::HasCompletedConnectionAttempt ( void )

Has a previous call to connect succeeded?

Returns:: UNASSIGNED_SYSTEM_ADDRESS = no. Anything else means yes.

Reimplemented in PacketizedTCP.

Definition at line 433 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

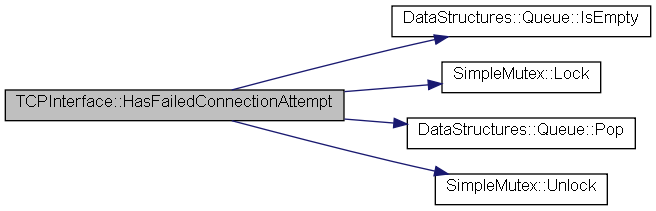

SystemAddress TCPInterface::HasFailedConnectionAttempt ( void )

Has a previous call to connect failed?

Returns:: UNASSIGNED_SYSTEM_ADDRESS = no. Anything else means yes.

Reimplemented in PacketizedTCP.

Definition at line 442 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

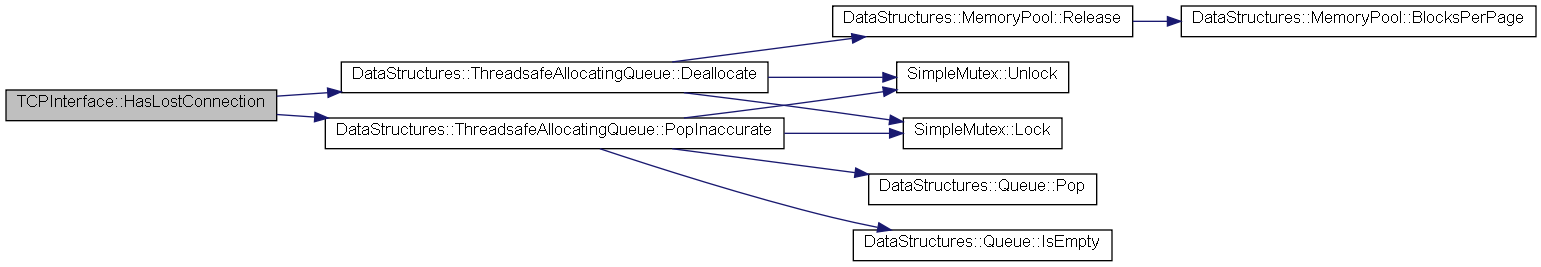

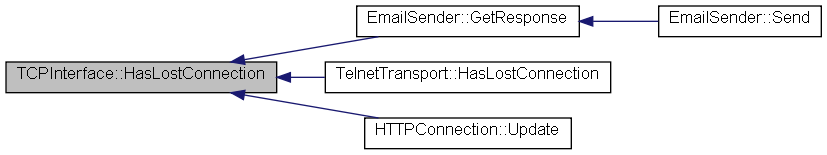

SystemAddress TCPInterface::HasLostConnection ( void )

Queued events of lost connections.

Reimplemented in PacketizedTCP.

Definition at line 466 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

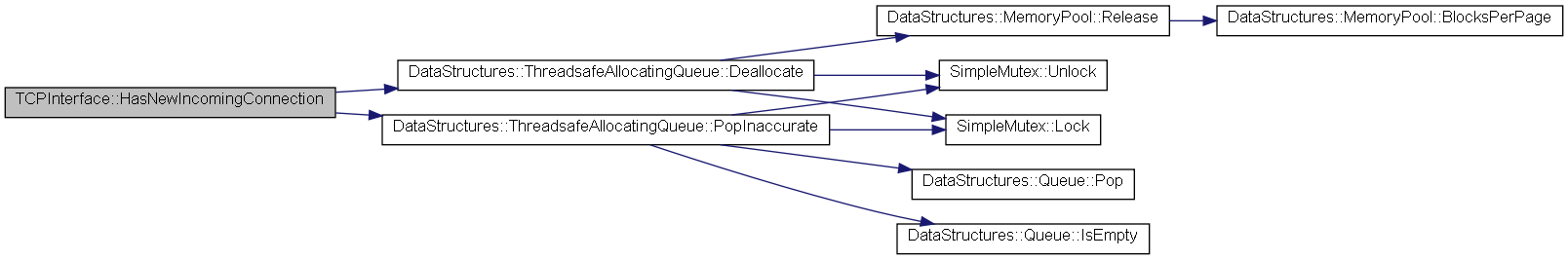

SystemAddress TCPInterface::HasNewIncomingConnection ( void )

Queued events of new incoming connections.

Reimplemented in PacketizedTCP.

Definition at line 451 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void TCPInterface::PushBackPacket	(	Packet *	packet,
		bool	pushAtHead
	)			`[virtual]`

Definition at line 426 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

TCPInterface::RAK_THREAD_DECLARATION ( UpdateTCPInterfaceLoop ) [protected]

TCPInterface::RAK_THREAD_DECLARATION ( ConnectionAttemptLoop ) [protected]

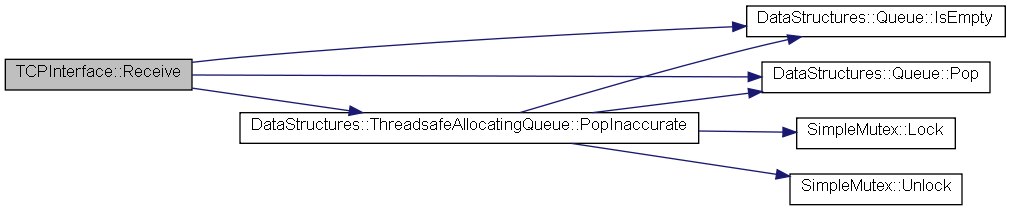

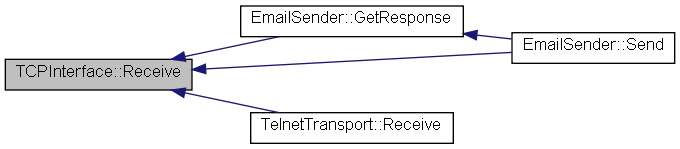

Packet * TCPInterface::Receive ( void )

Returns data received.

Reimplemented in PacketizedTCP.

Definition at line 352 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool TCPInterface::ReceiveHasPackets ( void )

Returns if Receive() will return data.

Definition at line 348 of file TCPInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

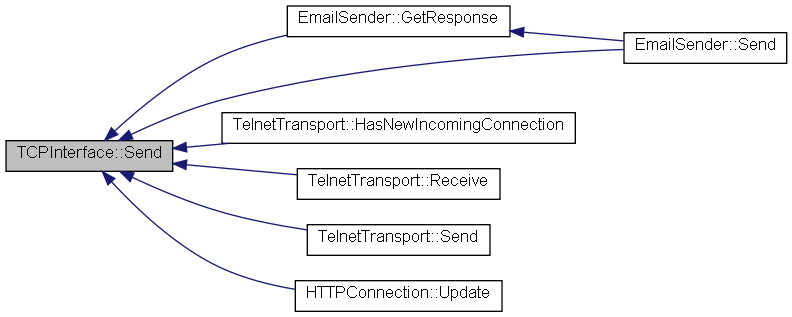

void TCPInterface::Send	(	const char *	data,
		unsigned int	length,
		SystemAddress	systemAddress,
		bool	broadcast
	)

Sends a byte stream.

Here is the caller graph for this function:

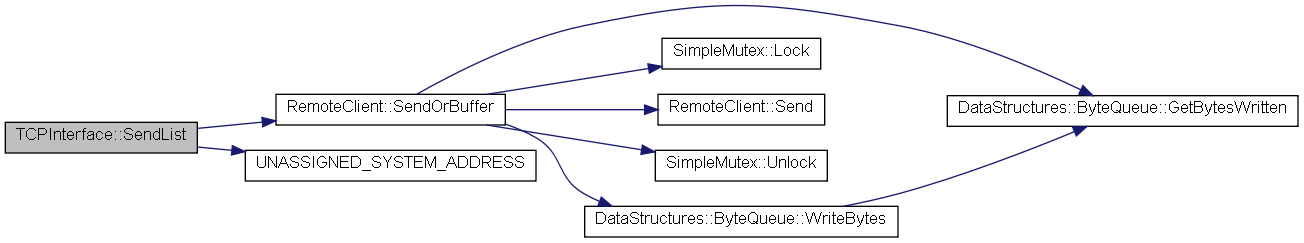

bool TCPInterface::SendList	(	const char **	data,
		const unsigned int *	lengths,
		const int	numParameters,
		SystemAddress	systemAddress,
		bool	broadcast
	)

Definition at line 296 of file TCPInterface.cpp.

Here is the call graph for this function:

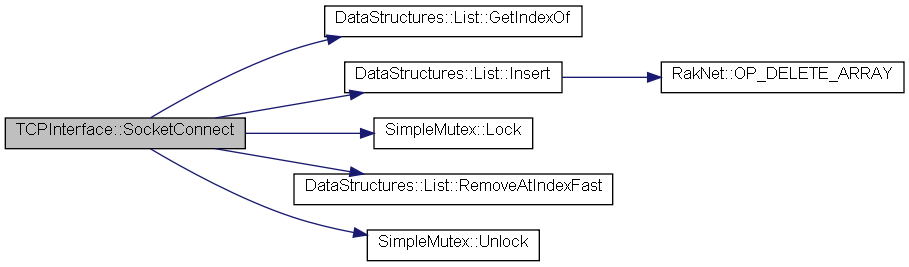

SOCKET TCPInterface::SocketConnect	(	const char *	host,
		unsigned short	remotePort
	)			`[protected]`

Definition at line 531 of file TCPInterface.cpp.

Here is the call graph for this function:

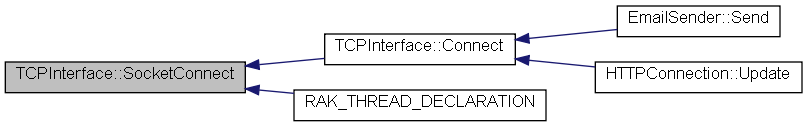

Here is the caller graph for this function:

bool TCPInterface::Start	(	unsigned short	port,
		unsigned short	maxIncomingConnections,
		unsigned short	maxConnections = `0`,
		int	_threadPriority = `-99999`
	)

Starts the TCP server on the indicated port

Parameters:

[in] threadPriority Passed to thread creation routine. Use THREAD_PRIORITY_NORMAL for Windows. WARNING!!! On Linux, 0 means highest priority! You MUST set this to something valid based on the values used by your other threads

Definition at line 74 of file TCPInterface.cpp.

Here is the call graph for this function:
