#include <ThreadPool.h>

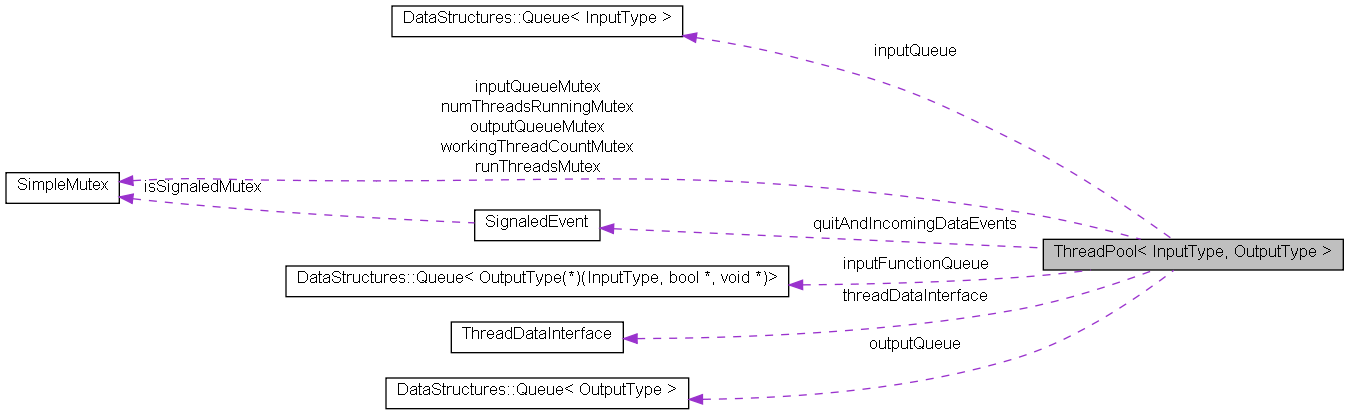

Collaboration diagram for ThreadPool< InputType, OutputType >:

[legend]

Public Member Functions
	ThreadPool ()
	~ThreadPool ()
bool	StartThreads (int numThreads, int stackSize, void (_perThreadInit)()=0, void(_perThreadDeinit)(void )=0)
void	SetThreadDataInterface (ThreadDataInterface tdi, void context)
void	StopThreads (void)
	Stops all threads.
void	AddInput (OutputType(workerThreadCallback)(InputType, bool returnOutput, void *perThreadData), InputType inputData)
void	AddOutput (OutputType outputData)
bool	HasOutput (void)
bool	HasOutputFast (void)
bool	HasInput (void)
bool	HasInputFast (void)
OutputType	GetOutput (void)
void	Clear (void)
	Clears internal buffers.
void	LockInput (void)
void	UnlockInput (void)
	Unlock the input buffer after you are done with the functions InputSize, GetInputAtIndex, and RemoveInputAtIndex.
unsigned	InputSize (void)
	Length of the input queue.
InputType	GetInputAtIndex (unsigned index)
	Get the input at a specified index.
void	RemoveInputAtIndex (unsigned index)
	Remove input from a specific index. This does NOT do memory deallocation - it only removes the item from the queue.
void	LockOutput (void)
void	UnlockOutput (void)
	Unlock the output buffer after you are done with the functions OutputSize, GetOutputAtIndex, and RemoveOutputAtIndex.
unsigned	OutputSize (void)
	Length of the output queue.
OutputType	GetOutputAtIndex (unsigned index)
	Get the output at a specified index.
void	RemoveOutputAtIndex (unsigned index)
	Remove output from a specific index. This does NOT do memory deallocation - it only removes the item from the queue.
void	ClearInput (void)
	Removes all items from the input queue.
void	ClearOutput (void)
	Removes all items from the output queue.
bool	IsWorking (void)
	Are any of the threads working, or is input or output available?
int	NumThreadsWorking (void)
	The number of currently active threads.
bool	WasStarted (void)
	Did we call Start?
bool	Pause (void)
void	Resume (void)
Protected Member Functions
template<class ThreadInputType , class ThreadOutputType >
friend	RAK_THREAD_DECLARATION (WorkerThread)
Protected Attributes
SimpleMutex	inputQueueMutex
SimpleMutex	outputQueueMutex
SimpleMutex	workingThreadCountMutex
SimpleMutex	runThreadsMutex
void (	perThreadDataFactory )()
void(*	perThreadDataDestructor )(void *)
DataStructures::Queue < OutputType()(InputType, bool , void *)>	inputFunctionQueue
DataStructures::Queue< InputType >	inputQueue
DataStructures::Queue< OutputType >	outputQueue
ThreadDataInterface *	threadDataInterface
void *	tdiContext
bool	runThreads
int	numThreadsRunning
int	numThreadsWorking
SimpleMutex	numThreadsRunningMutex
SignaledEvent	quitAndIncomingDataEvents

Detailed Description

template<class InputType, class OutputType>
struct ThreadPool< InputType, OutputType >

A simple class to create worker threads that processes a queue of functions with data. This class does not allocate or deallocate memory. It is up to the user to handle memory management. InputType and OutputType are stored directly in a queue. For large structures, if you plan to delete from the middle of the queue, you might wish to store pointers rather than the structures themselves so the array can shift efficiently.

Definition at line 29 of file ThreadPool.h.

Constructor & Destructor Documentation

template<class InputType , class OutputType >

ThreadPool< InputType, OutputType >::ThreadPool ( )

Definition at line 284 of file ThreadPool.h.

template<class InputType , class OutputType >

ThreadPool< InputType, OutputType >::~ThreadPool ( )

Definition at line 294 of file ThreadPool.h.

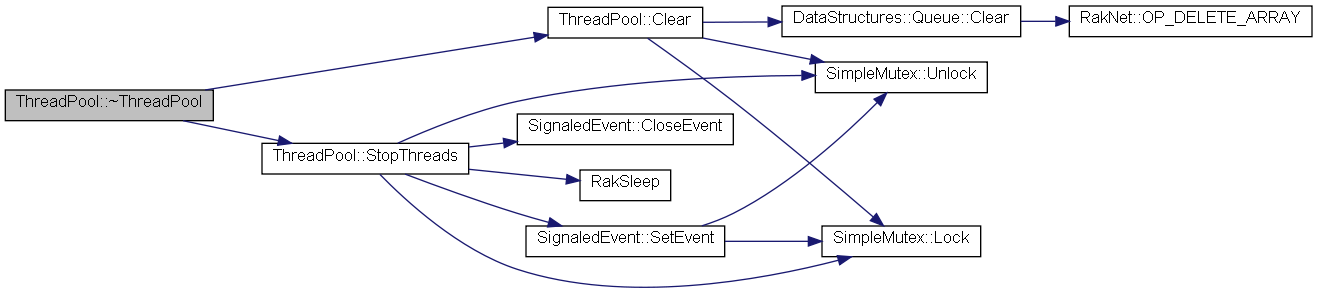

Here is the call graph for this function:

Member Function Documentation

template<class InputType, class OutputType>

void ThreadPool< InputType, OutputType >::AddInput	(	OutputType()(InputType, bool returnOutput, void *perThreadData)	workerThreadCallback,
		InputType	inputData
	)

Adds a function to a queue with data to pass to that function. This function will be called from the thread Memory management is your responsibility! This class does not allocate or deallocate memory. The best way to deallocate inputData is in userCallback. If you call EndThreads such that callbacks were not called, you can iterate through the inputQueue and deallocate all pending input data there The best way to deallocate output is as it is returned to you from GetOutput. Similarly, if you end the threads such that not all output was returned, you can iterate through outputQueue and deallocate it there.

Parameters:

`[in]`	workerThreadCallback	The function to call from the thread
`[in]`	inputData	The parameter to pass to userCallback

Definition at line 382 of file ThreadPool.h.

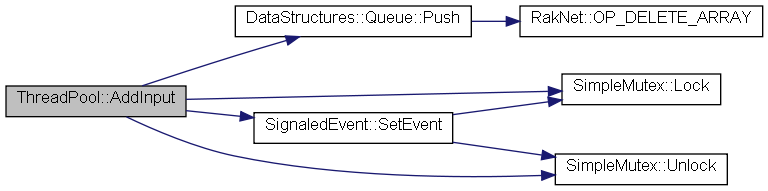

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType>

void ThreadPool< InputType, OutputType >::AddOutput ( OutputType outputData )

Adds to the output queue Use it if you want to inject output into the same queue that the system uses. Normally you would not use this. Consider it a convenience function.

Parameters:

[in] outputData The output to inject

Definition at line 392 of file ThreadPool.h.

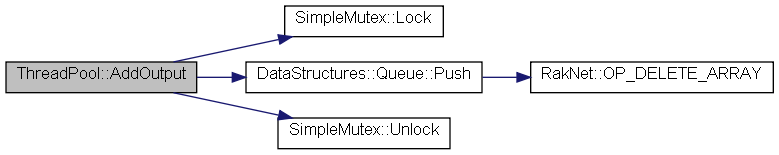

Here is the call graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::Clear ( void )

Clears internal buffers.

Definition at line 437 of file ThreadPool.h.

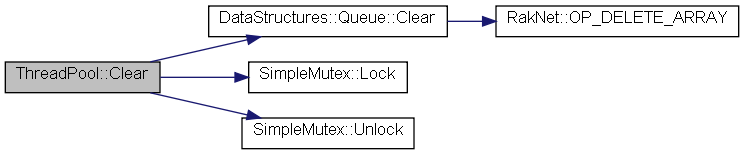

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::ClearInput ( void )

Removes all items from the input queue.

Definition at line 511 of file ThreadPool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::ClearOutput ( void )

Removes all items from the output queue.

Definition at line 518 of file ThreadPool.h.

Here is the call graph for this function:

template<class InputType , class OutputType >

InputType ThreadPool< InputType, OutputType >::GetInputAtIndex ( unsigned index )

Get the input at a specified index.

Definition at line 475 of file ThreadPool.h.

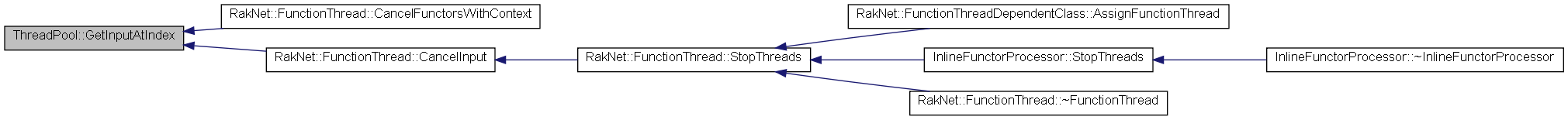

Here is the caller graph for this function:

template<class InputType , class OutputType >

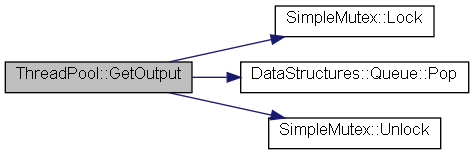

OutputType ThreadPool< InputType, OutputType >::GetOutput ( void )

Gets the output of a call to userCallback HasOutput must return true before you call this function. Otherwise it will assert.

Returns:: The output of userCallback. If you have different output signatures, it is up to you to encode the data to indicate this

Definition at line 427 of file ThreadPool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

OutputType ThreadPool< InputType, OutputType >::GetOutputAtIndex ( unsigned index )

Get the output at a specified index.

Definition at line 501 of file ThreadPool.h.

template<class InputType , class OutputType >

bool ThreadPool< InputType, OutputType >::HasInput ( void )

Returns true if input from GetInput is waiting.

Returns:: true if input is waiting, false otherwise

Definition at line 418 of file ThreadPool.h.

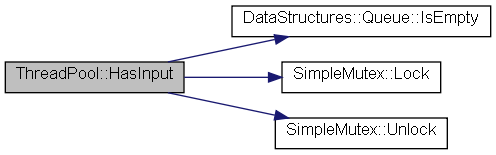

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

bool ThreadPool< InputType, OutputType >::HasInputFast ( void )

Inaccurate but fast version of HasInput. If this returns true, you should still check HasInput for the real value.

Returns:: true if input is probably waiting, false otherwise

Definition at line 413 of file ThreadPool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

bool ThreadPool< InputType, OutputType >::HasOutput ( void )

Returns true if output from GetOutput is waiting.

Returns:: true if output is waiting, false otherwise

Definition at line 404 of file ThreadPool.h.

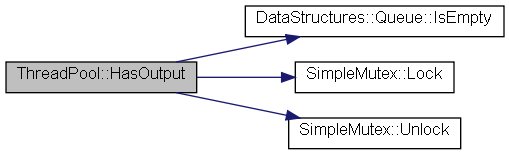

Here is the call graph for this function:

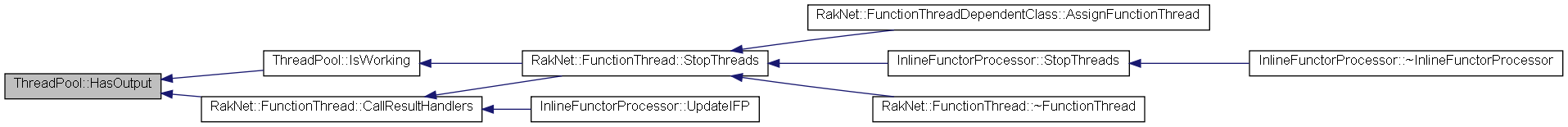

Here is the caller graph for this function:

template<class InputType , class OutputType >

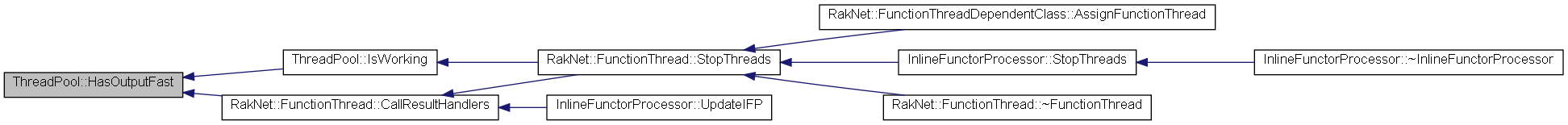

bool ThreadPool< InputType, OutputType >::HasOutputFast ( void )

Inaccurate but fast version of HasOutput. If this returns true, you should still check HasOutput for the real value.

Returns:: true if output is probably waiting, false otherwise

Definition at line 399 of file ThreadPool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

unsigned ThreadPool< InputType, OutputType >::InputSize ( void )

Length of the input queue.

Definition at line 470 of file ThreadPool.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class InputType , class OutputType >

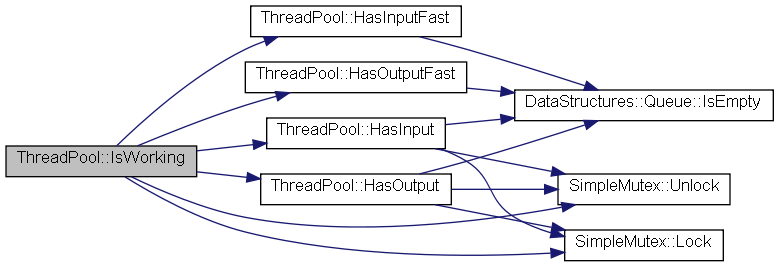

bool ThreadPool< InputType, OutputType >::IsWorking ( void )

Are any of the threads working, or is input or output available?

Definition at line 523 of file ThreadPool.h.

Here is the call graph for this function:

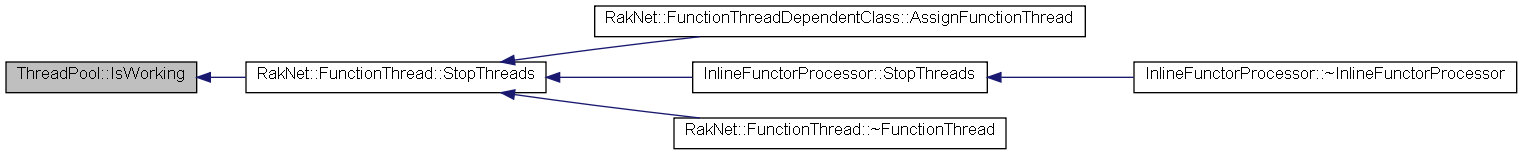

Here is the caller graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::LockInput ( void )

Lock the input buffer before calling the functions InputSize, InputAtIndex, and RemoveInputAtIndex It is only necessary to lock the input or output while the threads are running

Definition at line 460 of file ThreadPool.h.

Here is the call graph for this function:

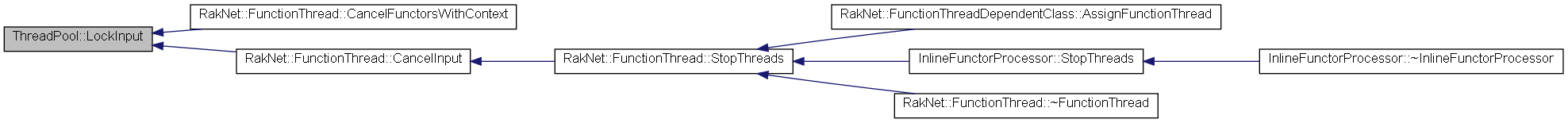

Here is the caller graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::LockOutput ( void )

Lock the output buffer before calling the functions OutputSize, OutputAtIndex, and RemoveOutputAtIndex It is only necessary to lock the input or output while the threads are running

Definition at line 486 of file ThreadPool.h.

Here is the call graph for this function:

template<class InputType , class OutputType >

int ThreadPool< InputType, OutputType >::NumThreadsWorking ( void )

The number of currently active threads.

Definition at line 551 of file ThreadPool.h.

template<class InputType , class OutputType >

unsigned ThreadPool< InputType, OutputType >::OutputSize ( void )

Length of the output queue.

Definition at line 496 of file ThreadPool.h.

Here is the call graph for this function:

template<class InputType , class OutputType >

bool ThreadPool< InputType, OutputType >::Pause ( void )

Definition at line 566 of file ThreadPool.h.

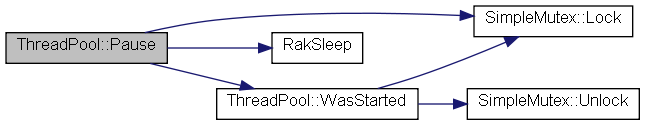

Here is the call graph for this function:

template<class InputType, class OutputType>

template<class ThreadInputType , class ThreadOutputType >

ThreadPool< InputType, OutputType >::RAK_THREAD_DECLARATION ( WorkerThread ) [protected]

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::RemoveInputAtIndex ( unsigned index )

Remove input from a specific index. This does NOT do memory deallocation - it only removes the item from the queue.

Definition at line 480 of file ThreadPool.h.

Here is the call graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::RemoveOutputAtIndex ( unsigned index )

Remove output from a specific index. This does NOT do memory deallocation - it only removes the item from the queue.

Definition at line 506 of file ThreadPool.h.

Here is the call graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::Resume ( void )

Definition at line 579 of file ThreadPool.h.

Here is the call graph for this function:

template<class InputType , class OutputType >

void ThreadPool< InputType, OutputType >::SetThreadDataInterface	(	ThreadDataInterface *	tdi,
		void *	context
	)

Definition at line 348 of file ThreadPool.h.

template<class InputType , class OutputType >

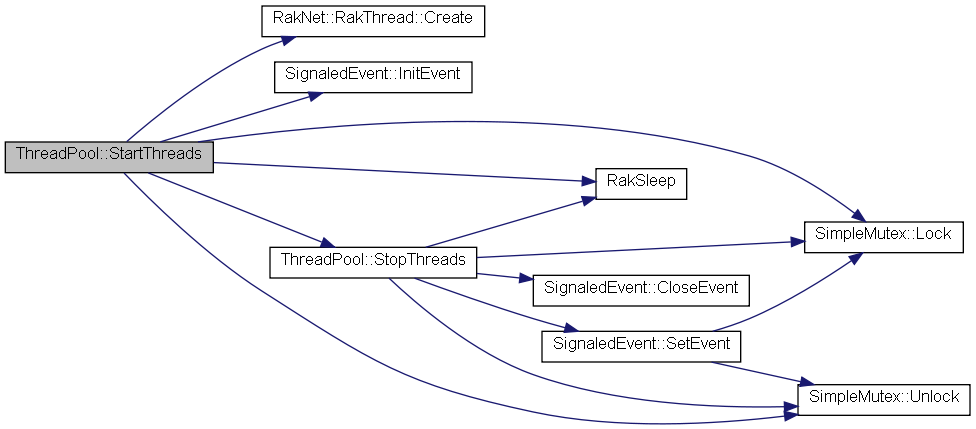

bool ThreadPool< InputType, OutputType >::StartThreads	(	int	numThreads,
		int	stackSize,
		void ()()	_perThreadInit = `0`,
		void()(void )	_perThreadDeinit = `0`
	)

Start the specified number of threads.

Parameters:

`[in]`	numThreads	The number of threads to start
`[in]`	stackSize	0 for default (except on consoles).
`[in]`	_perThreadInit	User callback to return data stored per thread. Pass 0 if not needed.
`[in]`	_perThreadDeinit	User callback to destroy data stored per thread, created by _perThreadInit. Pass 0 if not needed.
