[Internal] A class which stores a user message, and all information associated with sending and receiving that message. More...

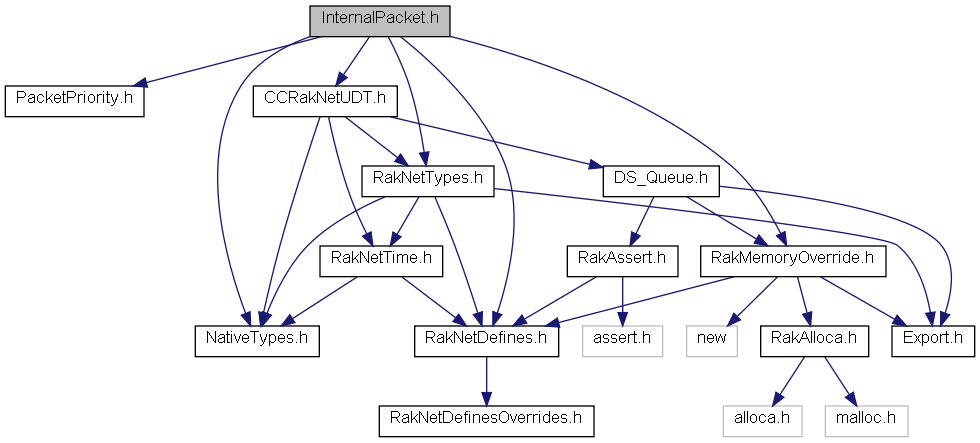

#include "PacketPriority.h"#include "RakNetTypes.h"#include "RakMemoryOverride.h"#include "RakNetDefines.h"#include "CCRakNetUDT.h"#include "NativeTypes.h"
Go to the source code of this file.
Classes | |
| struct | InternalPacketFixedSizeTransmissionHeader |
| struct | InternalPacketRefCountedData |
| Used in InternalPacket when pointing to sharedDataBlock, rather than allocating itself. More... | |
| struct | InternalPacket |
Typedefs | |
| typedef uint16_t | SplitPacketIdType |
| typedef uint32_t | SplitPacketIndexType |
| typedef uint24_t | MessageNumberType |
| typedef MessageNumberType | OrderingIndexType |
| typedef RakNetTimeUS | RemoteSystemTimeType |
Detailed Description
[Internal] A class which stores a user message, and all information associated with sending and receiving that message.
This file is part of RakNet Copyright 2003 Jenkins Software LLC
Usage of RakNet is subject to the appropriate license agreement. Creative Commons Licensees are subject to the license found at http://creativecommons.org/licenses/by-nc/2.5/ Single application licensees are subject to the license found at http://www.jenkinssoftware.com/SingleApplicationLicense.html Custom license users are subject to the terms therein. GPL license users are subject to the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
Definition in file InternalPacket.h.
Typedef Documentation
| typedef uint24_t MessageNumberType |
This is the counter used for holding packet numbers, so we can detect duplicate packets. It should be large enough that if the variables Internally assumed to be 4 bytes, but written as 3 bytes in ReliabilityLayer::WriteToBitStreamFromInternalPacket
Definition at line 33 of file InternalPacket.h.
| typedef MessageNumberType OrderingIndexType |
This is the counter used for holding ordered packet numbers, so we can detect out-of-order packets. It should be large enough that if the variables were to wrap, the newly wrapped values would no longer be in use. Warning: Too large of a value wastes bandwidth!
Definition at line 37 of file InternalPacket.h.
| typedef RakNetTimeUS RemoteSystemTimeType |
Definition at line 39 of file InternalPacket.h.
| typedef uint16_t SplitPacketIdType |
Definition at line 28 of file InternalPacket.h.
| typedef uint32_t SplitPacketIndexType |
Definition at line 29 of file InternalPacket.h.
