#include <InternalPacket.h>

Inherits InternalPacketFixedSizeTransmissionHeader.

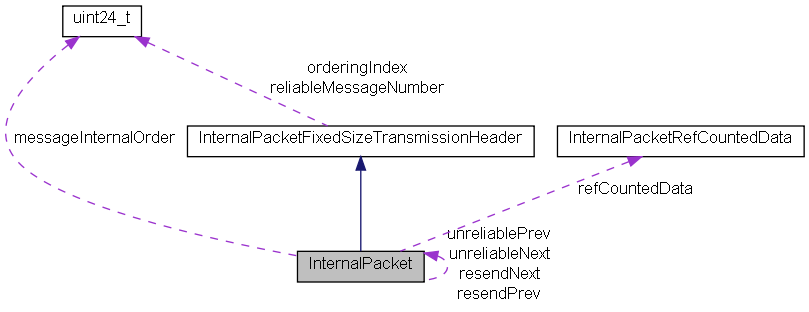

Collaboration diagram for InternalPacket:

Public Types
enum	AllocationScheme { NORMAL, REF_COUNTED }
	How to alloc and delete the data member. More...
Public Attributes
MessageNumberType	messageInternalOrder
	Identifies the order in which this number was sent. Used locally.
bool	messageNumberAssigned
RakNetTimeUS	creationTime
	Was this packet number used this update to track windowing drops or increases? Each packet number is only used once per update.
RakNetTimeUS	nextActionTime
	The resendNext time to take action on this packet.
BitSize_t	headerLength
unsigned char *	data
	Buffer is a pointer to the actual data, assuming this packet has data at all.
enum InternalPacket::AllocationScheme	allocationScheme
	How to alloc and delete the data member.
InternalPacketRefCountedData *	refCountedData
unsigned char	timesSent
	How many attempts we made at sending this message.
PacketPriority	priority
	The priority level of this packet.
uint32_t	sendReceiptSerial
	If the reliability type requires a receipt, then return this number with it.
InternalPacket *	resendPrev
InternalPacket *	resendNext
InternalPacket *	unreliablePrev
InternalPacket *	unreliableNext

Detailed Description

Holds a user message, and related information Don't use a constructor or destructor, due to the memory pool I am using

Definition at line 73 of file InternalPacket.h.

Member Enumeration Documentation

enum InternalPacket::AllocationScheme

How to alloc and delete the data member.

Enumerator:

NORMAL	Data is allocated using rakMalloc. Just free it.
REF_COUNTED	data points to a larger block of data, where the larger block is reference counted. internalPacketRefCountedData is used in this case

Definition at line 92 of file InternalPacket.h.

Member Data Documentation

enum InternalPacket::AllocationScheme InternalPacket::allocationScheme

How to alloc and delete the data member.

RakNetTimeUS InternalPacket::creationTime

Was this packet number used this update to track windowing drops or increases? Each packet number is only used once per update.

When this packet was created

Definition at line 84 of file InternalPacket.h.

unsigned char* InternalPacket::data

Buffer is a pointer to the actual data, assuming this packet has data at all.

Definition at line 90 of file InternalPacket.h.

BitSize_t InternalPacket::headerLength

Definition at line 88 of file InternalPacket.h.

MessageNumberType InternalPacket::messageInternalOrder

Identifies the order in which this number was sent. Used locally.

Definition at line 76 of file InternalPacket.h.

bool InternalPacket::messageNumberAssigned

Has this message number been assigned yet? We don't assign until the message is actually sent. This fixes a bug where pre-determining message numbers and then sending a message on a different channel creates a huge gap. This causes performance problems and causes those messages to timeout.

Definition at line 80 of file InternalPacket.h.

RakNetTimeUS InternalPacket::nextActionTime

The resendNext time to take action on this packet.

Definition at line 86 of file InternalPacket.h.

PacketPriority InternalPacket::priority

The priority level of this packet.

Definition at line 104 of file InternalPacket.h.

InternalPacketRefCountedData* InternalPacket::refCountedData

Definition at line 100 of file InternalPacket.h.

InternalPacket * InternalPacket::resendNext

Definition at line 110 of file InternalPacket.h.

InternalPacket* InternalPacket::resendPrev
