Types used by RakNet, most of which involve user code. More...

#include "RakNetDefines.h"
#include "NativeTypes.h"
#include "RakNetTime.h"
#include "Export.h"

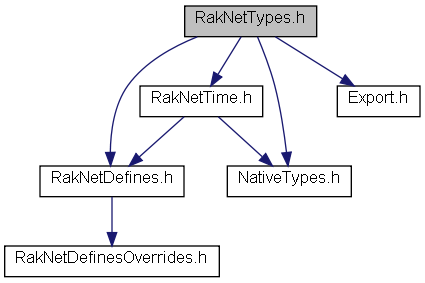

Include dependency graph for RakNetTypes.h:

Classes
struct	SocketDescriptor
	Describes the local socket to use for RakPeer::Startup. More...
struct	SystemAddress
	Network address for a system. More...
struct	RPCParameters
struct	RakNetGUID
struct	AddressOrGUID
struct	NetworkID
struct	Packet
	This represents a user message from another system. More...
struct	uint24_t
Namespaces
namespace	RakNet
	Forward declaration.
Defines
#define	BITS_TO_BYTES(x) (((x)+7)>>3)
	Given a number of bits, return how many bytes are needed to represent that.
#define	BYTES_TO_BITS(x) ((x)<<3)
#define	PRINTF_64_BIT_MODIFIER "ll"
#define	SystemAddress_Size 6
	Size of SystemAddress data.
#define	REGISTER_STATIC_RPC(networkObject, functionName) (networkObject)->RegisterAsRemoteProcedureCall((#functionName),(functionName))
	RPC Function Implementation Use RPC3.
#define	CLASS_MEMBER_ID(className, functionName) #className "_" #functionName
	Concatenate two strings.
#define	REGISTER_CLASS_MEMBER_RPC(networkObject, className, functionName) {union {void (__cdecl className::cFunc)( RPCParameters rpcParms ); void* voidFunc;}; cFunc=&className::functionName; networkObject->RegisterClassMemberRPC(CLASS_MEMBER_ID(className, functionName),voidFunc);}
	Register a member function of an instantiated object as a Remote procedure call.
#define	UNREGISTER_STATIC_RPC(networkObject, functionName) (networkObject)->UnregisterAsRemoteProcedureCall((#functionName))
#define	UNREGISTER_CLASS_MEMBER_RPC(networkObject, className, functionName) (networkObject)->UnregisterAsRemoteProcedureCall((#className "_" #functionName))
Typedefs
typedef unsigned char	UniqueIDType
typedef unsigned short	SystemIndex
typedef unsigned char	RPCIndex
typedef unsigned char	MessageID
	First byte of a network message.
typedef uint32_t	BitSize_t
Functions

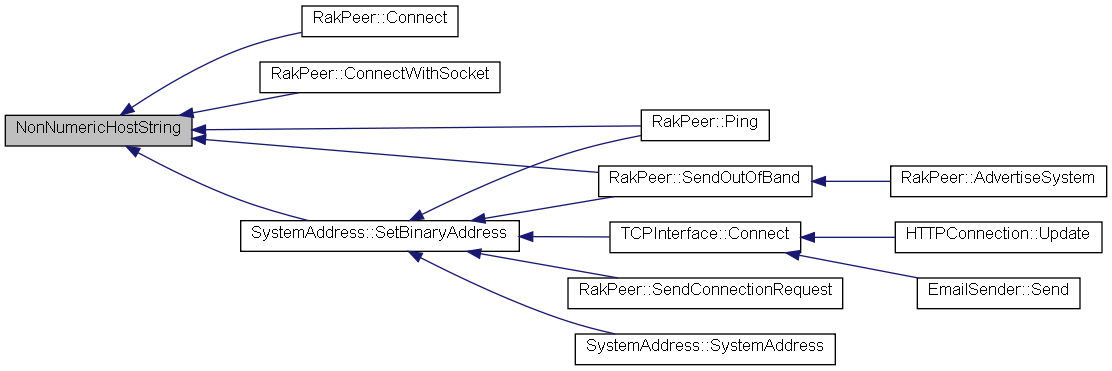

bool	NonNumericHostString (const char *host)
const SystemAddress	UNASSIGNED_SYSTEM_ADDRESS (0xFFFFFFFF, 0xFFFF)
	Index of an invalid SystemAddress.

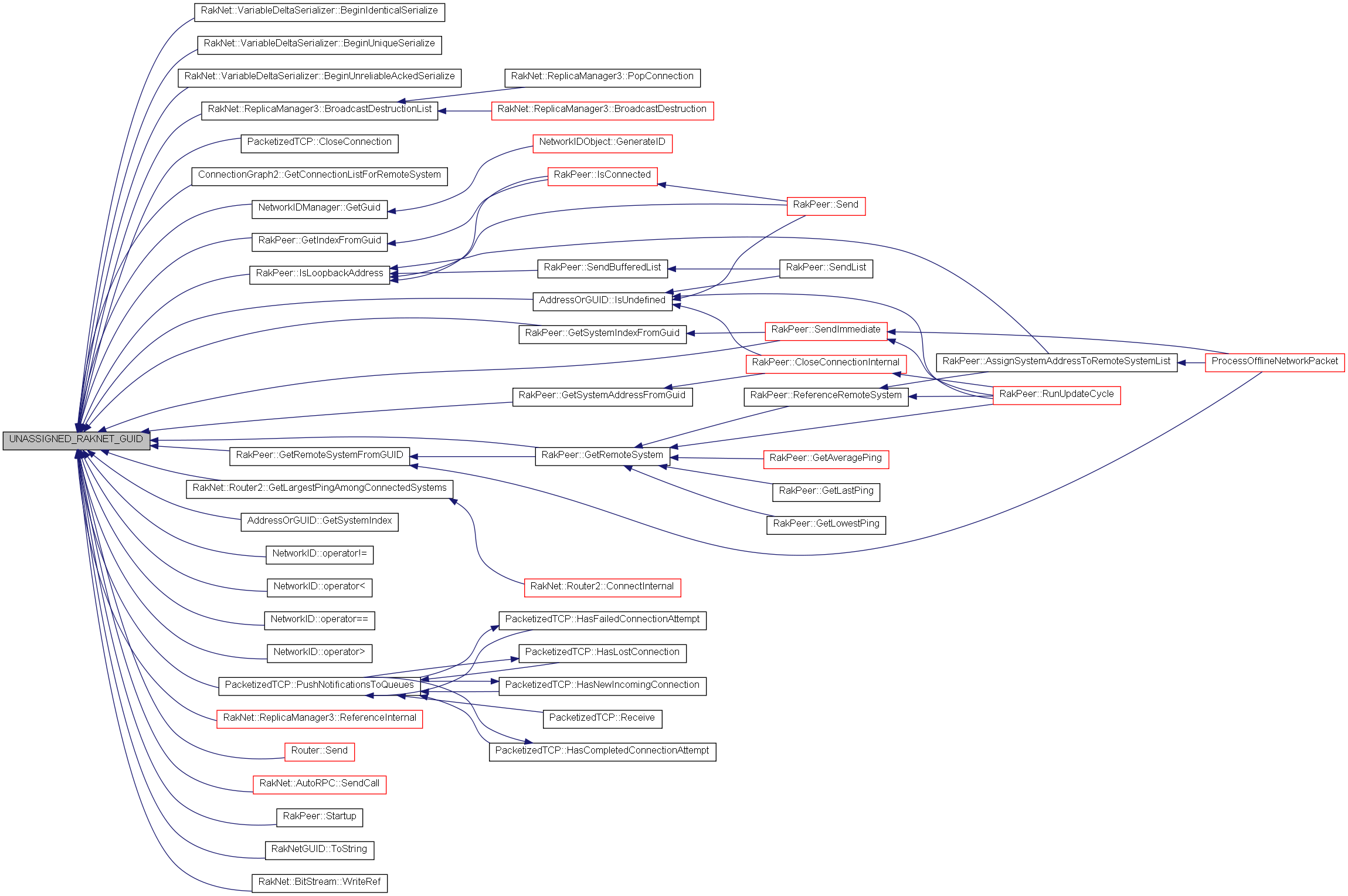

const RakNetGUID	UNASSIGNED_RAKNET_GUID ((uint64_t)-1)
Variables
const int	MAX_RPC_MAP_SIZE = ((RPCIndex)-1)-1
const int	UNDEFINED_RPC_INDEX = ((RPCIndex)-1)
const SystemIndex	UNASSIGNED_PLAYER_INDEX = 65535
	Index of an unassigned player.
const NetworkID	UNASSIGNED_NETWORK_ID
	Unassigned object ID.
const int	PING_TIMES_ARRAY_SIZE = 5

Detailed Description

Types used by RakNet, most of which involve user code.

Usage of RakNet is subject to the appropriate license agreement.

Definition in file RakNetTypes.h.

Define Documentation

#define BITS_TO_BYTES ( x ) (((x)+7)>>3)

Given a number of bits, return how many bytes are needed to represent that.

Definition at line 24 of file RakNetTypes.h.

#define BYTES_TO_BITS ( x ) ((x)<<3)

Definition at line 25 of file RakNetTypes.h.

#define PRINTF_64_BIT_MODIFIER "ll"

Definition at line 42 of file RakNetTypes.h.

#define SystemAddress_Size 6

Size of SystemAddress data.

Definition at line 111 of file RakNetTypes.h.

#define UNREGISTER_CLASS_MEMBER_RPC	(	networkObject,
		className,
		functionName
	)		(networkObject)->UnregisterAsRemoteProcedureCall((#className "_" #functionName))
