The interface used by command parsers. More...

#include <CommandParserInterface.h>

Inherited by LogCommandParser, RakNetCommandParser, and RakNetTransportCommandParser.

Collaboration diagram for CommandParserInterface:

Public Member Functions
	CommandParserInterface ()
virtual	~CommandParserInterface ()
virtual const char *	GetName (void) const =0
virtual void	OnNewIncomingConnection (SystemAddress systemAddress, TransportInterface *transport)
	A callback for when systemAddress has connected to us.
virtual void	OnConnectionLost (SystemAddress systemAddress, TransportInterface *transport)
	A callback for when systemAddress has disconnected, either gracefully or forcefully.
virtual void	SendHelp (TransportInterface *transport, SystemAddress systemAddress)=0
	A callback for when you are expected to send a brief description of your parser to systemAddress.
virtual bool	OnCommand (const char command, unsigned numParameters, char parameterList, TransportInterface transport, SystemAddress systemAddress, const char *originalString)=0
	Given command with parameters parameterList , do whatever processing you wish.
virtual void	OnTransportChange (TransportInterface *transport)
	This is called every time transport interface is registered.
virtual bool	GetRegisteredCommand (const char command, RegisteredCommand rc)
virtual void	SendCommandList (TransportInterface *transport, SystemAddress systemAddress)
virtual void	RegisterCommand (unsigned char parameterCount, const char command, const char commandHelp)
virtual void	ReturnResult (bool res, const char command, TransportInterface transport, SystemAddress systemAddress)
	Just writes a string to the remote system based on the result ( res ) of your operation.
virtual void	ReturnResult (char res, const char command, TransportInterface *transport, SystemAddress systemAddress)
virtual void	ReturnResult (SystemAddress res, const char command, TransportInterface transport, SystemAddress systemAddress)
virtual void	ReturnResult (int res, const char command, TransportInterface transport, SystemAddress systemAddress)
virtual void	ReturnResult (const char command, TransportInterface transport, SystemAddress systemAddress)
	Just writes a string to the remote system when you are calling a function that has no return value.
SystemAddress	IntegersToSystemAddress (int binaryAddress, int port)
	Since there's no way to specify a systemAddress directly, the user needs to specify both the binary address and port.
Static Public Member Functions
static void	ParseConsoleString (char str, const char delineator, unsigned char delineatorToggle, unsigned numParameters, char **parameterList, unsigned parameterListLength)
Static Public Attributes
static const unsigned char	VARIABLE_NUMBER_OF_PARAMETERS = 255
Protected Attributes
DataStructures::OrderedList < const char *, RegisteredCommand, RegisteredCommandComp >	commandList

Detailed Description

The interface used by command parsers.

CommandParserInterface provides a set of functions and interfaces that plug into the ConsoleServer class. Each CommandParserInterface works at the same time as other interfaces in the system.

Definition at line 35 of file CommandParserInterface.h.

Constructor & Destructor Documentation

CommandParserInterface::CommandParserInterface ( )

Definition at line 31 of file CommandParserInterface.cpp.

CommandParserInterface::~CommandParserInterface ( ) [virtual]

Definition at line 32 of file CommandParserInterface.cpp.

Member Function Documentation

virtual const char* CommandParserInterface::GetName ( void ) const [pure virtual]

You are responsible for overriding this function and returning a static string, which will identifier your parser. This should return a static string

Returns:: The name that you return.

Implemented in LogCommandParser, RakNetCommandParser, and RakNetTransportCommandParser.

Here is the caller graph for this function:

bool CommandParserInterface::GetRegisteredCommand	(	const char *	command,
		RegisteredCommand *	rc
	)			`[virtual]`

Definition at line 104 of file CommandParserInterface.cpp.

Here is the call graph for this function:

SystemAddress CommandParserInterface::IntegersToSystemAddress	(	int	binaryAddress,
		int	port
	)

Since there's no way to specify a systemAddress directly, the user needs to specify both the binary address and port.

Given those parameters, this returns the corresponding SystemAddress

Parameters:

`[in]`	binaryAddress	The binaryAddress portion of SystemAddress
`[in]`	port	The port portion of SystemAddress

Definition at line 157 of file CommandParserInterface.cpp.

Here is the caller graph for this function:

virtual bool CommandParserInterface::OnCommand	(	const char *	command,
		unsigned	numParameters,
		char **	parameterList,
		TransportInterface *	transport,
		SystemAddress	systemAddress,
		const char *	originalString
	)			`[pure virtual]`

Given command with parameters parameterList , do whatever processing you wish.

Parameters:

`[in]`	command	The command to process
`[in]`	numParameters	How many parameters were passed along with the command
`[in]`	parameterList	The list of parameters. parameterList[0] is the first parameter and so on.
`[in]`	transport	The transport interface we can use to write to
`[in]`	systemAddress	The player that sent this command.
`[in]`	originalString	The string that was actually sent over the network, in case you want to do your own parsing

Implemented in LogCommandParser, RakNetCommandParser, and RakNetTransportCommandParser.

void CommandParserInterface::OnConnectionLost	(	SystemAddress	systemAddress,
		TransportInterface *	transport
	)			`[virtual]`

A callback for when systemAddress has disconnected, either gracefully or forcefully.

Parameters:

`[in]`	systemAddress	The player that has disconnected.
`[in]`	transport	The transport interface that sent us this information.

Reimplemented in LogCommandParser.

Definition at line 122 of file CommandParserInterface.cpp.

void CommandParserInterface::OnNewIncomingConnection	(	SystemAddress	systemAddress,
		TransportInterface *	transport
	)			`[virtual]`

A callback for when systemAddress has connected to us.

Parameters:

`[in]`	systemAddress	The player that has connected.
`[in]`	transport	The transport interface that sent us this information. Can be used to send messages to this or other players.

Reimplemented in LogCommandParser.

Definition at line 117 of file CommandParserInterface.cpp.

void CommandParserInterface::OnTransportChange ( TransportInterface * transport ) [virtual]

This is called every time transport interface is registered.

If you want to save a copy of the TransportInterface pointer This is the place to do it

Parameters:

[in] transport The new TransportInterface

Reimplemented in LogCommandParser.

Definition at line 113 of file CommandParserInterface.cpp.

Here is the caller graph for this function:

void CommandParserInterface::ParseConsoleString	(	char *	str,
		const char	delineator,
		unsigned char	delineatorToggle,
		unsigned *	numParameters,
		char **	parameterList,
		unsigned	parameterListLength
	)			`[static]`

Definition at line 34 of file CommandParserInterface.cpp.

Here is the caller graph for this function:

void CommandParserInterface::RegisterCommand	(	unsigned char	parameterCount,
		const char *	command,
		const char *	commandHelp
	)			`[virtual]`

Registers a command.

Parameters:

`[in]`	parameterCount	How many parameters your command requires. If you want to accept a variable number of commands, pass CommandParserInterface::VARIABLE_NUMBER_OF_PARAMETERS
`[in]`	command	A pointer to a STATIC string that has your command. I keep a copy of the pointer here so don't deallocate the string.
`[in]`	commandHelp	A pointer to a STATIC string that has the help information for your command. I keep a copy of the pointer here so don't deallocate the string.

Definition at line 96 of file CommandParserInterface.cpp.

Here is the call graph for this function:

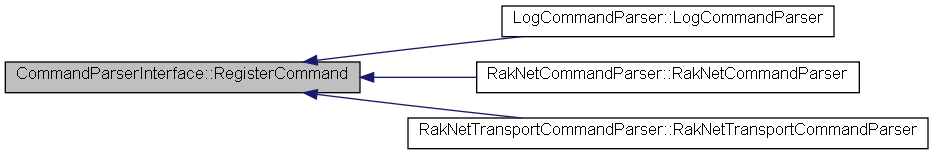

Here is the caller graph for this function:

void CommandParserInterface::ReturnResult	(	char *	res,
		const char *	command,
		TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[virtual]`

Definition at line 142 of file CommandParserInterface.cpp.

Here is the call graph for this function:

void CommandParserInterface::ReturnResult	(	int	res,
		const char *	command,
		TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[virtual]`

Definition at line 134 of file CommandParserInterface.cpp.

Here is the call graph for this function:

void CommandParserInterface::ReturnResult	(	SystemAddress	res,
		const char *	command,
		TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[virtual]`

Definition at line 146 of file CommandParserInterface.cpp.

Here is the call graph for this function:

void CommandParserInterface::ReturnResult	(	const char *	command,
		TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[virtual]`

Just writes a string to the remote system when you are calling a function that has no return value.

This is not necessary to call, but makes it easier to return results of function calls.

Parameters:

`[in]`	res	The result to write
`[in]`	command	The command that this result came from
`[in]`	transport	The transport interface that will be written to
`[in]`	systemAddress	The player this result will be sent to

Definition at line 138 of file CommandParserInterface.cpp.

Here is the call graph for this function:

void CommandParserInterface::ReturnResult	(	bool	res,
		const char *	command,
		TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[virtual]`

Just writes a string to the remote system based on the result ( res ) of your operation.

This is not necessary to call, but makes it easier to return results of function calls.

Parameters:

`[in]`	res	The result to write
`[in]`	command	The command that this result came from
`[in]`	transport	The transport interface that will be written to
`[in]`	systemAddress	The player this result will be sent to

Definition at line 127 of file CommandParserInterface.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void CommandParserInterface::SendCommandList	(	TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[virtual]`

Definition at line 80 of file CommandParserInterface.cpp.

Here is the call graph for this function:

virtual void CommandParserInterface::SendHelp	(	TransportInterface *	transport,
		SystemAddress	systemAddress
	)			`[pure virtual]`

A callback for when you are expected to send a brief description of your parser to systemAddress.

Parameters:

`[in]`	transport	The transport interface we can use to write to
`[in]`	systemAddress	The player that requested help.

Implemented in LogCommandParser, RakNetCommandParser, and RakNetTransportCommandParser.

Member Data Documentation

DataStructures::OrderedList<const char*, RegisteredCommand, RegisteredCommandComp> CommandParserInterface::commandList [protected]

Definition at line 139 of file CommandParserInterface.h.

const unsigned char CommandParserInterface::VARIABLE_NUMBER_OF_PARAMETERS = 255 [static]

Definition at line 99 of file CommandParserInterface.h.

The documentation for this class was generated from the following files:
