TransportInterface Class Reference

Defines an interface that is used to send and receive null-terminated strings. More...

#include <TransportInterface.h>

Inherited by RakNetTransport, RakNetTransport2, and TelnetTransport.

List of all members.

Public Member Functions
	TransportInterface ()
virtual	~TransportInterface ()
virtual bool	Start (unsigned short port, bool serverMode)=0
virtual void	Stop (void)=0
	Stop the transport provider. You can clear memory and shutdown threads here.
virtual void	Send (SystemAddress systemAddress, const char *data,...)=0
virtual void	CloseConnection (SystemAddress systemAddress)=0
virtual Packet *	Receive (void)=0
virtual void	DeallocatePacket (Packet *packet)=0
virtual SystemAddress	HasNewIncomingConnection (void)=0
virtual SystemAddress	HasLostConnection (void)=0
virtual CommandParserInterface *	GetCommandParser (void)=0

---

Detailed Description

Defines an interface that is used to send and receive null-terminated strings.

In practice this is only used by the CommandParser system for for servers.

Definition at line 22 of file TransportInterface.h.

---

Constructor & Destructor Documentation

TransportInterface::TransportInterface

(

)

[inline]

Definition at line 25 of file TransportInterface.h.

virtual TransportInterface::~TransportInterface

(

)

[inline, virtual]

Definition at line 26 of file TransportInterface.h.

---

Member Function Documentation

virtual void TransportInterface::CloseConnection

(

SystemAddress

systemAddress

)

[pure virtual]

Disconnect systemAddress . The binary address and port defines the SystemAddress structure.

Parameters:

[in]

systemAddress

The player/address to disconnect

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual void TransportInterface::DeallocatePacket

(

Packet *

packet

)

[pure virtual]

Deallocate the Packet structure returned by Receive

Parameters:

[in]

The

packet to deallocate

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual CommandParserInterface* TransportInterface::GetCommandParser

(

void

)

[pure virtual]

Your transport provider can itself have command parsers if the transport layer has user-modifiable features For example, your transport layer may have a password which you want remote users to be able to set or you may want to allow remote users to turn on or off command echo

Returns:

0 if you do not need a command parser - otherwise the desired derivation of CommandParserInterface

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual SystemAddress TransportInterface::HasLostConnection

(

void

)

[pure virtual]

If a system loses the connection, you should queue that event and return the systemAddress/address of that player in this function.

Returns:

The SystemAddress/address of the system

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual SystemAddress TransportInterface::HasNewIncomingConnection

(

void

)

[pure virtual]

If a new system connects to you, you should queue that event and return the systemAddress/address of that player in this function.

Returns:

The SystemAddress/address of the system

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual Packet* TransportInterface::Receive

(

void

)

[pure virtual]

Return a string. The string should be allocated and written to Packet::data . The byte length should be written to Packet::length . The player/address should be written to Packet::systemAddress If your transport protocol adds special formatting to the data stream you should parse it out before returning it in the packet and thus only return a string in Packet::data

Returns:

The packet structure containing the result of Receive, or 0 if no data is available

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual void TransportInterface::Send	(	SystemAddress	systemAddress,
		const char *	data,
			...
	)			[pure virtual]

Send a null-terminated string to systemAddress If your transport method requires particular formatting of the outgoing data (e.g. you don't just send strings) you can do it here and parse it out in Receive().

Parameters:

[in]	systemAddress	The player to send the string to
[in]	data	format specifier - same as RAKNET_DEBUG_PRINTF
[in]	...	format specification arguments - same as RAKNET_DEBUG_PRINTF

Implemented in RakNetTransport, and TelnetTransport.

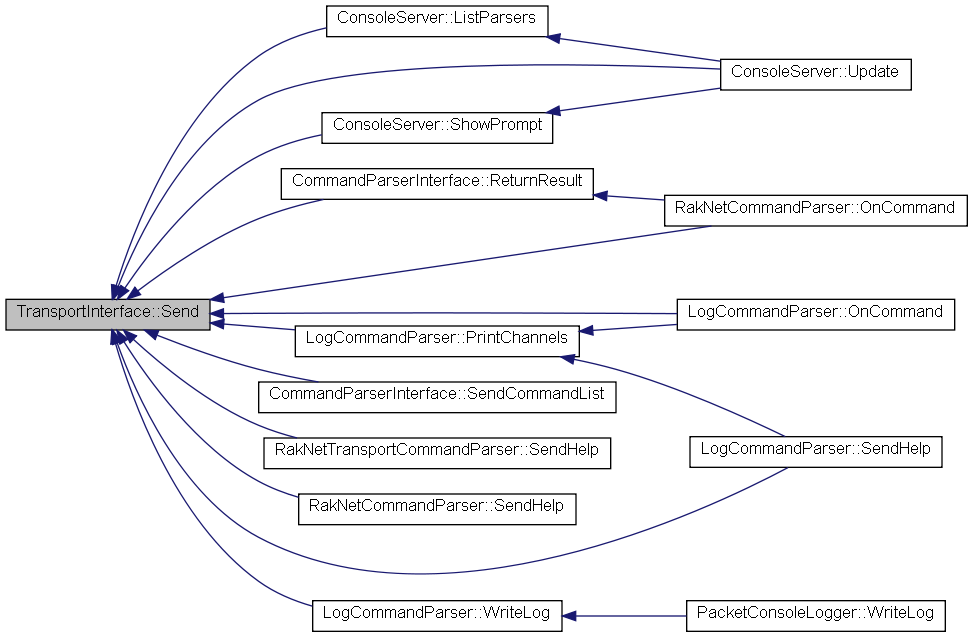

Here is the caller graph for this function:

virtual bool TransportInterface::Start	(	unsigned short	port,
		bool	serverMode
	)			[pure virtual]

Start the transport provider on the indicated port.

Parameters:

[in]	port	The port to start the transport provider on
[in]	serverMode	If true, you should allow incoming connections (I don't actually use this anywhere)

Returns:

Return true on success, false on failure.

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

virtual void TransportInterface::Stop

(

void

)

[pure virtual]

Stop the transport provider. You can clear memory and shutdown threads here.

Implemented in RakNetTransport, and TelnetTransport.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• TransportInterface.h
