Use RakNetTransport if you need a secure connection between the client and the console server. More...

#include <RakNetTransport.h>

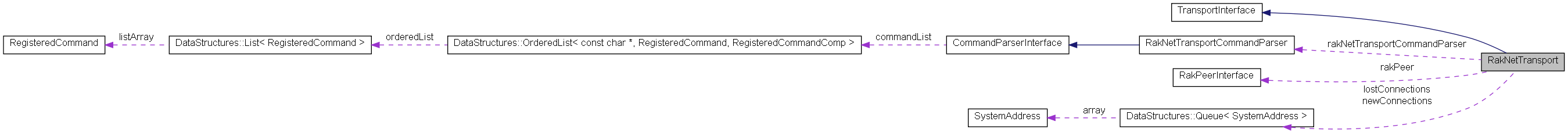

Collaboration diagram for RakNetTransport:

[legend]

Public Member Functions
	RakNetTransport ()
virtual	~RakNetTransport ()
bool	Start (unsigned short port, bool serverMode)
void	Stop (void)
	Stop the transport provider. You can clear memory and shutdown threads here.
void	Send (SystemAddress systemAddress, const char *data,...)
Packet *	Receive (void)
void	DeallocatePacket (Packet *packet)
void	CloseConnection (SystemAddress systemAddress)
SystemAddress	HasNewIncomingConnection (void)
SystemAddress	HasLostConnection (void)
void	SetIncomingPassword (const char *password)
char *	GetIncomingPassword (void)
CommandParserInterface *	GetCommandParser (void)
	Returns RakNetTransportCommandParser so the console admin can change the password.
Protected Member Functions
void	AutoAllocate (void)
Protected Attributes
RakPeerInterface *	rakPeer
DataStructures::Queue < SystemAddress >	newConnections
DataStructures::Queue < SystemAddress >	lostConnections
RakNetTransportCommandParser	rakNetTransportCommandParser

Detailed Description

Use RakNetTransport if you need a secure connection between the client and the console server.

RakNetTransport automatically initializes security for the system. Use the project CommandConsoleClient to connect To the ConsoleServer if you use RakNetTransport

Deprecated:: Use RakNetTransport2

Definition at line 58 of file RakNetTransport.h.

Constructor & Destructor Documentation

RakNetTransport::RakNetTransport ( )

Definition at line 63 of file RakNetTransport.cpp.

RakNetTransport::~RakNetTransport ( ) [virtual]

Definition at line 67 of file RakNetTransport.cpp.

Here is the call graph for this function:

Member Function Documentation

void RakNetTransport::AutoAllocate ( void ) [protected]

Definition at line 172 of file RakNetTransport.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void RakNetTransport::CloseConnection ( SystemAddress systemAddress ) [virtual]

Disconnect systemAddress . The binary address and port defines the SystemAddress structure.

Parameters:

[in] systemAddress The player/address to disconnect

Implements TransportInterface.

Definition at line 111 of file RakNetTransport.cpp.

Here is the call graph for this function:

void RakNetTransport::DeallocatePacket ( Packet * packet ) [virtual]

Deallocate the Packet structure returned by Receive

Parameters:

[in] The packet to deallocate

Implements TransportInterface.

Definition at line 166 of file RakNetTransport.cpp.

Here is the call graph for this function:

CommandParserInterface * RakNetTransport::GetCommandParser ( void ) [virtual]

Returns RakNetTransportCommandParser so the console admin can change the password.

Implements TransportInterface.

Definition at line 177 of file RakNetTransport.cpp.

char * RakNetTransport::GetIncomingPassword ( void )

Returns the password set by SetIncomingPassword().

Returns:: The password set by SetIncomingPassword()

Definition at line 158 of file RakNetTransport.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

SystemAddress RakNetTransport::HasLostConnection ( void ) [virtual]

If a system loses the connection, you should queue that event and return the systemAddress/address of that player in this function.

Returns:: The SystemAddress/address of the system

Implements TransportInterface.

Definition at line 145 of file RakNetTransport.cpp.

Here is the call graph for this function:

SystemAddress RakNetTransport::HasNewIncomingConnection ( void ) [virtual]

If a new system connects to you, you should queue that event and return the systemAddress/address of that player in this function.

Returns:: The SystemAddress/address of the system

Implements TransportInterface.

Definition at line 139 of file RakNetTransport.cpp.

Here is the call graph for this function:

Packet * RakNetTransport::Receive ( void ) [virtual]

Return a string. The string should be allocated and written to Packet::data . The byte length should be written to Packet::length . The player/address should be written to Packet::systemAddress If your transport protocol adds special formatting to the data stream you should parse it out before returning it in the packet and thus only return a string in Packet::data

Returns:: The packet structure containing the result of Receive, or 0 if no data is available

Implements TransportInterface.

Definition at line 115 of file RakNetTransport.cpp.

Here is the call graph for this function:

void RakNetTransport::Send	(	SystemAddress	systemAddress,
		const char *	data,
			...
	)			`[virtual]`

Send a null-terminated string to systemAddress If your transport method requires particular formatting of the outgoing data (e.g. you don't just send strings) you can do it here and parse it out in Receive().

Parameters:

`[in]`	systemAddress	The player to send the string to
`[in]`	data	format specifier - same as RAKNET_DEBUG_PRINTF
`[in]`	...	format specification arguments - same as RAKNET_DEBUG_PRINTF

Implements TransportInterface.

Definition at line 93 of file RakNetTransport.cpp.

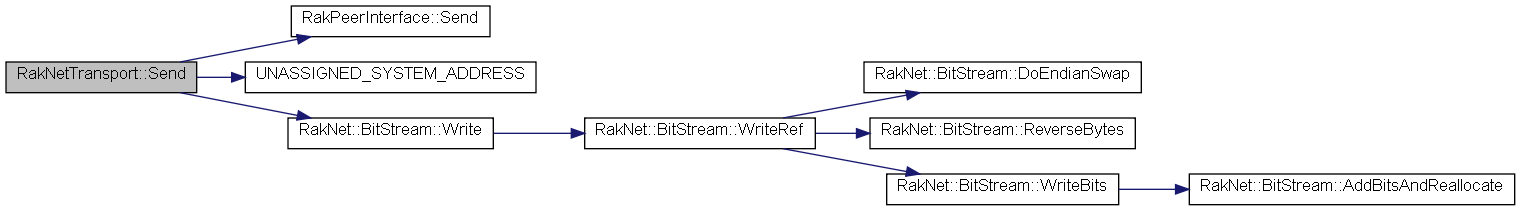

Here is the call graph for this function:

Here is the caller graph for this function:

void RakNetTransport::SetIncomingPassword ( const char * password )

Sets the password which incoming connections must match. While not required, it is highly recommended you set this in a real game environment or anyone can login and control your server. Don't set it to a fixed value, but instead require that the server admin sets it when you start the application server

Parameters:

[in] password Null-terminated string to use as a password.

Definition at line 151 of file RakNetTransport.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool RakNetTransport::Start	(	unsigned short	port,
		bool	serverMode
	)			`[virtual]`

Start the transport provider on the indicated port.

Parameters:

`[in]`	port	The port to start the transport provider on
`[in]`	serverMode	If true, you should allow incoming connections (I don't actually use this anywhere)
