Use HTTPConnection to communicate with a web server. More...

#include <HTTPConnection.h>

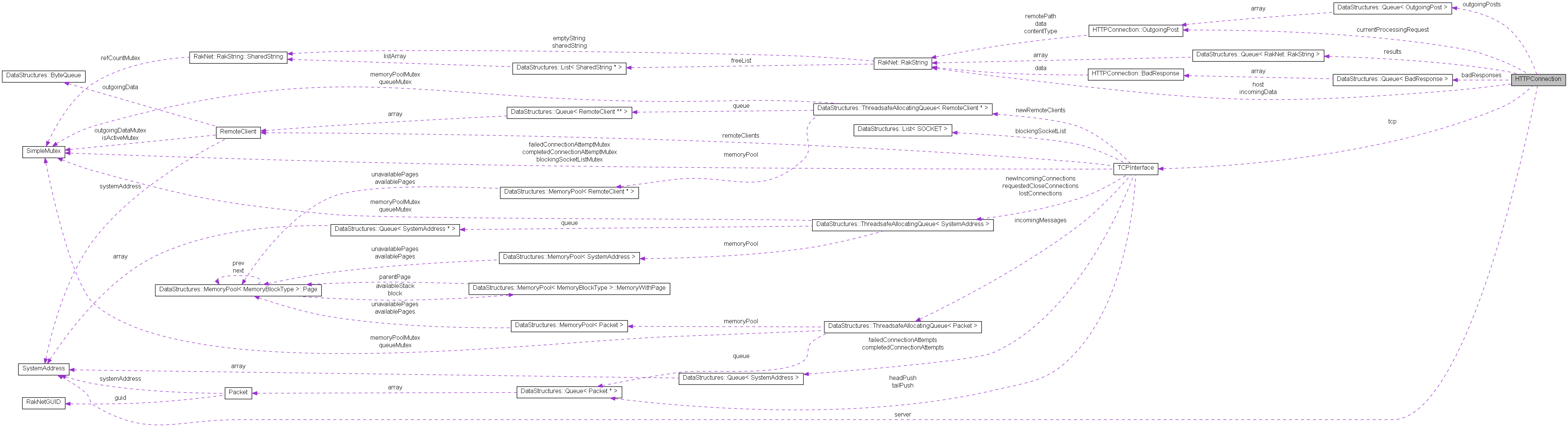

Collaboration diagram for HTTPConnection:

[legend]

Classes
struct	BadResponse
	Encapsulates a raw HTTP response and response code. More...
struct	OutgoingPost
Public Types
enum	ResponseCodes { NoBody = 1001, OK = 200, Deleted = 1002 }
Public Member Functions
	HTTPConnection ()
	Returns a HTTP object associated with this tcp connection.
virtual	~HTTPConnection ()
void	Init (TCPInterface _tcp, const char host, unsigned short port=80)
void	Post (const char path, const char data, const char *_contentType="application/x-www-form-urlencoded")
bool	HasRead (void) const
	Is there a Read result ready?
RakNet::RakString	Read (void)
void	Update (void)
	Call periodically to do time-based updates.
SystemAddress	GetServerAddress (void) const
	Returns the address of the server we are connected to.
void	ProcessTCPPacket (Packet *packet)
HTTPConnection &	operator= (const HTTPConnection &rhs)
bool	HasBadResponse (int code, RakNet::RakString data)
	Queued events of failed exchanges with the HTTP server.
bool	IsBusy (void) const
	Returns false if the connection is not doing anything else.
int	GetState (void) const
Public Attributes
DataStructures::Queue < OutgoingPost >	outgoingPosts
OutgoingPost	currentProcessingRequest

Detailed Description

Use HTTPConnection to communicate with a web server.

Start an instance of TCPInterface via the Start() command. Instantiate a new instance of HTTPConnection, and associate TCPInterface with the class in the constructor. Use Post() to send commands to the web server, and ProcessDataPacket() to update the connection with packets returned from TCPInterface that have the system address of the web server This class will handle connecting and reconnecting as necessary.

Note that only one Post() can be handled at a time.

Definition at line 40 of file HTTPConnection.h.

Member Enumeration Documentation

enum HTTPConnection::ResponseCodes

Results of HTTP requests. Standard response codes are < 999 ( define HTTP codes and our internal codes as needed )

Enumerator:

NoBody
OK
Deleted

Definition at line 81 of file HTTPConnection.h.

Constructor & Destructor Documentation

HTTPConnection::HTTPConnection ( )

Returns a HTTP object associated with this tcp connection.

Definition at line 33 of file HTTPConnection.cpp.

HTTPConnection::~HTTPConnection ( void ) [virtual]

Definition at line 269 of file HTTPConnection.cpp.

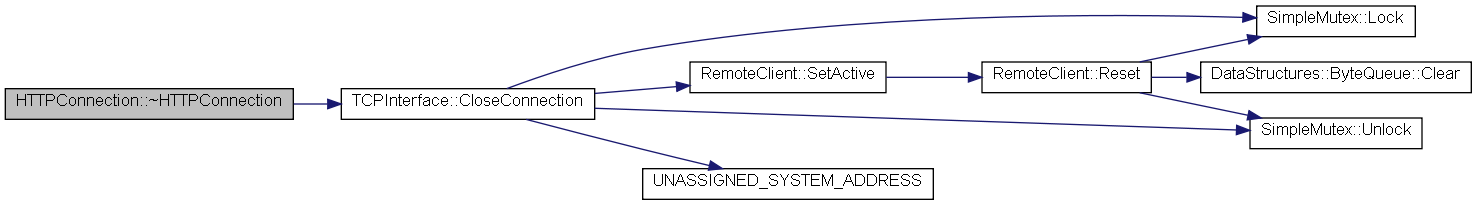

Here is the call graph for this function:

Member Function Documentation

SystemAddress HTTPConnection::GetServerAddress ( void ) const

Returns the address of the server we are connected to.

Definition at line 192 of file HTTPConnection.cpp.

int HTTPConnection::GetState ( void ) const

Definition at line 263 of file HTTPConnection.cpp.

bool HTTPConnection::HasBadResponse	(	int *	code,
		RakNet::RakString *	data
	)

Queued events of failed exchanges with the HTTP server.

Definition at line 55 of file HTTPConnection.cpp.

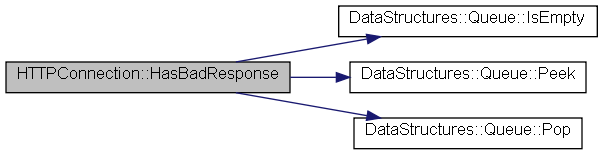

Here is the call graph for this function:

bool HTTPConnection::HasRead ( void ) const

Is there a Read result ready?

Definition at line 170 of file HTTPConnection.cpp.

Here is the call graph for this function:

void HTTPConnection::Init	(	TCPInterface *	_tcp,
		const char *	host,
		unsigned short	port = `80`
	)

Precondition:: tcp should already be started

Definition at line 38 of file HTTPConnection.cpp.

bool HTTPConnection::IsBusy ( void ) const

Returns false if the connection is not doing anything else.

Definition at line 258 of file HTTPConnection.cpp.

HTTPConnection& HTTPConnection::operator= ( const HTTPConnection & rhs ) [inline]

Definition at line 83 of file HTTPConnection.h.

void HTTPConnection::Post	(	const char *	path,
		const char *	data,
		const char *	_contentType = `"application/x-www-form-urlencoded"`
	)

Submit data to the HTTP server HTTP only allows one request at a time per connection

Precondition:: IsBusy()==false

Parameters:

	path	the path on the remote server you want to POST to. For example "mywebpage/index.html"
	data	A NULL terminated string to submit to the server
	contentType	"Content-Type:" passed to post.

Definition at line 45 of file HTTPConnection.cpp.

Here is the call graph for this function:

void HTTPConnection::ProcessTCPPacket ( Packet * packet )

Process an HTTP data packet returned from TCPInterface Returns true when we have gotten all the data from the HTTP server. If this returns true then it's safe to Post() another request Deallocate the packet as usual via TCPInterface

Parameters:

packet

NULL or a packet associated with our host and port

Definition at line 196 of file HTTPConnection.cpp.

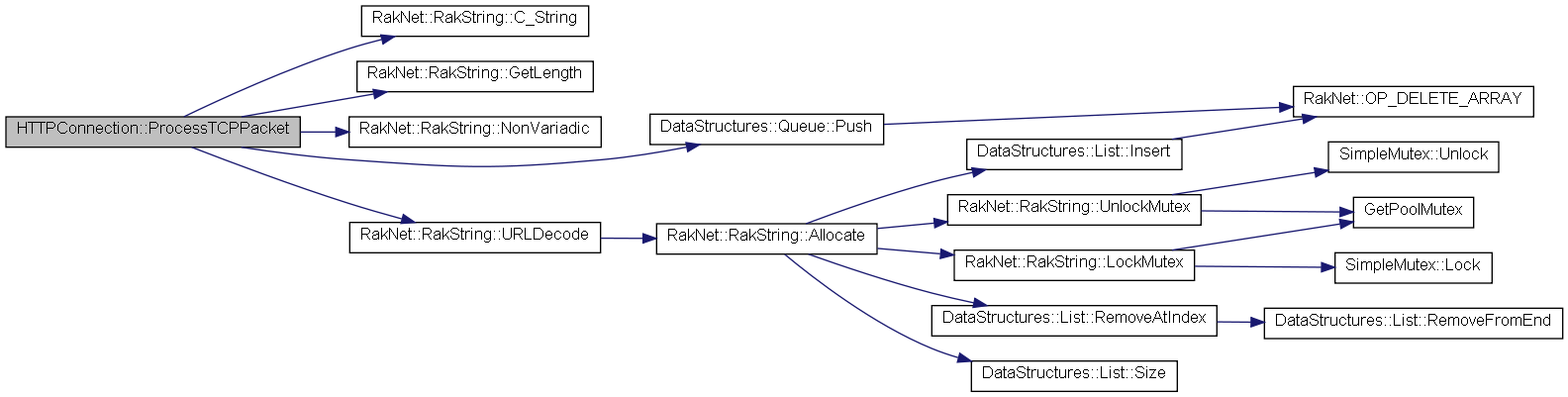

Here is the call graph for this function:
