ConnectionGraph2 Class Reference [ConnectionGraph]

A one hop connection graph. More...

#include <ConnectionGraph2.h>

Inherits PluginInterface2.

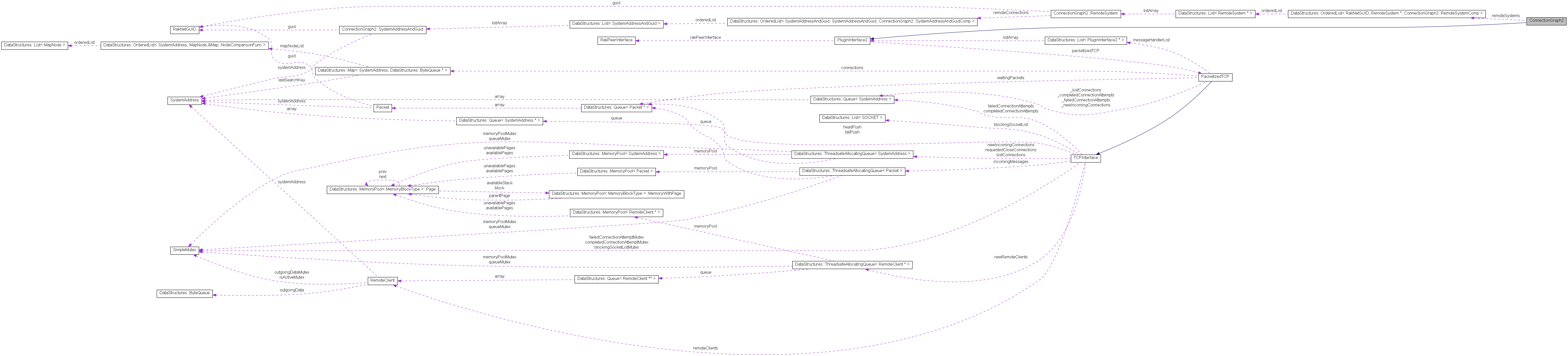

Collaboration diagram for ConnectionGraph2:

List of all members.

Classes
struct	RemoteSystem
struct	SystemAddressAndGuid
Public Member Functions
bool	GetConnectionListForRemoteSystem (RakNetGUID remoteSystemGuid, SystemAddress *saOut, RakNetGUID *guidOut, unsigned int *outLength)
	Given a remote system identified by RakNetGUID, return the list of SystemAddresses and RakNetGUIDs they are connected to.
bool	ConnectionExists (RakNetGUID g1, RakNetGUID g2)
	Returns if g1 is connected to g2.
Static Public Member Functions
static int	SystemAddressAndGuidComp (const SystemAddressAndGuid &key, const SystemAddressAndGuid &data)
static int	RemoteSystemComp (const RakNetGUID &key, RemoteSystem *const &data)
Protected Member Functions
virtual void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
virtual void	OnNewConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, bool isIncoming)
virtual PluginReceiveResult	OnReceive (Packet *packet)
Protected Attributes
DataStructures::OrderedList < RakNetGUID, RemoteSystem *, ConnectionGraph2::RemoteSystemComp >	remoteSystems

---

Detailed Description

A one hop connection graph.

Sends ID_CONNECTION_GRAPH_DISCONNECTION_NOTIFICATION, ID_CONNECTION_GRAPH_CONNECTION_LOST, ID_CONNECTION_GRAPH_NEW_CONNECTION
All identifiers are followed by SystemAddress, then RakNetGUID Also stores the list for you, which you can access with GetConnectionListForRemoteSystem

Definition at line 28 of file ConnectionGraph2.h.

---

Member Function Documentation

bool ConnectionGraph2::ConnectionExists	(	RakNetGUID	g1,
		RakNetGUID	g2
	)

Returns if g1 is connected to g2.

Definition at line 55 of file ConnectionGraph2.cpp.

Here is the call graph for this function:

bool ConnectionGraph2::GetConnectionListForRemoteSystem	(	RakNetGUID	remoteSystemGuid,
		SystemAddress *	saOut,
		RakNetGUID *	guidOut,
		unsigned int *	outLength
	)

Given a remote system identified by RakNetGUID, return the list of SystemAddresses and RakNetGUIDs they are connected to.

Parameters:

[in]	remoteSystemGuid	Which system we are referring to. This only works for remote systems, not ourselves.
[out]	saOut	A preallocated array to hold the output list of SystemAddress. Can be 0 if you don't care.
[out]	guidOut	A preallocated array to hold the output list of RakNetGUID. Can be 0 if you don't care.
[in,out]	outLength	On input, the size of saOut and guidOut. On output, modified to reflect the number of elements actually written

Returns:

True if remoteSystemGuid was found. Otherwise false, and saOut, guidOut remain unchanged. outLength will be set to 0.

Definition at line 27 of file ConnectionGraph2.cpp.

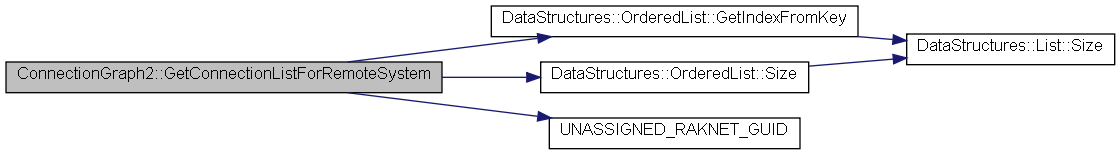

Here is the call graph for this function:

void ConnectionGraph2::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			[protected, virtual]

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

[in]	systemAddress	The system whose connection was closed
[in]	rakNetGuid	The guid of the specified system
[in]	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented from PluginInterface2.

Definition at line 70 of file ConnectionGraph2.cpp.

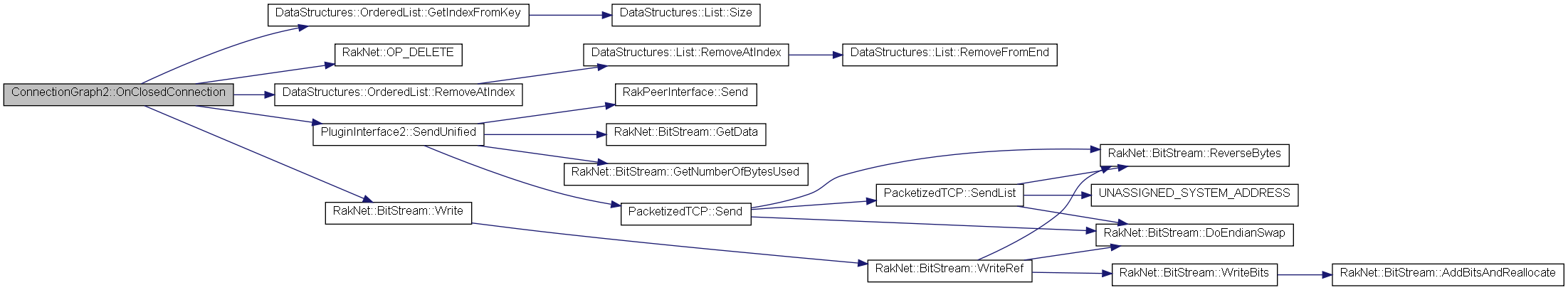

Here is the call graph for this function:

void ConnectionGraph2::OnNewConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		bool	isIncoming
	)			[protected, virtual]

Called when we got a new connection

Parameters:

[in]	systemAddress	Address of the new connection
[in]	rakNetGuid	The guid of the specified system
[in]	isIncoming	If true, this is ID_NEW_INCOMING_CONNECTION, or the equivalent

Reimplemented from PluginInterface2.

Definition at line 90 of file ConnectionGraph2.cpp.

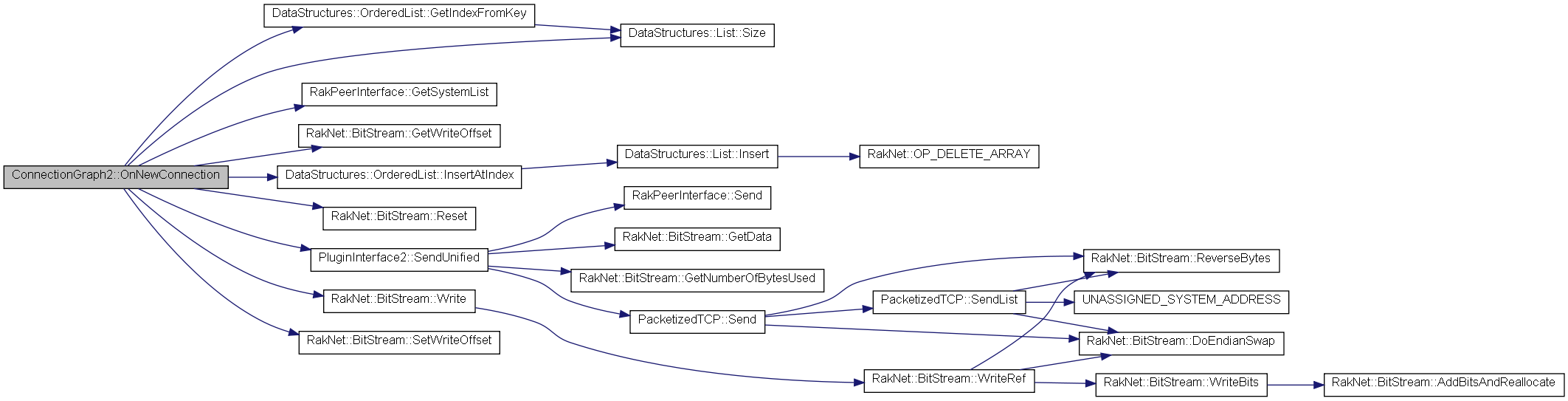

Here is the call graph for this function:

PluginReceiveResult ConnectionGraph2::OnReceive

(

Packet *

packet

)

[protected, virtual]

OnReceive is called for every packet.

Parameters:

[in]

packet

the packet that is being returned to the user

Returns:

True to allow the game and other plugins to get this message, false to absorb it

Reimplemented from PluginInterface2.

Definition at line 141 of file ConnectionGraph2.cpp.

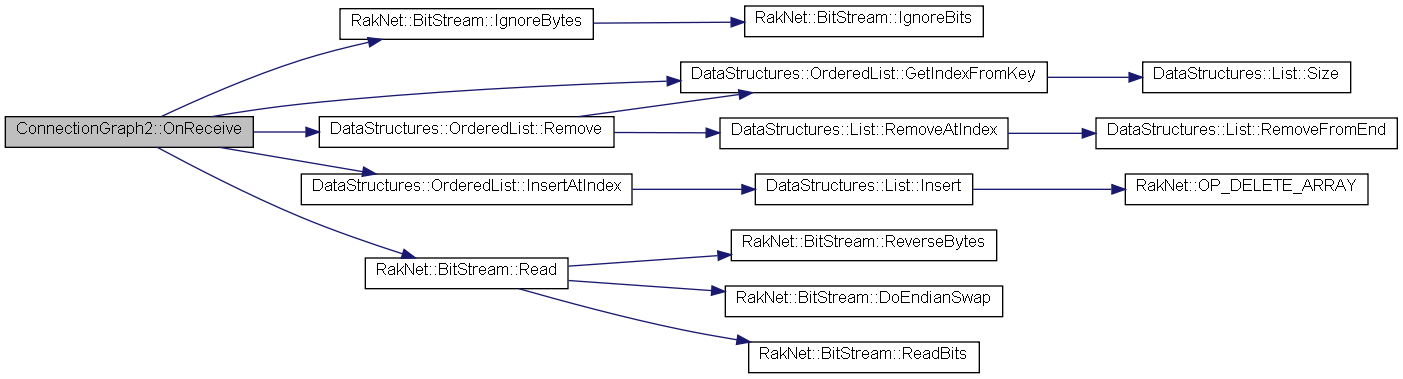

Here is the call graph for this function:

int ConnectionGraph2::RemoteSystemComp	(	const RakNetGUID &	key,
		RemoteSystem *const &	data
	)			[static]

Definition at line 9 of file ConnectionGraph2.cpp.

int ConnectionGraph2::SystemAddressAndGuidComp	(	const SystemAddressAndGuid &	key,
		const SystemAddressAndGuid &	data
	)			[static]

Definition at line 18 of file ConnectionGraph2.cpp.

---

Member Data Documentation

DataStructures::OrderedList<RakNetGUID, RemoteSystem*, ConnectionGraph2::RemoteSystemComp> ConnectionGraph2::remoteSystems [protected]

Definition at line 70 of file ConnectionGraph2.h.

---

The documentation for this class was generated from the following files:

• ConnectionGraph2.h
• ConnectionGraph2.cpp
