#include <PluginInterface2.h>

Inherited by ConnectionGraph, ConnectionGraph2, DirectoryDeltaTransfer, FileListTransfer, FullyConnectedMesh, FullyConnectedMesh2, LightweightDatabaseClient, LightweightDatabaseServer, MessageFilter, NatPunchthroughClient, NatPunchthroughServer, PacketLogger, RakNet::AutoRPC, RakNet::NatTypeDetectionClient, RakNet::NatTypeDetectionServer, RakNet::ReplicaManager2, RakNet::ReplicaManager3, RakNet::Router2, RakNet::RPC4Plugin, RakNet::TeamBalancer, RakNet::UDPProxyClient, RakNet::UDPProxyCoordinator, RakNet::UDPProxyServer, RakNetTransport2, ReadyEvent, ReplicaManager, and Router.

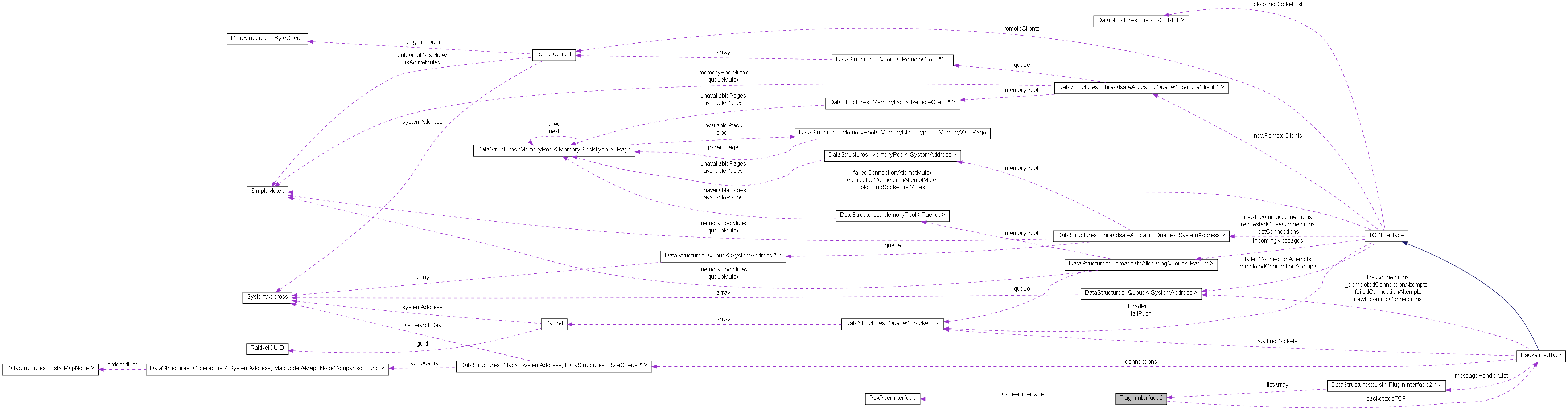

Collaboration diagram for PluginInterface2:

[legend]

List of all members.

Public Member Functions
	PluginInterface2 ()
virtual	~PluginInterface2 ()
virtual void	OnAttach (void)
virtual void	OnDetach (void)
virtual void	Update (void)
	Update is called every time a packet is checked for .
virtual PluginReceiveResult	OnReceive (Packet *packet)
virtual void	OnRakPeerStartup (void)
	Called when RakPeer is initialized.
virtual void	OnRakPeerShutdown (void)
	Called when RakPeer is shutdown.
virtual void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
virtual void	OnNewConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, bool isIncoming)
virtual void	OnFailedConnectionAttempt (Packet *packet, PI2_FailedConnectionAttemptReason failedConnectionAttemptReason)
virtual void	OnDirectSocketSend (const char *data, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
virtual void	OnDirectSocketReceive (const char *data, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
virtual void	OnReliabilityLayerPacketError (const char *errorMessage, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
virtual void	OnInternalPacket (InternalPacket *internalPacket, unsigned frameNumber, SystemAddress remoteSystemAddress, RakNetTime time, int isSend)
virtual void	OnAck (unsigned int messageNumber, SystemAddress remoteSystemAddress, RakNetTime time)
virtual void	OnPushBackPacket (const char *data, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
RakPeerInterface *	GetRakPeerInterface (void) const
void	SetRakPeerInterface (RakPeerInterface *ptr)
void	SetPacketizedTCP (PacketizedTCP *ptr)
Protected Member Functions
void	SendUnified (const RakNet::BitStream *bitStream, PacketPriority priority, PacketReliability reliability, char orderingChannel, const AddressOrGUID systemIdentifier, bool broadcast)
bool	SendListUnified (const char *data, const int lengths, const int numParameters, PacketPriority priority, PacketReliability reliability, char orderingChannel, const AddressOrGUID systemIdentifier, bool broadcast)
Packet *	AllocatePacketUnified (unsigned dataSize)
void	PushBackPacketUnified (Packet *packet, bool pushAtHead)
void	DeallocPacketUnified (Packet *packet)
Protected Attributes
RakPeerInterface *	rakPeerInterface
PacketizedTCP *	packetizedTCP

Detailed Description

RakNet's plugin system. Each plugin processes the following events: -Connection attempts -The result of connection attempts -Each incoming message -Updates over time, when RakPeer::Receive() is called

Definition at line 77 of file PluginInterface2.h.

Constructor & Destructor Documentation

PluginInterface2::PluginInterface2 ( )

Definition at line 13 of file PluginInterface2.cpp.

PluginInterface2::~PluginInterface2 ( ) [virtual]

Definition at line 20 of file PluginInterface2.cpp.

Member Function Documentation

Packet * PluginInterface2::AllocatePacketUnified ( unsigned dataSize ) [protected]

Definition at line 33 of file PluginInterface2.cpp.

Here is the call graph for this function:

void PluginInterface2::DeallocPacketUnified ( Packet * packet ) [protected]

Definition at line 54 of file PluginInterface2.cpp.

Here is the call graph for this function:

RakPeerInterface* PluginInterface2::GetRakPeerInterface ( void ) const [inline]

Definition at line 159 of file PluginInterface2.h.

Here is the caller graph for this function:

virtual void PluginInterface2::OnAck	(	unsigned int	messageNumber,
		SystemAddress	remoteSystemAddress,
		RakNetTime	time
	)			`[inline, virtual]`

Called when we get an ack for a message we reliabily sent

Parameters:

`[in]`	messageNumber	The numerical identifier for which message this is
`[in]`	remoteSystemAddress	The player we sent or got this packet from
`[in]`	time	The current time as returned by RakNet::GetTime()

Reimplemented in PacketLogger.

Definition at line 151 of file PluginInterface2.h.

virtual void PluginInterface2::OnAttach ( void ) [inline, virtual]

Called when the interface is attached

Parameters:

[in] peer the instance of RakPeer that is calling Receive

Reimplemented in RakNet::AutoRPC, FullyConnectedMesh2, NatPunchthroughClient, RakNet::ReplicaManager2, and RakNet::UDPProxyServer.

Definition at line 85 of file PluginInterface2.h.

Here is the caller graph for this function:

virtual void PluginInterface2::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			`[inline, virtual]`

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

`[in]`	systemAddress	The system whose connection was closed
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented in RakNet::AutoRPC, ConnectionGraph, ConnectionGraph2, FileListTransfer, FullyConnectedMesh2, LightweightDatabaseServer, MessageFilter, NatPunchthroughClient, NatPunchthroughServer, RakNet::NatTypeDetectionClient, RakNet::NatTypeDetectionServer, RakNetTransport2, ReadyEvent, ReplicaManager, RakNet::ReplicaManager2, RakNet::ReplicaManager3, RakNet::Router2, RakNet::TeamBalancer, RakNet::UDPProxyCoordinator, and RakNet::UDPProxyServer.

Definition at line 109 of file PluginInterface2.h.

virtual void PluginInterface2::OnDetach ( void ) [inline, virtual]

Called when the interface is detached

Parameters:

[in] peer the instance of RakPeer that is calling Receive

Reimplemented in NatPunchthroughClient, and RakNet::UDPProxyServer.

Definition at line 89 of file PluginInterface2.h.

Here is the caller graph for this function:

virtual void PluginInterface2::OnDirectSocketReceive	(	const char *	data,
		const BitSize_t	bitsUsed,
		SystemAddress	remoteSystemAddress
	)			`[inline, virtual]`

Called on a receive from the socket, per datagram, that does not go through the reliability layer

Parameters:

`[in]`	data	The data being sent
`[in]`	bitsUsed	How many bits long data is
`[in]`	remoteSystemAddress	Which system this message is being sent to

Reimplemented in PacketLogger.

Definition at line 132 of file PluginInterface2.h.

virtual void PluginInterface2::OnDirectSocketSend	(	const char *	data,
		const BitSize_t	bitsUsed,
		SystemAddress	remoteSystemAddress
	)			`[inline, virtual]`

Called on a send to the socket, per datagram, that does not go through the reliability layer

Parameters:

`[in]`	data	The data being sent
`[in]`	bitsUsed	How many bits long data is
`[in]`	remoteSystemAddress	Which system this message is being sent to

Reimplemented in PacketLogger.

Definition at line 126 of file PluginInterface2.h.

virtual void PluginInterface2::OnFailedConnectionAttempt	(	Packet *	packet,
		PI2_FailedConnectionAttemptReason	failedConnectionAttemptReason
	)			`[inline, virtual]`

Called when a connection attempt fails

Parameters:

`[in]`	packet	Packet to be returned to the user
`[in]`	failedConnectionReason	Why the connection failed

Reimplemented in RakNet::Router2.

Definition at line 120 of file PluginInterface2.h.

virtual void PluginInterface2::OnInternalPacket	(	InternalPacket *	internalPacket,
		unsigned	frameNumber,
		SystemAddress	remoteSystemAddress,
		RakNetTime	time,
		int	isSend
	)			`[inline, virtual]`

Called on a send or receive of a message within the reliability layer

Parameters:

`[in]`	internalPacket	The user message, along with all send data.
`[in]`	frameNumber	The number of frames sent or received so far for this player depending on isSend . Indicates the frame of this user message.
`[in]`	remoteSystemAddress	The player we sent or got this packet from
`[in]`	time	The current time as returned by RakNet::GetTime()
`[in]`	isSend	Is this callback representing a send event or receive event?

Reimplemented in PacketLogger.

Definition at line 145 of file PluginInterface2.h.

virtual void PluginInterface2::OnNewConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		bool	isIncoming
	)			`[inline, virtual]`

Called when we got a new connection

Parameters:

`[in]`	systemAddress	Address of the new connection
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	isIncoming	If true, this is ID_NEW_INCOMING_CONNECTION, or the equivalent

Reimplemented in ConnectionGraph, ConnectionGraph2, FullyConnectedMesh2, MessageFilter, NatPunchthroughClient, NatPunchthroughServer, RakNetTransport2, ReplicaManager, RakNet::ReplicaManager2, RakNet::ReplicaManager3, and RakNet::Router2.

Definition at line 115 of file PluginInterface2.h.

virtual void PluginInterface2::OnPushBackPacket	(	const char *	data,
		const BitSize_t	bitsUsed,
		SystemAddress	remoteSystemAddress
	)			`[inline, virtual]`

System called RakPeerInterface::PushBackPacket

Parameters:

`[in]`	data	The data being sent
`[in]`	bitsUsed	How many bits long data is
`[in]`	remoteSystemAddress	The player we sent or got this packet from

Reimplemented in PacketLogger.

Definition at line 157 of file PluginInterface2.h.

virtual void PluginInterface2::OnRakPeerShutdown ( void ) [inline, virtual]

Called when RakPeer is shutdown.

Reimplemented in RakNet::AutoRPC, ConnectionGraph, FileListTransfer, FullyConnectedMesh2, NatPunchthroughClient, ReadyEvent, ReplicaManager, RakNet::ReplicaManager2, RakNet::ReplicaManager3, RakNet::Router2, RakNet::UDPProxyClient, and RakNet::UDPProxyServer.

Definition at line 103 of file PluginInterface2.h.

virtual void PluginInterface2::OnRakPeerStartup ( void ) [inline, virtual]

Called when RakPeer is initialized.

Reimplemented in FullyConnectedMesh2, and RakNet::UDPProxyServer.

Definition at line 100 of file PluginInterface2.h.

virtual PluginReceiveResult PluginInterface2::OnReceive ( Packet * packet ) [inline, virtual]

OnReceive is called for every packet.

Parameters:

[in] packet the packet that is being returned to the user

Returns:: True to allow the game and other plugins to get this message, false to absorb it

Reimplemented in RakNet::AutoRPC, ConnectionGraph, ConnectionGraph2, DirectoryDeltaTransfer, FileListTransfer, FullyConnectedMesh, FullyConnectedMesh2, LightweightDatabaseServer, MessageFilter, NatPunchthroughClient, NatPunchthroughServer, RakNet::NatTypeDetectionClient, RakNet::NatTypeDetectionServer, RakNetTransport2, ReadyEvent, ReplicaManager, RakNet::ReplicaManager2, RakNet::ReplicaManager3, RakNet::Router2, RakNet::RPC4Plugin, RakNet::TeamBalancer, RakNet::UDPProxyClient, RakNet::UDPProxyCoordinator, and RakNet::UDPProxyServer.

Definition at line 97 of file PluginInterface2.h.

virtual void PluginInterface2::OnReliabilityLayerPacketError	(	const char *	errorMessage,
		const BitSize_t	bitsUsed,
		SystemAddress	remoteSystemAddress
	)			`[inline, virtual]`

Called when the reliability layer rejects a send or receive

Parameters:

`[in]`	bitsUsed	How many bits long data is
`[in]`	remoteSystemAddress	Which system this message is being sent to

Reimplemented in PacketLogger.

Definition at line 137 of file PluginInterface2.h.

void PluginInterface2::PushBackPacketUnified	(	Packet *	packet,
		bool	pushAtHead
	)			`[protected]`

Definition at line 45 of file PluginInterface2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool PluginInterface2::SendListUnified	(	const char **	data,
		const int *	lengths,
		const int	numParameters,
		PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel,
		const AddressOrGUID	systemIdentifier,
		bool	broadcast
	)			`[protected]`

Definition at line 63 of file PluginInterface2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void PluginInterface2::SendUnified	(	const RakNet::BitStream *	bitStream,
		PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel,
		const AddressOrGUID	systemIdentifier,
		bool	broadcast
	)			`[protected]`
