A management system for your game objects and players to make serialization, scoping, and object creation and destruction easier. More...

#include <ReplicaManager2.h>

Inherits PluginInterface2.

Collaboration diagram for RakNet::ReplicaManager2:

[legend]

List of all members.

Public Member Functions
	ReplicaManager2 ()
virtual	~ReplicaManager2 ()
void	SetConnectionFactory (Connection_RM2Factory *factory)
void	SetDefaultOrderingChannel (char def)
void	SetDefaultPacketPriority (PacketPriority def)
void	SetDefaultPacketReliability (PacketReliability def)
void	SetAutoUpdateScope (bool construction, bool visibility)
void	SetAutoAddNewConnections (bool autoAdd)
bool	AddNewConnection (SystemAddress systemAddress)
bool	RemoveConnection (SystemAddress systemAddress)
bool	HasConnection (SystemAddress systemAddress)
void	SetDoReplicaAutoSerializeUpdate (bool autoUpdate)
void	SendConstruction (Replica2 replica, BitStream replicaData, SystemAddress recipient, RakNetTime timestamp, bool sendMessage, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList, unsigned char localClientId, SerializationType type=SEND_CONSTRUCTION_GENERIC_TO_SYSTEM, PacketPriority priority=NUMBER_OF_PRIORITIES, PacketReliability reliability=NUMBER_OF_RELIABILITIES, char orderingChannel=-1)
void	SendDestruction (Replica2 replica, BitStream replicaData, SystemAddress recipient, RakNetTime timestamp, bool sendMessage, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList, SerializationType type=SEND_DESTRUCTION_GENERIC_TO_SYSTEM, PacketPriority priority=NUMBER_OF_PRIORITIES, PacketReliability reliability=NUMBER_OF_RELIABILITIES, char orderingChannel=-1)
void	SendSerialize (Replica2 replica, BitStream replicaData, SystemAddress recipient, RakNetTime timestamp, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList, SerializationType type=SEND_SERIALIZATION_GENERIC_TO_SYSTEM, PacketPriority priority=NUMBER_OF_PRIORITIES, PacketReliability reliability=NUMBER_OF_RELIABILITIES, char orderingChannel=-1)
void	SendVisibility (Replica2 replica, BitStream replicaData, SystemAddress recipient, RakNetTime timestamp, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList, SerializationType type=SEND_VISIBILITY_TRUE_TO_SYSTEM, PacketPriority priority=NUMBER_OF_PRIORITIES, PacketReliability reliability=NUMBER_OF_RELIABILITIES, char orderingChannel=-1)
unsigned	GetReplicaCount (void) const
Replica2 *	GetReplicaAtIndex (unsigned index)
unsigned	GetConnectionCount (void) const
Connection_RM2 *	GetConnectionAtIndex (unsigned index) const
Connection_RM2 *	GetConnectionBySystemAddress (SystemAddress systemAddress) const
unsigned int	GetConnectionIndexBySystemAddress (SystemAddress systemAddress) const
void	RecalculateVisibility (Replica2 *replica)
void	GetConnectionsWithReplicaConstructed (Replica2 replica, DataStructures::OrderedList< SystemAddress, Connection_RM2 , ReplicaManager2::Connection_RM2CompBySystemAddress > &output)
void	GetConnectionsWithSerializeVisibility (Replica2 replica, DataStructures::OrderedList< SystemAddress, Connection_RM2 , ReplicaManager2::Connection_RM2CompBySystemAddress > &output)
RakPeerInterface *	GetRakPeer (void) const
void	Reference (Replica2 replica, bool newReference)
void	Dereference (Replica2 *replica)
Static Public Member Functions
static int	Replica2ObjectComp (RakNet::Replica2 const &key, RakNet::Replica2 const &data)
static int	Replica2CompByNetworkID (const NetworkID &key, RakNet::Replica2 *const &data)
static int	Connection_RM2CompBySystemAddress (const SystemAddress &key, RakNet::Connection_RM2 *const &data)
Protected Member Functions
void	OnAttach (void)
PluginReceiveResult	OnReceive (Packet *packet)
void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
void	OnRakPeerShutdown (void)
	Called when RakPeer is shutdown.
void	Update (void)
	Update is called every time a packet is checked for .
virtual void	OnNewConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, bool isIncoming)
PluginReceiveResult	OnDownloadComplete (unsigned char *packetData, int packetDataLength, SystemAddress sender, RakNetTime timestamp)
PluginReceiveResult	OnDownloadStarted (unsigned char *packetData, int packetDataLength, SystemAddress sender, RakNetTime timestamp)
PluginReceiveResult	OnConstruction (unsigned char *packetData, int packetDataLength, SystemAddress sender, RakNetTime timestamp)
PluginReceiveResult	OnDestruction (unsigned char *packetData, int packetDataLength, SystemAddress sender, RakNetTime timestamp)
PluginReceiveResult	OnVisibilityChange (unsigned char *packetData, int packetDataLength, SystemAddress sender, RakNetTime timestamp)
PluginReceiveResult	OnSerialize (unsigned char *packetData, int packetDataLength, SystemAddress sender, RakNetTime timestamp)
bool	AddToAndWriteExclusionList (SystemAddress recipient, RakNet::BitStream *bs, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList)
void	WriteExclusionList (RakNet::BitStream *bs, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList)
void	CullByAndAddToExclusionList (DataStructures::OrderedList< SystemAddress, Connection_RM2 , ReplicaManager2::Connection_RM2CompBySystemAddress > &inputList, DataStructures::OrderedList< SystemAddress, Connection_RM2 , ReplicaManager2::Connection_RM2CompBySystemAddress > &culledOutput, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList)
void	ReadExclusionList (RakNet::BitStream *bs, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList)
void	Send (RakNet::BitStream *bs, SystemAddress recipient, PacketPriority priority, PacketReliability reliability, char orderingChannel)
void	Clear (void)
void	DownloadToNewConnection (Connection_RM2 *connection, RakNetTime timestamp, PacketPriority priority, PacketReliability reliability, char orderingChannel)
Connection_RM2 *	CreateConnectionIfDoesNotExist (SystemAddress systemAddress, bool *newConnection)
Connection_RM2 *	AutoCreateConnection (SystemAddress systemAddress, bool *newConnection)
void	AddConstructionReference (Connection_RM2 connection, Replica2 replica)
void	AddVisibilityReference (Connection_RM2 connection, Replica2 replica)
void	RemoveVisibilityReference (Connection_RM2 connection, Replica2 replica)
void	WriteHeader (RakNet::BitStream *bs, MessageID type, RakNetTime timestamp)
Protected Attributes
Connection_RM2Factory *	connectionFactoryInterface
bool	autoUpdateConstruction
bool	autoUpdateVisibility
char	defaultOrderingChannel
PacketPriority	defaultPacketPriority
PacketReliability	defaultPacketReliablity
bool	autoAddNewConnections
bool	doReplicaAutoUpdate
RakNetTime	lastUpdateTime
DataStructures::List< Replica2 * >	fullReplicaUnorderedList
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	fullReplicaOrderedList
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	alwaysDoConstructReplicaOrderedList
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	alwaysDoSerializeReplicaOrderedList
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	variableConstructReplicaOrderedList
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	variableSerializeReplicaOrderedList
DataStructures::OrderedList < SystemAddress, Connection_RM2 *, ReplicaManager2::Connection_RM2CompBySystemAddress >	connectionList
Friends
class	Connection_RM2
class	Replica2

Detailed Description

A management system for your game objects and players to make serialization, scoping, and object creation and destruction easier.

Deprecated:: See RakNet::ReplicaManager3

Quick start:

Create a class that derives from Connection_RM2, implementing the Construct() function. Construct() is a factory function that should return instances of your game objects, given a user-defined identifier.
Create a class that derives from Connection_RM2Factory, implementing AllocConnection() and DeallocConnection() to return instances of the class from step 1.
Attach ReplicaManager2 as a plugin
Call ReplicaManager2::SetConnectionFactory with an instance of the class from step 2.
For each of your game classes that use this system, derive from Replica2 and implement SerializeConstruction(), Serialize(), Deserialize(). The output of SerializeConstruction() is sent to Connection_RM2::Construct()
When these classes are allocated, call Replica2::SetReplicaManager() with the instance of ReplicaManager2 class created in step 3 (this could be done automatically in the constructor)
Creation: Use Replica2::SendConstruction() to create the object remotely, Replica2::SendDestruction() to delete the object remotely.
Scoping: Override Replica2::QueryVisibility() and Replica2::QueryConstruction() to return BQR_YES or BQR_NO if an object should be visible and in scope to a given connection. Defaults to BQR_ALWAYS
Automatic serialization: Call Replica2::AddAutoSerializeTimer() to automatically call Replica2::Serialize() at intervals, compare this to the last value, and broadcast out the object when the serialized variables change. <>

Precondition:
Call RakPeer::SetNetworkIDManager()

This system is a server or peer: Call NetworkIDManager::SetIsNetworkIDAuthority(true).

This system is a client: Call NetworkIDManager::SetIsNetworkIDAuthority(false).

If peer to peer, NETWORK_ID_SUPPORTS_PEER_TO_PEER should be defined in RakNetDefines.h

Definition at line 130 of file ReplicaManager2.h.

Constructor & Destructor Documentation

ReplicaManager2::ReplicaManager2 ( )

Definition at line 72 of file ReplicaManager2.cpp.

ReplicaManager2::~ReplicaManager2 ( ) [virtual]

Definition at line 84 of file ReplicaManager2.cpp.

Member Function Documentation

void ReplicaManager2::AddConstructionReference	(	Connection_RM2 *	connection,
		Replica2 *	replica
	)			`[protected]`

Definition at line 660 of file ReplicaManager2.cpp.

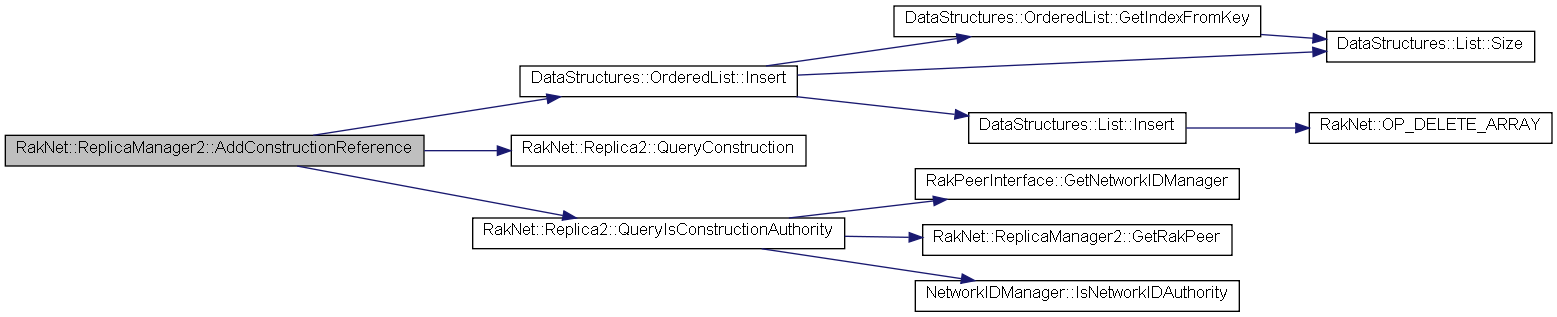

Here is the call graph for this function:

Here is the caller graph for this function:

bool ReplicaManager2::AddNewConnection ( SystemAddress systemAddress )

If SetAutoAddNewConnections() is false, you need to add connections manually connections are also created implicitly if needed

Parameters:

[in] systemAddress The address of the new system

Returns:: false if the connection already exists

Definition at line 605 of file ReplicaManager2.cpp.

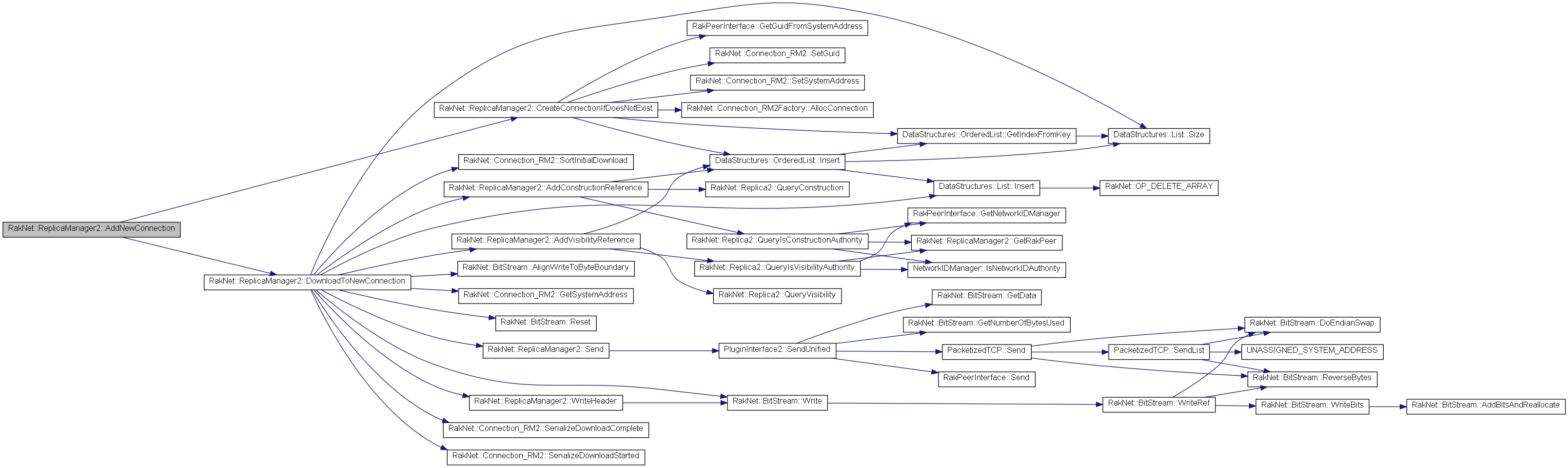

Here is the call graph for this function:

Here is the caller graph for this function:

bool ReplicaManager2::AddToAndWriteExclusionList	(	SystemAddress	recipient,
		RakNet::BitStream *	bs,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList
	)			`[protected]`

Definition at line 935 of file ReplicaManager2.cpp.

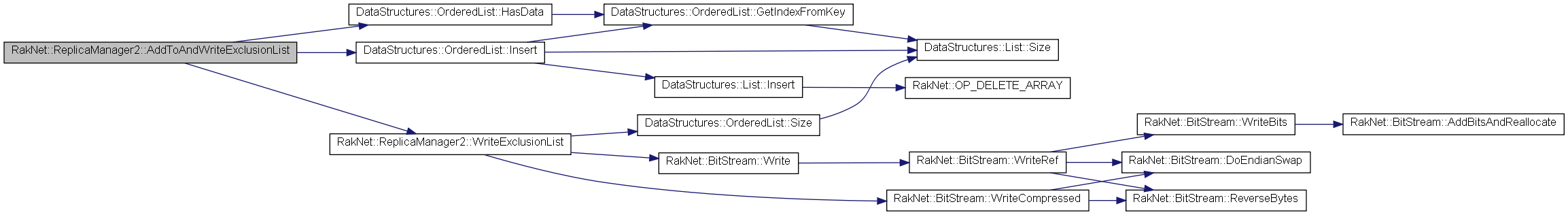

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::AddVisibilityReference	(	Connection_RM2 *	connection,
		Replica2 *	replica
	)			`[protected]`

Definition at line 665 of file ReplicaManager2.cpp.

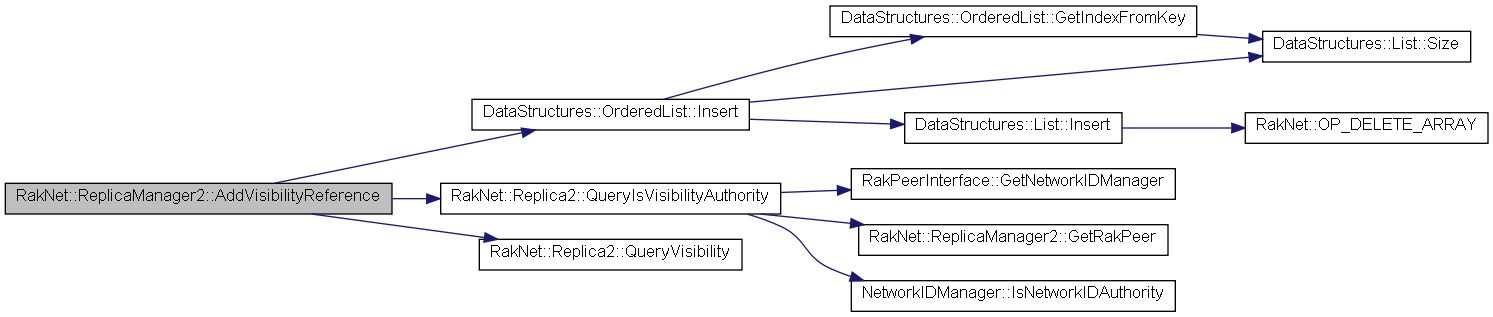

Here is the call graph for this function:

Here is the caller graph for this function:

Connection_RM2 * ReplicaManager2::AutoCreateConnection	(	SystemAddress	systemAddress,
		bool *	newConnection
	)			`[protected]`

Definition at line 572 of file ReplicaManager2.cpp.

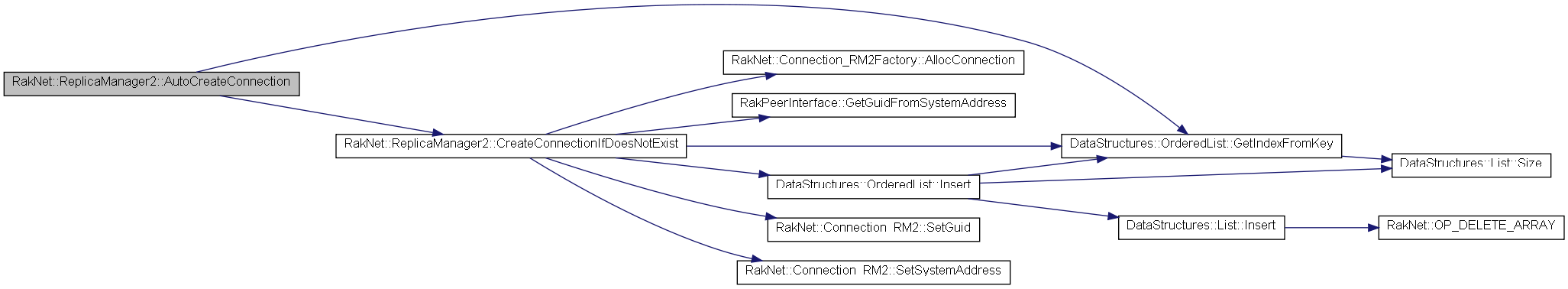

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::Clear ( void ) [protected]

Definition at line 995 of file ReplicaManager2.cpp.

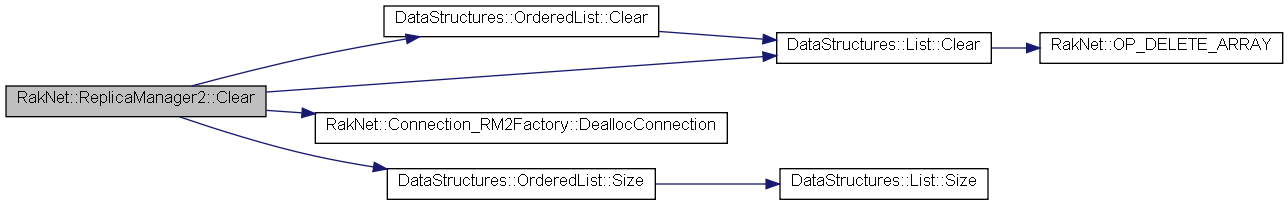

Here is the call graph for this function:

Here is the caller graph for this function:

int ReplicaManager2::Connection_RM2CompBySystemAddress	(	const SystemAddress &	key,
		RakNet::Connection_RM2 *const &	data
	)			`[static]`

Definition at line 63 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Connection_RM2 * ReplicaManager2::CreateConnectionIfDoesNotExist	(	SystemAddress	systemAddress,
		bool *	newConnection
	)			`[protected]`

Definition at line 588 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::CullByAndAddToExclusionList	(	DataStructures::OrderedList< SystemAddress, Connection_RM2 *, ReplicaManager2::Connection_RM2CompBySystemAddress > &	inputList,
		DataStructures::OrderedList< SystemAddress, Connection_RM2 *, ReplicaManager2::Connection_RM2CompBySystemAddress > &	culledOutput,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList
	)			`[protected]`

Definition at line 950 of file ReplicaManager2.cpp.

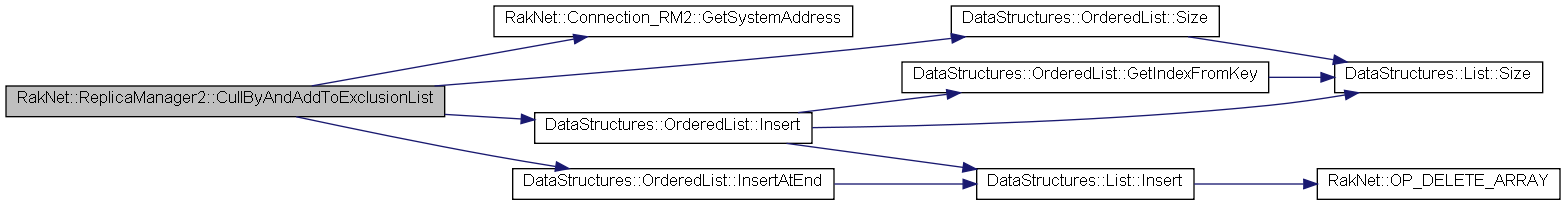

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::Dereference ( Replica2 * replica )

Stops tracking this replica. Call before deleting the Replica. Done automatically in ~Replica()

Definition at line 394 of file ReplicaManager2.cpp.

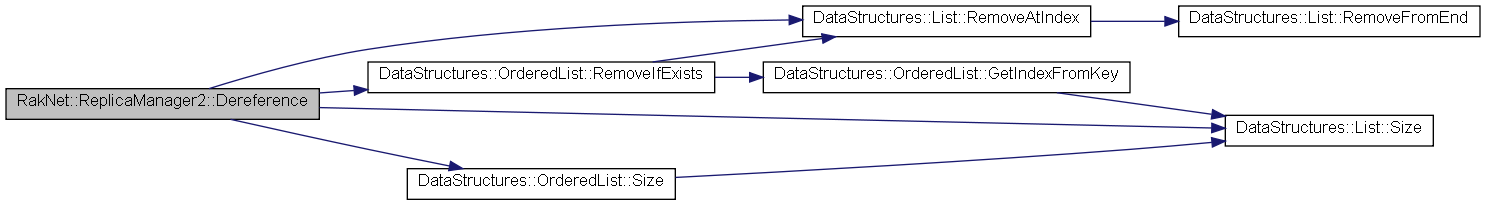

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::DownloadToNewConnection	(	Connection_RM2 *	connection,
		RakNetTime	timestamp,
		PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel
	)			`[protected]`

Definition at line 1008 of file ReplicaManager2.cpp.

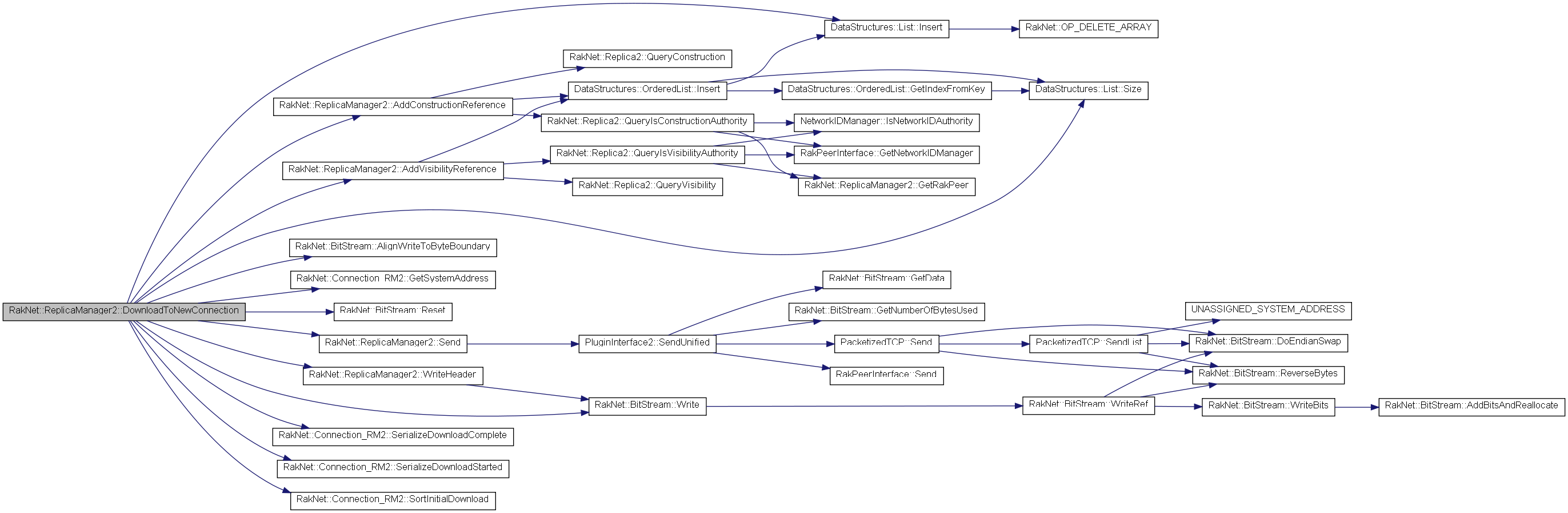

Here is the call graph for this function:

Here is the caller graph for this function:

Connection_RM2 * ReplicaManager2::GetConnectionAtIndex ( unsigned index ) const

Returns a connection pointer previously implicitly added.

Parameters:

[in] index An index, from 0 to GetConnectionCount()-1.

Returns:: A Connection_RM2 pointer

Definition at line 472 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

Connection_RM2 * ReplicaManager2::GetConnectionBySystemAddress ( SystemAddress systemAddress ) const

Returns a connection pointer previously implicitly added.

Parameters:

[in] systemAddress The system address of the connection to return

Returns:: A Connection_RM2 pointer

Definition at line 476 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned ReplicaManager2::GetConnectionCount ( void ) const

Returns the number of registered connections. Connections are registered implicitly when used. Connections are unregistered on disconnect.

Returns:: The number of registered connections

Definition at line 468 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int ReplicaManager2::GetConnectionIndexBySystemAddress ( SystemAddress systemAddress ) const

Returns the index of a connection, by SystemAddress

Parameters:

[in] systemAddress The system address of the connection index to return

Returns:: The connection index, or -1 if no such connection

Definition at line 484 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::GetConnectionsWithReplicaConstructed	(	Replica2 *	replica,
		DataStructures::OrderedList< SystemAddress, Connection_RM2 *, ReplicaManager2::Connection_RM2CompBySystemAddress > &	output
	)

Given a replica instance, return all connections that are believed to have this replica instantiated.

Parameters:

`[in]`	replica	Which replica is being refered to
`[out]`	output	List of connections, ordered by system address

Definition at line 532 of file ReplicaManager2.cpp.

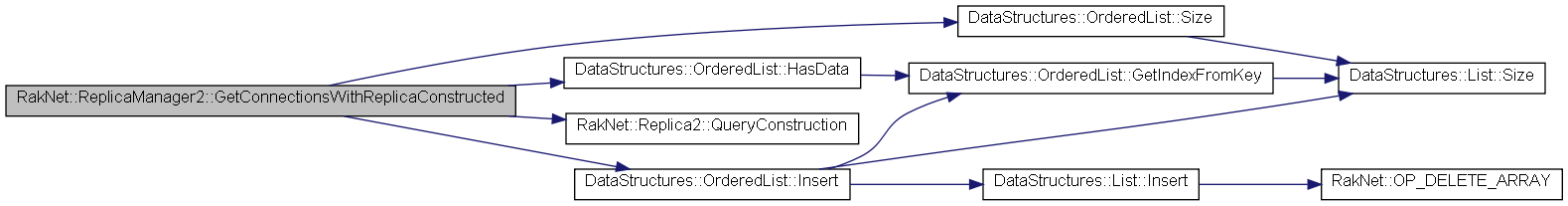

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::GetConnectionsWithSerializeVisibility	(	Replica2 *	replica,
		DataStructures::OrderedList< SystemAddress, Connection_RM2 *, ReplicaManager2::Connection_RM2CompBySystemAddress > &	output
	)

Given a replica instance, return all connections that are believed to have this replica visible

Parameters:

`[in]`	replica	Which replica is being refered to
`[out]`	output	List of connections, ordered by system address

Definition at line 550 of file ReplicaManager2.cpp.

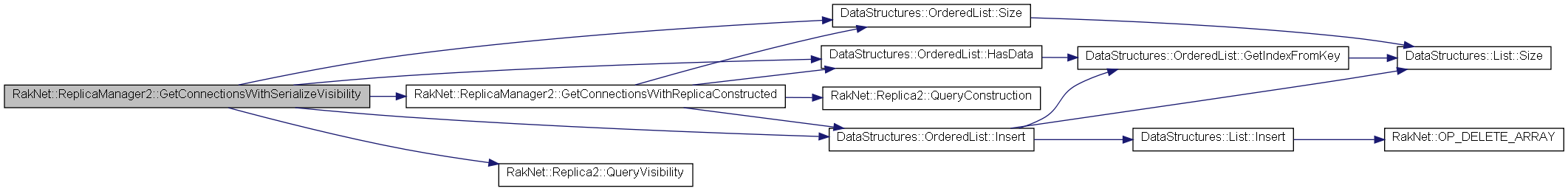

Here is the call graph for this function:

Here is the caller graph for this function:

RakPeerInterface * ReplicaManager2::GetRakPeer ( void ) const

Gets the instance of RakPeerInterface that this plugin was attached to

Returns:: The instance of RakPeerInterface that this plugin was attached to

Definition at line 568 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

Replica2 * ReplicaManager2::GetReplicaAtIndex ( unsigned index )

Returns a previously registered Replica2 *, from index 0 to GetReplicaCount()-1. Replica2* objects are returned in the order they were registered.

Parameters:

[in] index An index, from 0 to GetReplicaCount()-1.

Returns:: A Replica2 pointer

Definition at line 451 of file ReplicaManager2.cpp.

unsigned ReplicaManager2::GetReplicaCount ( void ) const

Returns how many Replica2 instances are registered. Replica2 instances are automatically registered when used, and unregistered when calling Deref (which is automatically done in the destructor). Used for GetReplicaAtIndex if you want to perform some object on all registered Replica objects.

Returns:: How many replica objects are in the list of replica objects

Definition at line 447 of file ReplicaManager2.cpp.

Here is the call graph for this function:

bool ReplicaManager2::HasConnection ( SystemAddress systemAddress )

Is this connection registered with the system?

Parameters:

[in] systemAddress The address of the system to check

Returns:: true if this address is registered, false otherwise

Definition at line 624 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::OnAttach ( void ) [protected, virtual]

Called when the interface is attached

Parameters:

[in] peer the instance of RakPeer that is calling Receive

Reimplemented from PluginInterface2.

Definition at line 696 of file ReplicaManager2.cpp.

Here is the call graph for this function:

void ReplicaManager2::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			`[protected, virtual]`

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

`[in]`	systemAddress	The system whose connection was closed
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented from PluginInterface2.

Definition at line 684 of file ReplicaManager2.cpp.

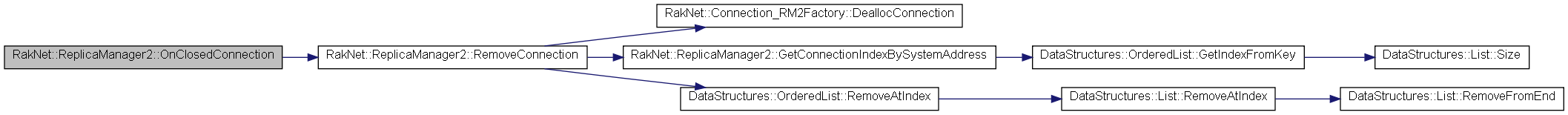

Here is the call graph for this function:

PluginReceiveResult ReplicaManager2::OnConstruction	(	unsigned char *	packetData,
		int	packetDataLength,
		SystemAddress	sender,
		RakNetTime	timestamp
	)			`[protected]`

Definition at line 787 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

PluginReceiveResult ReplicaManager2::OnDestruction	(	unsigned char *	packetData,
		int	packetDataLength,
		SystemAddress	sender,
		RakNetTime	timestamp
	)			`[protected]`

Definition at line 820 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

PluginReceiveResult ReplicaManager2::OnDownloadComplete	(	unsigned char *	packetData,
		int	packetDataLength,
		SystemAddress	sender,
		RakNetTime	timestamp
	)			`[protected]`

Definition at line 768 of file ReplicaManager2.cpp.

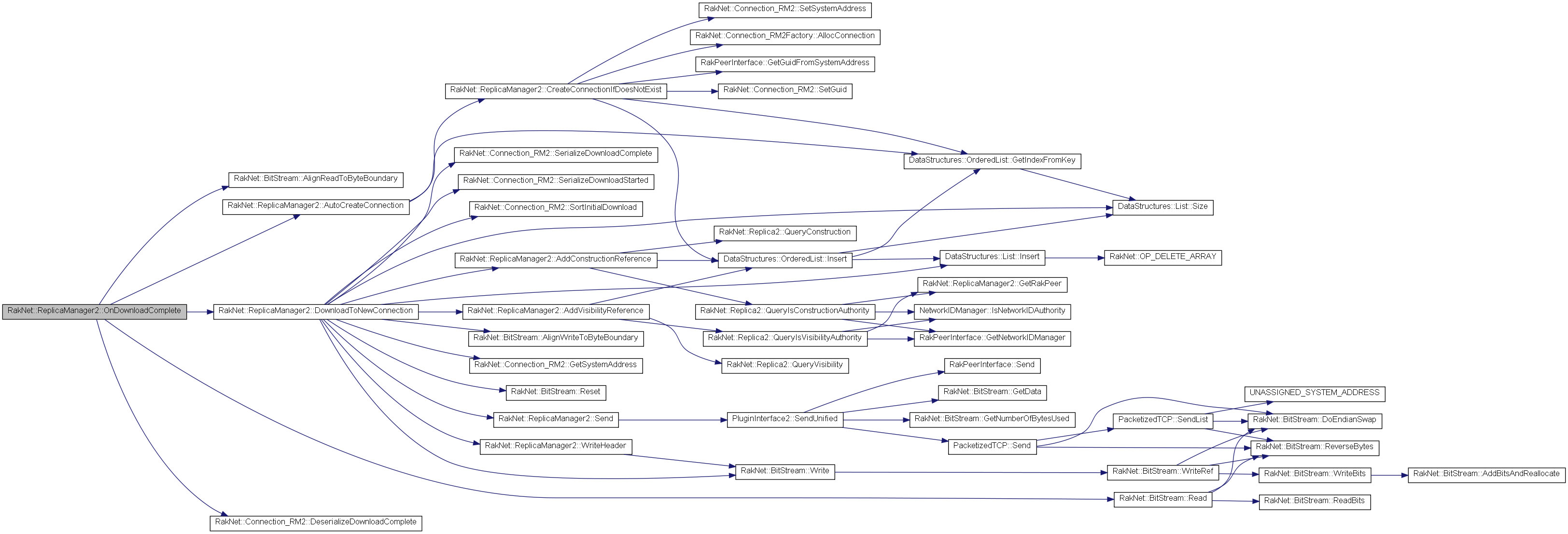

Here is the call graph for this function:

Here is the caller graph for this function:

PluginReceiveResult ReplicaManager2::OnDownloadStarted	(	unsigned char *	packetData,
		int	packetDataLength,
		SystemAddress	sender,
		RakNetTime	timestamp
	)			`[protected]`

Definition at line 750 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::OnNewConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		bool	isIncoming
	)			`[protected, virtual]`

Called when we got a new connection

Parameters:

`[in]`	systemAddress	Address of the new connection
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	isIncoming	If true, this is ID_NEW_INCOMING_CONNECTION, or the equivalent

Reimplemented from PluginInterface2.

Definition at line 700 of file ReplicaManager2.cpp.

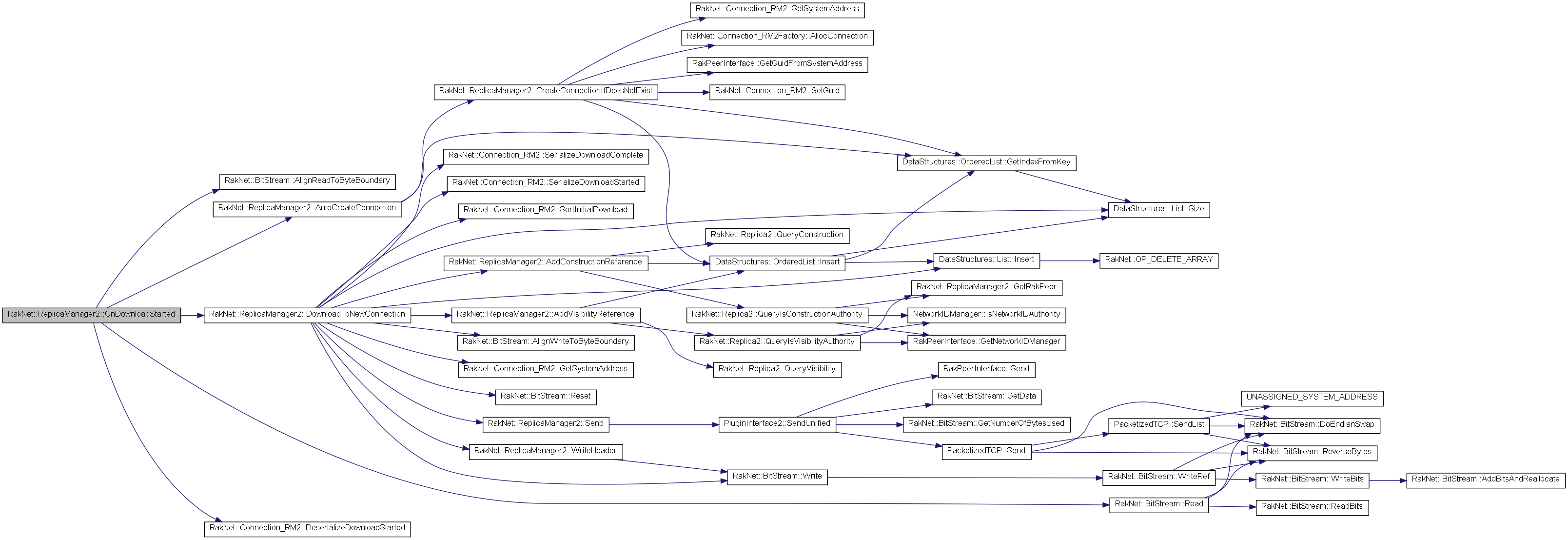

Here is the call graph for this function:

void ReplicaManager2::OnRakPeerShutdown ( void ) [protected, virtual]

Called when RakPeer is shutdown.

Reimplemented from PluginInterface2.

Definition at line 692 of file ReplicaManager2.cpp.

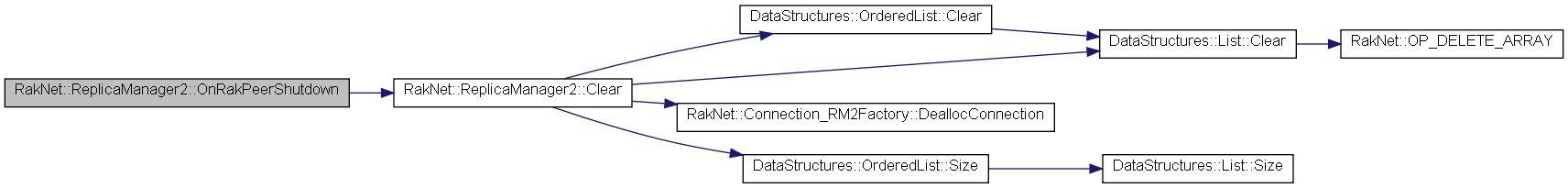

Here is the call graph for this function:

PluginReceiveResult ReplicaManager2::OnReceive ( Packet * packet ) [protected, virtual]

OnReceive is called for every packet.

Parameters:

[in] packet the packet that is being returned to the user

Returns:: True to allow the game and other plugins to get this message, false to absorb it

Reimplemented from PluginInterface2.

Definition at line 709 of file ReplicaManager2.cpp.

Here is the call graph for this function:

PluginReceiveResult ReplicaManager2::OnSerialize	(	unsigned char *	packetData,
		int	packetDataLength,
		SystemAddress	sender,
		RakNetTime	timestamp
	)			`[protected]`

Definition at line 899 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

PluginReceiveResult ReplicaManager2::OnVisibilityChange	(	unsigned char *	packetData,
		int	packetDataLength,
		SystemAddress	sender,
		RakNetTime	timestamp
	)			`[protected]`

Definition at line 854 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::ReadExclusionList	(	RakNet::BitStream *	bs,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList
	)			`[protected]`

Definition at line 974 of file ReplicaManager2.cpp.

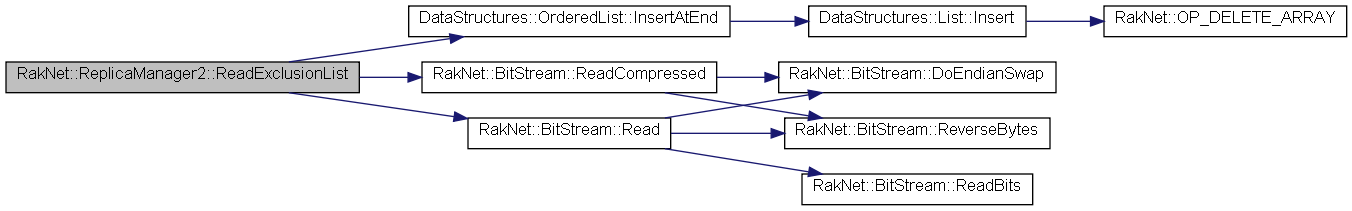

Here is the call graph for this function:

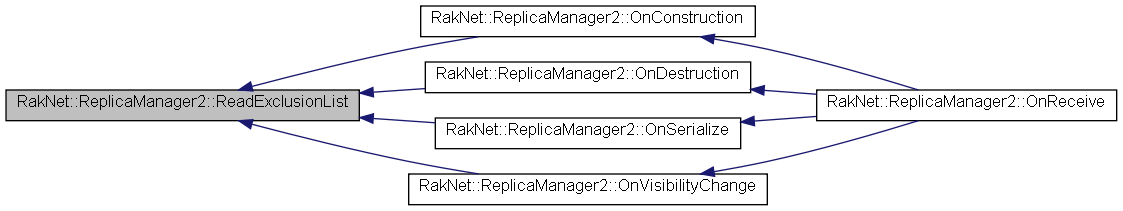

Here is the caller graph for this function:

void ReplicaManager2::RecalculateVisibility ( Replica2 * replica )

Call this when Replica2::QueryVisibility() or Replica2::QueryConstructionVisibility() changes from BQR_ALWAYS or BQR_NEVER to BQR_YES or BQR_NO Otherwise these two conditions are assumed to never change

Parameters:

[in] Which replica to update

Definition at line 509 of file ReplicaManager2.cpp.

Here is the call graph for this function:

void ReplicaManager2::Reference	(	Replica2 *	replica,
		bool *	newReference
	)

Internally starts tracking this replica

Definition at line 629 of file ReplicaManager2.cpp.

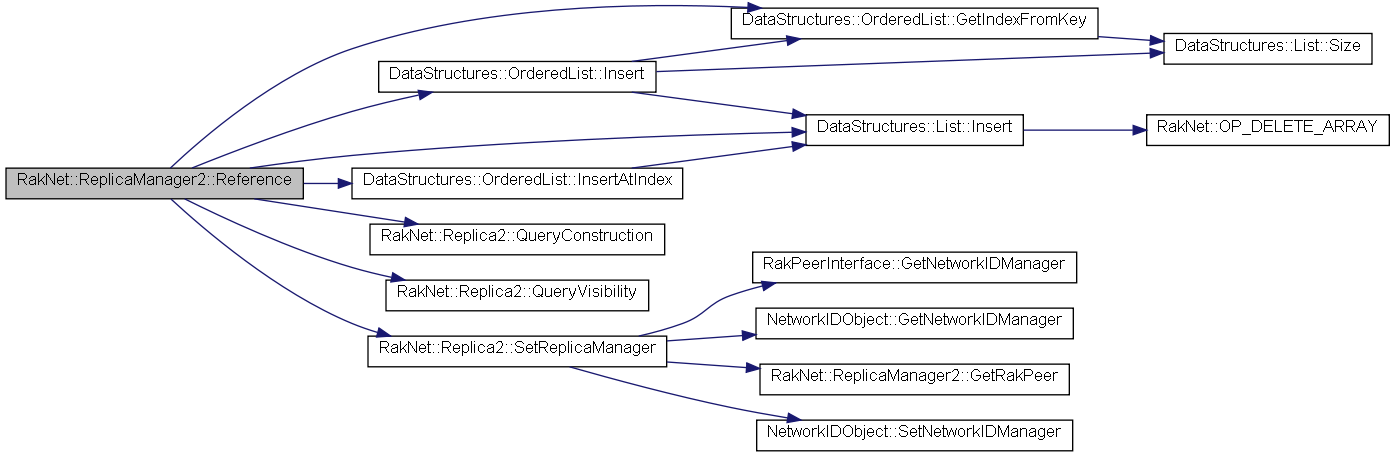

Here is the call graph for this function:

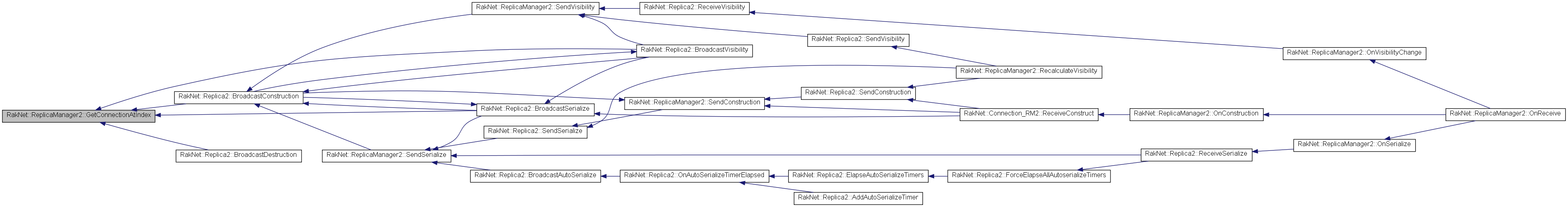

Here is the caller graph for this function:

bool ReplicaManager2::RemoveConnection ( SystemAddress systemAddress )

Remove an existing connection. Also done automatically on ID_DISCONNECTION_NOTIFICATION and ID_CONNECTION_LOST

Parameters:

[in] systemAddress The address of the system to remove the connection for

Returns:: false if the connection does not exist

Definition at line 613 of file ReplicaManager2.cpp.

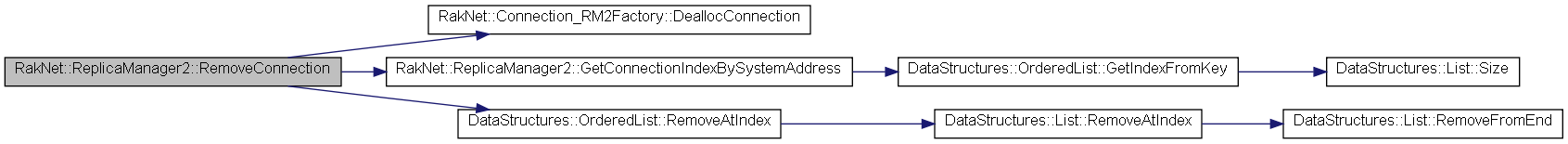

Here is the call graph for this function:

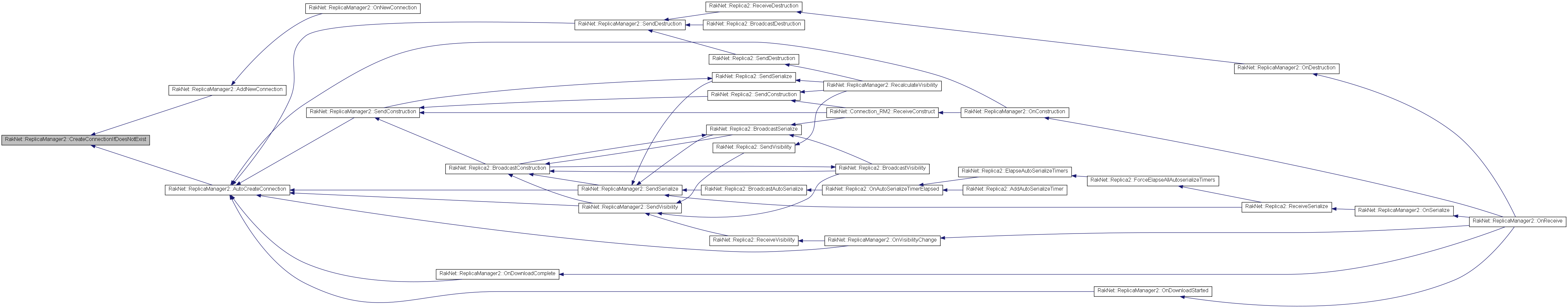

Here is the caller graph for this function:

void ReplicaManager2::RemoveVisibilityReference	(	Connection_RM2 *	connection,
		Replica2 *	replica
	)			`[protected]`

Definition at line 670 of file ReplicaManager2.cpp.

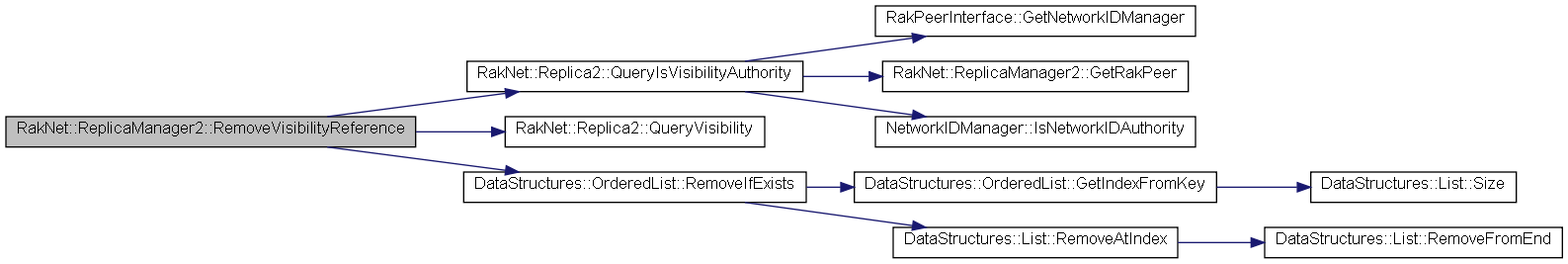

Here is the call graph for this function:

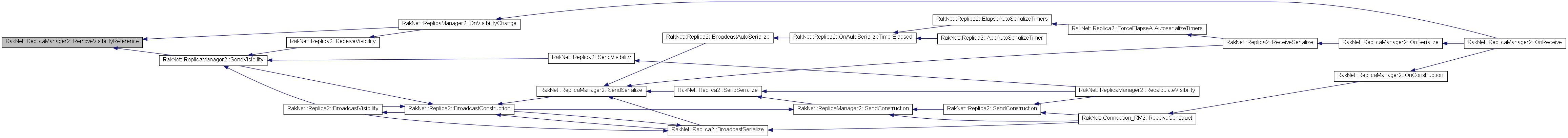

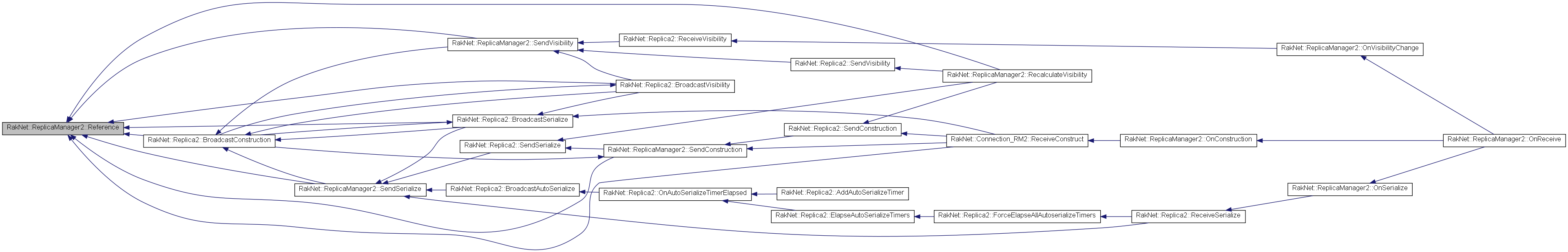

Here is the caller graph for this function:

int ReplicaManager2::Replica2CompByNetworkID	(	const NetworkID &	key,
		RakNet::Replica2 *const &	data
	)			`[static]`

Definition at line 45 of file ReplicaManager2.cpp.

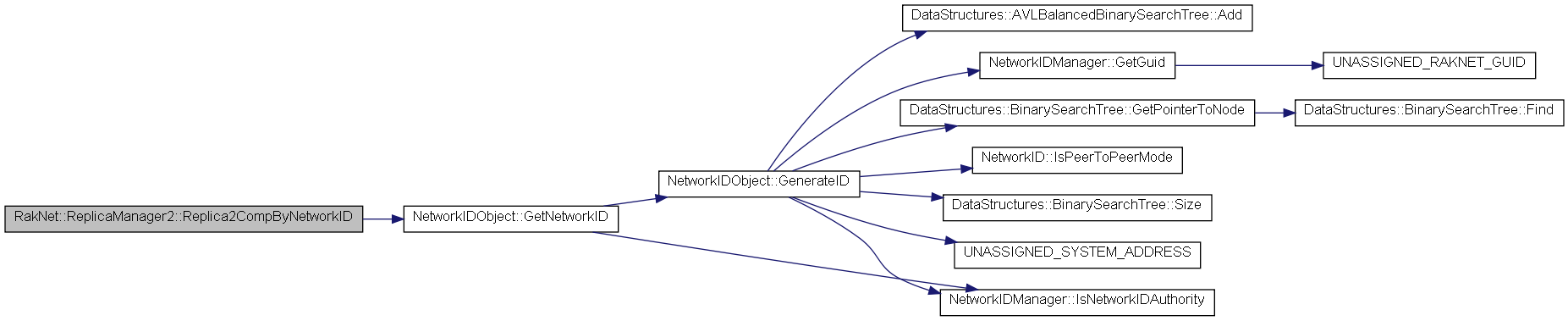

Here is the call graph for this function:

int ReplicaManager2::Replica2ObjectComp	(	RakNet::Replica2 *const &	key,
		RakNet::Replica2 *const &	data
	)			`[static]`

Definition at line 54 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::Send	(	RakNet::BitStream *	bs,
		SystemAddress	recipient,
		PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel
	)			`[protected]`

Definition at line 985 of file ReplicaManager2.cpp.

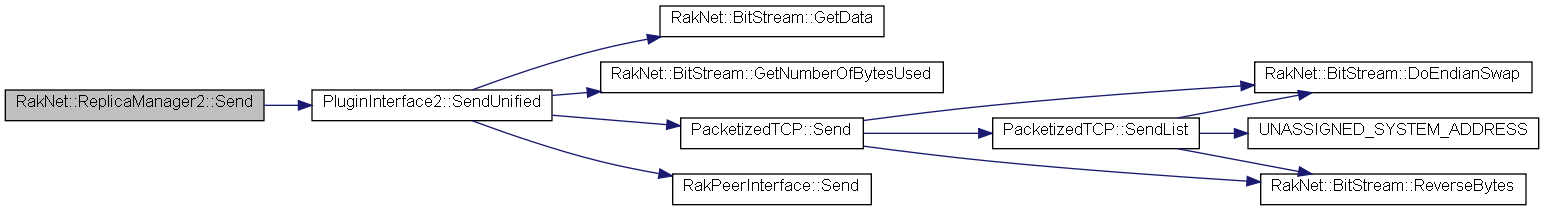

Here is the call graph for this function:

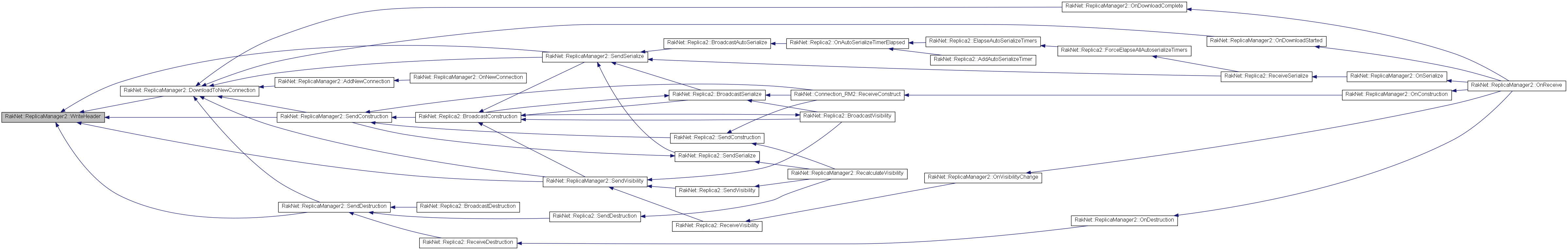

Here is the caller graph for this function:

void ReplicaManager2::SendConstruction	(	Replica2 *	replica,
		BitStream *	replicaData,
		SystemAddress	recipient,
		RakNetTime	timestamp,
		bool	sendMessage,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList,
		unsigned char	localClientId,
		SerializationType	type = `SEND_CONSTRUCTION_GENERIC_TO_SYSTEM`,
		PacketPriority	priority = `NUMBER_OF_PRIORITIES`,
		PacketReliability	reliability = `NUMBER_OF_RELIABILITIES`,
		char	orderingChannel = `-1`
	)

Sends a construction command to one or more systems, which will be relayed throughout the network. Recipient(s) will allocate the connection via Connection_RM2Factory::AllocConnection() if it does not already exist. Will trigger a call on the remote system(s) to Connection_RM2::Construct()

Note:: If using peer-to-peer, NETWORK_ID_SUPPORTS_PEER_TO_PEER should be defined in RakNetDefines.h.; This is a low level function. Beginners may wish to use Replica2::SendConstruction() or Replica2::BroadcastConstruction(). You can also override Replica2::QueryConstruction()

Parameters:

`[in]`	replica	The class to construct remotely
`[in]`	replicaData	User-defined serialized data representing how to construct the class. Could be the name of the class, a unique identifier, or other methods
`[in]`	recipient	Which system to send to. Use UNASSIGNED_SYSTEM_ADDRESS to send to all previously created connections. Connection_RM2Factory::AllocConnection will be called if this connection has not been previously used.
`[in]`	timestamp	Timestamp to send with the message. Use 0 to not send a timestamp if you don't need it.
`[in]`	sendMessage	True to actually send a network message. False to only register that the object exists on the remote system, useful for objects created outside ReplicaManager2, or objects that already existed in the world.
`[in]`	exclusionList	Which systems to not send to. This list is carried with the messsage, and appended to at each node in the connection graph. This is used to prevent infinite cyclical sends.
`[in]`	localClientId	If replica->QueryIsConstructionAuthority()==false, this number will be sent with SEND_CONSTRUCTION_REQUEST_TO_SERVER to the recipient. SEND_CONSTRUCTION_REPLY_ACCEPTED_TO_CLIENT or SEND_CONSTRUCTION_REPLY_DENIED_TO_CLIENT will be returned, and this number will be used to look up the local object in Replica2::clientPtrArray
`[in]`	type	What kind of serialization operation this is. Use one of the pre-defined types, or create your own. This will be returned in type in Connection_RM2::Construct()
`[in]`	priority	PacketPriority to send with. Use NUMBER_OF_PRIORITIES to use the default defined by SetDefaultPacketPriority().
`[in]`	reliability	PacketReliability to send with. Use NUMBER_OF_RELIABILITIES to use the default defined by SetDefaultPacketReliability();
`[in]`	orderingChannel	ordering channel to send on. Use -1 to use the default defined by SetDefaultOrderingChannel()

Precondition:: Call SetConnectionFactory() with a derived instance of Connection_RM2Factory.

Definition at line 87 of file ReplicaManager2.cpp.

Here is the call graph for this function:

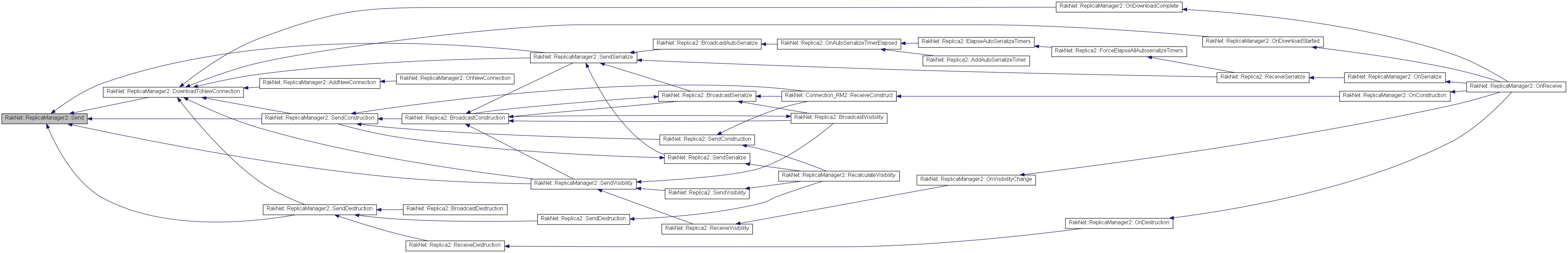

Here is the caller graph for this function:

void ReplicaManager2::SendDestruction	(	Replica2 *	replica,
		BitStream *	replicaData,
		SystemAddress	recipient,
		RakNetTime	timestamp,
		bool	sendMessage,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList,
		SerializationType	type = `SEND_DESTRUCTION_GENERIC_TO_SYSTEM`,
		PacketPriority	priority = `NUMBER_OF_PRIORITIES`,
		PacketReliability	reliability = `NUMBER_OF_RELIABILITIES`,
		char	orderingChannel = `-1`
	)

Sends a destruction command to one or more systems, which will be relayed throughout the network. Recipient(s) will allocate the connection via Connection_RM2Factory::AllocConnection() if it does not already exist. Will trigger a call on the remote system(s) to Replica2::ReceiveDestruction() which in turn calls Replica2::DeserializeDestruction() with the value passed in replicaData Note: This is a low level function. Beginners may wish to use Replica2::SendDestruction() or Replica2::BroadcastDestruction().

Parameters:

`[in]`	replica	The class to destroy remotely
`[in]`	replicaData	User-defined serialized data. Passed to Replica2::ReceiveDestruction()
`[in]`	recipient	Which system to send to. Use UNASSIGNED_SYSTEM_ADDRESS to send to all previously created connections. Connection_RM2Factory::AllocConnection will be called if this connection has not been previously used.
`[in]`	timestamp	Timestamp to send with the message. Use 0 to not send a timestamp if you don't need it.
`[in]`	sendMessage	True to actually send a network message. False to only register that the object no longer exists on the remote system.
`[in]`	exclusionList	Which systems to not send to. This list is carried with the messsage, and appended to at each node in the connection graph. This is used to prevent infinite cyclical sends.
`[in]`	type	What kind of serialization operation this is. Use one of the pre-defined types, or create your own. This will be returned in type in Connection_RM2::Construct()
`[in]`	priority	PacketPriority to send with. Use NUMBER_OF_PRIORITIES to use the default defined by SetDefaultPacketPriority().
`[in]`	reliability	PacketReliability to send with. Use NUMBER_OF_RELIABILITIES to use the default defined by SetDefaultPacketReliability();
`[in]`	orderingChannel	ordering channel to send on. Use -1 to use the default defined by SetDefaultOrderingChannel()

Precondition:: Replica::QueryIsDestructionAuthority() must return true; Call SetConnectionFactory() with a derived instance of Connection_RM2Factory.

Definition at line 184 of file ReplicaManager2.cpp.

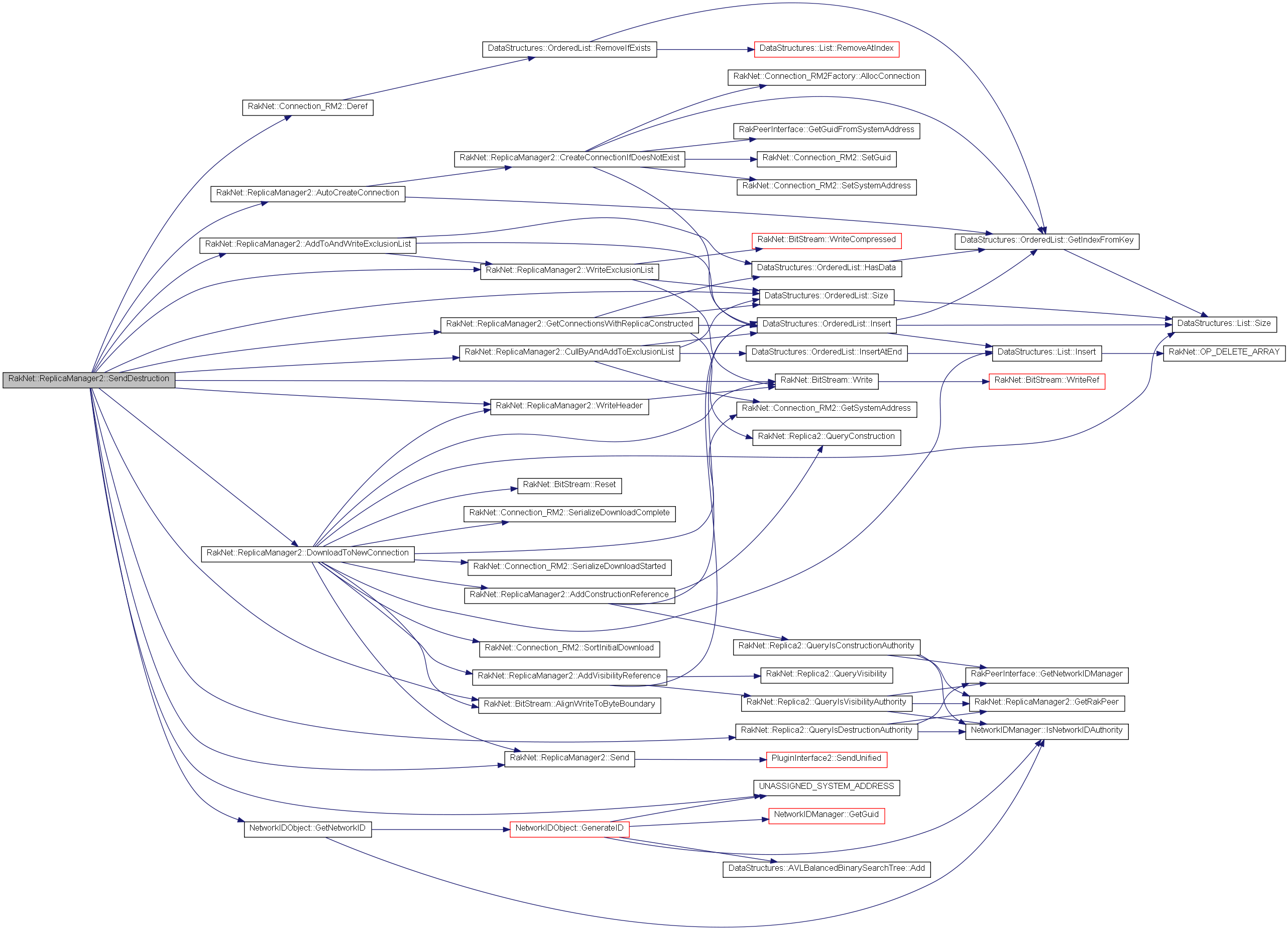

Here is the call graph for this function:

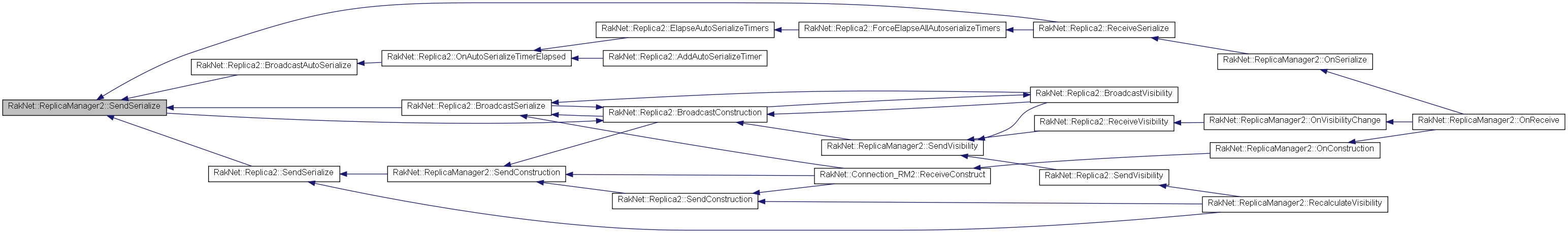

Here is the caller graph for this function:

void ReplicaManager2::SendSerialize	(	Replica2 *	replica,
		BitStream *	replicaData,
		SystemAddress	recipient,
		RakNetTime	timestamp,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList,
		SerializationType	type = `SEND_SERIALIZATION_GENERIC_TO_SYSTEM`,
		PacketPriority	priority = `NUMBER_OF_PRIORITIES`,
		PacketReliability	reliability = `NUMBER_OF_RELIABILITIES`,
		char	orderingChannel = `-1`
	)

Sends a serialized object to one or more systems, which will be relayed throughout the network. Recipient(s) will allocate the connection via Connection_RM2Factory::AllocConnection() if it does not already exist. Will trigger a call on the remote system(s) to Replica2::ReceiveSerialization() which in turn calls Replica2::Deserialize() with the value passed in replicaData Note: This is a low level function. Beginners may wish to use Replica2::SendSerialize() or Replica2::BroadcastSerialize().

Parameters:

`[in]`	replica	The class to serialize
`[in]`	replicaData	User-defined serialized data. Passed to Replica2::ReceiveSerialization()
`[in]`	recipient	Which system to send to. Use UNASSIGNED_SYSTEM_ADDRESS to send to all previously created connections. Connection_RM2Factory::AllocConnection will be called if this connection has not been previously used.
`[in]`	timestamp	Timestamp to send with the message. Use 0 to not send a timestamp if you don't need it.
`[in]`	exclusionList	Which systems to not send to. This list is carried with the messsage, and appended to at each node in the connection graph. This is used to prevent infinite cyclical sends.
`[in]`	type	What kind of serialization operation this is. Use one of the pre-defined types, or create your own. This will be returned in type in Connection_RM2::Construct()
`[in]`	priority	PacketPriority to send with. Use NUMBER_OF_PRIORITIES to use the default defined by SetDefaultPacketPriority().
`[in]`	reliability	PacketReliability to send with. Use NUMBER_OF_RELIABILITIES to use the default defined by SetDefaultPacketReliability();
`[in]`	orderingChannel	ordering channel to send on. Use -1 to use the default defined by SetDefaultOrderingChannel()

Precondition:: Replica::QueryIsSerializationAuthority() must return true; Call SetConnectionFactory() with a derived instance of Connection_RM2Factory.

Definition at line 251 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::SendVisibility	(	Replica2 *	replica,
		BitStream *	replicaData,
		SystemAddress	recipient,
		RakNetTime	timestamp,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList,
		SerializationType	type = `SEND_VISIBILITY_TRUE_TO_SYSTEM`,
		PacketPriority	priority = `NUMBER_OF_PRIORITIES`,
		PacketReliability	reliability = `NUMBER_OF_RELIABILITIES`,
		char	orderingChannel = `-1`
	)

Sets the visibility status of an object. which will be relayed throughout the network. Objects that are not visible should be hidden in the game world, and will not send AutoSerialize updates Recipient(s) will allocate the connection via Connection_RM2Factory::AllocConnection() if it does not already exist. Will trigger a call on the remote system(s) to Connection_RM2::ReceiveVisibility() Note: This is a low level function. Beginners may wish to use Connection_RM2::SendVisibility() or override Replica2::QueryVisibility()

Parameters:

`[in]`	objectList	The objects to send to the system.
`[in]`	replicaData	User-defined serialized data. Read in Connection_RM2::ReceiveVisibility()
`[in]`	recipient	Which system to send to. Use UNASSIGNED_SYSTEM_ADDRESS to send to all previously created connections. Connection_RM2Factory::AllocConnection will be called if this connection has not been previously used.
`[in]`	timestamp	Timestamp to send with the message. Use 0 to not send a timestamp if you don't need it.
`[in]`	sendMessage	True to actually send a network message. False to only register that the objects exist on the remote system
`[in]`	type	What kind of serialization operation this is. Use one of the pre-defined types, or create your own. This will be returned in type in Connection_RM2::Construct()
`[in]`	priority	PacketPriority to send with. Use NUMBER_OF_PRIORITIES to use the default defined by SetDefaultPacketPriority().
`[in]`	reliability	PacketReliability to send with. Use NUMBER_OF_RELIABILITIES to use the default defined by SetDefaultPacketReliability();
`[in]`	orderingChannel	ordering channel to send on. Use -1 to use the default defined by SetDefaultOrderingChannel()

Precondition:: Replica::QueryIsConstructionAuthority() must return true; Call SetConnectionFactory() with a derived instance of Connection_RM2Factory.

Definition at line 319 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void ReplicaManager2::SetAutoAddNewConnections ( bool autoAdd )

Autoadd will cause a Connection_RM2 instance to be allocated for every connection. Defaults to true. Set this to false if you have connections which do not participate in the game (master server, etc).

Parameters:

[in] autoAdd If true, all incoming connections are added as ReplicaManager2 connections.

Definition at line 455 of file ReplicaManager2.cpp.

void ReplicaManager2::SetAutoUpdateScope	(	bool	construction,
		bool	visibility
	)

Auto scope will track the prior construction and serialization visibility of each registered Replica2 class, for each connection. Per-tick, as the visibility or construction status of a replica changes, it will be constructed, destroyed, or the visibility will change as appropriate.

Parameters:

`[in]`	construction	If true, Connection_RM2::SetConstructionByReplicaQuery will be called once per PluginInterface::Update tick. This will call Replica2::QueryConstruction to return if an object should be exist on a particular connection
`[in]`	visibility	If true, Connection_RM2::SetConstructionSerializationByReplicaQuery will be called once per PluginInterface::Update tick. This will call Replica2::QuerySerialization to return if an object should be visible to a particular connection or not.

Definition at line 504 of file ReplicaManager2.cpp.

void ReplicaManager2::SetConnectionFactory ( Connection_RM2Factory * factory )

Sets the factory class used to allocate connection objects

Parameters:

[in] factory A pointer to an instance of a class that derives from Connection_RM2Factory. This pointer it saved and not copied, so the object should remain in memory.

Definition at line 463 of file ReplicaManager2.cpp.

void ReplicaManager2::SetDefaultOrderingChannel ( char def )

Parameters:

[in] Default ordering channel to use when passing -1 to a function that takes orderingChannel as a parameter

Definition at line 492 of file ReplicaManager2.cpp.

void ReplicaManager2::SetDefaultPacketPriority ( PacketPriority def )

Parameters:

[in] Default packet priority to use when passing NUMBER_OF_PRIORITIES to a function that takes priority as a parameter

Definition at line 496 of file ReplicaManager2.cpp.

void ReplicaManager2::SetDefaultPacketReliability ( PacketReliability def )

Parameters:

[in] Default packet reliability to use when passing NUMBER_OF_RELIABILITIES to a function that takes reliability as a parameter

Definition at line 500 of file ReplicaManager2.cpp.

void ReplicaManager2::SetDoReplicaAutoSerializeUpdate ( bool autoUpdate )

If true, autoserialize timers added with Replica2::AddAutoSerializeTimer() will automatically decrement. If false, you must call Replica2::ElapseAutoSerializeTimers() manually. Defaults to true

Parameters:

[in] autoUpdate True to automatically call ElapseAutoSerializeTimers(). Set to false if you need to control these timers.

Definition at line 459 of file ReplicaManager2.cpp.

void ReplicaManager2::Update ( void ) [protected, virtual]

Update is called every time a packet is checked for .

Reimplemented from PluginInterface2.

Definition at line 421 of file ReplicaManager2.cpp.

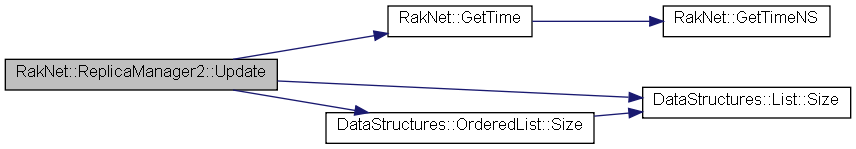

Here is the call graph for this function:

void ReplicaManager2::WriteExclusionList	(	RakNet::BitStream *	bs,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList
	)			`[protected]`
