This class represents a connection between two instances of ReplicaManager2. More...

#include <ReplicaManager2.h>

Collaboration diagram for RakNet::Connection_RM2:

[legend]

Public Member Functions
	Connection_RM2 ()
virtual	~Connection_RM2 ()
virtual Replica2 *	Construct (RakNet::BitStream replicaData, SystemAddress sender, SerializationType type, ReplicaManager2 replicaManager, RakNetTime timestamp, NetworkID networkId, bool networkIDCollision)=0
virtual void	SortInitialDownload (const DataStructures::List< Replica2 * > &orderedDownloadList, DataStructures::List< Replica2 * > &initialDownloadList)
virtual void	SerializeDownloadStarted (RakNet::BitStream objectData, ReplicaManager2 replicaManager, SerializationContext *serializationContext)
virtual void	SerializeDownloadComplete (RakNet::BitStream objectData, ReplicaManager2 replicaManager, SerializationContext *serializationContext)
virtual void	DeserializeDownloadStarted (RakNet::BitStream objectData, SystemAddress sender, ReplicaManager2 replicaManager, RakNetTime timestamp, SerializationType serializationType)
virtual void	DeserializeDownloadComplete (RakNet::BitStream objectData, SystemAddress sender, ReplicaManager2 replicaManager, RakNetTime timestamp, SerializationType serializationType)
virtual void	SetConstructionByList (DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &currentVisibility, ReplicaManager2 *replicaManager)
virtual void	SetVisibilityByList (DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &currentVisibility, ReplicaManager2 *replicaManager)
virtual void	SetConstructionByReplicaQuery (ReplicaManager2 *replicaManager)
virtual void	SetVisibilityByReplicaQuery (ReplicaManager2 *replicaManager)
void	SetSystemAddress (SystemAddress sa)
	Set the system address to use with this class instance. This is set internally when the object is created.
SystemAddress	GetSystemAddress (void) const
	Get the system address associated with this class instance.
void	SetGuid (RakNetGUID guid)
	Set the guid to use with this class instance. This is set internally when the object is created.
RakNetGUID	GetGuid (void) const
	Get the guid associated with this class instance.
Protected Member Functions
void	Deref (Replica2 *replica)
void	CalculateListExclusivity (const DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &listOne, const DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &listTwo, DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &exclusiveToListOne, DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &exclusiveToListTwo) const
virtual Replica2 *	ReceiveConstruct (RakNet::BitStream replicaData, NetworkID networkId, SystemAddress sender, unsigned char localClientId, SerializationType type, ReplicaManager2 replicaManager, RakNetTime timestamp, DataStructures::OrderedList< SystemAddress, SystemAddress > &exclusionList)
Protected Attributes
SystemAddress	systemAddress
RakNetGUID	rakNetGuid
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	lastConstructionList
DataStructures::OrderedList < Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp >	lastSerializationList
Friends
class	ReplicaManager2

Detailed Description

This class represents a connection between two instances of ReplicaManager2.

Represents a connection. Allocated by user supplied factory interface Connection_RM2Factory.
Implicitly created as needed.
Generally you will want to implement at a minimum the Construct() function, used as a factory function to create your game objects.

Definition at line 727 of file ReplicaManager2.h.

Constructor & Destructor Documentation

Connection_RM2::Connection_RM2 ( )

Definition at line 1753 of file ReplicaManager2.cpp.

Connection_RM2::~Connection_RM2 ( ) [virtual]

Definition at line 1758 of file ReplicaManager2.cpp.

Member Function Documentation

void Connection_RM2::CalculateListExclusivity	(	const DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &	listOne,
		const DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &	listTwo,
		DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &	exclusiveToListOne,
		DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &	exclusiveToListTwo
	)			const `[protected]`

Definition at line 1819 of file ReplicaManager2.cpp.

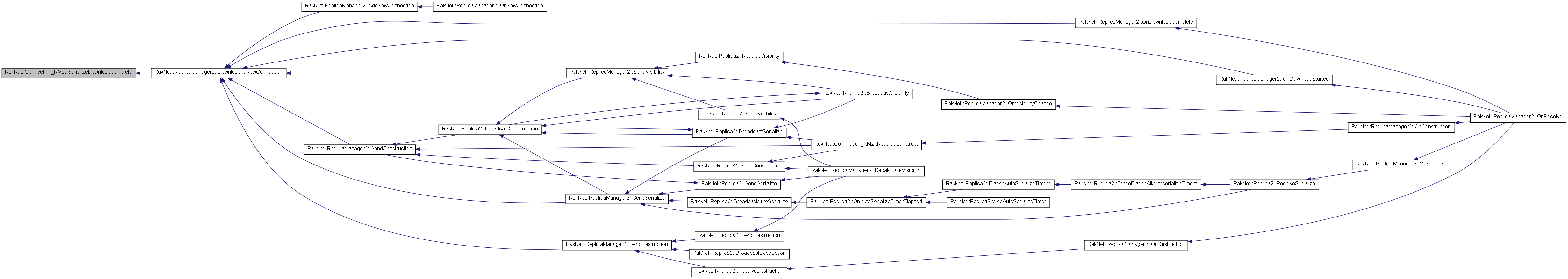

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Replica2* RakNet::Connection_RM2::Construct	(	RakNet::BitStream *	replicaData,
		SystemAddress	sender,
		SerializationType	type,
		ReplicaManager2 *	replicaManager,
		RakNetTime	timestamp,
		NetworkID	networkId,
		bool	networkIDCollision
	)			`[pure virtual]`

Factory function, used to create instances of your game objects Encoding is entirely up to you. replicaData will hold whatever was written bitStream in Replica2::SerializeConstruction() One efficient way to do it is to use StringTable.h. This allows you to send predetermined strings over the network at a cost of 9 bits, up to 65536 strings

Note:: The object is not yet referenced by ReplicaManager2 in this callback. Use Replica2::OnConstructionComplete() to perform functionality such as AutoSerialize()

Parameters:

`[in]`	replicaData	Whatever was written bitStream in Replica2::SerializeConstruction()
`[in]`	type	Whatever was written serializationType in Replica2::SerializeConstruction()
`[in]`	replicaManager	ReplicaManager2 instance that created this class.
`[in]`	timestamp	timestamp sent with Replica2::SerializeConstruction(), 0 for none.
`[in]`	networkId	NetworkID that will be assigned automatically to the new object after this function returns
`[in]`	networkIDCollision	True if the network ID that should be assigned to this object is already in use. Usuallly this is because the object already exists, and you should just read your data and return 0.

Returns:: Return 0 to signal that construction failed or was refused for this object. Otherwise return the object that was created. A reference will be held to this object, and SetNetworkID() and SetReplicaManager() will be called automatically.

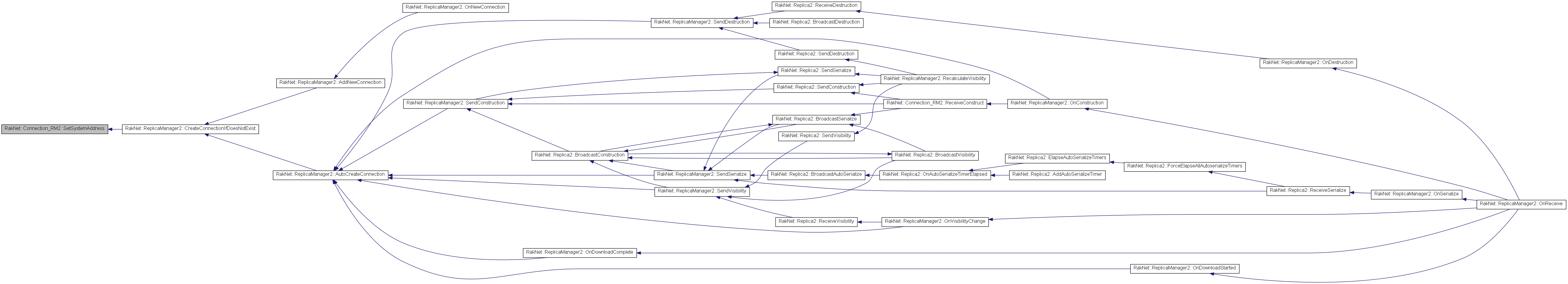

Here is the caller graph for this function:

void Connection_RM2::Deref ( Replica2 * replica ) [protected]

Definition at line 2065 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Connection_RM2::DeserializeDownloadComplete	(	RakNet::BitStream *	objectData,
		SystemAddress	sender,
		ReplicaManager2 *	replicaManager,
		RakNetTime	timestamp,
		SerializationType	serializationType
	)			`[virtual]`

CALLBACK: A new connection was added. All objects that are constructed and visible for this system have now arrived. Write data to objectData by deriving from SerializeDownloadComplete

Note:: Only called if SetAutoUpdateScope is called with serializationVisiblity or construction true. (This is the default)

Parameters:

`[in]`	objectData	objectData Data written through SerializeDownloadComplete()
`[in]`	replicaManager	Which replica manager to use to perform the send
`[in]`	timestamp	timestamp sent, 0 for none
`[in]`	serializationType	Type of command

Definition at line 1918 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

void Connection_RM2::DeserializeDownloadStarted	(	RakNet::BitStream *	objectData,
		SystemAddress	sender,
		ReplicaManager2 *	replicaManager,
		RakNetTime	timestamp,
		SerializationType	serializationType
	)			`[virtual]`

CALLBACK: A new connection was added. All objects that are constructed and visible for this system will arrive immediately after this message. Write data to objectData by deriving from SerializeDownloadStarted()

Note:: Only called if SetAutoUpdateScope is called with serializationVisiblity or construction true. (This is the default)

Parameters:

`[in]`	objectData	objectData Data written through SerializeDownloadStarted()
`[in]`	replicaManager	Which replica manager to use to perform the send
`[in]`	timestamp	timestamp sent, 0 for none
`[in]`	serializationType	Type of command

Definition at line 1910 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

RakNetGUID Connection_RM2::GetGuid ( void ) const

Get the guid associated with this class instance.

Definition at line 2061 of file ReplicaManager2.cpp.

SystemAddress Connection_RM2::GetSystemAddress ( void ) const

Get the system address associated with this class instance.

Definition at line 2053 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

Replica2 * Connection_RM2::ReceiveConstruct	(	RakNet::BitStream *	replicaData,
		NetworkID	networkId,
		SystemAddress	sender,
		unsigned char	localClientId,
		SerializationType	type,
		ReplicaManager2 *	replicaManager,
		RakNetTime	timestamp,
		DataStructures::OrderedList< SystemAddress, SystemAddress > &	exclusionList
	)			`[protected, virtual]`

Definition at line 1925 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Connection_RM2::SerializeDownloadComplete	(	RakNet::BitStream *	objectData,
		ReplicaManager2 *	replicaManager,
		SerializationContext *	serializationContext
	)			`[virtual]`

CALLBACK: Called after a download is sent to a new connection

Parameters:

`[out]`	objectData	What data you want to send to DeSerializeDownloadComplete()
`[in]`	replicaManager	Which replica manager to use to perform the send
	in/out]	serializationContext Target recipient, optional timestamp, type of command

Definition at line 1905 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

void Connection_RM2::SerializeDownloadStarted	(	RakNet::BitStream *	objectData,
		ReplicaManager2 *	replicaManager,
		SerializationContext *	serializationContext
	)			`[virtual]`

CALLBACK: Called before a download is sent to a new connection

Parameters:

`[out]`	objectData	What data you want to send to DeSerializeDownloadStarted()
`[in]`	replicaManager	Which replica manager to use to perform the send
	in/out]	serializationContext Target recipient, optional timestamp, type of command

Definition at line 1900 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

void Connection_RM2::SetConstructionByList	(	DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &	currentVisibility,
		ReplicaManager2 *	replicaManager
	)			`[virtual]`

Given a list of objects, compare it against lastConstructionList. BroadcastConstruct() is called for objects that only exist in the new list. BroadcastDestruct() is called for objects that only exist in the old list. This is used by SetConstructionByReplicaQuery() for all Replica2 that do not return BQR_ALWAYS from Replica2::QueryConstruction() If you want to pass your own, more efficient list to check against, call ReplicaManager2::SetAutoUpdateScope with construction=false and call this function yourself when desired

Parameters:

`[in]`	List	of all objects that do not return BQR_ALWAYS from Replica2::QueryConstruction() that should currently be created on this system
`[in]`	replicaManager	Which replica manager to use to perform the send

Definition at line 1761 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Connection_RM2::SetConstructionByReplicaQuery ( ReplicaManager2 * replicaManager ) [virtual]

Go through all registered Replica2 objects that do not return BQR_ALWAYS from Replica2::QueryConstruction() For each of these objects that return BQR_YES, pass them to currentVisibility in SetConstructionByList() Automatically called every tick if ReplicaManager2::SetAutoUpdateScope with construction=true is called (which is the default)

Parameters:

[in] replicaManager Which replica manager to use to perform the send

Definition at line 1861 of file ReplicaManager2.cpp.

Here is the call graph for this function:

void Connection_RM2::SetGuid ( RakNetGUID guid )

Set the guid to use with this class instance. This is set internally when the object is created.

Definition at line 2057 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

void Connection_RM2::SetSystemAddress ( SystemAddress sa )

Set the system address to use with this class instance. This is set internally when the object is created.

Definition at line 2049 of file ReplicaManager2.cpp.

Here is the caller graph for this function:

void Connection_RM2::SetVisibilityByList	(	DataStructures::OrderedList< Replica2 , Replica2 , ReplicaManager2::Replica2ObjectComp > &	currentVisibility,
		ReplicaManager2 *	replicaManager
	)			`[virtual]`

Given a list of objects, compare it against lastSerializationList. Replica2::BroadcastVisibility(true) is called for objects that only exist in the new list. Replica2::BroadcastVisibility(false) is called for objects that only exist in the old list. This is used by SetVisibilityByReplicaQuery() for all Replica2 that do not return BQR_ALWAYS from Replica2::QueryVisibility() If you want to pass your own, more efficient list to check against, call ReplicaManager2::SetAutoUpdateScope with construction=false and call this function yourself when desired

Parameters:

`[in]`	List	of all objects that do not return BQR_ALWAYS from Replica2::QueryConstruction() that should currently be created on this system
`[in]`	replicaManager	Which replica manager to use to perform the send

Definition at line 1790 of file ReplicaManager2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Connection_RM2::SetVisibilityByReplicaQuery ( ReplicaManager2 * replicaManager ) [virtual]

Go through all registered Replica2 objects that do not return BQR_ALWAYS from Replica2::QueryVisibility() For each of these objects that return BQR_YES, pass them to currentVisibility in SetVisibilityByList() Automatically called every tick if ReplicaManager2::SetAutoUpdateScope with construction=true is called (which is the default)

Parameters:

[in] replicaManager Which replica manager to use to perform the send

Definition at line 1879 of file ReplicaManager2.cpp.

Here is the call graph for this function:

void Connection_RM2::SortInitialDownload	(	const DataStructures::List< Replica2 * > &	orderedDownloadList,
		DataStructures::List< Replica2 * > &	initialDownloadList
	)			`[virtual]`

CALLBACK: Called before a download is sent to a new connection, called after ID_REPLICA_MANAGER_DOWNLOAD_STARTED is sent. Gives you control over the list of objects to be downloaded. For greater control, you can override ReplicaManager2::DownloadToNewConnection Defaults to send everything in the default order

Parameters:

`[in]`	fullReplicaUnorderedList	The list of all known objects in the order they were originally known about by the system (the first time used by any function)
`[out]`	orderedDownloadList	An empty list. Copy fullReplicaUnorderedList to this list to send everything. Leave elements out to not send them. Add them to the list in a different order to send them in that order.

Definition at line 1897 of file ReplicaManager2.cpp.

Here is the caller graph for this function:
