Fully connected mesh plugin, revision 2. More...

#include <FullyConnectedMesh2.h>

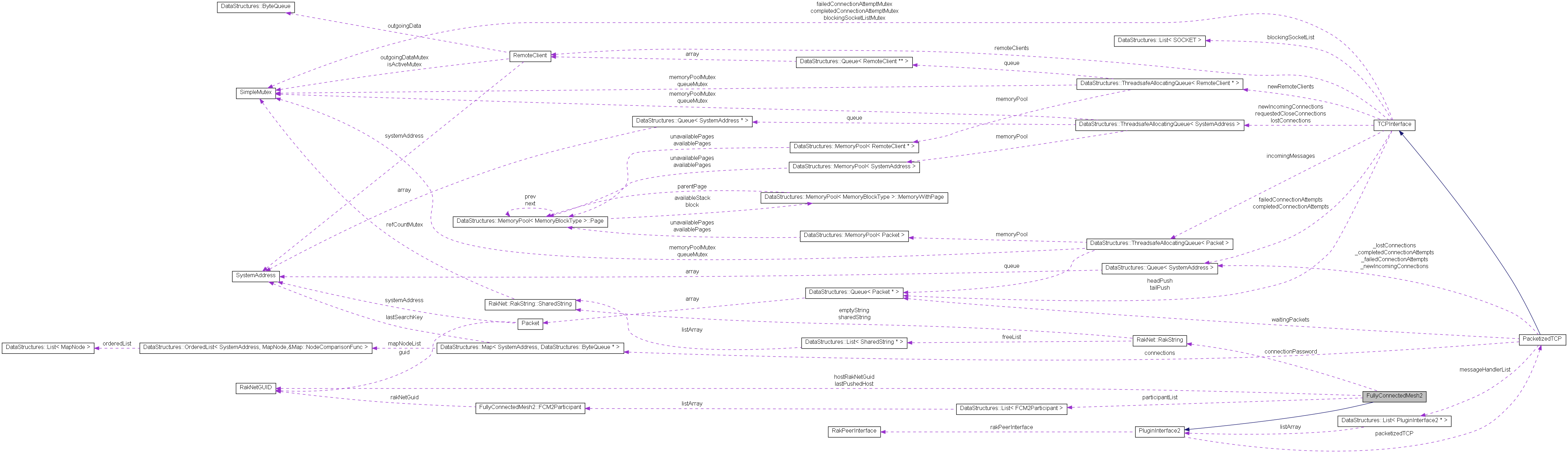

Collaboration diagram for FullyConnectedMesh2:

[legend]

Classes
struct	FCM2Participant
Public Member Functions
	FullyConnectedMesh2 ()
virtual	~FullyConnectedMesh2 ()
void	SetConnectOnNewRemoteConnection (bool attemptConnection, RakNet::RakString pw)
RakNetGUID	GetConnectedHost (void) const
	The connected host is whichever system we are connected to that has been running the longest.
SystemAddress	GetConnectedHostAddr (void) const
RakNetGUID	GetHostSystem (void) const
bool	IsHostSystem (void) const
bool	IsConnectedHost (void) const
void	SetAutoparticipateConnections (bool b)
	Automatically add new connections to the fully connected mesh.
void	ResetHostCalculation (void)
	Clear our own host order, and recalculate as if we had just reconnected.
void	AddParticipant (RakNetGUID rakNetGuid)
	if SetAutoparticipateConnections() is called with false, then you need to use AddParticipant before these systems will be added to the mesh
unsigned int	GetParticipantCount (void) const
void	GetParticipantCount (DataStructures::DefaultIndexType *participantListSize) const
RakNetTimeUS	GetElapsedRuntime (void)
virtual PluginReceiveResult	OnReceive (Packet *packet)
virtual void	OnRakPeerStartup (void)
	Called when RakPeer is initialized.
virtual void	OnAttach (void)
virtual void	OnRakPeerShutdown (void)
	Called when RakPeer is shutdown.
virtual void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
virtual void	OnNewConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, bool isIncoming)
Protected Member Functions
void	Clear (void)
void	PushNewHost (const RakNetGUID &guid)
void	SendOurFCMGuid (SystemAddress addr)
void	SendFCMGuidRequest (RakNetGUID rakNetGuid)
void	SendConnectionCountResponse (SystemAddress addr, unsigned int responseTotalConnectionCount)
void	OnRequestFCMGuid (Packet *packet)
void	OnRespondConnectionCount (Packet *packet)
void	OnInformFCMGuid (Packet *packet)
void	AssignOurFCMGuid (void)
void	CalculateHost (RakNetGUID rakNetGuid, FCM2Guid fcm2Guid)
bool	AddParticipantInternal (RakNetGUID rakNetGuid, FCM2Guid theirFCMGuid)
void	CalculateAndPushHost (void)
bool	ParticipantListComplete (void)
void	IncrementTotalConnectionCount (unsigned int i)
Protected Attributes
RakNetTimeUS	startupTime
bool	autoParticipateConnections
unsigned int	totalConnectionCount
FCM2Guid	ourFCMGuid
DataStructures::List < FCM2Participant >	participantList
	List of systems we know the FCM2Guid for.
RakNetGUID	lastPushedHost
RakNetGUID	hostRakNetGuid
FCM2Guid	hostFCM2Guid
RakNet::RakString	connectionPassword
bool	connectOnNewRemoteConnections

Detailed Description

Fully connected mesh plugin, revision 2.

This will connect RakPeer to all connecting peers, and all peers the connecting peer knows about.
It will also calculate which system has been running longest, to find out who should be host, if you need one system to act as a host

Precondition:: You must also install the ConnectionGraph2 plugin

Definition at line 30 of file FullyConnectedMesh2.h.

Constructor & Destructor Documentation

FullyConnectedMesh2::FullyConnectedMesh2 ( )

Definition at line 20 of file FullyConnectedMesh2.cpp.

FullyConnectedMesh2::~FullyConnectedMesh2 ( ) [virtual]

Definition at line 28 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Member Function Documentation

void FullyConnectedMesh2::AddParticipant ( RakNetGUID rakNetGuid )

if SetAutoparticipateConnections() is called with false, then you need to use AddParticipant before these systems will be added to the mesh

Parameters:

[in] participant The new participant

Definition at line 92 of file FullyConnectedMesh2.cpp.

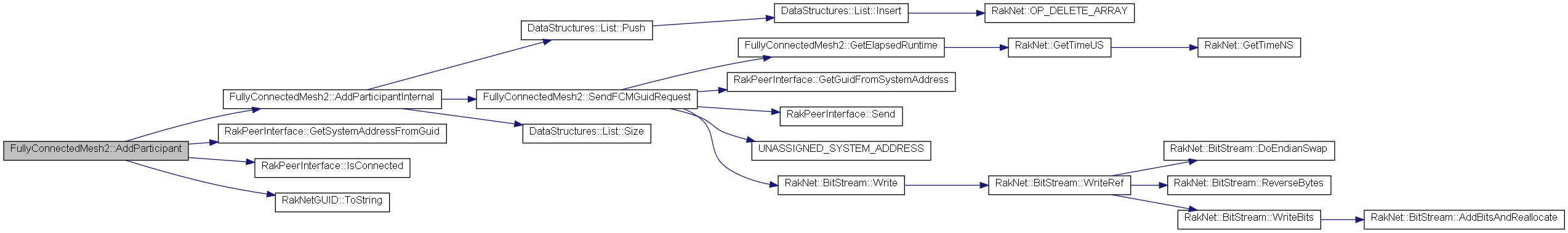

Here is the call graph for this function:

Here is the caller graph for this function:

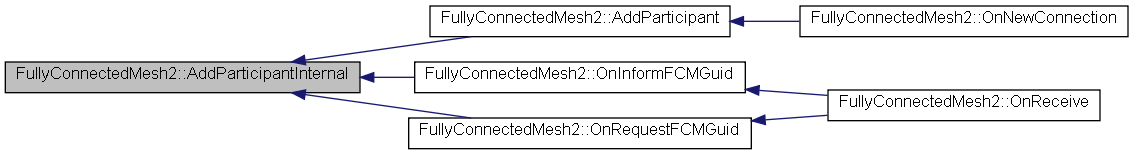

bool FullyConnectedMesh2::AddParticipantInternal	(	RakNetGUID	rakNetGuid,
		FCM2Guid	theirFCMGuid
	)			`[protected]`

Definition at line 71 of file FullyConnectedMesh2.cpp.

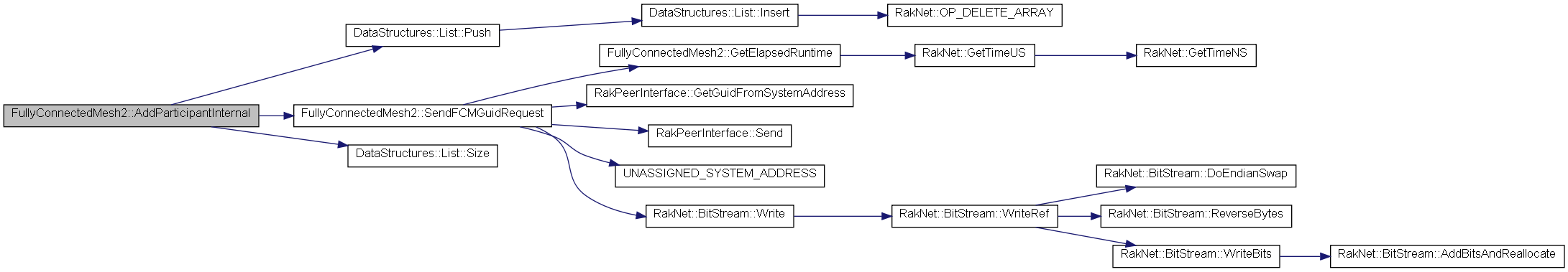

Here is the call graph for this function:

Here is the caller graph for this function:

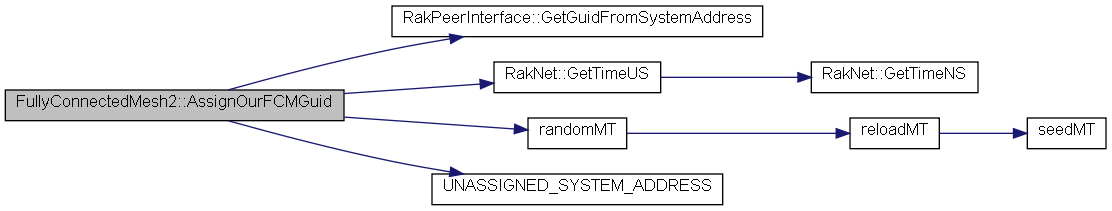

void FullyConnectedMesh2::AssignOurFCMGuid ( void ) [protected]

Definition at line 265 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void FullyConnectedMesh2::CalculateAndPushHost ( void ) [protected]

Definition at line 421 of file FullyConnectedMesh2.cpp.

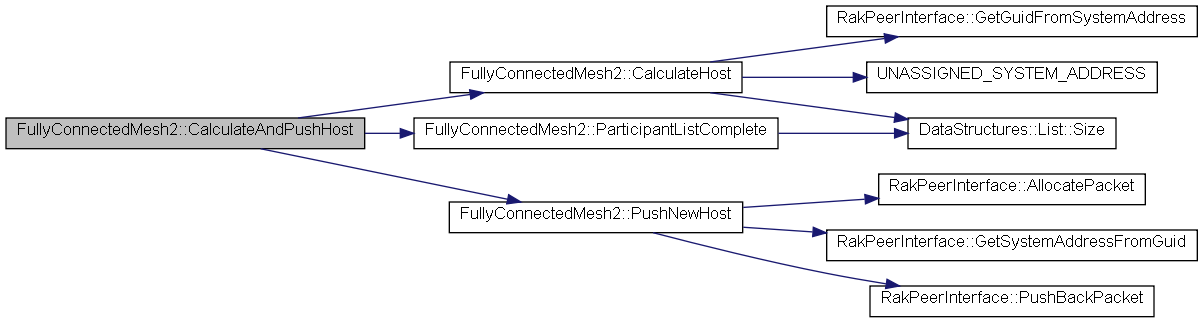

Here is the call graph for this function:

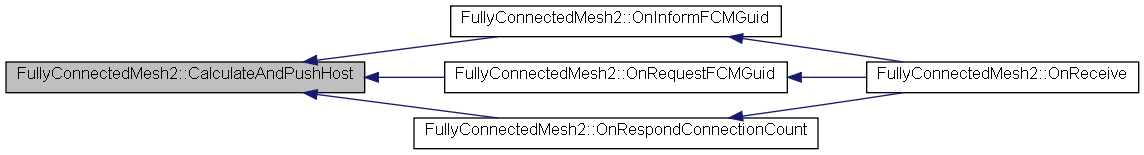

Here is the caller graph for this function:

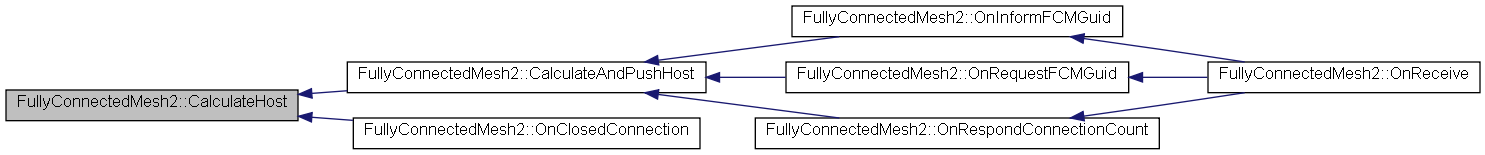

void FullyConnectedMesh2::CalculateHost	(	RakNetGUID *	rakNetGuid,
		FCM2Guid *	fcm2Guid
	)			`[protected]`

Definition at line 276 of file FullyConnectedMesh2.cpp.

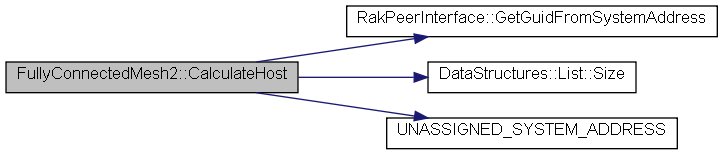

Here is the call graph for this function:

Here is the caller graph for this function:

void FullyConnectedMesh2::Clear ( void ) [protected]

Definition at line 210 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

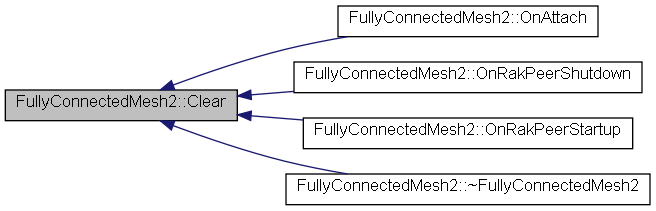

Here is the caller graph for this function:

RakNetGUID FullyConnectedMesh2::GetConnectedHost ( void ) const

The connected host is whichever system we are connected to that has been running the longest.

Will return UNASSIGNED_RAKNET_GUID if we are not connected to anyone, or if we are connected and are calculating the host If includeCalculating is true, will return the estimated calculated host as long as the calculation is nearly complete includeCalculating should be true if you are taking action based on another system becoming host, because not all host calculations may compelte at the exact same time

Returns:: System address of whichever system is host.

Definition at line 32 of file FullyConnectedMesh2.cpp.

Here is the caller graph for this function:

SystemAddress FullyConnectedMesh2::GetConnectedHostAddr ( void ) const

Definition at line 38 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

RakNetTimeUS FullyConnectedMesh2::GetElapsedRuntime ( void )

Definition at line 193 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

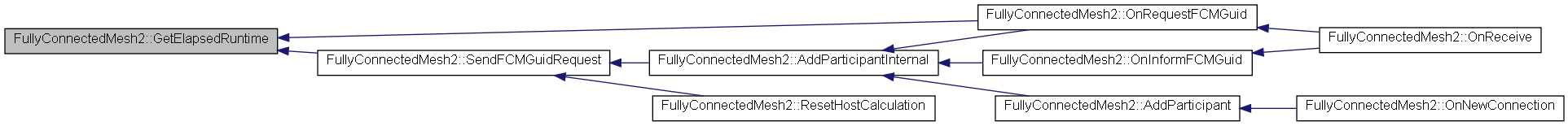

Here is the caller graph for this function:

RakNetGUID FullyConnectedMesh2::GetHostSystem ( void ) const

Returns:: System address of whichever system is host. Always returns something, even though it may be our own system.

Definition at line 44 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int FullyConnectedMesh2::GetParticipantCount ( void ) const

Definition at line 417 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

void FullyConnectedMesh2::GetParticipantCount ( DataStructures::DefaultIndexType * participantListSize ) const

Definition at line 412 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

void FullyConnectedMesh2::IncrementTotalConnectionCount ( unsigned int i ) [protected]

Definition at line 445 of file FullyConnectedMesh2.cpp.

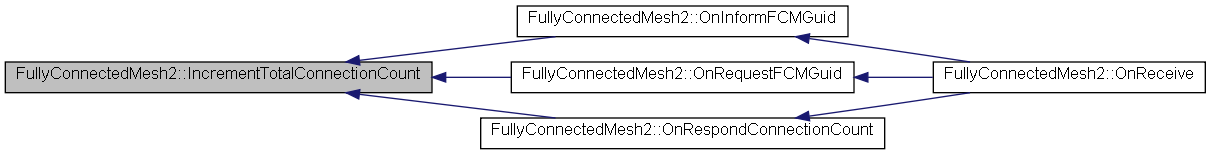

Here is the caller graph for this function:

bool FullyConnectedMesh2::IsConnectedHost ( void ) const

Parameters:

[in] includeCalculating If true, and we are currently calculating a new host, return the new host if the calculation is nearly complete

Returns:: If our system is host

Definition at line 55 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

bool FullyConnectedMesh2::IsHostSystem ( void ) const

Returns:: If our system is host

Definition at line 51 of file FullyConnectedMesh2.cpp.

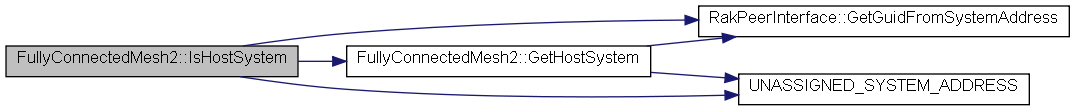

Here is the call graph for this function:

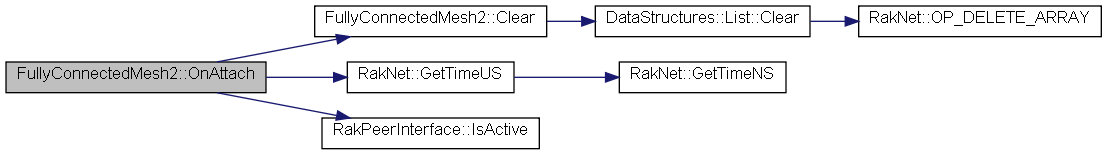

void FullyConnectedMesh2::OnAttach ( void ) [virtual]

Called when the interface is attached

Parameters:

[in] peer the instance of RakPeer that is calling Receive

Reimplemented from PluginInterface2.

Definition at line 146 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

void FullyConnectedMesh2::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			`[virtual]`

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

`[in]`	systemAddress	The system whose connection was closed
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented from PluginInterface2.

Definition at line 158 of file FullyConnectedMesh2.cpp.

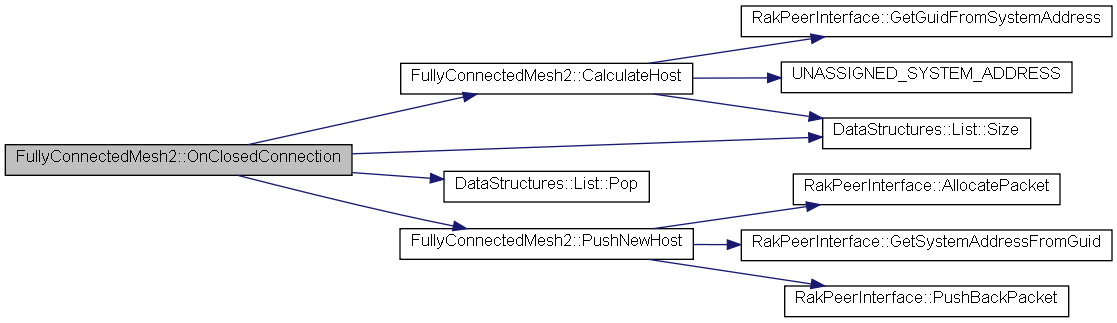

Here is the call graph for this function:

void FullyConnectedMesh2::OnInformFCMGuid ( Packet * packet ) [protected]

Definition at line 398 of file FullyConnectedMesh2.cpp.

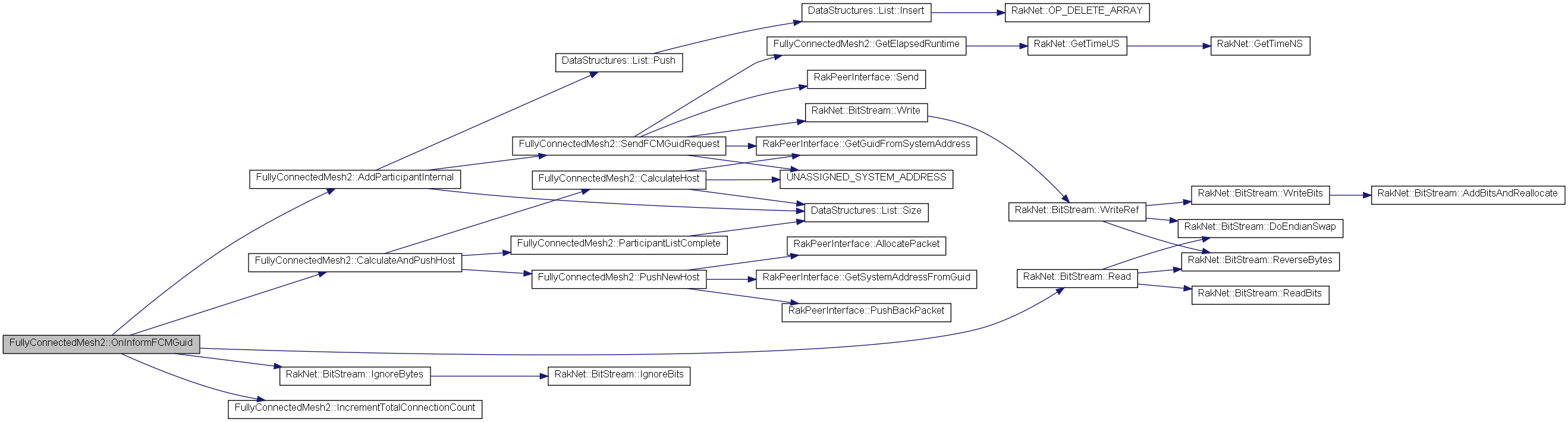

Here is the call graph for this function:

Here is the caller graph for this function:

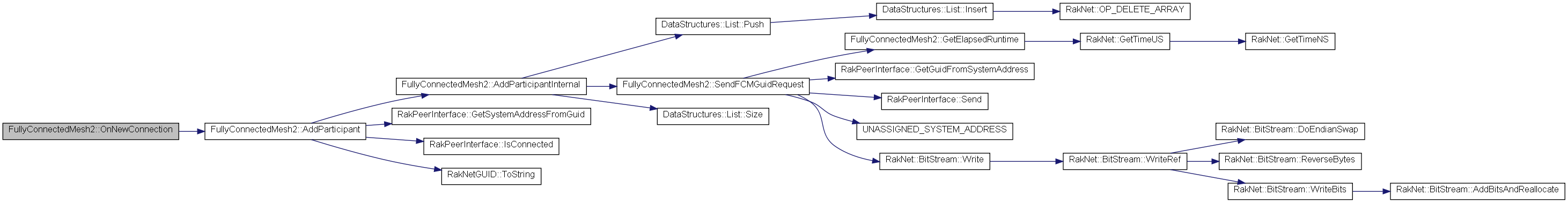

void FullyConnectedMesh2::OnNewConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		bool	isIncoming
	)			`[virtual]`

Called when we got a new connection

Parameters:

`[in]`	systemAddress	Address of the new connection
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	isIncoming	If true, this is ID_NEW_INCOMING_CONNECTION, or the equivalent

Reimplemented from PluginInterface2.

Definition at line 201 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

void FullyConnectedMesh2::OnRakPeerShutdown ( void ) [virtual]

Called when RakPeer is shutdown.

Reimplemented from PluginInterface2.

Definition at line 153 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

void FullyConnectedMesh2::OnRakPeerStartup ( void ) [virtual]

Called when RakPeer is initialized.

Reimplemented from PluginInterface2.

Definition at line 141 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

PluginReceiveResult FullyConnectedMesh2::OnReceive ( Packet * packet ) [virtual]

OnReceive is called for every packet.

Parameters:

[in] packet the packet that is being returned to the user

Returns:: True to allow the game and other plugins to get this message, false to absorb it

Reimplemented from PluginInterface2.

Definition at line 104 of file FullyConnectedMesh2.cpp.

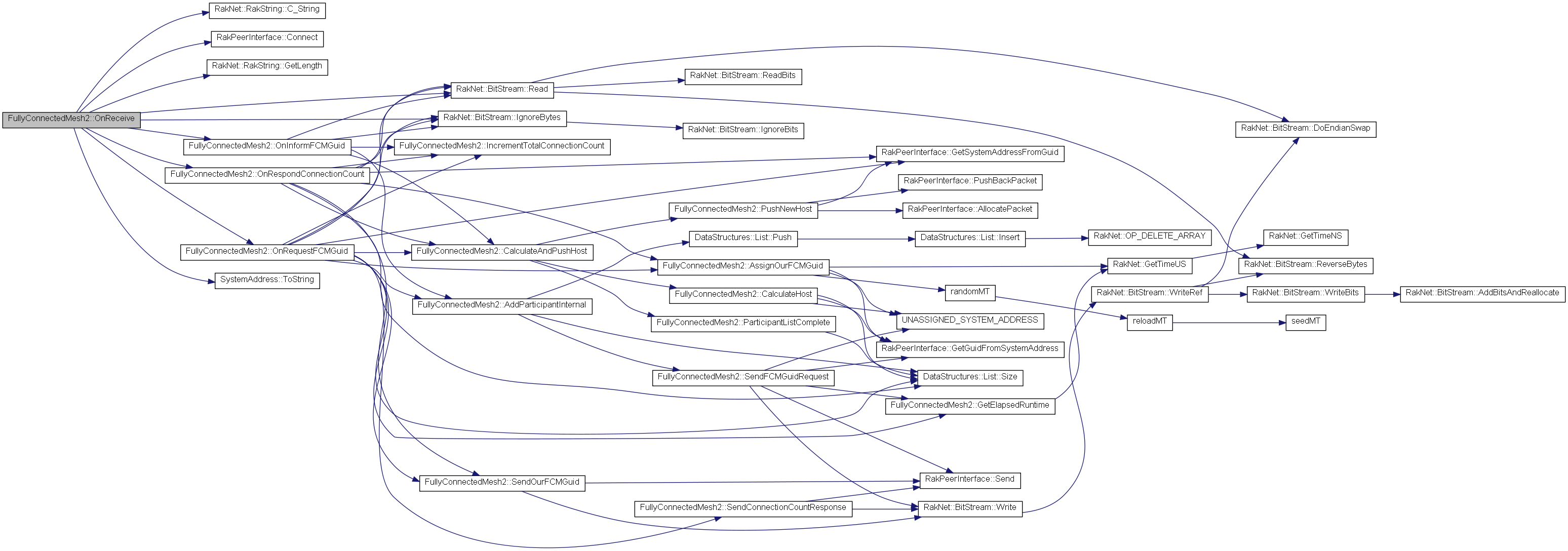

Here is the call graph for this function:

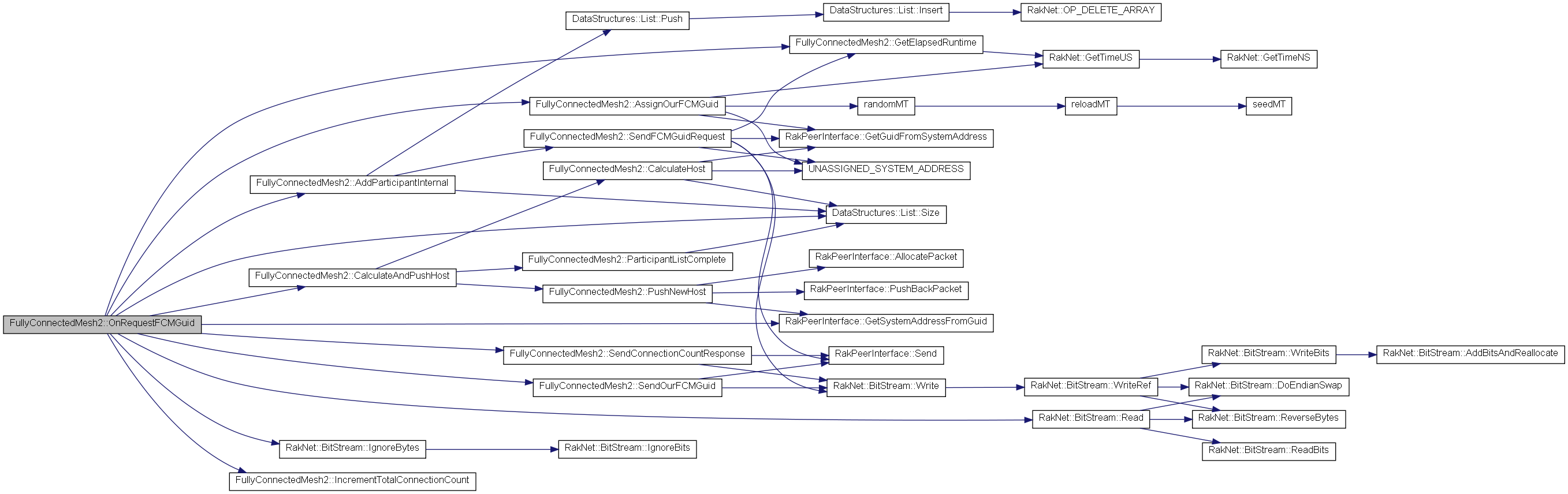

void FullyConnectedMesh2::OnRequestFCMGuid ( Packet * packet ) [protected]

Definition at line 302 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

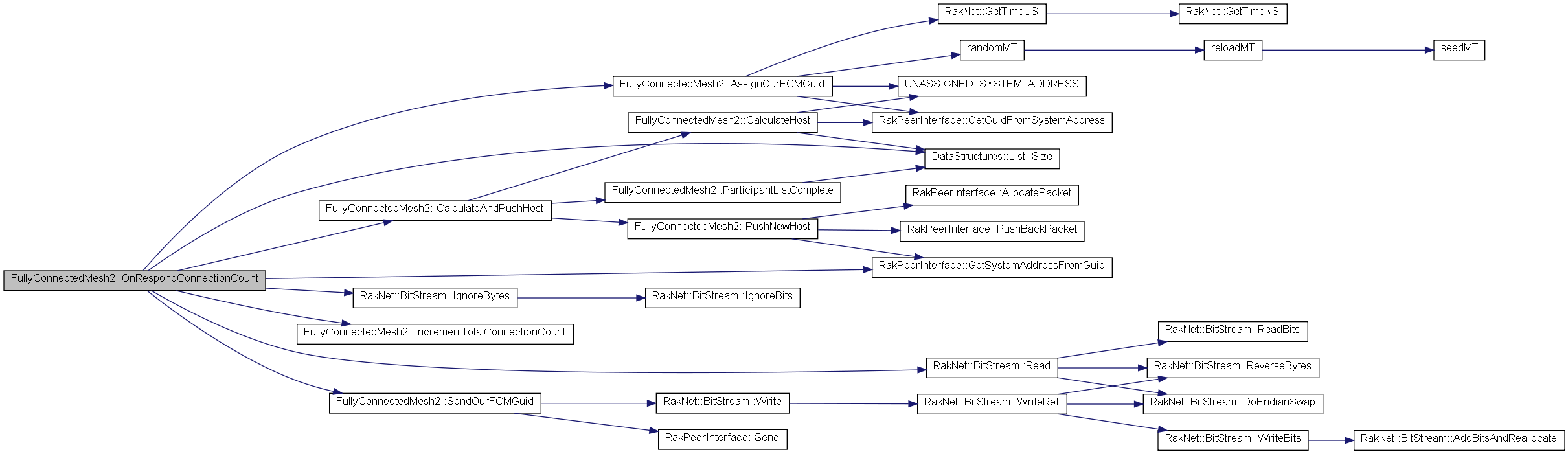

void FullyConnectedMesh2::OnRespondConnectionCount ( Packet * packet ) [protected]

Definition at line 371 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

bool FullyConnectedMesh2::ParticipantListComplete ( void ) [protected]

Definition at line 436 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

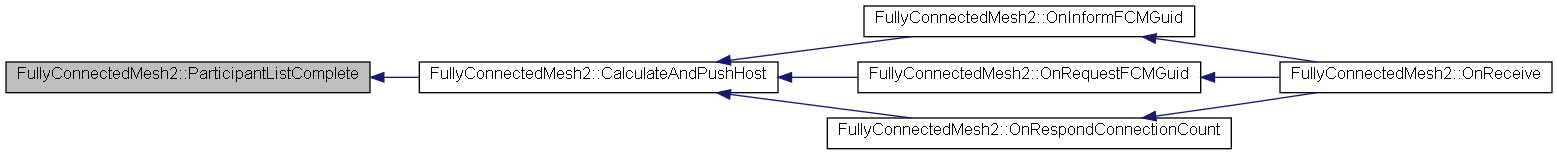

Here is the caller graph for this function:

void FullyConnectedMesh2::PushNewHost ( const RakNetGUID & guid ) [protected]

Definition at line 218 of file FullyConnectedMesh2.cpp.

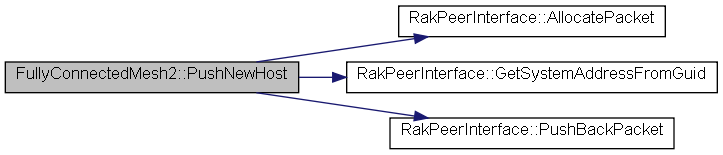

Here is the call graph for this function:

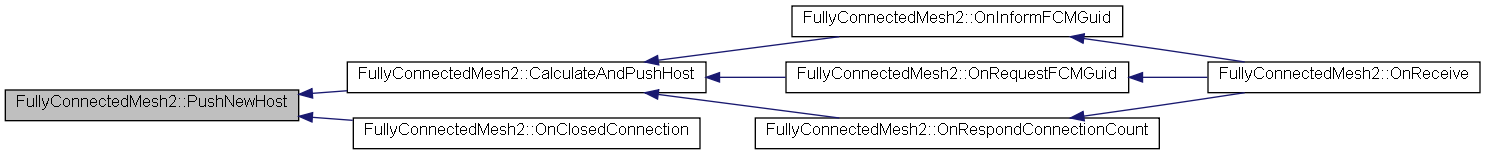

Here is the caller graph for this function:

void FullyConnectedMesh2::ResetHostCalculation ( void )

Clear our own host order, and recalculate as if we had just reconnected.

Definition at line 63 of file FullyConnectedMesh2.cpp.

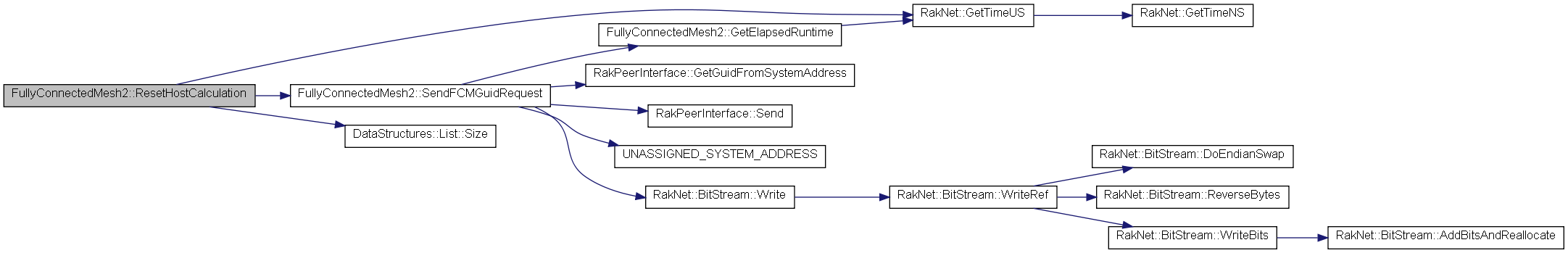

Here is the call graph for this function:

void FullyConnectedMesh2::SendConnectionCountResponse	(	SystemAddress	addr,
		unsigned int	responseTotalConnectionCount
	)			`[protected]`

Definition at line 258 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

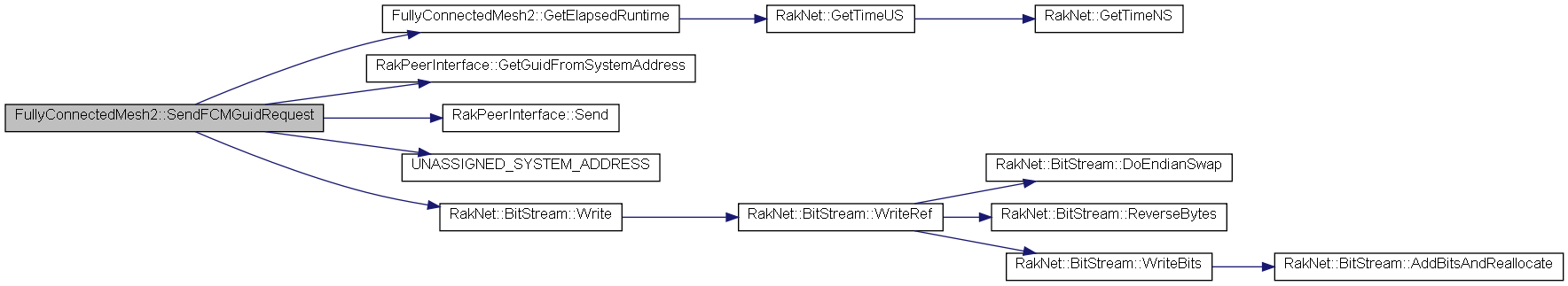

void FullyConnectedMesh2::SendFCMGuidRequest ( RakNetGUID rakNetGuid ) [protected]

Definition at line 229 of file FullyConnectedMesh2.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void FullyConnectedMesh2::SendOurFCMGuid ( SystemAddress addr ) [protected]

Definition at line 249 of file FullyConnectedMesh2.cpp.

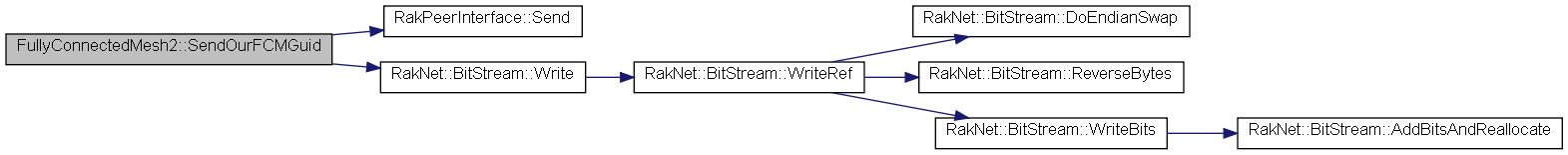

Here is the call graph for this function:

Here is the caller graph for this function:

void FullyConnectedMesh2::SetAutoparticipateConnections ( bool b )

Automatically add new connections to the fully connected mesh.

Defaults to true.

Parameters:

[in] b As stated

Definition at line 59 of file FullyConnectedMesh2.cpp.

void FullyConnectedMesh2::SetConnectOnNewRemoteConnection	(	bool	attemptConnection,
		RakNet::RakString	pw
	)

When the message ID_REMOTE_NEW_INCOMING_CONNECTION arrives, we try to connect to that system

Parameters:

`[in]`	attemptConnection	If true, we try to connect to any systems we are notified about with ID_REMOTE_NEW_INCOMING_CONNECTION, which comes from the ConnectionGraph2 plugin. Defaults to true.
`[in]`	pw	The password to use to connect with. Only used if attemptConnection is true
