Server code for NATPunchthrough. More...

#include <NatPunchthroughServer.h>

Collaboration diagram for NatPunchthroughServer:

[legend]

Classes
struct	ConnectionAttempt
struct	User
Public Member Functions
	NatPunchthroughServer ()
virtual	~NatPunchthroughServer ()
void	SetDebugInterface (NatPunchthroughServerDebugInterface *i)
virtual void	Update (void)
	Update is called every time a packet is checked for .
virtual PluginReceiveResult	OnReceive (Packet *packet)
virtual void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
virtual void	OnNewConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, bool isIncoming)
Static Public Member Functions
static int	NatPunchthroughUserComp (const RakNetGUID &key, User *const &data)
Public Attributes
RakNetTime	lastUpdate
Protected Member Functions
void	OnNATPunchthroughRequest (Packet *packet)
void	OnGetMostRecentPort (Packet *packet)
void	OnClientReady (Packet *packet)
void	SendTimestamps (void)
void	StartPendingPunchthrough (void)
void	StartPunchthroughForUser (User *user)
Protected Attributes
DataStructures::OrderedList < RakNetGUID, User *, NatPunchthroughServer::NatPunchthroughUserComp >	users
uint16_t	sessionId
NatPunchthroughServerDebugInterface *	natPunchthroughServerDebugInterface

Detailed Description

Server code for NATPunchthrough.

Maintain connection to NatPunchthroughServer to process incoming connection attempts through NatPunchthroughClient
Server maintains two sockets clients can connect to so as to estimate the next port choice
Server tells other client about port estimate, current public port to the server, and a time to start connection attempts

See also:: NatTypeDetectionClient See also http://www.jenkinssoftware.com/raknet/manual/natpunchthrough.html

Definition at line 67 of file NatPunchthroughServer.h.

Constructor & Destructor Documentation

NatPunchthroughServer::NatPunchthroughServer ( )

Definition at line 103 of file NatPunchthroughServer.cpp.

NatPunchthroughServer::~NatPunchthroughServer ( ) [virtual]

Definition at line 109 of file NatPunchthroughServer.cpp.

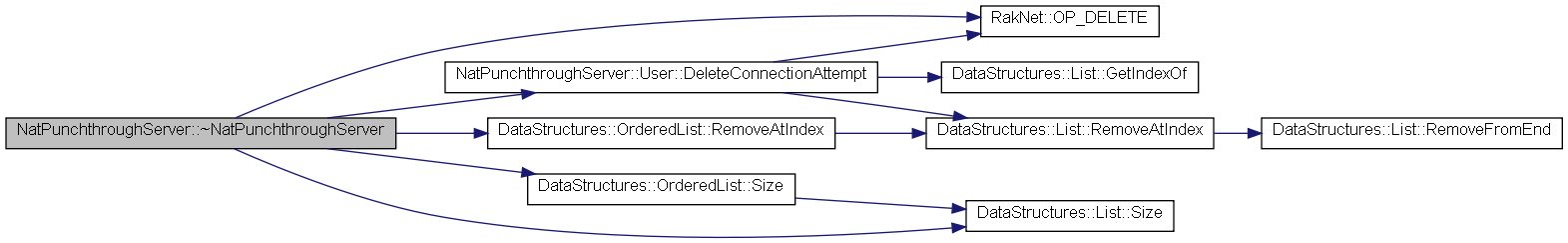

Here is the call graph for this function:

Member Function Documentation

int NatPunchthroughServer::NatPunchthroughUserComp	(	const RakNetGUID &	key,
		User *const &	data
	)			`[static]`

Definition at line 94 of file NatPunchthroughServer.cpp.

void NatPunchthroughServer::OnClientReady ( Packet * packet ) [protected]

Definition at line 332 of file NatPunchthroughServer.cpp.

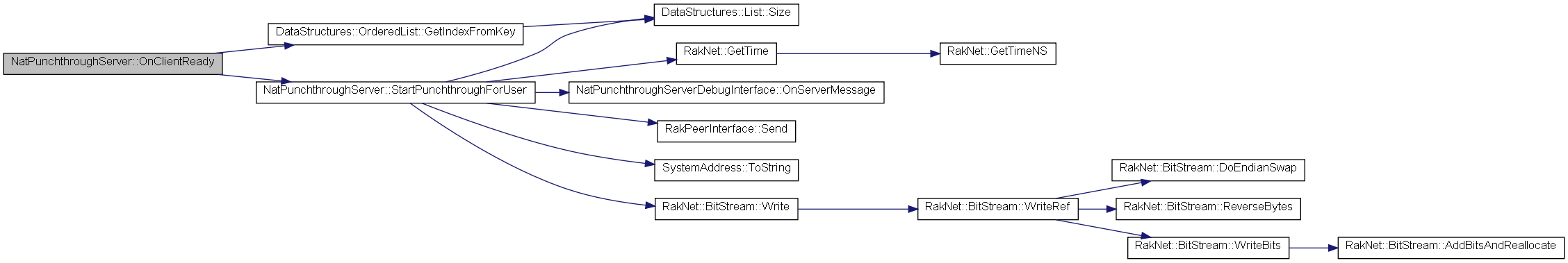

Here is the call graph for this function:

Here is the caller graph for this function:

void NatPunchthroughServer::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			`[virtual]`

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

`[in]`	systemAddress	The system whose connection was closed
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented from PluginInterface2.

Definition at line 223 of file NatPunchthroughServer.cpp.

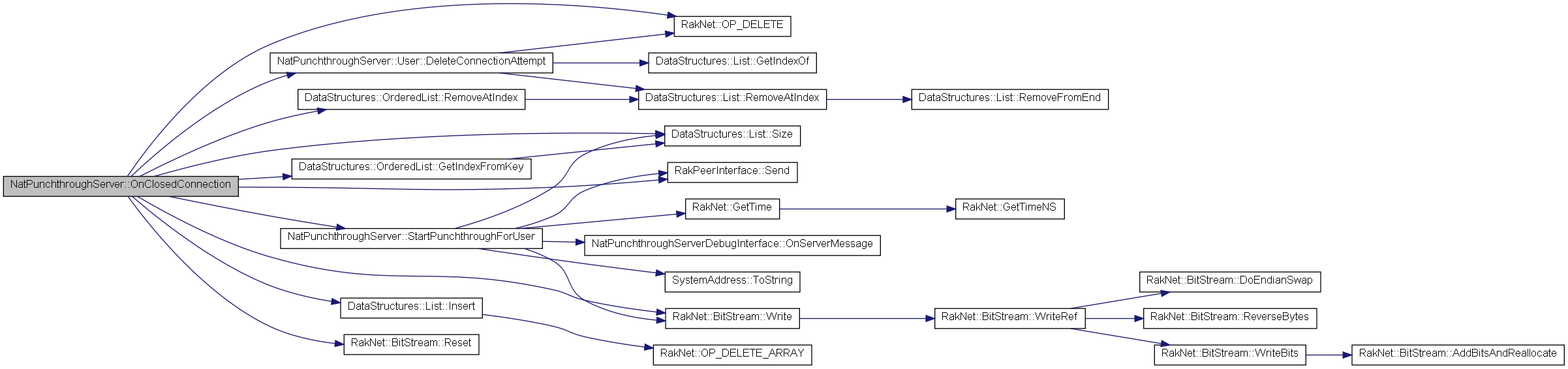

Here is the call graph for this function:

void NatPunchthroughServer::OnGetMostRecentPort ( Packet * packet ) [protected]

Definition at line 344 of file NatPunchthroughServer.cpp.

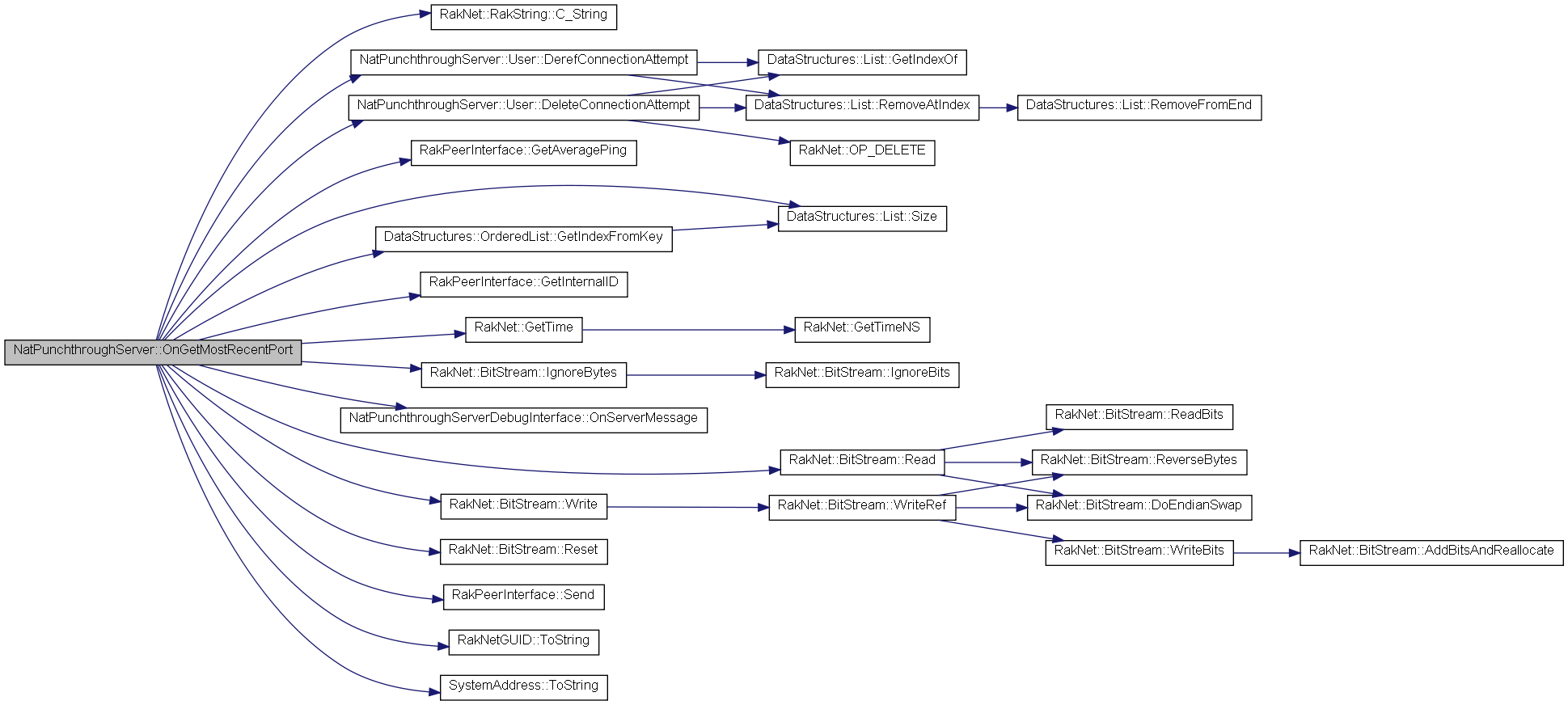

Here is the call graph for this function:

Here is the caller graph for this function:

void NatPunchthroughServer::OnNATPunchthroughRequest ( Packet * packet ) [protected]

Definition at line 292 of file NatPunchthroughServer.cpp.

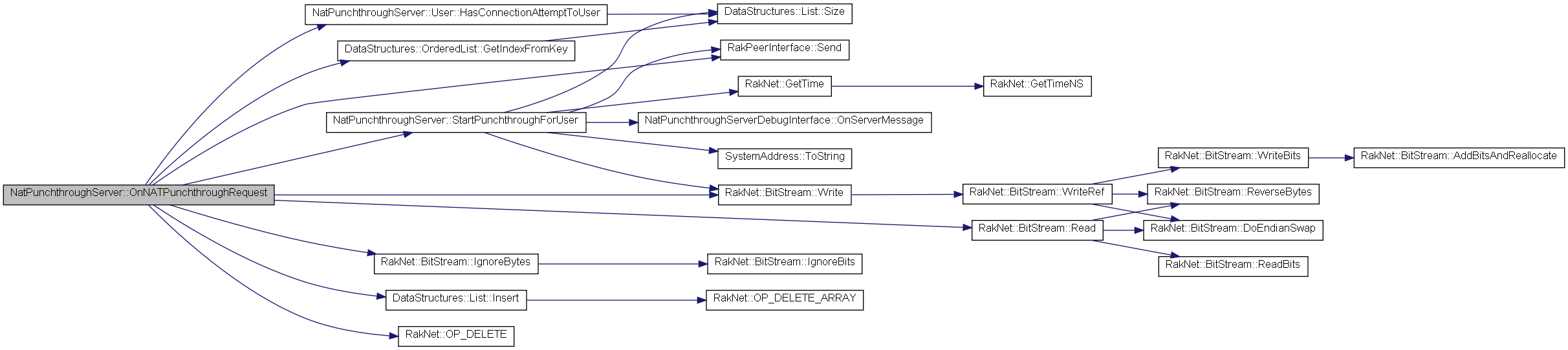

Here is the call graph for this function:

Here is the caller graph for this function:

void NatPunchthroughServer::OnNewConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		bool	isIncoming
	)			`[virtual]`

Called when we got a new connection

Parameters:

`[in]`	systemAddress	Address of the new connection
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	isIncoming	If true, this is ID_NEW_INCOMING_CONNECTION, or the equivalent
