The client interface to the simple database included with RakNet, useful for a server browser or a lobby server. More...

#include <LightweightDatabaseClient.h>

Inherits PluginInterface2.

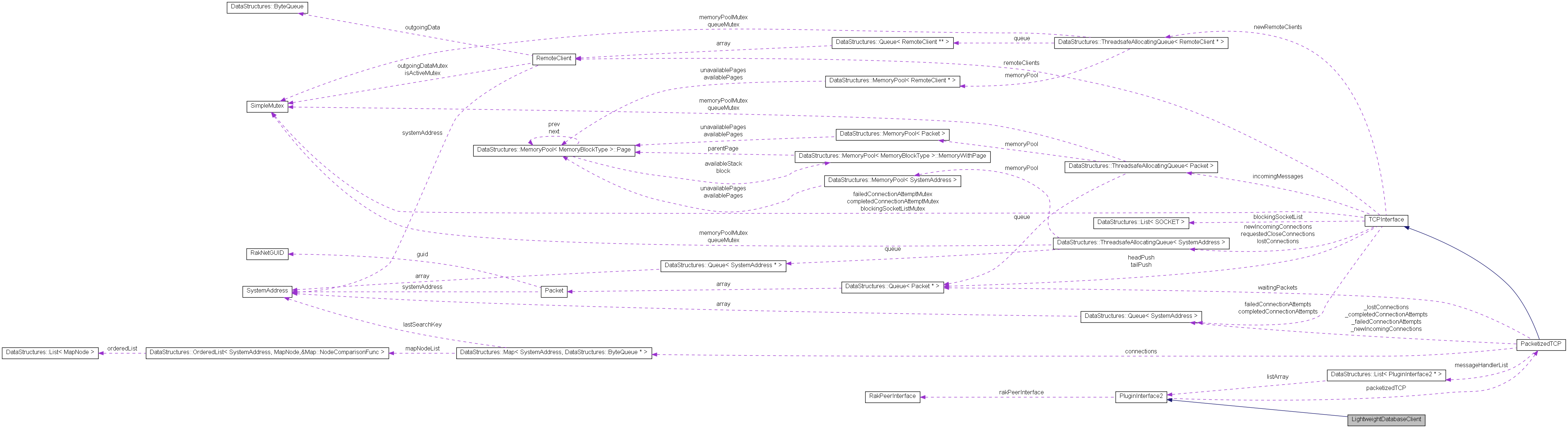

Collaboration diagram for LightweightDatabaseClient:

[legend]

List of all members.

Public Member Functions
	LightweightDatabaseClient ()
virtual	~LightweightDatabaseClient ()
void	QueryTable (const char tableName, const char queryPassword, const char *columnNamesSubset, unsigned char numColumnSubset, DatabaseFilter filter, unsigned char numFilters, unsigned *rowIds, unsigned char numRowIDs, SystemAddress systemAddress, bool broadcast)
void	UpdateRow (const char tableName, const char updatePassword, RowUpdateMode updateMode, bool hasRowId, unsigned rowId, DatabaseCellUpdate *cellUpdates, unsigned char numCellUpdates, SystemAddress systemAddress, bool broadcast)
void	RemoveRow (const char tableName, const char removePassword, unsigned rowId, SystemAddress systemAddress, bool broadcast)

Detailed Description

The client interface to the simple database included with RakNet, useful for a server browser or a lobby server.

Deprecated:: Use RakNet::SQLite3ClientPlugin found at DependentExtensions/SQLite3Plugin/SQLite3ClientPlugin.h

Definition at line 29 of file LightweightDatabaseClient.h.

Constructor & Destructor Documentation

LightweightDatabaseClient::LightweightDatabaseClient ( )

Definition at line 16 of file LightweightDatabaseClient.cpp.

LightweightDatabaseClient::~LightweightDatabaseClient ( ) [virtual]

Definition at line 19 of file LightweightDatabaseClient.cpp.

Member Function Documentation

void LightweightDatabaseClient::QueryTable	(	const char *	tableName,
		const char *	queryPassword,
		const char **	columnNamesSubset,
		unsigned char	numColumnSubset,
		DatabaseFilter *	filter,
		unsigned char	numFilters,
		unsigned *	rowIds,
		unsigned char	numRowIDs,
		SystemAddress	systemAddress,
		bool	broadcast
	)

Sends a query to a remote table. The remote system should return ID_DATABASE_QUERY_REPLY, ID_DATABASE_UNKNOWN_TABLE, or ID_DATABASE_INCORRECT_PASSWORD

Note:: If the remote table uses a password and you send the wrong one you will be silently disconnected and banned for one second.

Parameters:

`[in]`	tableName	String name of the remote table. Case sensitive.
`[in]`	queryPassword	Password to query the remote table, if any.
`[in]`	columnSubset	An array of string names of the columns to query. The resulting table will return the columns in this same order. Pass 0 for all columns.
`[in]`	numColumnSubset	The number of elements in the columnSubset array
`[in]`	filter	Filters to apply to the query. For each row the filters are applied. All filters must be passed for the row to be returned. Pass 0 for no filters.
`[in]`	numFilters	The number of elements in the filter array
`[in]`	rowIds	Which particular rows to return. Pass 0 for all rows.
`[in]`	numRowIDs	The number of elements in the rowIds array
`[in]`	systemAddress	Which system to send to.
`[in]`	broadcast	Broadcast or not. Same as the parameter in RakPeer::Send

Definition at line 23 of file LightweightDatabaseClient.cpp.

Here is the call graph for this function:

void LightweightDatabaseClient::RemoveRow	(	const char *	tableName,
		const char *	removePassword,
		unsigned	rowId,
		SystemAddress	systemAddress,
		bool	broadcast
	)

Removes a remote row, assuming the server allows row removal. No response is returned by the server.

Parameters:

`[in]`	tableName	String name of the remote table. Case sensitive.
`[in]`	removePassword	Password to remove rows from the remote table, if any.
`[in]`	rowId	The rowID of the existing row.
`[in]`	systemAddress	Which system to send to.
`[in]`	broadcast	Broadcast or not. Same as the parameter in RakPeer::Send

Definition at line 63 of file LightweightDatabaseClient.cpp.

Here is the call graph for this function:

void LightweightDatabaseClient::UpdateRow	(	const char *	tableName,
		const char *	updatePassword,
		RowUpdateMode	updateMode,
		bool	hasRowId,
		unsigned	rowId,
		DatabaseCellUpdate *	cellUpdates,
		unsigned char	numCellUpdates,
		SystemAddress	systemAddress,
		bool	broadcast
	)

Sets one or more values in a new or existing row, assuming the server allows row creation and updates. No response is returned by the server.

Parameters:

`[in]`	tableName	String name of the remote table. Case sensitive.
`[in]`	updatePassword	Password to update the remote table, if any.
`[in]`	updateMode	See RowUpdateMode in LightweightDatabaseCommon.h . This determines if to update an existing or new row.
`[in]`	hasRowId	True if a valid value was passed for rowId, false otherwise. If false, will lookup the row by system address. Required if adding a new row and the remote system does not automatically create rowIDs.
`[in]`	rowId	The rowID of the new or existing row.
`[in]`	cellUpdates	An array of DatabaseCellUpdate structures containing the values to write to the remote row.
`[in]`	numCellUpdates	The number of elements in the cellUpdates array
`[in]`	systemAddress	Which system to send to.
`[in]`	broadcast	Broadcast or not. Same as the parameter in RakPeer::Send

Definition at line 87 of file LightweightDatabaseClient.cpp.

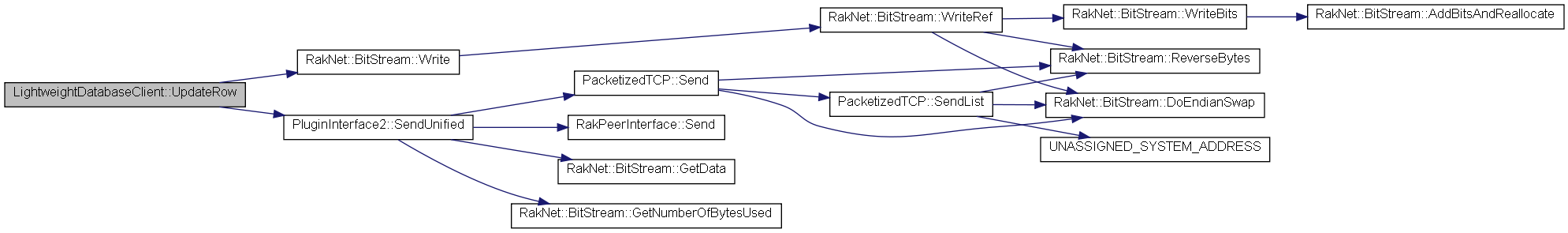

Here is the call graph for this function:

The documentation for this class was generated from the following files:
