Simple class to send changes between directories. In essence, a simple autopatcher that can be used for transmitting levels, skins, etc. More...

#include <DirectoryDeltaTransfer.h>

Inherits PluginInterface2.

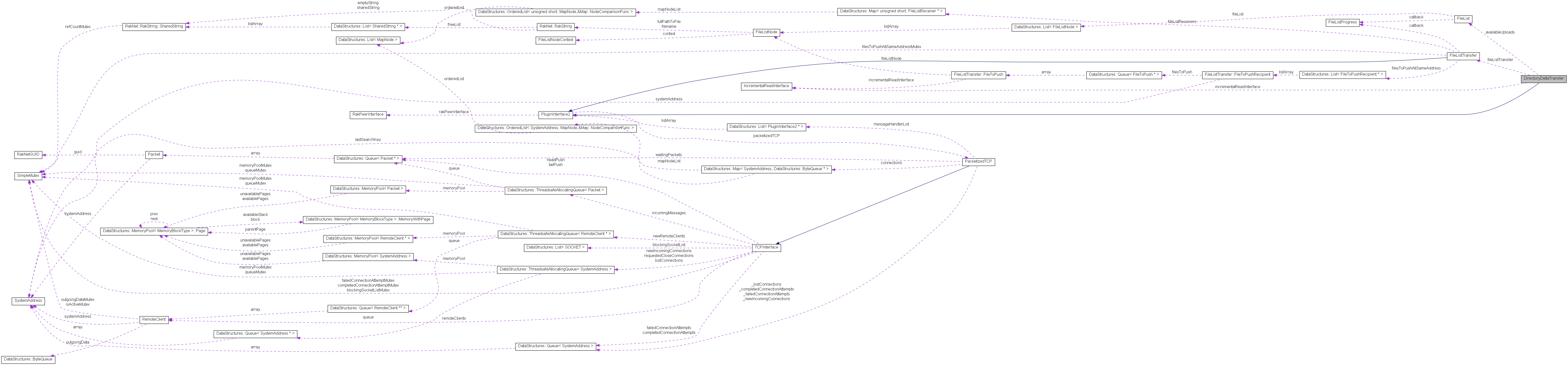

Collaboration diagram for DirectoryDeltaTransfer:

[legend]

List of all members.

Public Member Functions
	DirectoryDeltaTransfer ()
virtual	~DirectoryDeltaTransfer ()
void	SetFileListTransferPlugin (FileListTransfer *flt)
	This plugin has a dependency on the FileListTransfer plugin, which it uses to actually send the files.
void	SetApplicationDirectory (const char *pathToApplication)
	Set the local root directory to base all file uploads and downloads off of.
void	SetUploadSendParameters (PacketPriority _priority, char _orderingChannel)
	What parameters to use for the RakPeerInterface::Send() call when uploading files.
void	AddUploadsFromSubdirectory (const char *subdir)
	Add all files in the specified subdirectory recursively.
unsigned short	DownloadFromSubdirectory (const char subdir, const char outputSubdir, bool prependAppDirToOutputSubdir, SystemAddress host, FileListTransferCBInterface onFileCallback, PacketPriority _priority, char _orderingChannel, FileListProgress cb)
	Downloads files from the matching parameter subdir in AddUploadsFromSubdirectory.
void	ClearUploads (void)
	Clear all allowed uploads previously set with AddUploadsFromSubdirectory.
unsigned	GetNumberOfFilesForUpload (void) const
	Returns how many files are available for upload.
void	SetCompressOutgoingSends (bool compress)
	Set if we should compress outgoing sends or not.
void	SetDownloadRequestIncrementalReadInterface (IncrementalReadInterface *_incrementalReadInterface, unsigned int _chunkSize)
	Normally, if a remote system requests files, those files are all loaded into memory and sent immediately.
virtual PluginReceiveResult	OnReceive (Packet *packet)
Protected Member Functions
void	OnDownloadRequest (Packet *packet)
Protected Attributes
char	applicationDirectory [512]
FileListTransfer *	fileListTransfer
FileList *	availableUploads
PacketPriority	priority
char	orderingChannel
bool	compressOutgoingSends
IncrementalReadInterface *	incrementalReadInterface
unsigned int	chunkSize

Detailed Description

Simple class to send changes between directories. In essence, a simple autopatcher that can be used for transmitting levels, skins, etc.

See also:: AutopatcherClient class for database driven patching, including binary deltas and search by date.

To use, first set the path to your application. For example "C:/Games/MyRPG/"
To allow other systems to download files, call AddUploadsFromSubdirectory, where the parameter is a path relative
to the path to your application. This includes subdirectories.
For example:
SetApplicationDirectory("C:/Games/MyRPG/");
AddUploadsFromSubdirectory("Mods/Skins/");
would allow downloads from
"C:/Games/MyRPG/Mods/Skins/*.*" as well as "C:/Games/MyRPG/Mods/Skins/Level1/*.*"
It would NOT allow downloads from C:/Games/MyRPG/Levels, nor would it allow downloads from C:/Windows
While pathToApplication can be anything you want, applicationSubdirectory must match either partially or fully between systems.

Definition at line 53 of file DirectoryDeltaTransfer.h.

Constructor & Destructor Documentation

DirectoryDeltaTransfer::DirectoryDeltaTransfer ( )

Definition at line 65 of file DirectoryDeltaTransfer.cpp.

DirectoryDeltaTransfer::~DirectoryDeltaTransfer ( ) [virtual]

Definition at line 75 of file DirectoryDeltaTransfer.cpp.

Here is the call graph for this function:

Member Function Documentation

void DirectoryDeltaTransfer::AddUploadsFromSubdirectory ( const char * subdir )

Add all files in the specified subdirectory recursively.

subdir is appended to pathToApplication in SetApplicationDirectory(). All files in the resultant directory and subdirectories are then hashed so that users can download them.

Precondition:: You must call SetFileListTransferPlugin with a valid FileListTransfer plugin

Parameters:

[in] subdir Concatenated with pathToApplication to form the final path from which to allow uploads.

Definition at line 104 of file DirectoryDeltaTransfer.cpp.

Here is the call graph for this function:

void DirectoryDeltaTransfer::ClearUploads ( void )

Clear all allowed uploads previously set with AddUploadsFromSubdirectory.

Definition at line 154 of file DirectoryDeltaTransfer.cpp.

Here is the call graph for this function:

unsigned short DirectoryDeltaTransfer::DownloadFromSubdirectory	(	const char *	subdir,
		const char *	outputSubdir,
		bool	prependAppDirToOutputSubdir,
		SystemAddress	host,
		FileListTransferCBInterface *	onFileCallback,
		PacketPriority	_priority,
		char	_orderingChannel,
		FileListProgress *	cb
	)

Downloads files from the matching parameter subdir in AddUploadsFromSubdirectory.

subdir must contain all starting characters in subdir in AddUploadsFromSubdirectory Therefore, AddUploadsFromSubdirectory("Levels/Level1/"); would allow you to download using DownloadFromSubdirectory("Levels/Level1/Textures/"... but it would NOT allow you to download from DownloadFromSubdirectory("Levels/"... or DownloadFromSubdirectory("Levels/Level2/"...

Precondition:: You must call SetFileListTransferPlugin with a valid FileListTransfer plugin

Parameters:

`[in]`	subdir	A directory passed to AddUploadsFromSubdirectory on the remote system. The passed dir can be more specific than the remote dir.
`[in]`	outputSubdir	The directory to write the output to. Usually this will match subdir but it can be different if you want.
`[in]`	prependAppDirToOutputSubdir	True to prepend outputSubdir with pathToApplication when determining the final output path. Usually you want this to be true.
`[in]`	host	The address of the remote system to send the message to.
`[in]`	onFileCallback	Callback to call per-file (optional). When fileIndex+1==setCount in the callback then the download is done
`[in]`	_priority	See RakPeerInterface::Send()
`[in]`	_orderingChannel	See RakPeerInterface::Send()
`[in]`	cb	Callback to get progress updates. Pass 0 to not use.

Returns:: A set ID, identifying this download set. Returns 65535 on host unreachable.

Definition at line 108 of file DirectoryDeltaTransfer.cpp.

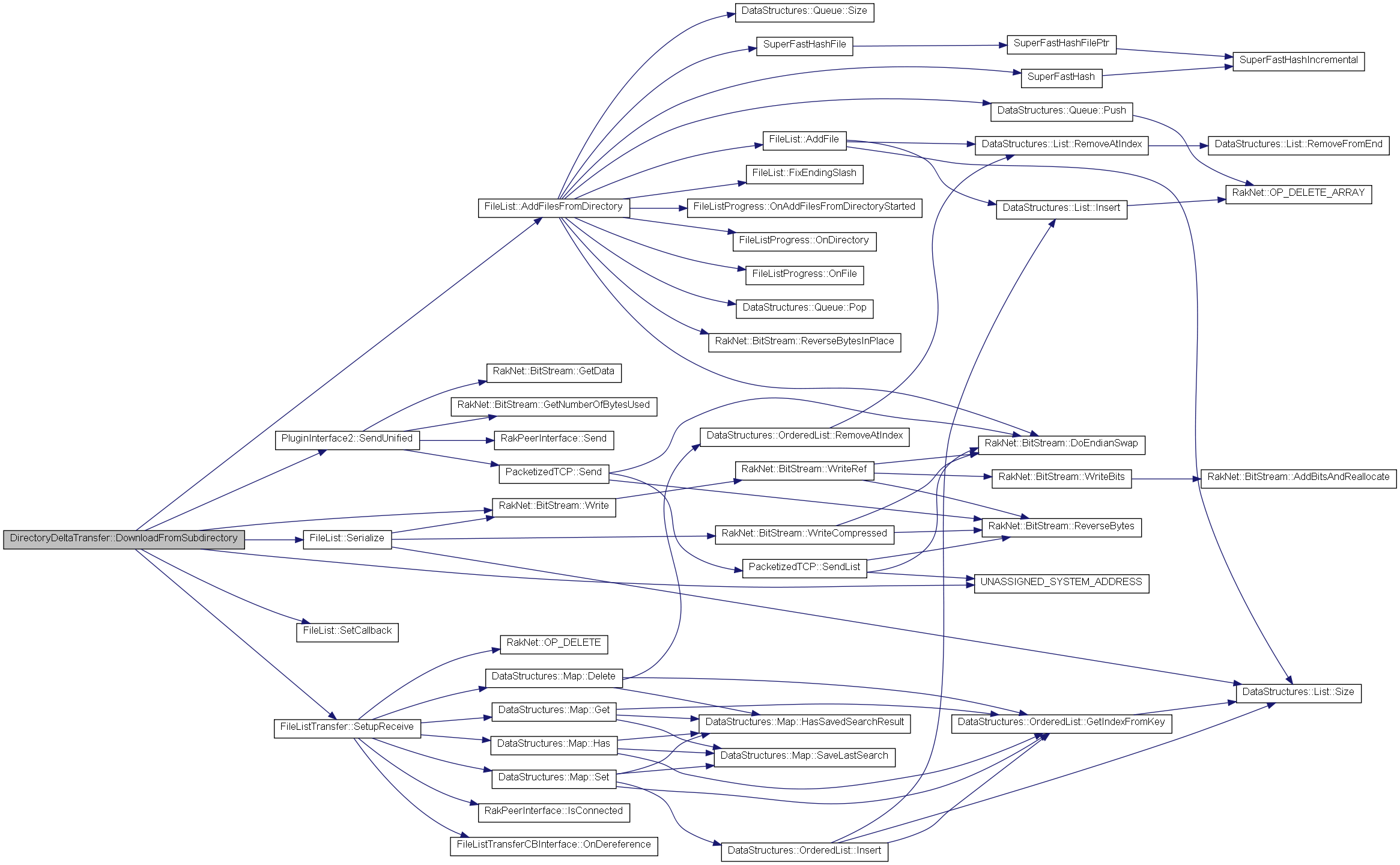

Here is the call graph for this function:

unsigned DirectoryDeltaTransfer::GetNumberOfFilesForUpload ( void ) const

Returns how many files are available for upload.

Returns:: How many files are available for upload

Definition at line 199 of file DirectoryDeltaTransfer.cpp.

Here is the call graph for this function:

void DirectoryDeltaTransfer::OnDownloadRequest ( Packet * packet ) [protected]

Definition at line 158 of file DirectoryDeltaTransfer.cpp.

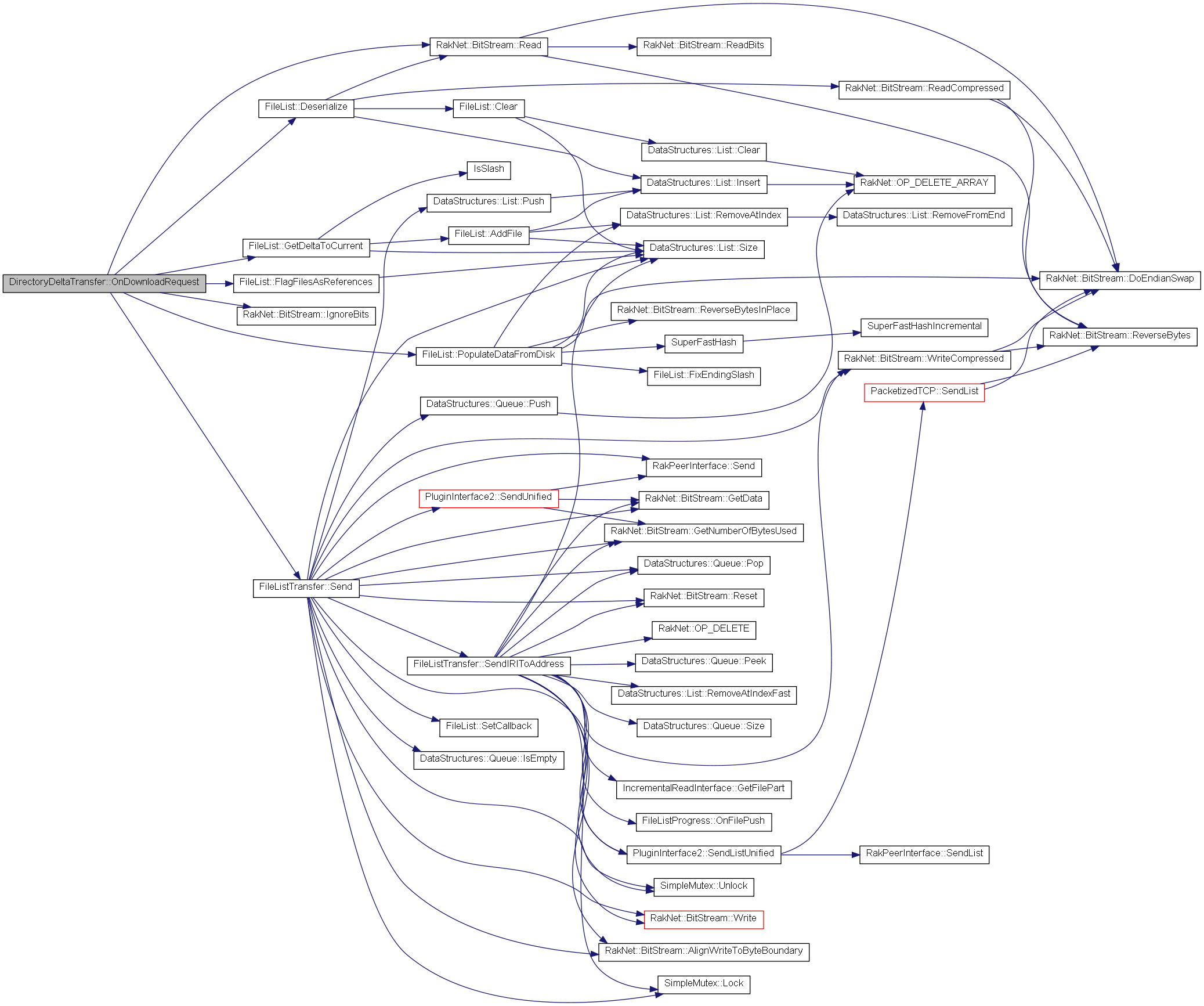

Here is the call graph for this function:

Here is the caller graph for this function:

PluginReceiveResult DirectoryDeltaTransfer::OnReceive ( Packet * packet ) [virtual]

OnReceive is called for every packet.

Parameters:

[in] packet the packet that is being returned to the user

Returns:: True to allow the game and other plugins to get this message, false to absorb it

Reimplemented from PluginInterface2.

Definition at line 187 of file DirectoryDeltaTransfer.cpp.

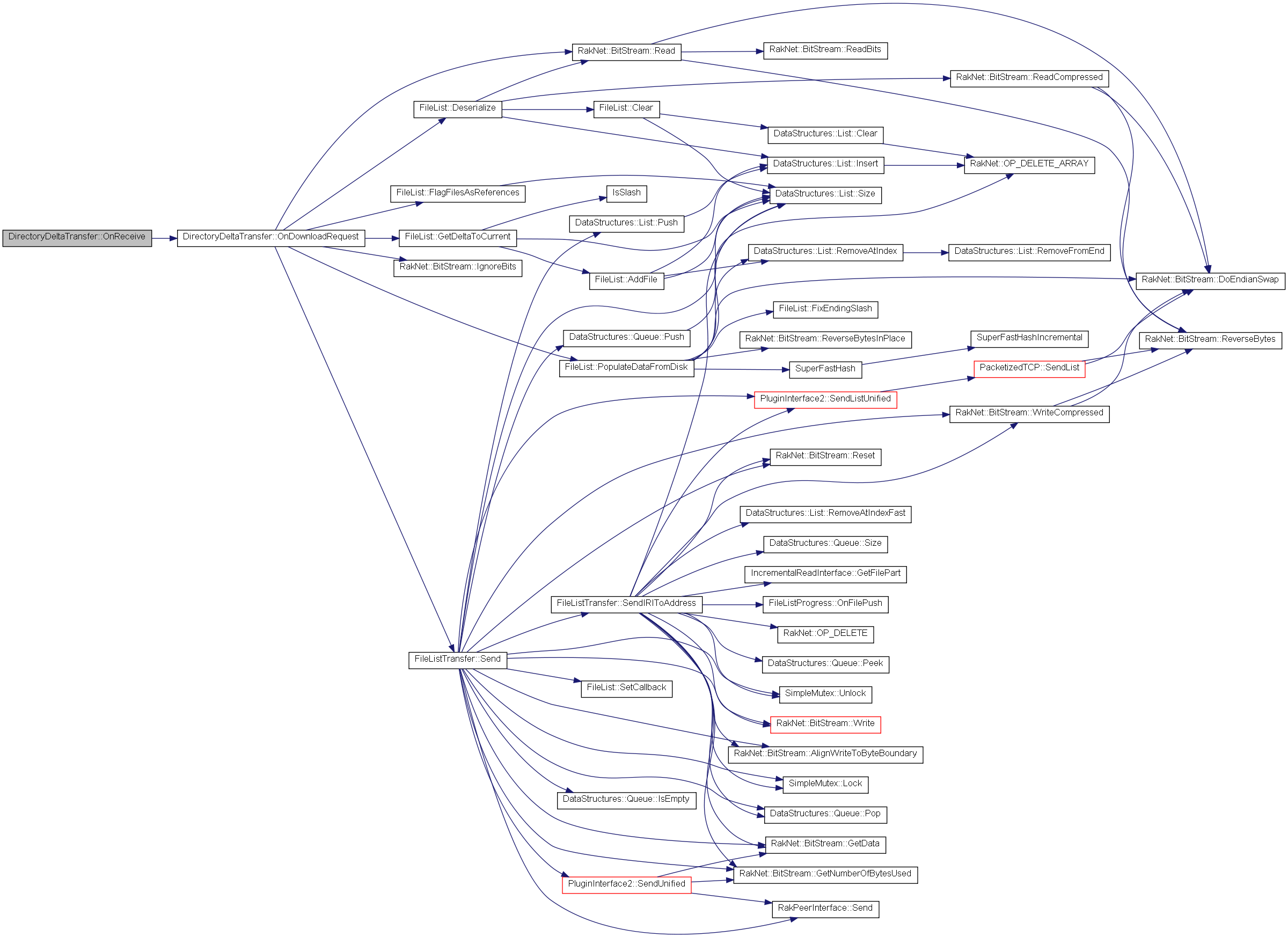

Here is the call graph for this function:

void DirectoryDeltaTransfer::SetApplicationDirectory ( const char * pathToApplication )

Set the local root directory to base all file uploads and downloads off of.

Parameters:

[in] pathToApplication This path will be prepended to applicationSubdirectory in AddUploadsFromSubdirectory to find the actual path on disk.

Definition at line 87 of file DirectoryDeltaTransfer.cpp.

void DirectoryDeltaTransfer::SetCompressOutgoingSends ( bool compress )

Set if we should compress outgoing sends or not.

Defaults to false, because this results in a noticeable freeze on large requests. You can set this to true if you only send small files though

Parameters:

[in] compress True to compress, false to not.

Definition at line 203 of file DirectoryDeltaTransfer.cpp.

void DirectoryDeltaTransfer::SetDownloadRequestIncrementalReadInterface	(	IncrementalReadInterface *	_incrementalReadInterface,
		unsigned int	_chunkSize
	)

Normally, if a remote system requests files, those files are all loaded into memory and sent immediately.

This function allows the files to be read in incremental chunks, saving memory

Parameters:

`[in]`	_incrementalReadInterface	If a file in fileList has no data, filePullInterface will be used to read the file in chunks of size chunkSize
`[in]`	_chunkSize	How large of a block of a file to send at once
