A plugin to provide a simple way to compress and incrementally send the files in the FileList structure. More...

#include <FileListTransfer.h>

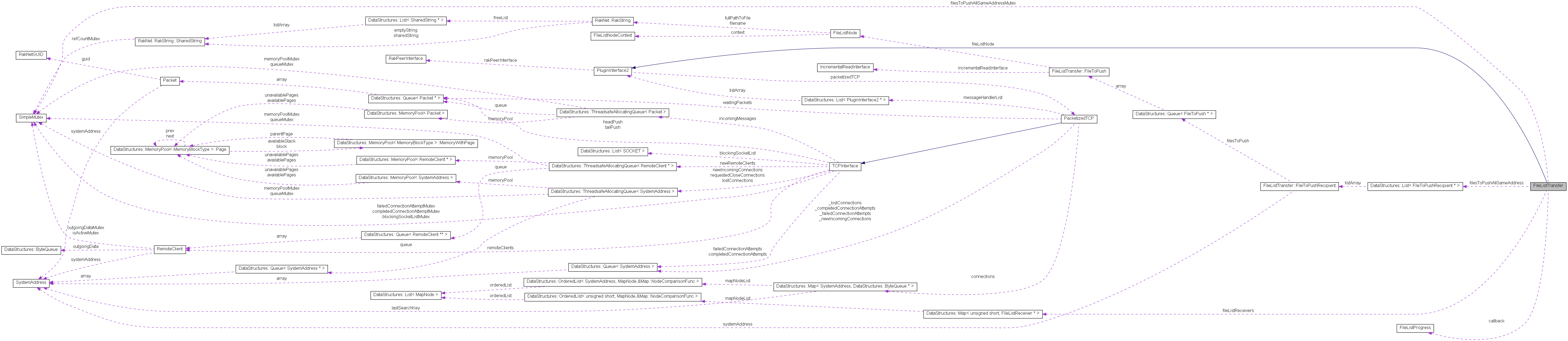

Collaboration diagram for FileListTransfer:

[legend]

Classes
struct	FileToPush
struct	FileToPushRecipient
Public Member Functions
	FileListTransfer ()
virtual	~FileListTransfer ()
unsigned short	SetupReceive (FileListTransferCBInterface *handler, bool deleteHandler, SystemAddress allowedSender)
	Allows one corresponding Send() call from another system to arrive.
void	Send (FileList fileList, RakPeerInterface rakPeer, SystemAddress recipient, unsigned short setID, PacketPriority priority, char orderingChannel, bool compressData, IncrementalReadInterface _incrementalReadInterface=0, unsigned int _chunkSize=262144 4 *16)
	Send the FileList structure to another system, which must have previously called SetupReceive().
unsigned int	GetPendingFilesToAddress (SystemAddress recipient)
	Return number of files waiting to go out to a particular address.
void	CancelReceive (unsigned short setId)
	Stop a download.
void	RemoveReceiver (SystemAddress systemAddress)
	Remove all handlers associated with a particular system address.
bool	IsHandlerActive (unsigned short setId)
	Is a handler passed to SetupReceive still running?
void	SetCallback (FileListProgress *cb)
	Set a callback to get progress reports about what the file list instances do.
FileListProgress *	GetCallback (void) const
virtual PluginReceiveResult	OnReceive (Packet *packet)
virtual void	OnRakPeerShutdown (void)
	Called when RakPeer is shutdown.
virtual void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
virtual void	Update (void)

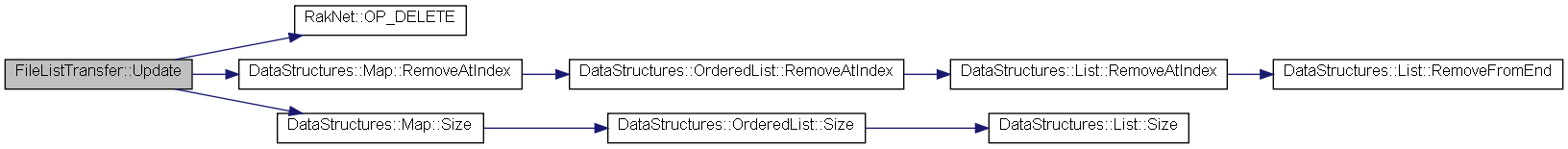

	Update is called every time a packet is checked for .
Protected Member Functions
bool	DecodeSetHeader (Packet *packet)
bool	DecodeFile (Packet *packet, bool fullFile)
void	Clear (void)
void	OnReferencePush (Packet *packet, bool fullFile)
void	OnReferencePushAck (Packet *packet)
void	SendIRIToAddress (SystemAddress systemAddress)
Protected Attributes
DataStructures::Map< unsigned short, FileListReceiver * >	fileListReceivers
unsigned short	setId
FileListProgress *	callback
DataStructures::List < FileToPushRecipient * >	filesToPushAllSameAddress
SimpleMutex	filesToPushAllSameAddressMutex

Detailed Description

A plugin to provide a simple way to compress and incrementally send the files in the FileList structure.

Similar to the DirectoryDeltaTransfer plugin, except that it doesn't send deltas based on pre-existing files or actually write the files to disk.

Usage: Call SetupReceive to allow one file set to arrive. The value returned by FileListTransfer::SetupReceive() is the setID that is allowed. It's up to you to transmit this value to the other system, along with information indicating what kind of files you want to get. The other system should then prepare a FileList and call FileListTransfer::Send(), passing the return value of FileListTransfer::SetupReceive() as the setID parameter to FileListTransfer::Send()

Definition at line 45 of file FileListTransfer.h.

Constructor & Destructor Documentation

FileListTransfer::FileListTransfer ( )

Definition at line 56 of file FileListTransfer.cpp.

FileListTransfer::~FileListTransfer ( ) [virtual]

Definition at line 62 of file FileListTransfer.cpp.

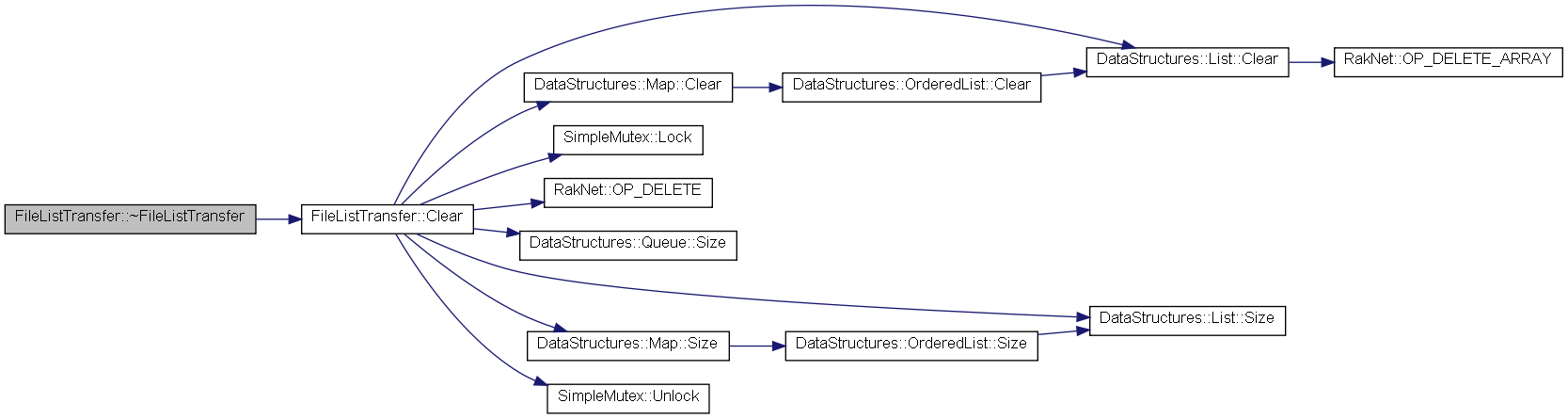

Here is the call graph for this function:

Member Function Documentation

void FileListTransfer::CancelReceive ( unsigned short setId )

Stop a download.

Definition at line 477 of file FileListTransfer.cpp.

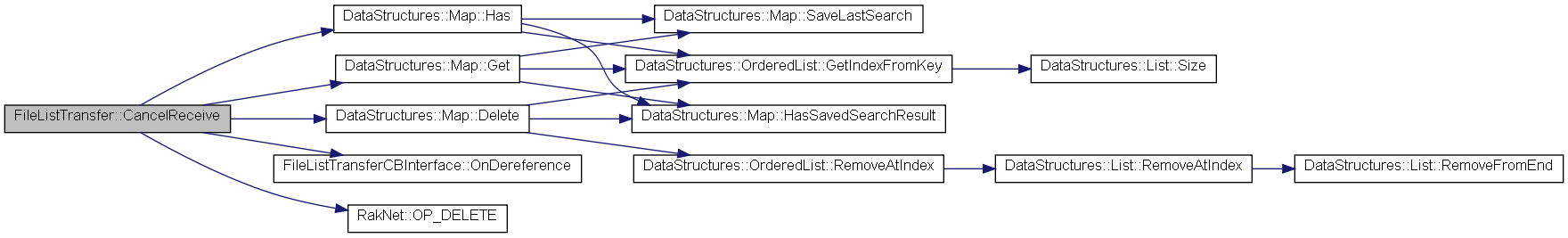

Here is the call graph for this function:

void FileListTransfer::Clear ( void ) [protected]

Definition at line 445 of file FileListTransfer.cpp.

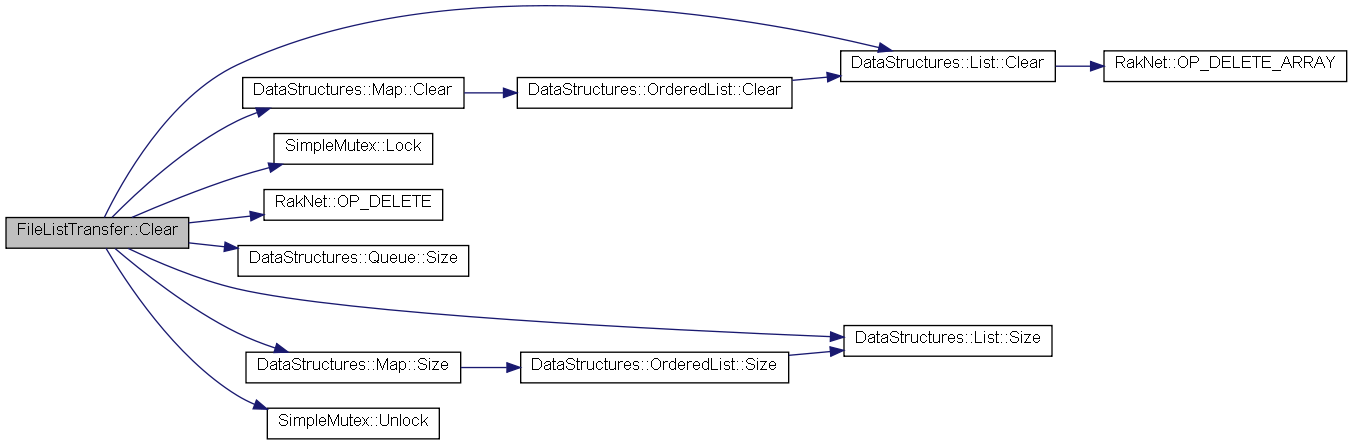

Here is the call graph for this function:

Here is the caller graph for this function:

bool FileListTransfer::DecodeFile	(	Packet *	packet,
		bool	fullFile
	)			`[protected]`

Definition at line 270 of file FileListTransfer.cpp.

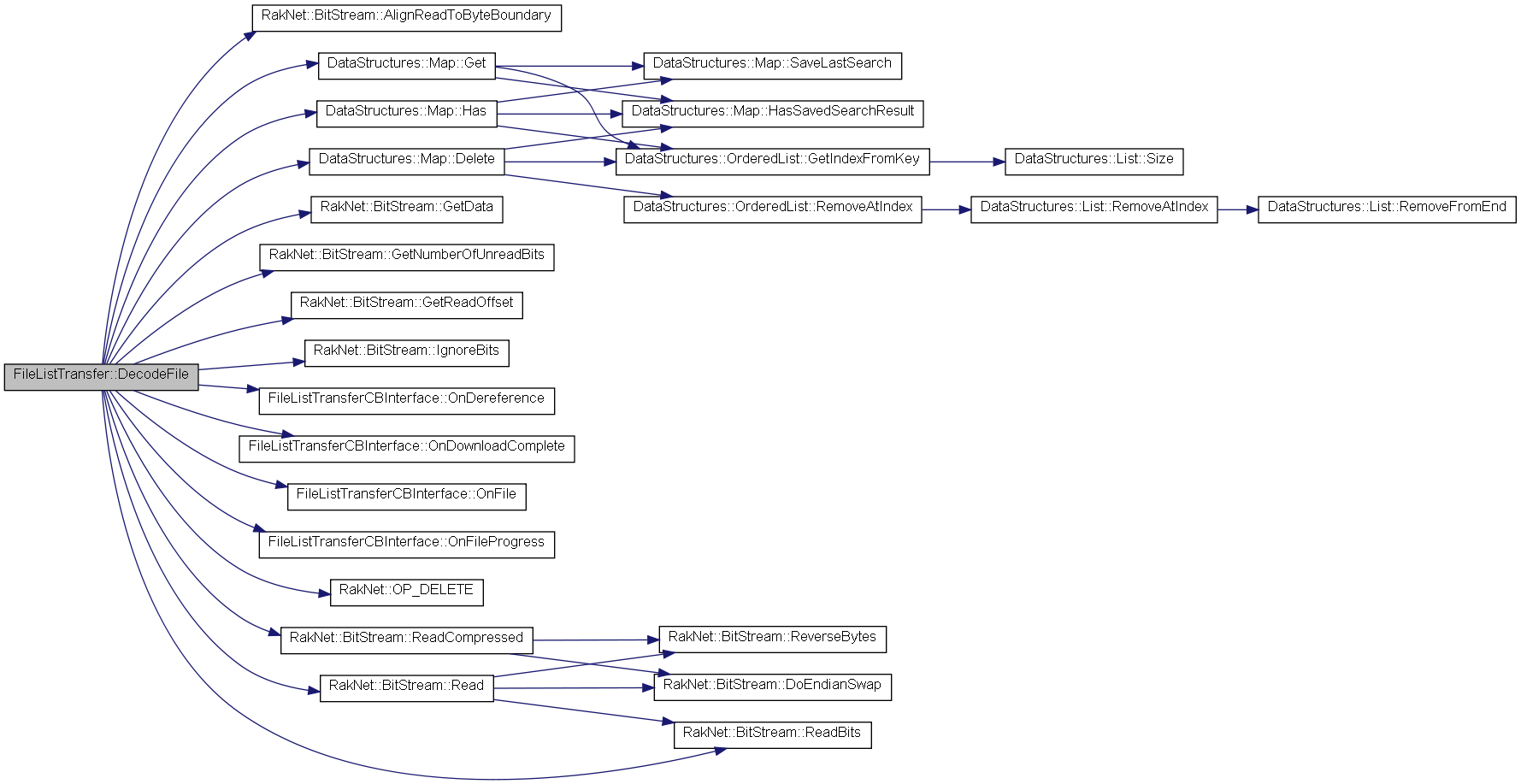

Here is the call graph for this function:

Here is the caller graph for this function:

bool FileListTransfer::DecodeSetHeader ( Packet * packet ) [protected]

Definition at line 212 of file FileListTransfer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

FileListProgress * FileListTransfer::GetCallback ( void ) const

Returns:: what was sent to SetCallback; What was sent to SetCallback

Definition at line 549 of file FileListTransfer.cpp.

Here is the caller graph for this function:

unsigned int FileListTransfer::GetPendingFilesToAddress ( SystemAddress recipient )

Return number of files waiting to go out to a particular address.

Definition at line 898 of file FileListTransfer.cpp.

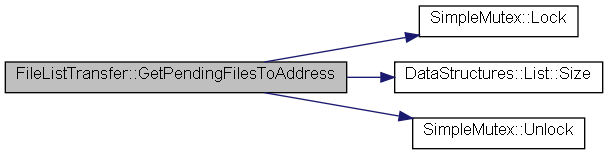

Here is the call graph for this function:

bool FileListTransfer::IsHandlerActive ( unsigned short setId )

Is a handler passed to SetupReceive still running?

Definition at line 541 of file FileListTransfer.cpp.

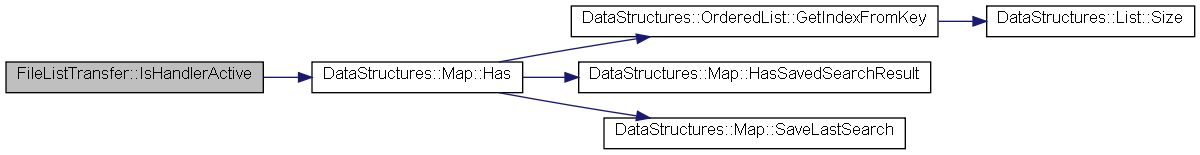

Here is the call graph for this function:

void FileListTransfer::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			`[virtual]`

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

`[in]`	systemAddress	The system whose connection was closed
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented from PluginInterface2.

Definition at line 470 of file FileListTransfer.cpp.

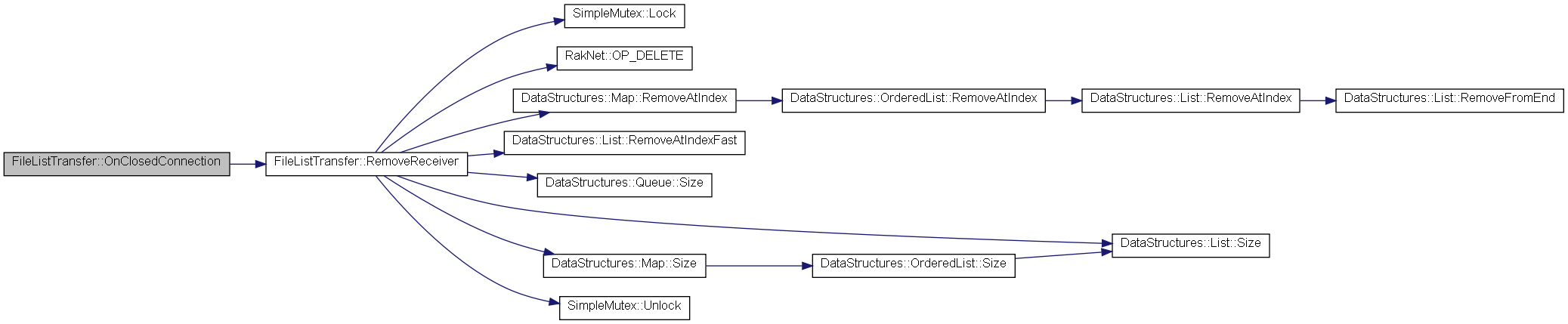

Here is the call graph for this function:

void FileListTransfer::OnRakPeerShutdown ( void ) [virtual]

Called when RakPeer is shutdown.

Reimplemented from PluginInterface2.

Definition at line 441 of file FileListTransfer.cpp.

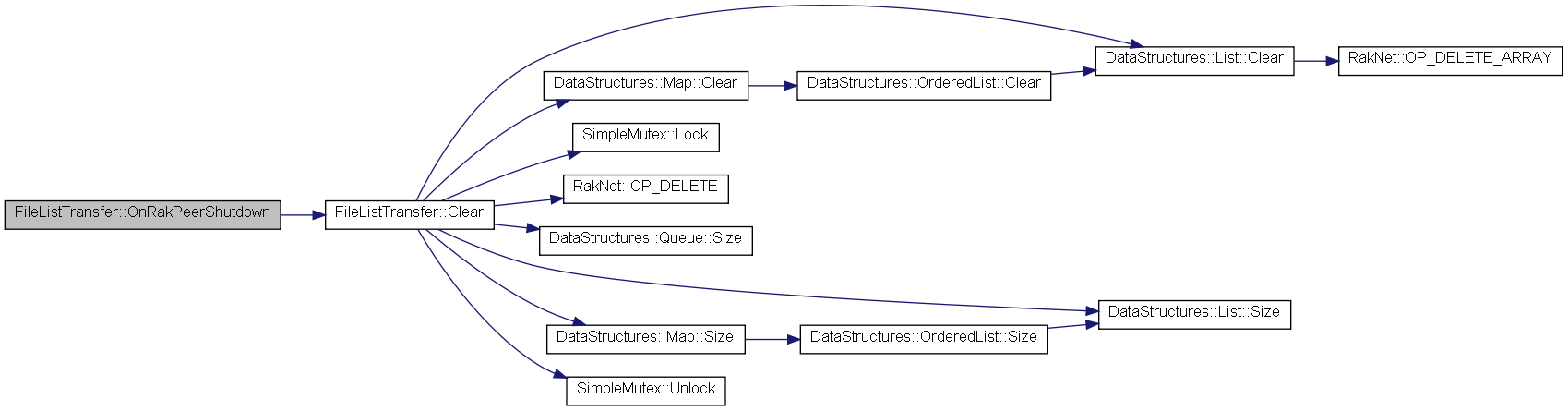

Here is the call graph for this function:

PluginReceiveResult FileListTransfer::OnReceive ( Packet * packet ) [virtual]

OnReceive is called for every packet.

Parameters:

[in] packet the packet that is being returned to the user

Returns:: True to allow the game and other plugins to get this message, false to absorb it

Reimplemented from PluginInterface2.

Definition at line 406 of file FileListTransfer.cpp.

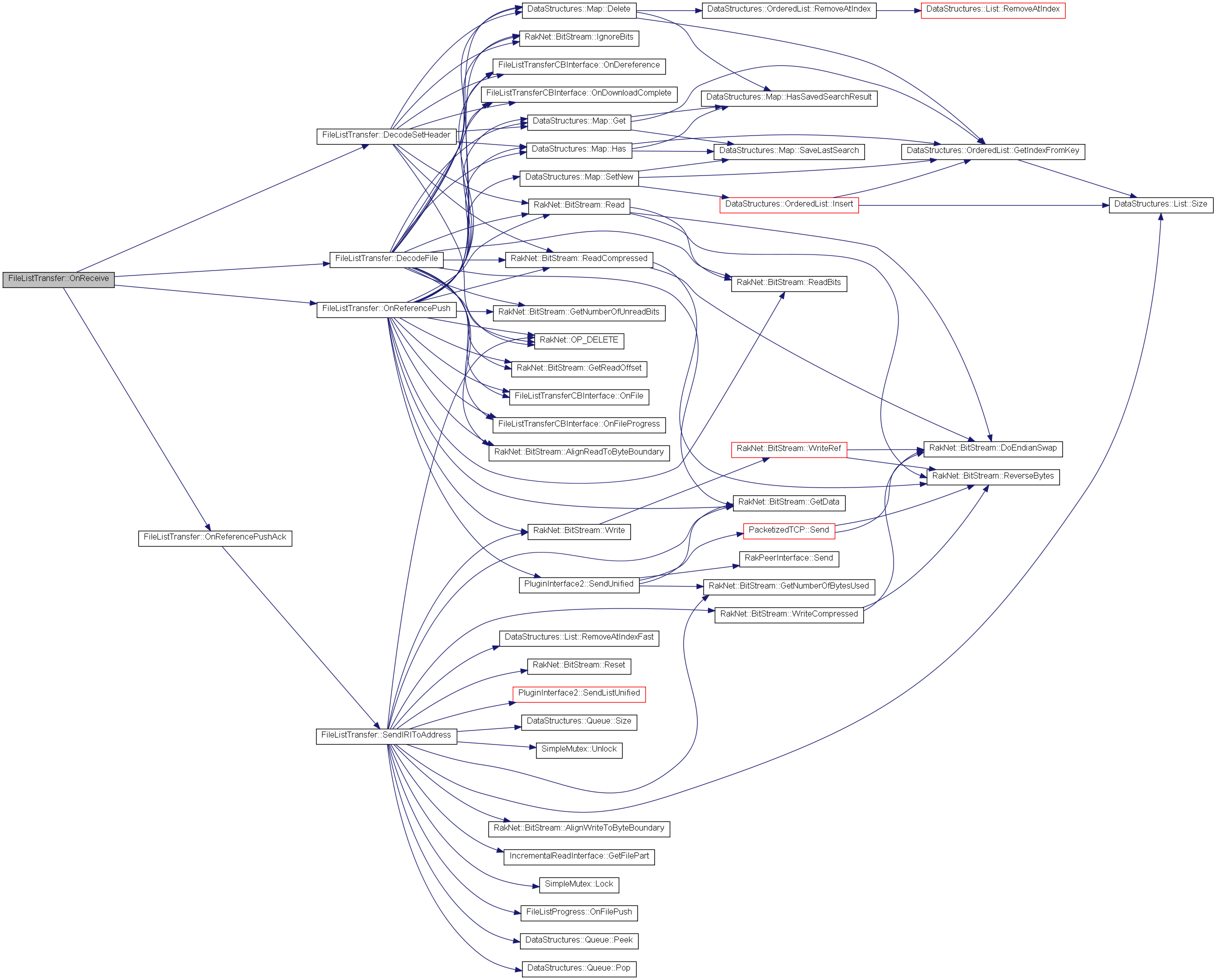

Here is the call graph for this function:

void FileListTransfer::OnReferencePush	(	Packet *	packet,
		bool	fullFile
	)			`[protected]`

Definition at line 571 of file FileListTransfer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void FileListTransfer::OnReferencePushAck ( Packet * packet ) [protected]

Definition at line 894 of file FileListTransfer.cpp.

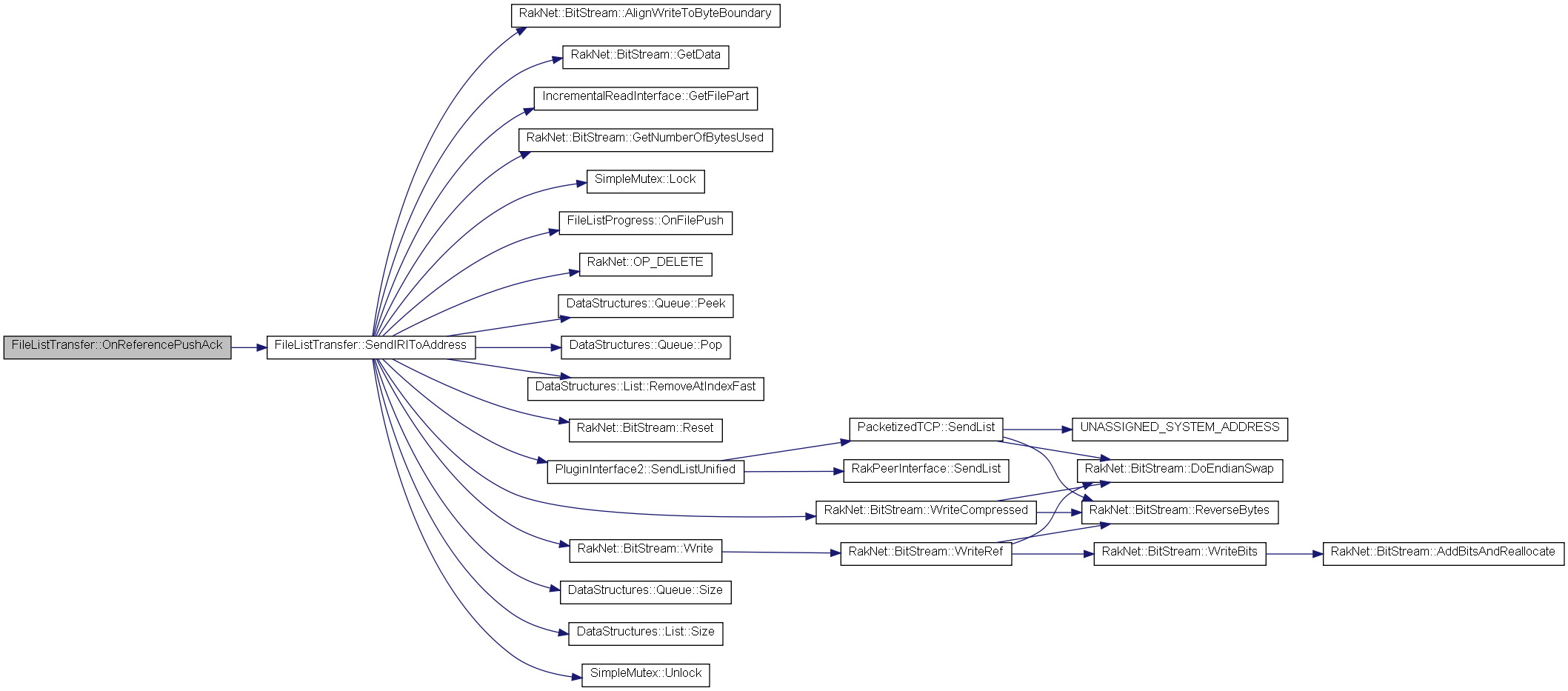

Here is the call graph for this function:

Here is the caller graph for this function:

void FileListTransfer::RemoveReceiver ( SystemAddress systemAddress )

Remove all handlers associated with a particular system address.

Definition at line 493 of file FileListTransfer.cpp.

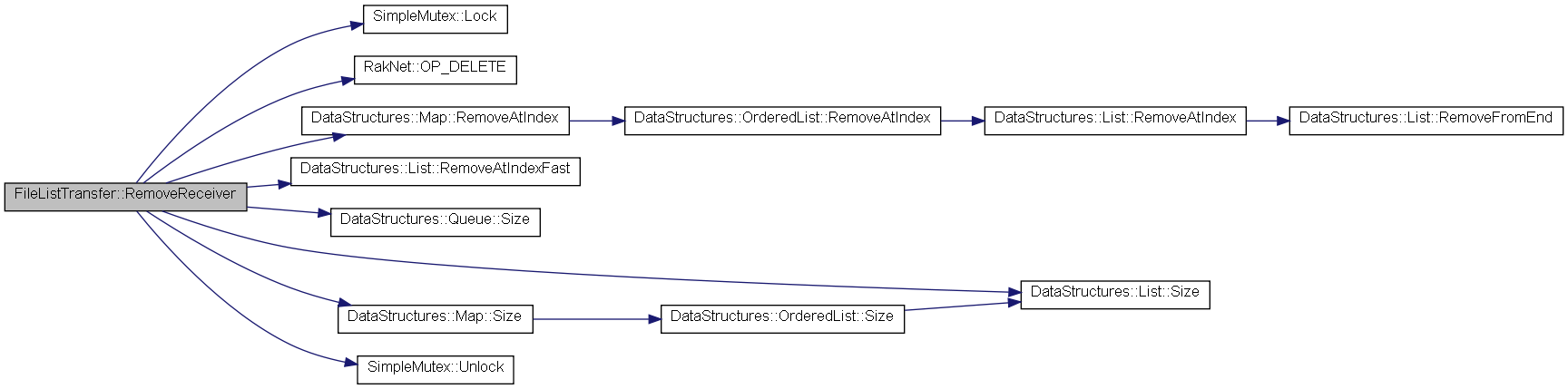

Here is the call graph for this function:

Here is the caller graph for this function:

void FileListTransfer::Send	(	FileList *	fileList,
		RakPeerInterface *	rakPeer,
		SystemAddress	recipient,
		unsigned short	setID,
		PacketPriority	priority,
		char	orderingChannel,
		bool	compressData,
		IncrementalReadInterface *	_incrementalReadInterface = `0`,
		unsigned int	_chunkSize = `262144416`
	)

Send the FileList structure to another system, which must have previously called SetupReceive().

Parameters:

`[in]`	fileList	A list of files. The data contained in FileList::data will be sent incrementally and compressed among all files in the set
`[in]`	rakPeer	The instance of RakNet to use to send the message. Pass 0 to use the instance the plugin is attached to
`[in]`	recipient	The address of the system to send to
`[in]`	setID	The return value of SetupReceive() which was previously called on recipient
`[in]`	priority	Passed to RakPeerInterface::Send()
`[in]`	orderingChannel	Passed to RakPeerInterface::Send()
`[in]`	compressData	deprecated, unsupported
`[in]`	_incrementalReadInterface	If a file in fileList has no data, filePullInterface will be used to read the file in chunks of size chunkSize
`[in]`	_chunkSize	How large of a block of a file to send at once

Definition at line 96 of file FileListTransfer.cpp.

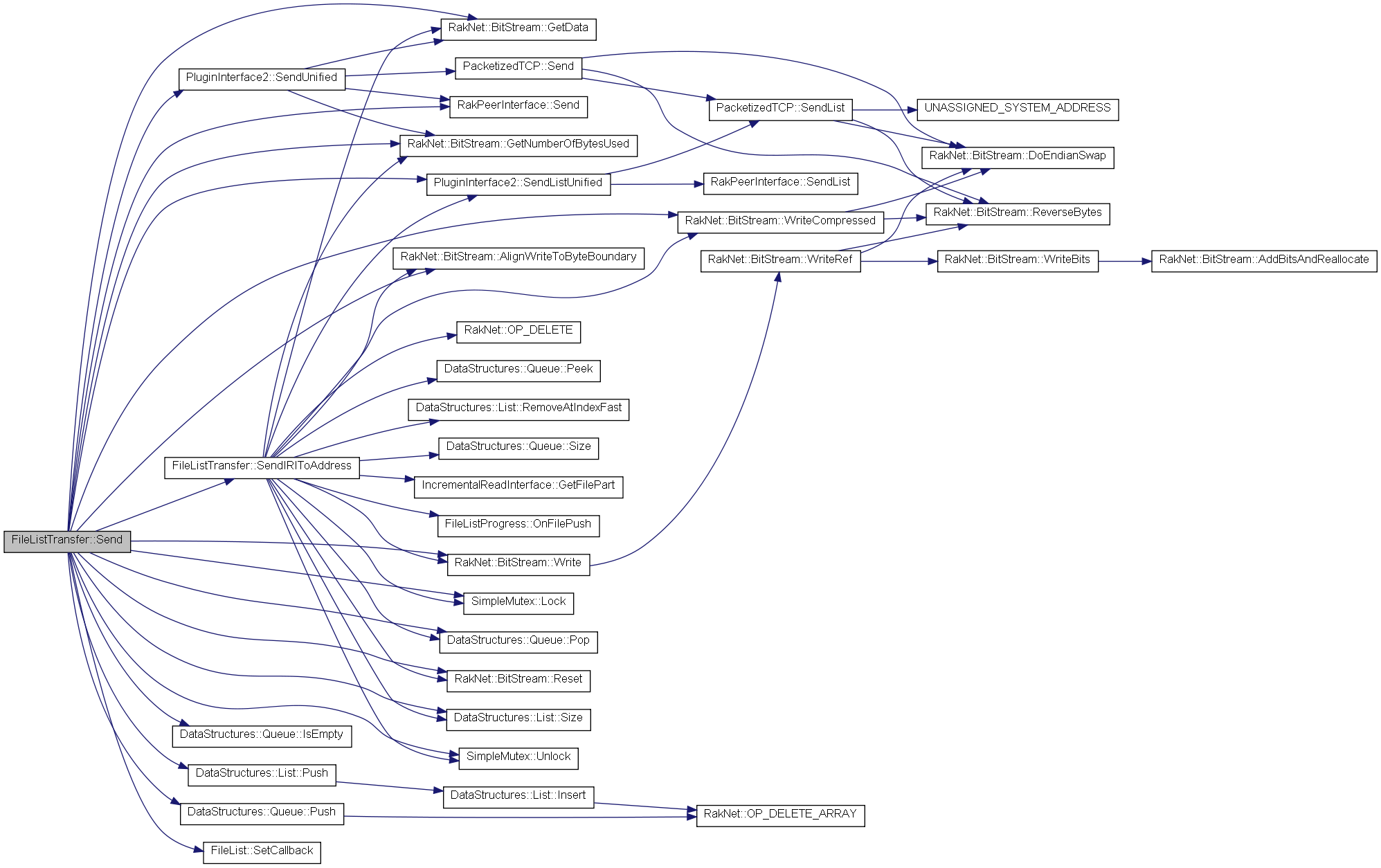

Here is the call graph for this function:

Here is the caller graph for this function:

void FileListTransfer::SendIRIToAddress ( SystemAddress systemAddress ) [protected]

Definition at line 791 of file FileListTransfer.cpp.

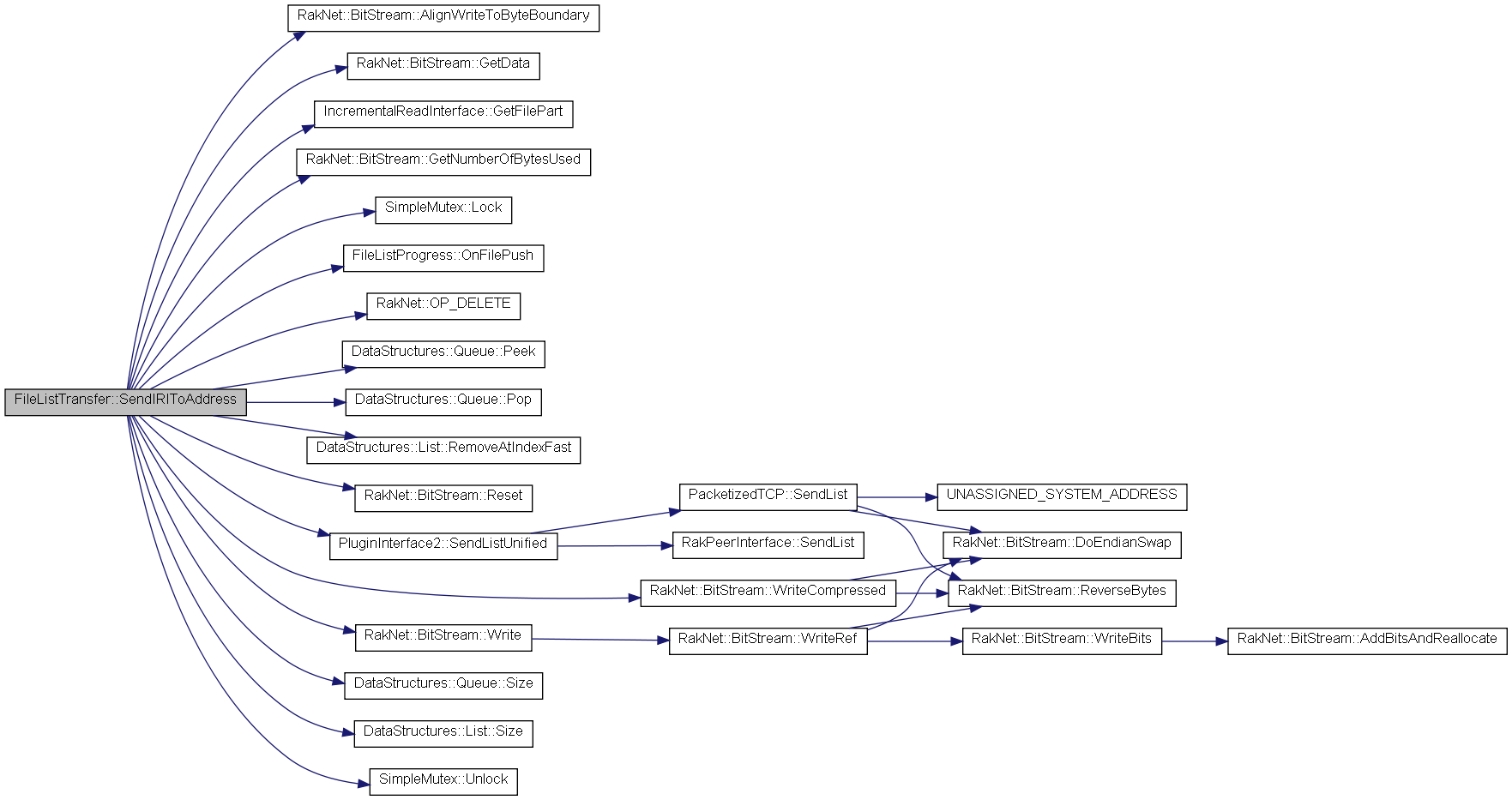

Here is the call graph for this function:

Here is the caller graph for this function:

void FileListTransfer::SetCallback ( FileListProgress * cb )

Set a callback to get progress reports about what the file list instances do.

Parameters:

[in] cb A pointer to an externally defined instance of FileListProgress. This pointer is held internally, so should remain valid as long as this class is valid.

Definition at line 545 of file FileListTransfer.cpp.

unsigned short FileListTransfer::SetupReceive	(	FileListTransferCBInterface *	handler,
		bool	deleteHandler,
		SystemAddress	allowedSender
	)

Allows one corresponding Send() call from another system to arrive.

Parameters:

`[in]`	handler	The class to call on each file
`[in]`	deleteHandler	True to delete the handler when it is no longer needed. False to not do so.
`[in]`	allowedSender	Which system to allow files from.

Returns:: A set ID value, which should be passed as the setID value to the Send() call on the other system. This value will be returned in the callback and is unique per file set. Returns 65535 on failure (not connected to sender)

Definition at line 66 of file FileListTransfer.cpp.

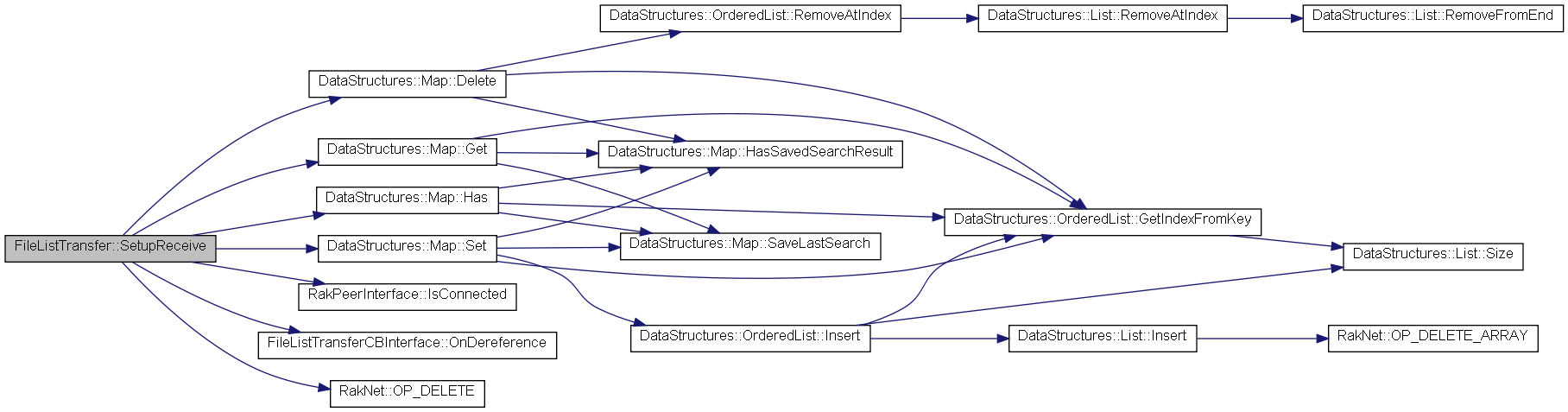

Here is the call graph for this function:
