Assigns systems to FilterSets. Each FilterSet limits what kinds of messages are allowed. More...

#include <MessageFilter.h>

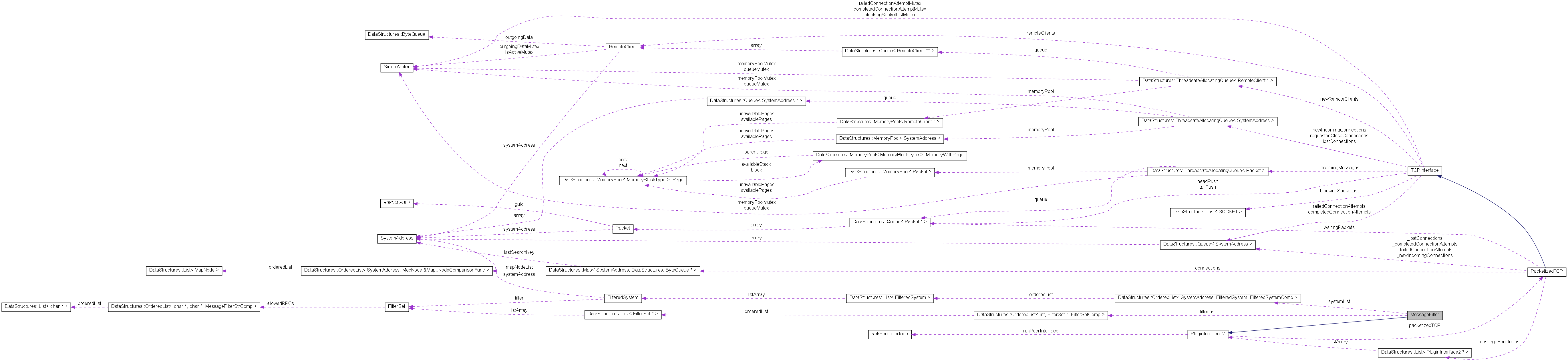

Collaboration diagram for MessageFilter:

[legend]

Public Member Functions
	MessageFilter ()
virtual	~MessageFilter ()
void	SetAutoAddNewConnectionsToFilter (int filterSetID)
void	SetAllowMessageID (bool allow, int messageIDStart, int messageIDEnd, int filterSetID)
void	SetAllowRPC (bool allow, const char *functionName, int filterSetID)
void	SetActionOnDisallowedMessage (bool kickOnDisallowed, bool banOnDisallowed, RakNetTime banTimeMS, int filterSetID)
void	SetDisallowedMessageCallback (int filterSetID, void userData, void(invalidMessageCallback)(RakPeerInterface peer, SystemAddress systemAddress, int filterSetID, void userData, unsigned char messageID))
void	SetTimeoutCallback (int filterSetID, void userData, void(invalidMessageCallback)(RakPeerInterface peer, SystemAddress systemAddress, int filterSetID, void userData))
void	SetFilterMaxTime (int allowedTimeMS, bool banOnExceed, RakNetTime banTimeMS, int filterSetID)
int	GetSystemFilterSet (SystemAddress systemAddress)
void	SetSystemFilterSet (SystemAddress systemAddress, int filterSetID)
unsigned	GetSystemCount (int filterSetID) const
SystemAddress	GetSystemByIndex (int filterSetID, unsigned index)
unsigned	GetFilterSetCount (void) const
int	GetFilterSetIDByIndex (unsigned index)
void	DeleteFilterSet (int filterSetID)
virtual void	Update (void)
	Update is called every time a packet is checked for .
virtual PluginReceiveResult	OnReceive (Packet *packet)
virtual void	OnNewConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, bool isIncoming)
virtual void	OnClosedConnection (SystemAddress systemAddress, RakNetGUID rakNetGUID, PI2_LostConnectionReason lostConnectionReason)
Protected Member Functions
void	Clear (void)
void	DeallocateFilterSet (FilterSet *filterSet)
FilterSet *	GetFilterSetByID (int filterSetID)
void	OnInvalidMessage (FilterSet *filterSet, SystemAddress systemAddress, unsigned char messageID)
Protected Attributes
DataStructures::OrderedList < int, FilterSet *, FilterSetComp >	filterList
DataStructures::OrderedList < SystemAddress, FilteredSystem, FilteredSystemComp >	systemList
int	autoAddNewConnectionsToFilter

Detailed Description

Assigns systems to FilterSets. Each FilterSet limits what kinds of messages are allowed.

The MessageFilter plugin is used for security where you limit what systems can send what kind of messages.
You implicitly define FilterSets, and add allowed message IDs and RPC calls to these FilterSets.
You then add systems to these filters, such that those systems are limited to sending what the filters allows.
You can automatically assign systems to a filter.
You can automatically kick and possibly ban users that stay in a filter too long, or send the wrong message.
Each system is a member of either zero or one filters.
Add this plugin before any plugin you wish to filter (most likely just add this plugin before any other).

Definition at line 72 of file MessageFilter.h.

Constructor & Destructor Documentation

MessageFilter::MessageFilter ( )

Definition at line 39 of file MessageFilter.cpp.

MessageFilter::~MessageFilter ( ) [virtual]

Definition at line 43 of file MessageFilter.cpp.

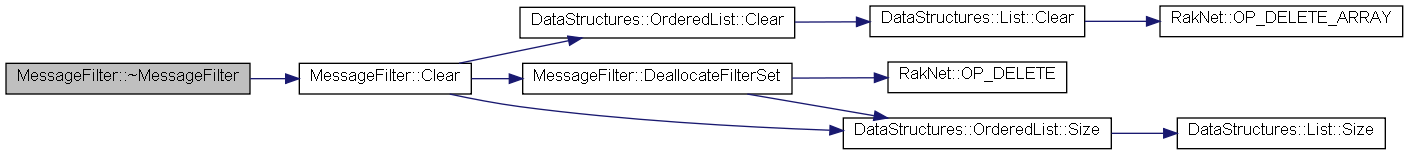

Here is the call graph for this function:

Member Function Documentation

void MessageFilter::Clear ( void ) [protected]

Definition at line 203 of file MessageFilter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MessageFilter::DeallocateFilterSet ( FilterSet * filterSet ) [protected]

Definition at line 211 of file MessageFilter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MessageFilter::DeleteFilterSet ( int filterSetID )

Delete a FilterSet. All systems formerly subscribed to this filter are now unrestricted.

Parameters:

[in] filterSetID The ID of the filter set to delete.

Definition at line 180 of file MessageFilter.cpp.

Here is the call graph for this function:

FilterSet * MessageFilter::GetFilterSetByID ( int filterSetID ) [protected]

Definition at line 218 of file MessageFilter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned MessageFilter::GetFilterSetCount ( void ) const

Returns the total number of filter sets.

Returns:: The total number of filter sets.

Definition at line 172 of file MessageFilter.cpp.

Here is the call graph for this function:

int MessageFilter::GetFilterSetIDByIndex ( unsigned index )

Returns the ID of a filter set, by index

Parameters:

[in] An index between 0 and GetFilterSetCount()-1 inclusive

Definition at line 176 of file MessageFilter.cpp.

SystemAddress MessageFilter::GetSystemByIndex	(	int	filterSetID,
		unsigned	index
	)

Returns a system subscribed to a particular filter set,by index. index should be between 0 and the GetSystemCount(filterSetID)-1;

Parameters:

`[in]`	filterSetID	The filter set to limit to. Use -1 for none (just indexes all the filtered systems in that case).
`[in]`	index	A number between 0 and GetSystemCount(filterSetID)-1;

Definition at line 152 of file MessageFilter.cpp.

Here is the call graph for this function:

unsigned MessageFilter::GetSystemCount ( int filterSetID ) const

Returns the number of systems subscribed to a particular filter set Using anything other than -1 for filterSetID is slow, so you should store the returned value.

Parameters:

[in] filterSetID The filter set to limit to. Use -1 for none (just returns the total number of filter systems in that case).

Definition at line 138 of file MessageFilter.cpp.

Here is the call graph for this function:

int MessageFilter::GetSystemFilterSet ( SystemAddress systemAddress )

Get the filterSetID a system is using. Returns -1 for none.

Parameters:

[in] systemAddress The system we are referring to

Definition at line 98 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::OnClosedConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		PI2_LostConnectionReason	lostConnectionReason
	)			`[virtual]`

Called when a connection is dropped because the user called RakPeer::CloseConnection() for a particular system

Parameters:

`[in]`	systemAddress	The system whose connection was closed
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	lostConnectionReason	How the connection was closed: manually, connection lost, or notification of disconnection

Reimplemented from PluginInterface2.

Definition at line 295 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::OnInvalidMessage	(	FilterSet *	filterSet,
		SystemAddress	systemAddress,
		unsigned char	messageID
	)			`[protected]`

Definition at line 244 of file MessageFilter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MessageFilter::OnNewConnection	(	SystemAddress	systemAddress,
		RakNetGUID	rakNetGUID,
		bool	isIncoming
	)			`[virtual]`

Called when we got a new connection

Parameters:

`[in]`	systemAddress	Address of the new connection
`[in]`	rakNetGuid	The guid of the specified system
`[in]`	isIncoming	If true, this is ID_NEW_INCOMING_CONNECTION, or the equivalent

Reimplemented from PluginInterface2.

Definition at line 285 of file MessageFilter.cpp.

Here is the call graph for this function:

PluginReceiveResult MessageFilter::OnReceive ( Packet * packet ) [virtual]

OnReceive is called for every packet.

Parameters:

[in] packet the packet that is being returned to the user

Returns:: True to allow the game and other plugins to get this message, false to absorb it

Reimplemented from PluginInterface2.

Definition at line 303 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::SetActionOnDisallowedMessage	(	bool	kickOnDisallowed,
		bool	banOnDisallowed,
		RakNetTime	banTimeMS,
		int	filterSetID
	)

What action to take on a disallowed message. You can kick or not. You can add them to the ban list for some time By default no action is taken. The message is simply ignored. param[in] 0 for permanent ban, >0 for ban time in milliseconds.

Parameters:

`[in]`	kickOnDisallowed	kick the system that sent a disallowed message.
`[in]`	banOnDisallowed	ban the system that sent a disallowed message. See banTimeMS for the ban duration
`[in]`	banTimeMS	Passed to the milliseconds parameter of RakPeer::AddToBanList.
`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings.

Definition at line 72 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::SetAllowMessageID	(	bool	allow,
		int	messageIDStart,
		int	messageIDEnd,
		int	filterSetID
	)

Allow a range of message IDs Always allowed by default: ID_CONNECTION_REQUEST_ACCEPTED through ID_DOWNLOAD_PROGRESS Usually you specify a range to make it easier to add new enumerations without having to constantly refer back to this function.

Parameters:

`[in]`	allow	True to allow this message ID, false to disallow. By default, all messageIDs except the noted types are disallowed. This includes messages from other plugins!
`[in]`	messageIDStart	The first ID_* message to allow in the range. Inclusive.
`[in]`	messageIDEnd	The last ID_* message to allow in the range. Inclusive.
`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings.

Definition at line 51 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::SetAllowRPC	(	bool	allow,
		const char *	functionName,
		int	filterSetID
	)

Allow an RPC function, by name

Parameters:

`[in]`	allow	True to allow an RPC call with this function name, false to disallow. All RPCs are disabled by default.
`[in]`	functionName	the function name of the RPC call. Must match the function name exactly, including case.
`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings.

Definition at line 59 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::SetAutoAddNewConnectionsToFilter ( int filterSetID )

Automatically add all new systems to a particular filter Defaults to -1

Parameters:

[in] filterSetID Which filter to add new systems to. <0 for do not add.

Definition at line 47 of file MessageFilter.cpp.

void MessageFilter::SetDisallowedMessageCallback	(	int	filterSetID,
		void *	userData,
		void()(RakPeerInterface peer, SystemAddress systemAddress, int filterSetID, void *userData, unsigned char messageID)	invalidMessageCallback
	)

Set a user callback to be called on an invalid message for a particular filterSet

Parameters:

`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings.
`[in]`	userData	A pointer passed with the callback
`[in]`	invalidMessageCallback	A pointer to a C function to be called back with the specified parameters.

Definition at line 79 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::SetFilterMaxTime	(	int	allowedTimeMS,
		bool	banOnExceed,
		RakNetTime	banTimeMS,
		int	filterSetID
	)

Limit how long a connection can stay in a particular filterSetID. After this time, the connection is kicked and possibly banned. By default there is no limit to how long a connection can stay in a particular filter set.

Parameters:

`[in]`	allowedTimeMS	How many milliseconds to allow a connection to stay in this filter set.
`[in]`	banOnExceed	True or false to ban the system, or not, when allowedTimeMS is exceeded
`[in]`	banTimeMS	Passed to the milliseconds parameter of RakPeer::AddToBanList.
`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings.

Definition at line 91 of file MessageFilter.cpp.

Here is the call graph for this function:

void MessageFilter::SetSystemFilterSet	(	SystemAddress	systemAddress,
		int	filterSetID
	)

Assign a system to a filter set. Systems are automatically added to filter sets (or not) based on SetAutoAddNewConnectionsToFilter() This function is used to change the filter set a system is using, to add it to a new filter set, or to remove it from all existin filter sets.

Parameters:

`[in]`	systemAddress	The system we are referring to
`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings. If -1, the system will be removed from all filter sets.

Definition at line 107 of file MessageFilter.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MessageFilter::SetTimeoutCallback	(	int	filterSetID,
		void *	userData,
		void()(RakPeerInterface peer, SystemAddress systemAddress, int filterSetID, void *userData)	invalidMessageCallback
	)

Set a user callback to be called when a user is disconnected due to SetFilterMaxTime

Parameters:

`[in]`	filterSetID	A user defined ID to represent a filter set. If no filter with this ID exists, one will be created with default settings.
`[in]`	userData	A pointer passed with the callback
`[in]`	invalidMessageCallback	A pointer to a C function to be called back with the specified parameters.
