Writes incoming and outgoing messages to the screen. This will write all incoming and outgoing messages to the console window, or to a file if you override it and give it this functionality. More...

#include <PacketLogger.h>

Inherits PluginInterface2.

Inherited by PacketConsoleLogger, PacketFileLogger, PacketOutputWindowLogger, and ThreadsafePacketLogger.

Collaboration diagram for PacketLogger:

[legend]

List of all members.

Public Member Functions
	PacketLogger ()
virtual	~PacketLogger ()
virtual void	FormatLine (char into, const char dir, const char *type, unsigned int packet, unsigned int frame, unsigned char messageIdentifier, const BitSize_t bitLen, unsigned long long time, const SystemAddress &local, const SystemAddress &remote, unsigned int splitPacketId, unsigned int splitPacketIndex, unsigned int splitPacketCount, unsigned int orderingIndex)
virtual void	FormatLine (char into, const char dir, const char type, unsigned int packet, unsigned int frame, const char idToPrint, const BitSize_t bitLen, unsigned long long time, const SystemAddress &local, const SystemAddress &remote, unsigned int splitPacketId, unsigned int splitPacketIndex, unsigned int splitPacketCount, unsigned int orderingIndex)
virtual void	OnDirectSocketSend (const char *data, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
	Events on low level sends and receives. These functions may be called from different threads at the same time.
virtual void	OnDirectSocketReceive (const char *data, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
virtual void	OnReliabilityLayerPacketError (const char *errorMessage, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
virtual void	OnInternalPacket (InternalPacket *internalPacket, unsigned frameNumber, SystemAddress remoteSystemAddress, RakNetTime time, int isSend)
virtual void	OnAck (unsigned int messageNumber, SystemAddress remoteSystemAddress, RakNetTime time)
virtual void	OnPushBackPacket (const char *data, const BitSize_t bitsUsed, SystemAddress remoteSystemAddress)
virtual void	LogHeader (void)
	Logs out a header for all the data.
virtual void	WriteLog (const char *str)
	Override this to log strings to wherever. Log should be threadsafe.

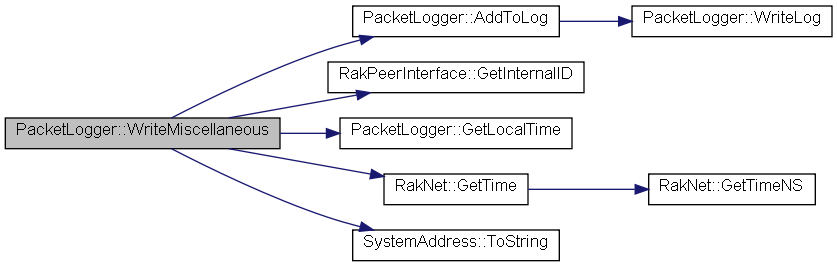

virtual void	WriteMiscellaneous (const char type, const char msg)
virtual void	SetPrintID (bool print)
virtual void	SetPrintAcks (bool print)
virtual void	SetPrefix (const char *_prefix)
	Prepend this string to output logs.
virtual void	SetSuffix (const char *_suffix)
	Append this string to output logs. (newline is useful here).
void	SetLogDirectMessages (bool send)
	Log the direct sends and receives or not. Default true.
Static Public Member Functions
static const char *	BaseIDTOString (unsigned char Id)
Protected Member Functions
const char *	IDTOString (unsigned char Id)
virtual void	AddToLog (const char *str)
virtual const char *	UserIDTOString (unsigned char Id)
void	GetLocalTime (char buffer[128])
Protected Attributes
bool	logDirectMessages
bool	printId
bool	printAcks
char	prefix [256]
char	suffix [256]

Detailed Description

Writes incoming and outgoing messages to the screen. This will write all incoming and outgoing messages to the console window, or to a file if you override it and give it this functionality.

Definition at line 27 of file PacketLogger.h.

Constructor & Destructor Documentation

PacketLogger::PacketLogger ( )

Definition at line 25 of file PacketLogger.cpp.

PacketLogger::~PacketLogger ( ) [virtual]

Definition at line 33 of file PacketLogger.cpp.

Member Function Documentation

void PacketLogger::AddToLog ( const char * str ) [protected, virtual]

Reimplemented in ThreadsafePacketLogger.

Definition at line 199 of file PacketLogger.cpp.

Here is the call graph for this function:

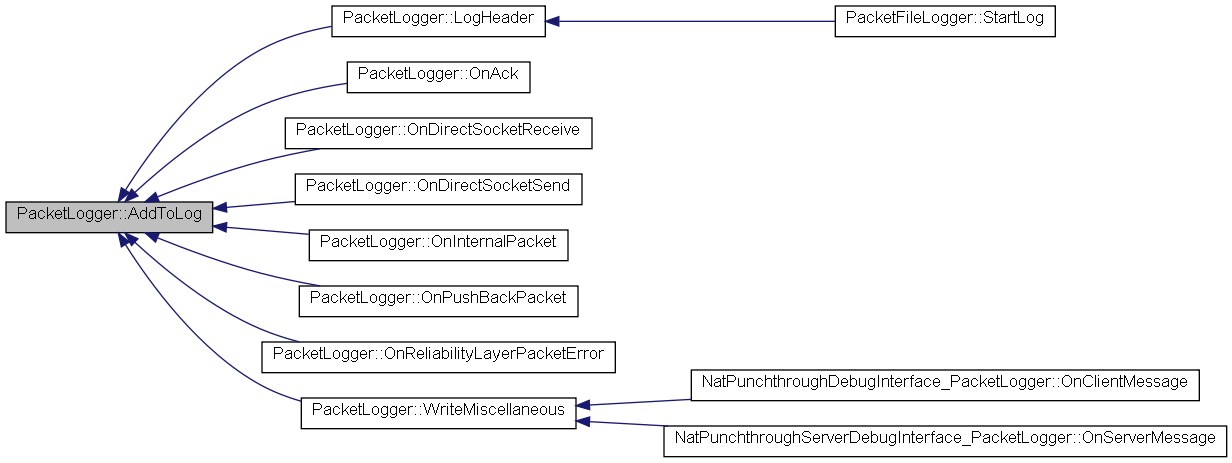

Here is the caller graph for this function:

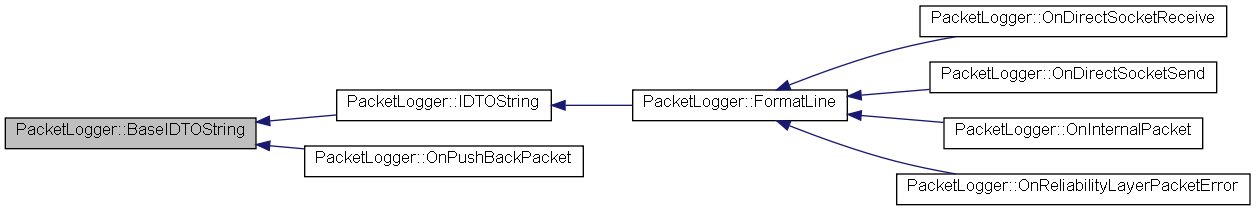

const char * PacketLogger::BaseIDTOString ( unsigned char Id ) [static]

Definition at line 235 of file PacketLogger.cpp.

Here is the caller graph for this function:

void PacketLogger::FormatLine	(	char *	into,
		const char *	dir,
		const char *	type,
		unsigned int	packet,
		unsigned int	frame,
		unsigned char	messageIdentifier,
		const BitSize_t	bitLen,
		unsigned long long	time,
		const SystemAddress &	local,
		const SystemAddress &	remote,
		unsigned int	splitPacketId,
		unsigned int	splitPacketIndex,
		unsigned int	splitPacketCount,
		unsigned int	orderingIndex
	)			`[virtual]`

Definition at line 36 of file PacketLogger.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void PacketLogger::FormatLine	(	char *	into,
		const char *	dir,
		const char *	type,
		unsigned int	packet,
		unsigned int	frame,
		const char *	idToPrint,
		const BitSize_t	bitLen,
		unsigned long long	time,
		const SystemAddress &	local,
		const SystemAddress &	remote,
		unsigned int	splitPacketId,
		unsigned int	splitPacketIndex,
		unsigned int	splitPacketCount,
		unsigned int	orderingIndex
	)			`[virtual]`

Definition at line 62 of file PacketLogger.cpp.

Here is the call graph for this function:

void PacketLogger::GetLocalTime ( char buffer[128] ) [protected]

Definition at line 398 of file PacketLogger.cpp.

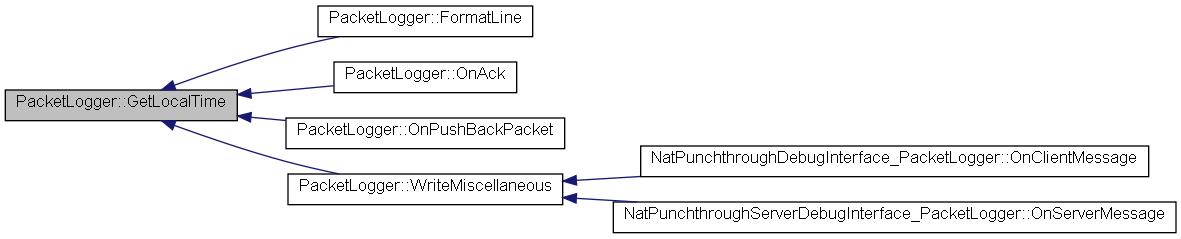

Here is the caller graph for this function:

const char * PacketLogger::IDTOString ( unsigned char Id ) [protected]

Definition at line 380 of file PacketLogger.cpp.

Here is the call graph for this function:

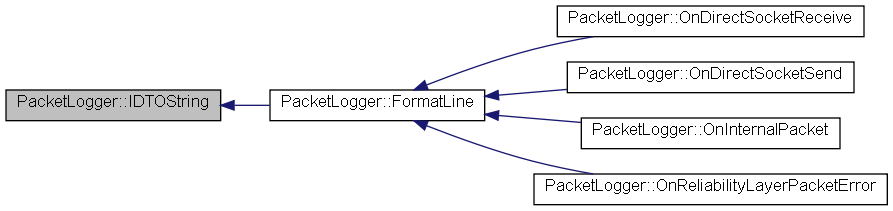

Here is the caller graph for this function:

void PacketLogger::LogHeader ( void ) [virtual]

Logs out a header for all the data.

Definition at line 102 of file PacketLogger.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

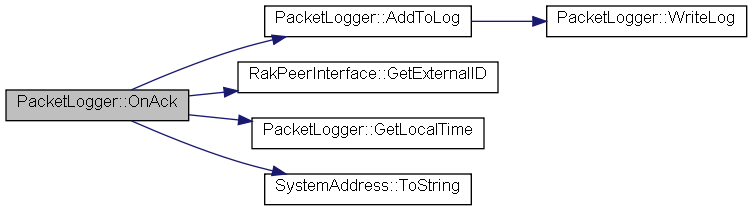

void PacketLogger::OnAck	(	unsigned int	messageNumber,
		SystemAddress	remoteSystemAddress,
		RakNetTime	time
	)			`[virtual]`

Called when we get an ack for a message we reliabily sent

Parameters:

`[in]`	messageNumber	The numerical identifier for which message this is
`[in]`	remoteSystemAddress	The player we sent or got this packet from
`[in]`	time	The current time as returned by RakNet::GetTime()

Reimplemented from PluginInterface2.

Definition at line 122 of file PacketLogger.cpp.

Here is the call graph for this function:

void PacketLogger::OnDirectSocketReceive	(	const char *	data,
		const BitSize_t	bitsUsed,
		SystemAddress	remoteSystemAddress
	)			`[virtual]`

Called on a receive from the socket, per datagram, that does not go through the reliability layer

Parameters:

`[in]`	data	The data being sent
`[in]`	bitsUsed	How many bits long data is
`[in]`	remoteSystemAddress	Which system this message is being sent to

Reimplemented from PluginInterface2.

Definition at line 107 of file PacketLogger.cpp.

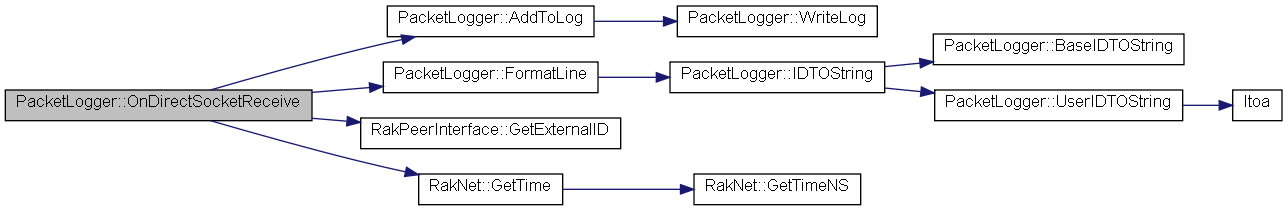

Here is the call graph for this function:

void PacketLogger::OnDirectSocketSend	(	const char *	data,
		const BitSize_t	bitsUsed,
		SystemAddress	remoteSystemAddress
	)			`[virtual]`

Events on low level sends and receives. These functions may be called from different threads at the same time.

Reimplemented from PluginInterface2.

Definition at line 92 of file PacketLogger.cpp.

Here is the call graph for this function:

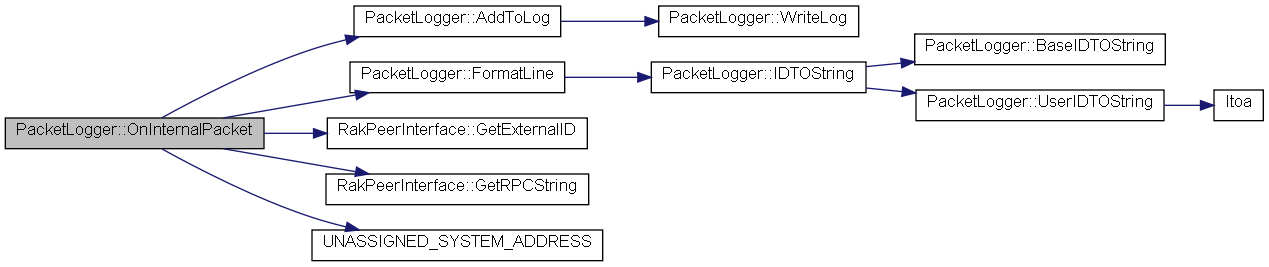

void PacketLogger::OnInternalPacket	(	InternalPacket *	internalPacket,
		unsigned	frameNumber,
		SystemAddress	remoteSystemAddress,
		RakNetTime	time,
		int	isSend
	)			`[virtual]`

Called on a send or receive of a message within the reliability layer

Parameters:

`[in]`	internalPacket	The user message, along with all send data.
`[in]`	frameNumber	The number of frames sent or received so far for this player depending on isSend . Indicates the frame of this user message.
`[in]`	remoteSystemAddress	The player we sent or got this packet from
`[in]`	time	The current time as returned by RakNet::GetTime()
`[in]`	isSend	Is this callback representing a send event or receive event?
