Used to route messages between peers. More...

#include <Router.h>

Inherits PluginInterface2, and RouterInterface.

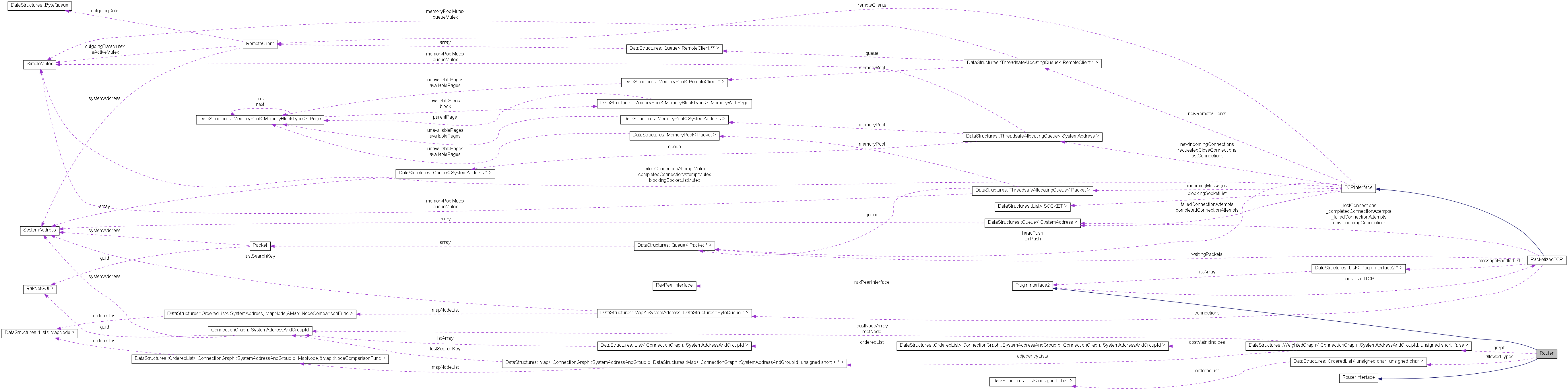

Collaboration diagram for Router:

[legend]

Public Member Functions
	Router ()
virtual	~Router ()
void	SetRestrictRoutingByType (bool restrict__)
void	AddAllowedType (unsigned char messageId)
void	RemoveAllowedType (unsigned char messageId)
void	SetConnectionGraph (DataStructures::WeightedGraph< ConnectionGraph::SystemAddressAndGroupId, unsigned short, false > *connectionGraph)
bool	Send (char data, BitSize_t bitLength, PacketPriority priority, PacketReliability reliability, char orderingChannel, SystemAddressList recipients)
bool	Send (const char *data, BitSize_t bitLength, PacketPriority priority, PacketReliability reliability, char orderingChannel, SystemAddress systemAddress)
virtual void	OnAttach (void)
virtual void	OnDetach (void)
virtual PluginReceiveResult	OnReceive (Packet *packet)
Protected Member Functions
void	SendTree (PacketPriority priority, PacketReliability reliability, char orderingChannel, DataStructures::Tree< ConnectionGraph::SystemAddressAndGroupId > tree, const char data, BitSize_t bitLength, RakNet::BitStream out, SystemAddressList recipients)
void	SerializePreorder (DataStructures::Tree< ConnectionGraph::SystemAddressAndGroupId > tree, RakNet::BitStream out, SystemAddressList *recipients) const
Protected Attributes
DataStructures::WeightedGraph < ConnectionGraph::SystemAddressAndGroupId, unsigned short, false > *	graph
bool	restrictByType
DataStructures::OrderedList < unsigned char, unsigned char >	allowedTypes

Detailed Description

Used to route messages between peers.

Deprecated:

Definition at line 36 of file Router.h.

Constructor & Destructor Documentation

Router::Router ( )

Definition at line 20 of file Router.cpp.

Router::~Router ( ) [virtual]

Definition at line 26 of file Router.cpp.

Member Function Documentation

void Router::AddAllowedType ( unsigned char messageId )

If types are restricted, this adds an allowed message type to be routed

Parameters:

[in] messageId The type to not allow routing of.

Definition at line 33 of file Router.cpp.

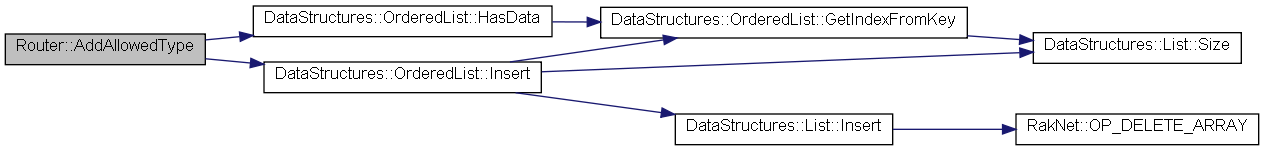

Here is the call graph for this function:

void Router::OnAttach ( void ) [virtual]

Definition at line 295 of file Router.cpp.

Here is the call graph for this function:

void Router::OnDetach ( void ) [virtual]

Definition at line 299 of file Router.cpp.

Here is the call graph for this function:

PluginReceiveResult Router::OnReceive ( Packet * packet ) [virtual]

Definition at line 145 of file Router.cpp.

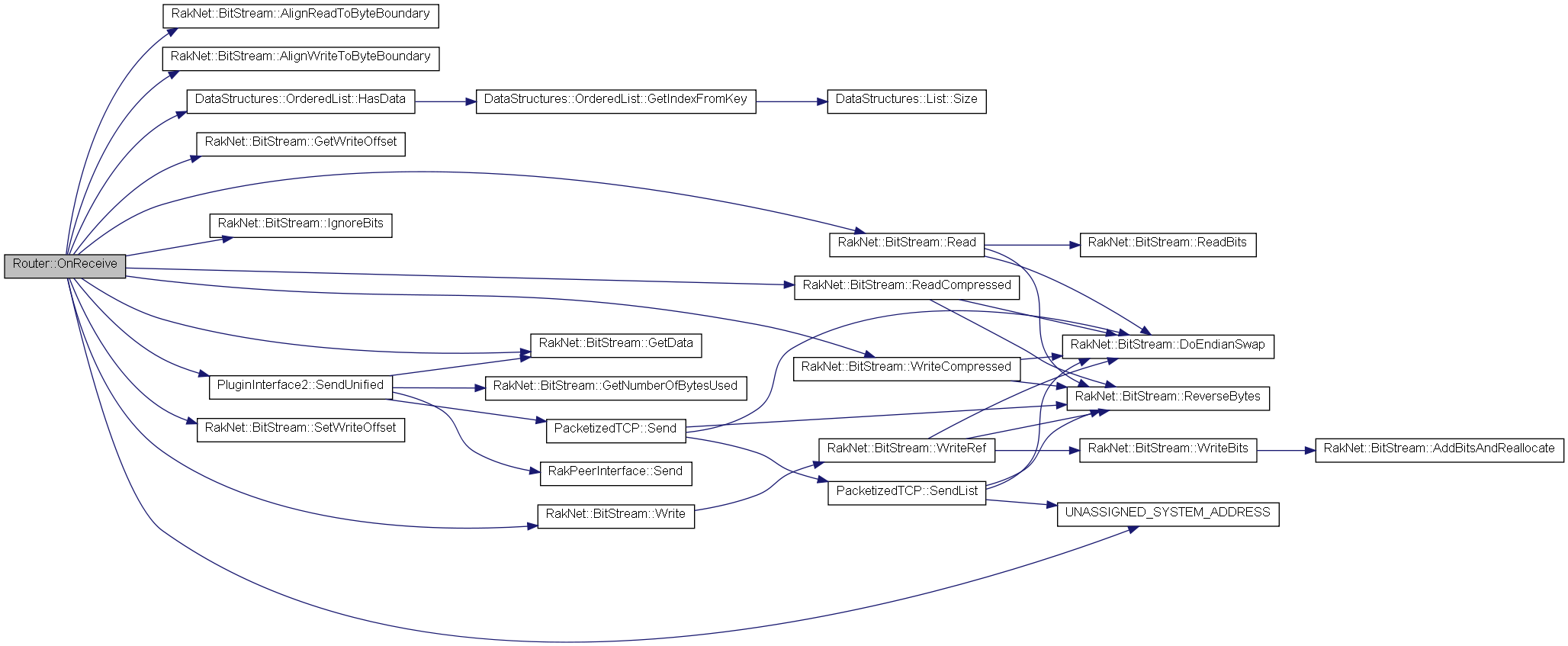

Here is the call graph for this function:

void Router::RemoveAllowedType ( unsigned char messageId )

Removes a restricted type previously added with AddRestrictedType

Parameters:

[in] messageId The type to no longer restrict routing of.

Definition at line 38 of file Router.cpp.

Here is the call graph for this function:

bool Router::Send	(	char *	data,
		BitSize_t	bitLength,
		PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel,
		SystemAddressList *	recipients
	)

Sends a bitstream to one or more systems. If multiple systems are specified, the message will be multicasted using a minimum spanning tree

Precondition:: You just have called SetConnectionGraph with a valid graph representing the network topology

Note:: Single target sends from RakPeer with this plugin installed will also be routed. Sends from other plugins will also be routed as long as this plugin is attached first.

Parameters:

`[in]`	data	The data to send
`[in]`	bitLength	How many bits long data is
`[in]`	priority	What priority level to send on.
`[in]`	reliability	How reliability to send this data
`[in]`	orderingChannel	When using ordered or sequenced packets, what channel to order these on.- Packets are only ordered relative to other packets on the same stream
`[in]`	recipients	A list of recipients to send to. To send to one recipient, just pass a SystemAddress

Returns:: True on success, false mostly if the connection graph cannot find the destination.

Definition at line 63 of file Router.cpp.

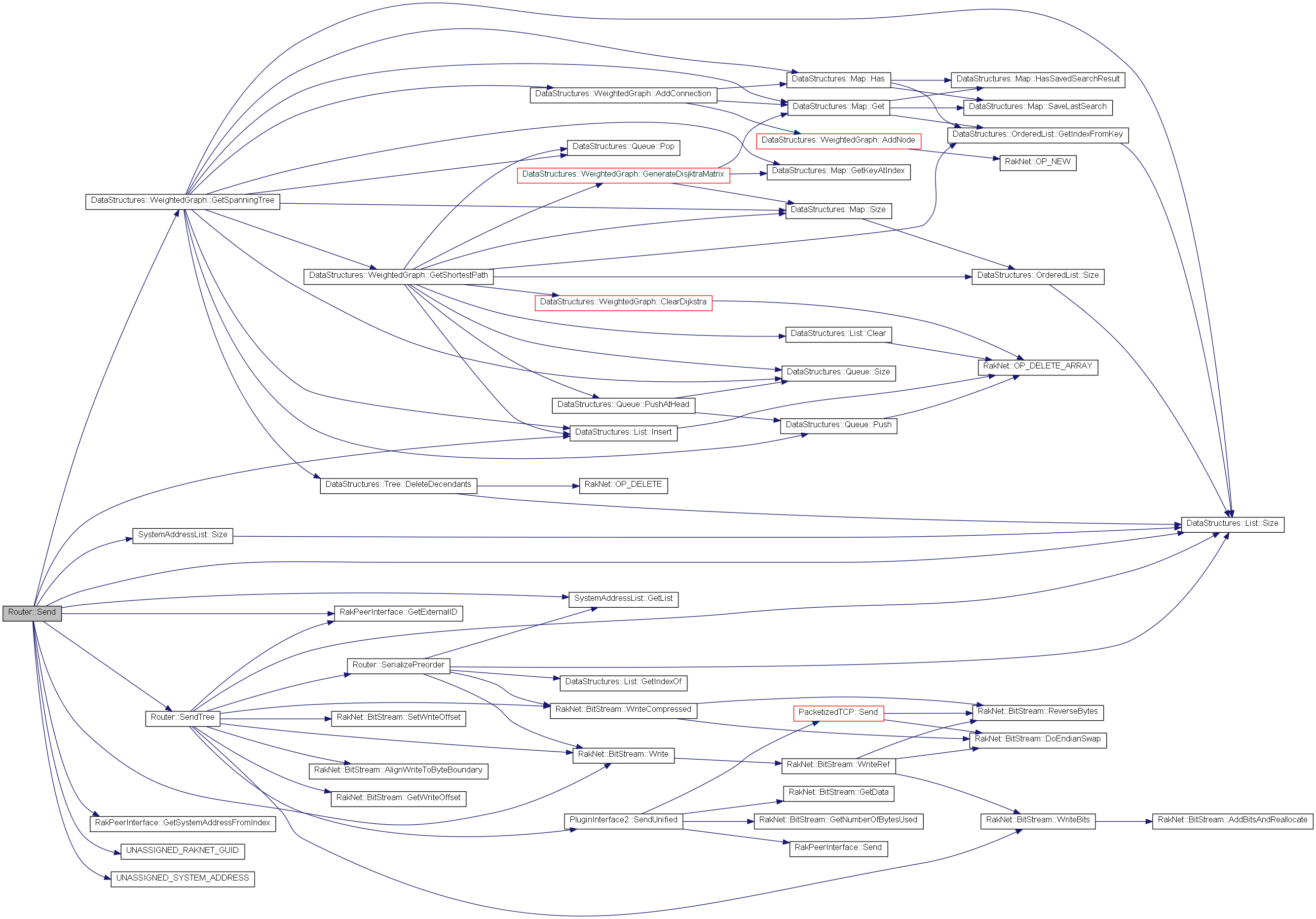

Here is the call graph for this function:

Here is the caller graph for this function:

bool Router::Send	(	const char *	data,
		BitSize_t	bitLength,
		PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel,
		SystemAddress	systemAddress
	)			`[virtual]`

Implements RouterInterface.

Definition at line 47 of file Router.cpp.

Here is the call graph for this function:

void Router::SendTree	(	PacketPriority	priority,
		PacketReliability	reliability,
		char	orderingChannel,
		DataStructures::Tree< ConnectionGraph::SystemAddressAndGroupId > *	tree,
		const char *	data,
		BitSize_t	bitLength,
		RakNet::BitStream *	out,
		SystemAddressList *	recipients
	)			`[protected]`

Definition at line 96 of file Router.cpp.

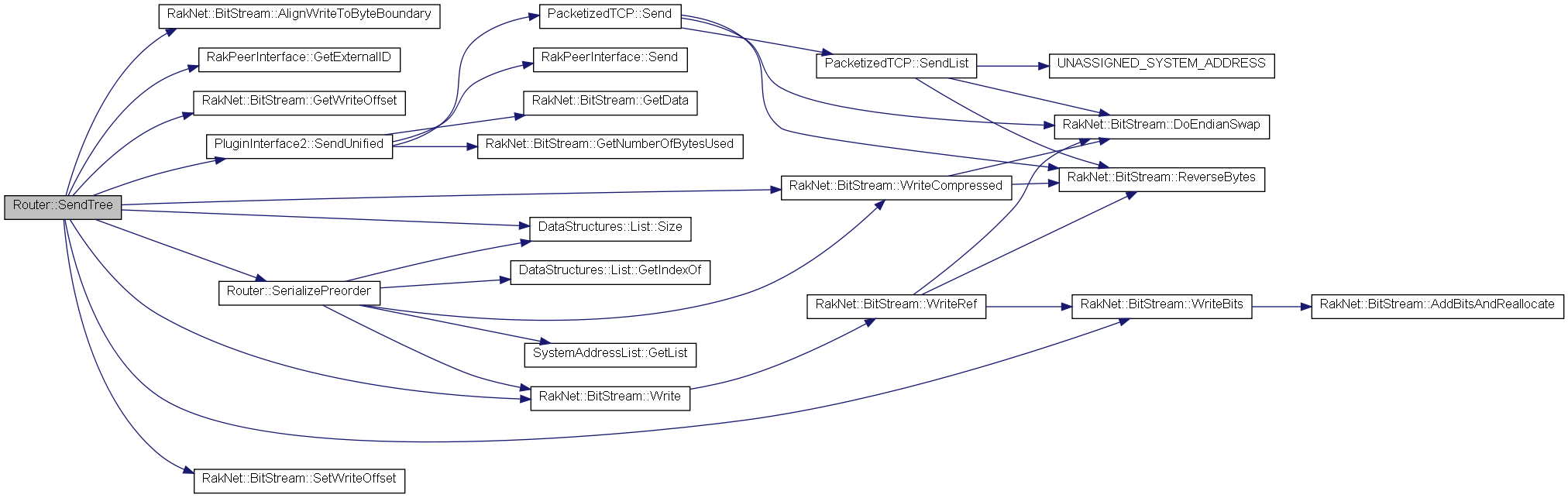

Here is the call graph for this function:

Here is the caller graph for this function:

void Router::SerializePreorder	(	DataStructures::Tree< ConnectionGraph::SystemAddressAndGroupId > *	tree,
		RakNet::BitStream *	out,
		SystemAddressList *	recipients
	)			const `[protected]`

Definition at line 303 of file Router.cpp.

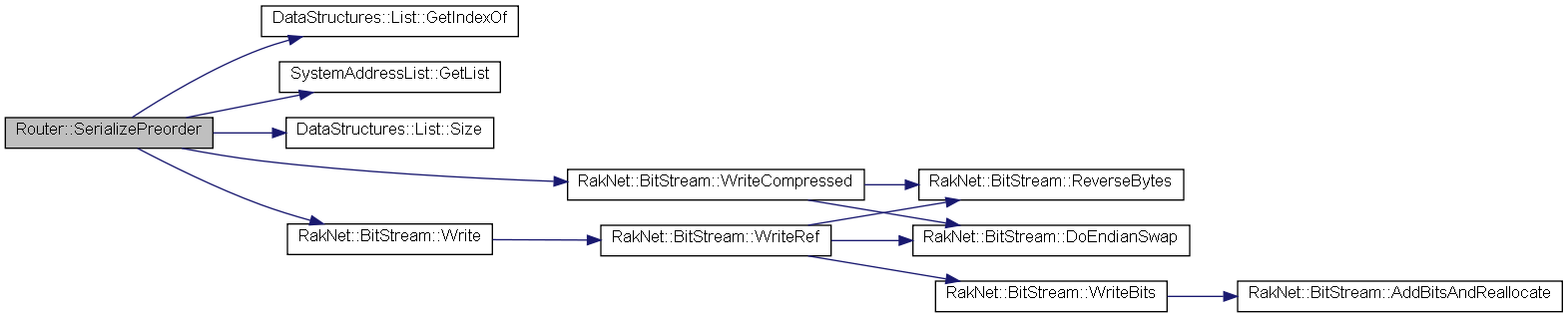

Here is the call graph for this function:

Here is the caller graph for this function:

void Router::SetConnectionGraph ( DataStructures::WeightedGraph< ConnectionGraph::SystemAddressAndGroupId, unsigned short, false > * connectionGraph )

Set the connection graph, which is a weighted graph of the topology of the network. You can easily get this from the ConnectionGraph plugin. See the 'router' sample for usage. This is necessary if you want to send (not necessary just to route).

Parameters:

[in] connectionGraph A weighted graph representing the topology of the network.

Definition at line 43 of file Router.cpp.

void Router::SetRestrictRoutingByType ( bool restrict__ )

We can restrict what kind of messages are routed by this plugin. This is useful for security, since you usually want to restrict what kind of messages you have to worry about from (as an example) other clients in a client / server system

Parameters:

[in] restrict True to restrict what messages will be routed. False to not do so (default).

Definition at line 29 of file Router.cpp.
