Holds a set of columns, a set of rows, and rows times columns cells. More...

#include <DS_Table.h>

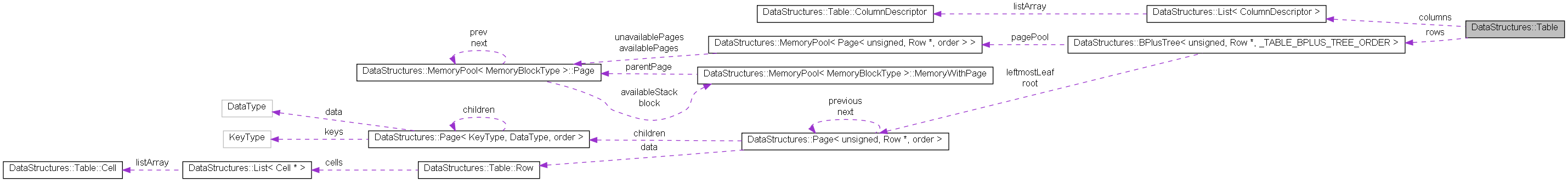

Collaboration diagram for DataStructures::Table:

[legend]

Classes
struct	Cell
	Holds the actual data in the table. More...
struct	ColumnDescriptor
struct	FilterQuery
struct	Row
	Stores the list of cells for this row, and a special flag used for internal sorting. More...
struct	SortQuery
Public Types
enum	ColumnType { NUMERIC, STRING, BINARY, POINTER }
enum	FilterQueryType { QF_EQUAL, QF_NOT_EQUAL, QF_GREATER_THAN, QF_GREATER_THAN_EQ, QF_LESS_THAN, QF_LESS_THAN_EQ, QF_IS_EMPTY, QF_NOT_EMPTY }
enum	SortQueryType { QS_INCREASING_ORDER, QS_DECREASING_ORDER }
	Increasing or decreasing sort order. More...
Public Member Functions
	Table ()
	~Table ()
unsigned	AddColumn (const char columnName[_TABLE_MAX_COLUMN_NAME_LENGTH], ColumnType columnType)
	Adds a column to the table.
void	RemoveColumn (unsigned columnIndex)
	Removes a column by index.
unsigned	ColumnIndex (char columnName[_TABLE_MAX_COLUMN_NAME_LENGTH]) const
	Gets the index of a column by name.
unsigned	ColumnIndex (const char *columnName) const
char *	ColumnName (unsigned index) const
	Gives the string name of the column at a certain index.
ColumnType	GetColumnType (unsigned index) const
	Returns the type of a column, referenced by index.
unsigned	GetColumnCount (void) const
unsigned	GetRowCount (void) const
Table::Row *	AddRow (unsigned rowId)
	Adds a row to the table.
Table::Row *	AddRow (unsigned rowId, DataStructures::List< Cell > &initialCellValues)
Table::Row *	AddRow (unsigned rowId, DataStructures::List< Cell * > &initialCellValues, bool copyCells=false)

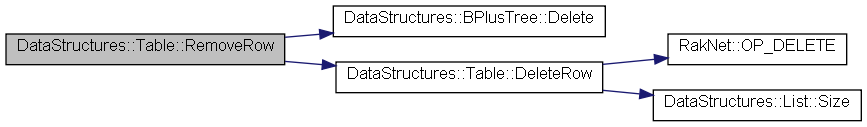

bool	RemoveRow (unsigned rowId)
	Removes a row specified by rowId.
void	RemoveRows (Table *tableContainingRowIDs)
	Removes all the rows with IDs that the specified table also has.
bool	UpdateCell (unsigned rowId, unsigned columnIndex, int value)
	Updates a particular cell in the table.
bool	UpdateCell (unsigned rowId, unsigned columnIndex, char *str)
bool	UpdateCell (unsigned rowId, unsigned columnIndex, int byteLength, char *data)
bool	UpdateCellByIndex (unsigned rowIndex, unsigned columnIndex, int value)
bool	UpdateCellByIndex (unsigned rowIndex, unsigned columnIndex, char *str)
bool	UpdateCellByIndex (unsigned rowIndex, unsigned columnIndex, int byteLength, char *data)
void	GetCellValueByIndex (unsigned rowIndex, unsigned columnIndex, int *output)
	Note this is much less efficient to call than GetRow, then working with the cells directly. Numeric, string, binary.
void	GetCellValueByIndex (unsigned rowIndex, unsigned columnIndex, char *output)
void	GetCellValueByIndex (unsigned rowIndex, unsigned columnIndex, char output, int outputLength)
Row *	GetRowByID (unsigned rowId) const
	Gets a row. More efficient to do this and access Row::cells than to repeatedly call GetCell. You can also update cells in rows from this function.
Row *	GetRowByIndex (unsigned rowIndex, unsigned *key) const
	Gets a row at a specific index. rowIndex should be less than GetRowCount().
void	QueryTable (unsigned columnIndicesSubset, unsigned numColumnSubset, FilterQuery inclusionFilters, unsigned numInclusionFilters, unsigned rowIds, unsigned numRowIDs, Table result)
	Queries the table, optionally returning only a subset of columns and rows.

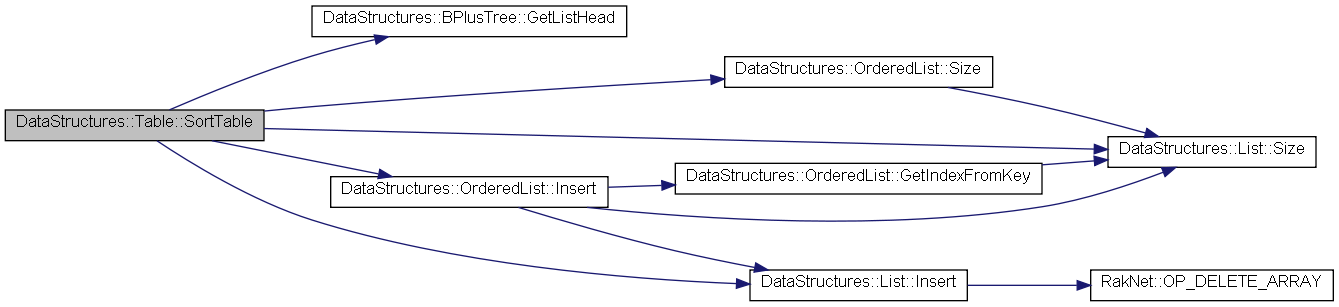

void	SortTable (Table::SortQuery sortQueries, unsigned numSortQueries, Table::Row *out)
	Sorts the table by rows.
void	Clear (void)
	Frees all memory in the table.
void	PrintColumnHeaders (char *out, int outLength, char columnDelineator) const
	Prints out the names of all the columns.
void	PrintRow (char out, int outLength, char columnDelineator, bool printDelineatorForBinary, Table::Row inputRow) const
	Writes a text representation of the row to out.
const DataStructures::List < ColumnDescriptor > &	GetColumns (void) const
	Direct access to make things easier.
const DataStructures::BPlusTree < unsigned, Row *, _TABLE_BPLUS_TREE_ORDER > &	GetRows (void) const
	Direct access to make things easier.
DataStructures::Page< unsigned, DataStructures::Table::Row , _TABLE_BPLUS_TREE_ORDER >	GetListHead (void)
	Get the head of a linked list containing all the row data.
unsigned	GetAvailableRowId (void) const
	Get the first free row id. This could be made more efficient.
Table &	operator= (const Table &input)
Protected Member Functions
Table::Row *	AddRowColumns (unsigned rowId, Row *row, DataStructures::List< unsigned > columnIndices)
void	DeleteRow (Row *row)
void	QueryRow (DataStructures::List< unsigned > &inclusionFilterColumnIndices, DataStructures::List< unsigned > &columnIndicesToReturn, unsigned key, Table::Row row, FilterQuery inclusionFilters, Table *result)
Protected Attributes
DataStructures::BPlusTree < unsigned, Row *, _TABLE_BPLUS_TREE_ORDER >	rows
DataStructures::List < ColumnDescriptor >	columns

Detailed Description

Holds a set of columns, a set of rows, and rows times columns cells.

The table data structure is useful if you want to store a set of structures and perform queries on those structures.
This is a relatively simple and fast implementation of the types of tables commonly used in databases.
See TableSerializer to serialize data members of the table.
See LightweightDatabaseClient and LightweightDatabaseServer to transmit the table over the network.

Definition at line 33 of file DS_Table.h.

Member Enumeration Documentation

enum DataStructures::Table::ColumnType

Enumerator:

NUMERIC
STRING
BINARY
POINTER

Definition at line 37 of file DS_Table.h.

enum DataStructures::Table::FilterQueryType

Enumerator:

QF_EQUAL
QF_NOT_EQUAL
QF_GREATER_THAN
QF_GREATER_THAN_EQ
QF_LESS_THAN
QF_LESS_THAN_EQ
QF_IS_EMPTY
QF_NOT_EMPTY

Definition at line 132 of file DS_Table.h.

enum DataStructures::Table::SortQueryType

Increasing or decreasing sort order.

Enumerator:

QS_INCREASING_ORDER
QS_DECREASING_ORDER

Definition at line 160 of file DS_Table.h.

Constructor & Destructor Documentation

Table::Table ( )

Definition at line 260 of file DS_Table.cpp.

Table::~Table ( )

Definition at line 263 of file DS_Table.cpp.

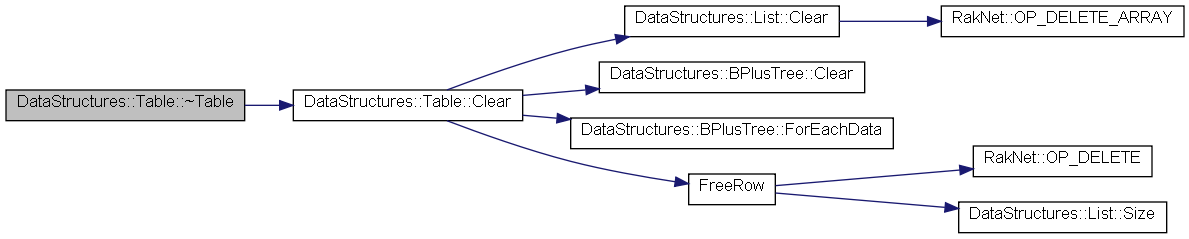

Here is the call graph for this function:

Member Function Documentation

unsigned Table::AddColumn	(	const char	columnName[_TABLE_MAX_COLUMN_NAME_LENGTH],
		ColumnType	columnType
	)

Adds a column to the table.

Parameters:

`[in]`	columnName	The name of the column
`[in]`	columnType	What type of data this column will hold

Returns:: The index of the new column

Definition at line 267 of file DS_Table.cpp.

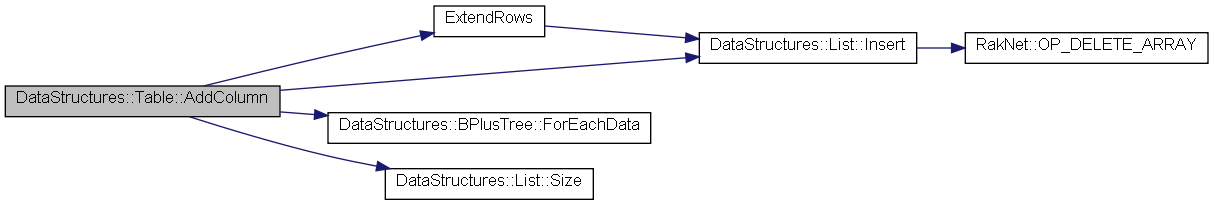

Here is the call graph for this function:

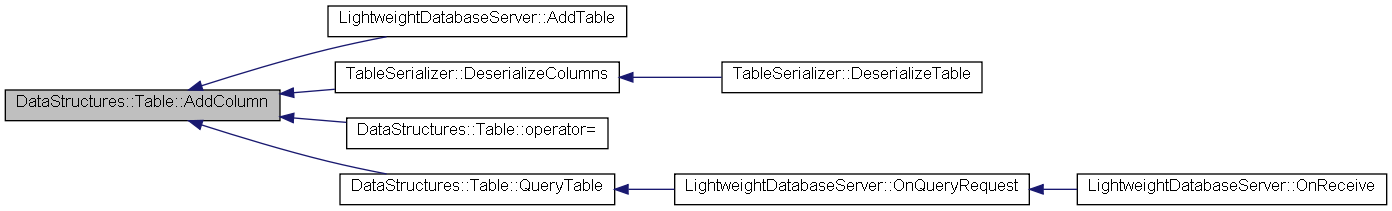

Here is the caller graph for this function:

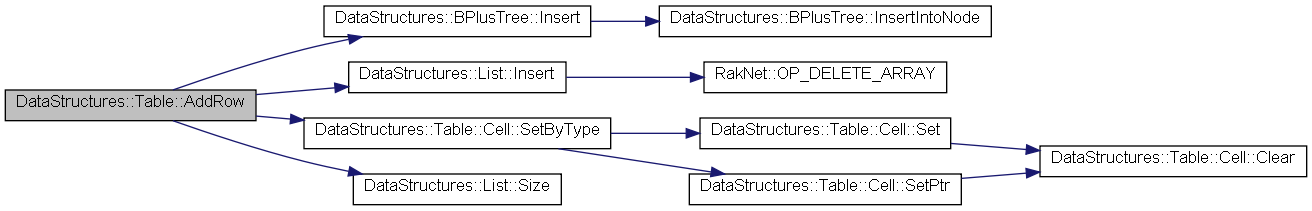

Table::Row * Table::AddRow ( unsigned rowId )

Adds a row to the table.

New rows are added with empty values for all cells. However, if you specify initialCelLValues you can specify initial values It's up to you to ensure that the values in the specific cells match the type of data used by that row rowId can be considered the primary key for the row. It is much faster to lookup a row by its rowId than by searching keys. rowId must be unique Rows are stored in sorted order in the table, using rowId as the sort key

Parameters:

`[in]`	rowId	The UNIQUE primary key for the row. This can never be changed.
`[in]`	initialCellValues	Initial values to give the row (optional)

Returns:: The newly added row

Definition at line 335 of file DS_Table.cpp.

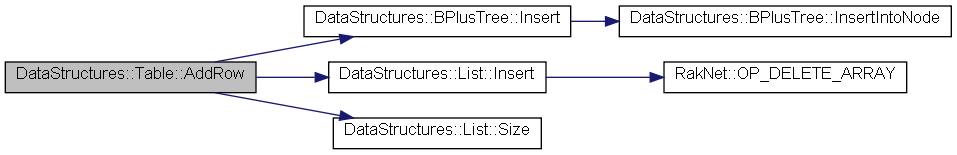

Here is the call graph for this function:

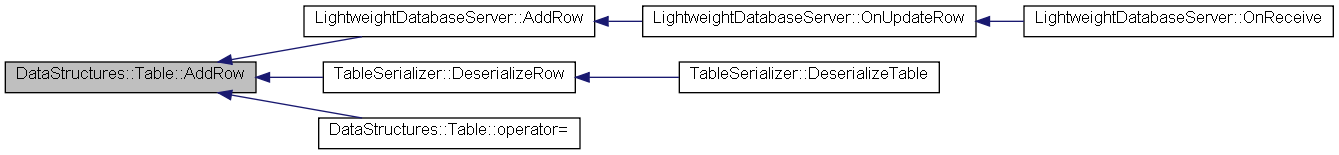

Here is the caller graph for this function:

Table::Row * Table::AddRow	(	unsigned	rowId,
		DataStructures::List< Cell > &	initialCellValues
	)

Definition at line 349 of file DS_Table.cpp.

Here is the call graph for this function:

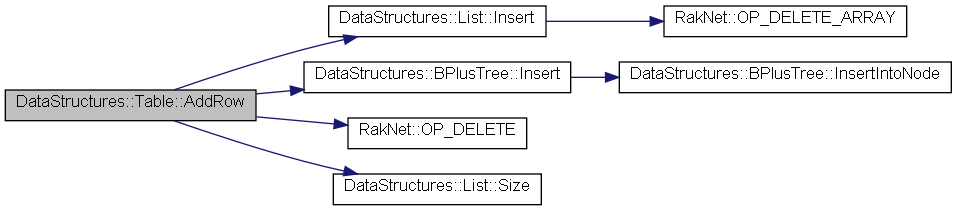

Table::Row * Table::AddRow	(	unsigned	rowId,
		DataStructures::List< Cell * > &	initialCellValues,
		bool	copyCells = `false`
	)

Definition at line 368 of file DS_Table.cpp.

Here is the call graph for this function:

Table::Row * Table::AddRowColumns	(	unsigned	rowId,
		Row *	row,
		DataStructures::List< unsigned >	columnIndices
	)			`[protected]`

Definition at line 391 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void Table::Clear ( void )

Frees all memory in the table.

Definition at line 1039 of file DS_Table.cpp.

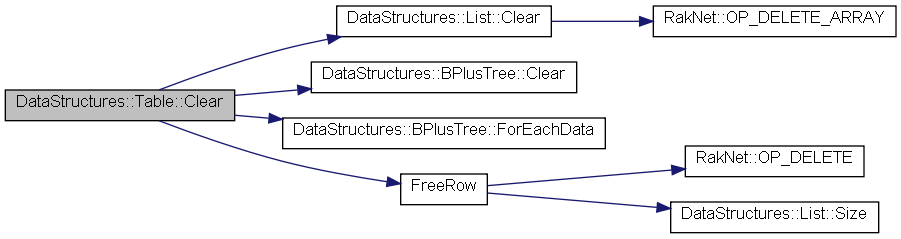

Here is the call graph for this function:

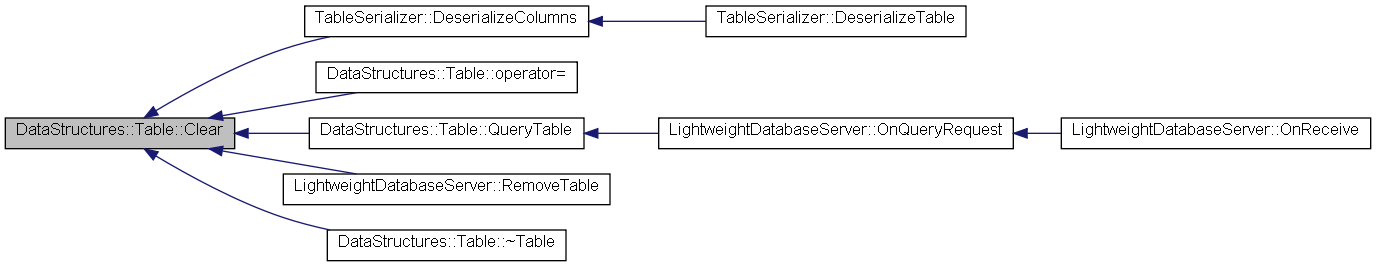

Here is the caller graph for this function:

unsigned Table::ColumnIndex ( const char * columnName ) const

Definition at line 301 of file DS_Table.cpp.

Here is the call graph for this function:

unsigned Table::ColumnIndex ( char columnName[_TABLE_MAX_COLUMN_NAME_LENGTH] ) const

Gets the index of a column by name.

Column indices are stored in the order they are added.

Parameters:

[in] columnName The name of the column

Returns:: The index of the column, or (unsigned)-1 if no such column

Definition at line 309 of file DS_Table.cpp.

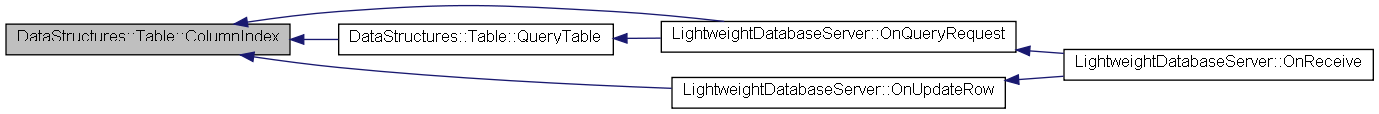

Here is the caller graph for this function:

char * Table::ColumnName ( unsigned index ) const

Gives the string name of the column at a certain index.

Parameters:

[in] index The index of the column

Returns:: The name of the column, or 0 if an invalid index

Definition at line 313 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

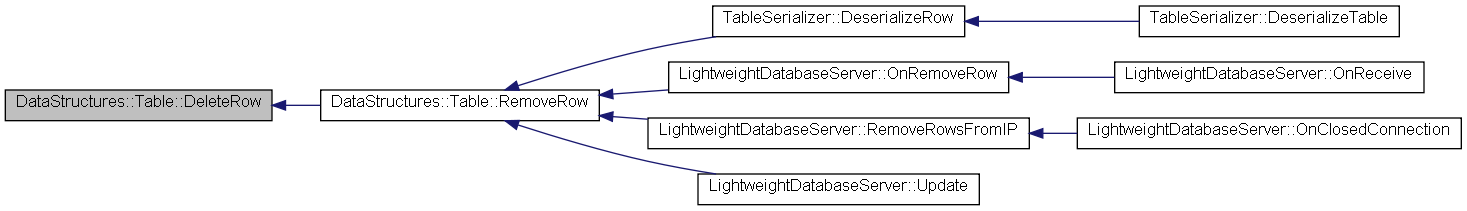

void Table::DeleteRow ( Table::Row * row ) [protected]

Definition at line 1085 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned Table::GetAvailableRowId ( void ) const

Get the first free row id. This could be made more efficient.

Definition at line 1057 of file DS_Table.cpp.

Here is the call graph for this function:

void Table::GetCellValueByIndex	(	unsigned	rowIndex,
		unsigned	columnIndex,
		int *	output
	)

Note this is much less efficient to call than GetRow, then working with the cells directly. Numeric, string, binary.

Definition at line 510 of file DS_Table.cpp.

Here is the call graph for this function:

void Table::GetCellValueByIndex	(	unsigned	rowIndex,
		unsigned	columnIndex,
		char *	output
	)

Definition at line 520 of file DS_Table.cpp.

Here is the call graph for this function:

void Table::GetCellValueByIndex	(	unsigned	rowIndex,
		unsigned	columnIndex,
		char *	output,
		int *	outputLength
	)

Definition at line 530 of file DS_Table.cpp.

Here is the call graph for this function:

unsigned Table::GetColumnCount ( void ) const

Returns the number of columns

Returns:: The number of columns in the table

Definition at line 327 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

const List< Table::ColumnDescriptor > & Table::GetColumns ( void ) const

Direct access to make things easier.

Definition at line 1045 of file DS_Table.cpp.

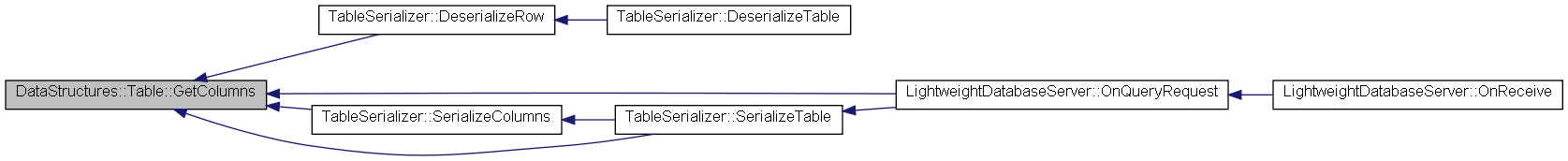

Here is the caller graph for this function:

Table::ColumnType Table::GetColumnType ( unsigned index ) const

Returns the type of a column, referenced by index.

Parameters:

[in] index The index of the column

Returns:: The type of the column

Definition at line 320 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

DataStructures::Page< unsigned, DataStructures::Table::Row *, _TABLE_BPLUS_TREE_ORDER > * Table::GetListHead ( void )

Get the head of a linked list containing all the row data.

Definition at line 1053 of file DS_Table.cpp.

Here is the call graph for this function:

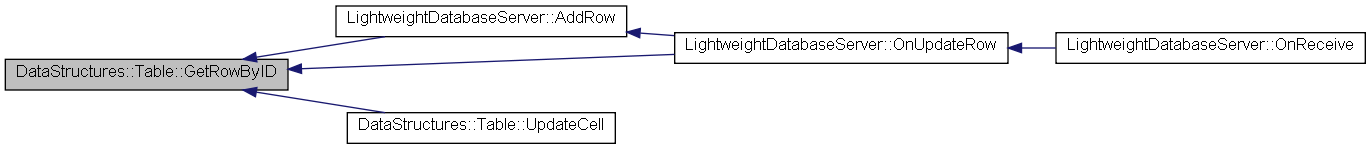

Table::Row * Table::GetRowByID ( unsigned rowId ) const

Gets a row. More efficient to do this and access Row::cells than to repeatedly call GetCell. You can also update cells in rows from this function.

Parameters:

[in] rowId The ID of the row

Returns:: The desired row, or 0 if no such row.

Definition at line 554 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Table::Row * Table::GetRowByIndex	(	unsigned	rowIndex,
		unsigned *	key
	)			const

Gets a row at a specific index. rowIndex should be less than GetRowCount().

Parameters:

`[in]`	rowIndex	The index of the row
`[out]`	key	The ID of the row returned

Returns:: The desired row, or 0 if no such row.

Definition at line 562 of file DS_Table.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned Table::GetRowCount ( void ) const

Returns the number of rows

Returns:: The number of rows in the table

Definition at line 331 of file DS_Table.cpp.

Here is the call graph for this function:

const DataStructures::BPlusTree< unsigned, Table::Row *, _TABLE_BPLUS_TREE_ORDER > & Table::GetRows ( void ) const

Direct access to make things easier.

Definition at line 1049 of file DS_Table.cpp.

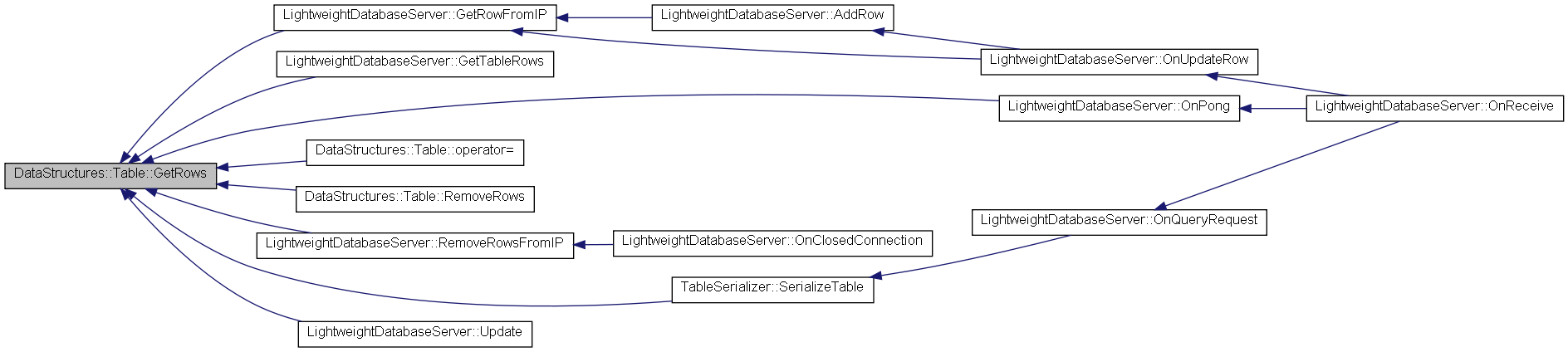

Here is the caller graph for this function:

Table & Table::operator= ( const Table & input )

Definition at line 1094 of file DS_Table.cpp.

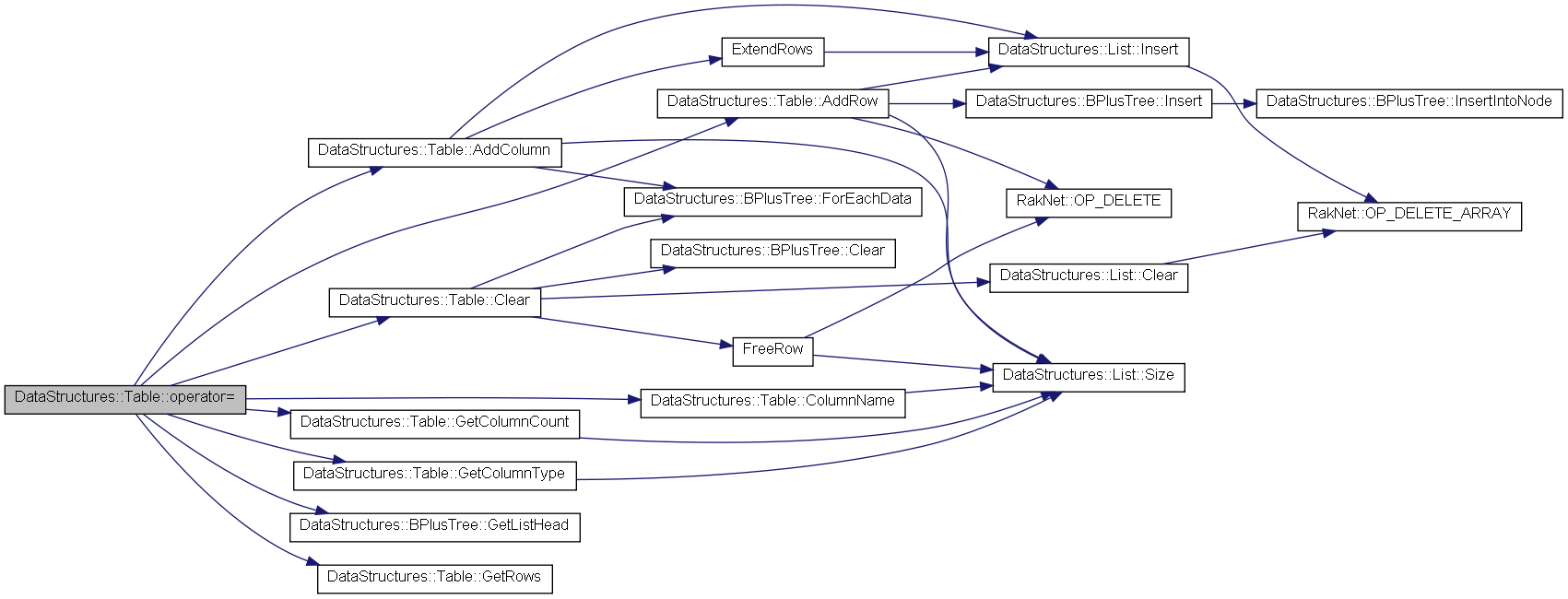

Here is the call graph for this function:

void Table::PrintColumnHeaders	(	char *	out,
		int	outLength,
		char	columnDelineator
	)			const

Prints out the names of all the columns.

Parameters:

`[out]`	out	A pointer to an array of bytes which will hold the output.
`[in]`	outLength	The size of the out array
`[in]`	columnDelineator	What character to print to delineate columns

Definition at line 924 of file DS_Table.cpp.

Here is the call graph for this function:

void Table::PrintRow	(	char *	out,
		int	outLength,
		char	columnDelineator,
		bool	printDelineatorForBinary,
		Table::Row *	inputRow
	)			const

Writes a text representation of the row to out.

Parameters:

`[out]`	out	A pointer to an array of bytes which will hold the output.
`[in]`	outLength	The size of the out array
`[in]`	columnDelineator	What character to print to delineate columns
`[in]`	printDelineatorForBinary	Binary output is not printed. True to still print the delineator.
`[in]`	inputRow	The row to print

Definition at line 955 of file DS_Table.cpp.

Here is the call graph for this function:

void Table::QueryRow	(	DataStructures::List< unsigned > &	inclusionFilterColumnIndices,
		DataStructures::List< unsigned > &	columnIndicesToReturn,
		unsigned	key,
		Table::Row *	row,
		FilterQuery *	inclusionFilters,
		Table *	result
	)			`[protected]`

Definition at line 654 of file DS_Table.cpp.

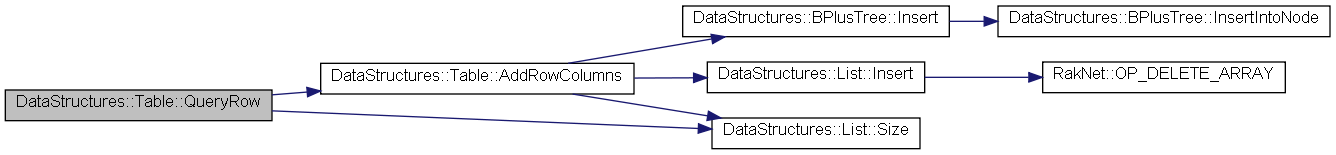

Here is the call graph for this function:

Here is the caller graph for this function:

void Table::QueryTable	(	unsigned *	columnIndicesSubset,
		unsigned	numColumnSubset,
		FilterQuery *	inclusionFilters,
		unsigned	numInclusionFilters,
		unsigned *	rowIds,
		unsigned	numRowIDs,
		Table *	result
	)

Queries the table, optionally returning only a subset of columns and rows.

Parameters:

`[in]`	columnSubset	An array of column indices. Only columns in this array are returned. Pass 0 for all columns
`[in]`	numColumnSubset	The number of elements in columnSubset
`[in]`	inclusionFilters	An array of FilterQuery. All filters must pass for the row to be returned.
`[in]`	numInclusionFilters	The number of elements in inclusionFilters
`[in]`	rowIds	An arrow of row IDs. Only these rows with these IDs are returned. Pass 0 for all rows.
`[in]`	numRowIDs	The number of elements in rowIds
`[out]`	result	The result of the query. If no rows are returned, the table will only have columns.

Definition at line 582 of file DS_Table.cpp.

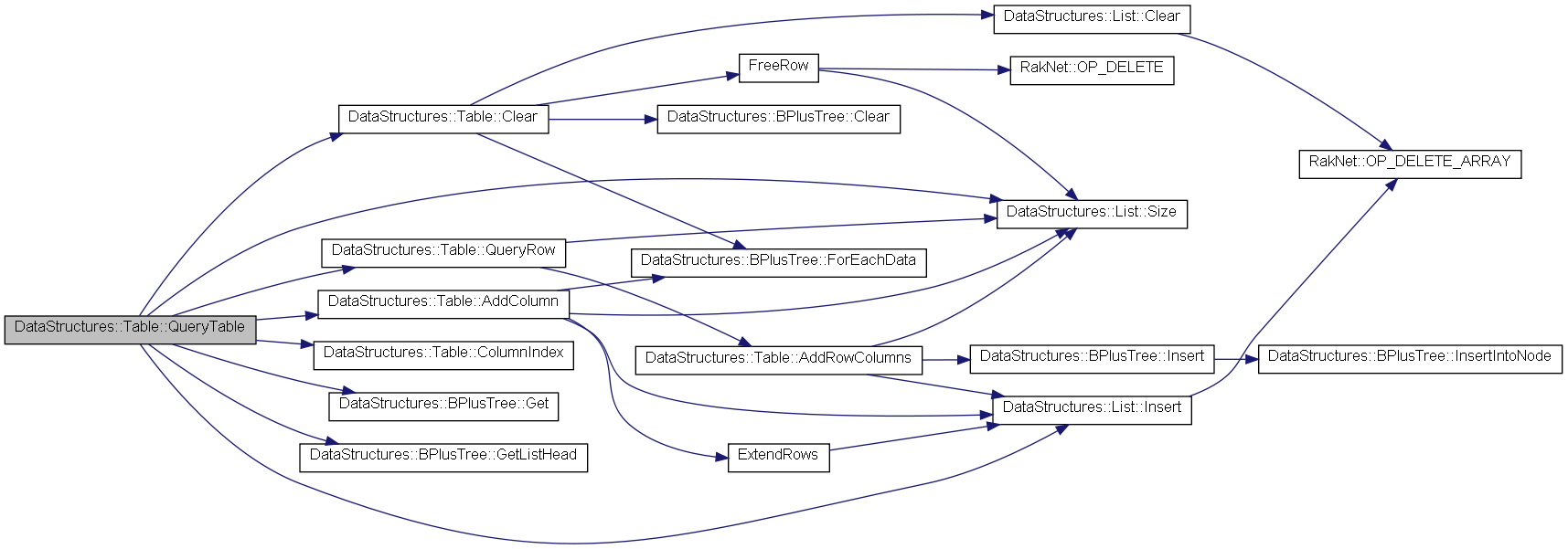

Here is the call graph for this function:

Here is the caller graph for this function:

void Table::RemoveColumn ( unsigned columnIndex )

Removes a column by index.

Parameters:

[in] columnIndex The index of the column to remove

Definition at line 280 of file DS_Table.cpp.

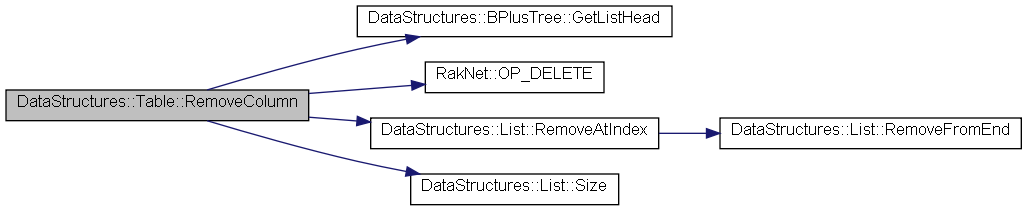

Here is the call graph for this function:

bool Table::RemoveRow ( unsigned rowId )

Removes a row specified by rowId.

Parameters:

[in] rowId The ID of the row

Returns:: true if the row was deleted. False if not.

Definition at line 414 of file DS_Table.cpp.

Here is the call graph for this function:

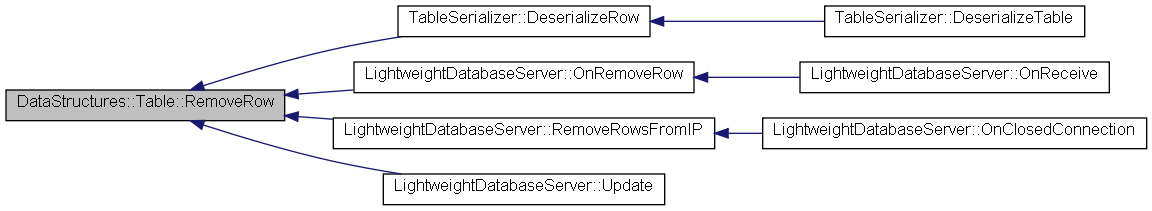

Here is the caller graph for this function:

void Table::RemoveRows ( Table * tableContainingRowIDs )

Removes all the rows with IDs that the specified table also has.

Parameters:

[in] tableContainingRowIDs The IDs of the rows

Definition at line 424 of file DS_Table.cpp.

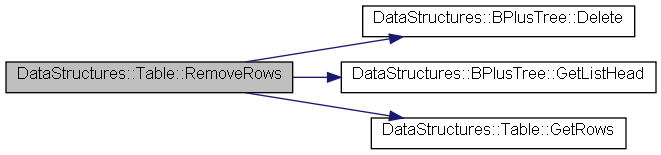

Here is the call graph for this function:

void Table::SortTable	(	Table::SortQuery *	sortQueries,
		unsigned	numSortQueries,
		Table::Row **	out
	)

Sorts the table by rows.

You can sort the table in ascending or descending order on one or more columns Columns have precedence in the order they appear in the sortQueries array If a row cell on column n has the same value as a a different row on column n, then the row will be compared on column n+1

Parameters:

`[in]`	sortQueries	A list of SortQuery structures, defining the sorts to perform on the table
`[in]`	numColumnSubset	The number of elements in numSortQueries
`[out]`	out	The address of an array of Rows, which will receive the sorted output. The array must be long enough to contain all returned rows, up to GetRowCount()

Definition at line 870 of file DS_Table.cpp.

Here is the call graph for this function:

bool Table::UpdateCell	(	unsigned	rowId,
		unsigned	columnIndex,
		char *	str
	)

Definition at line 450 of file DS_Table.cpp.

Here is the call graph for this function:

bool Table::UpdateCell	(	unsigned	rowId,
		unsigned	columnIndex,
		int	value
	)

Updates a particular cell in the table.

Note:: If you are going to update many cells of a particular row, it is more efficient to call GetRow and perform the operations on the row directly.; Row pointers do not change, so you can also write directly to the rows for more efficiency.

Parameters:

`[in]`	rowId	The ID of the row
`[in]`	columnIndex	The column of the cell
`[in]`	value	The data to set

Definition at line 438 of file DS_Table.cpp.

Here is the call graph for this function:

bool Table::UpdateCell	(	unsigned	rowId,
		unsigned	columnIndex,
		int	byteLength,
		char *	data
	)

Definition at line 462 of file DS_Table.cpp.

Here is the call graph for this function:

bool Table::UpdateCellByIndex	(	unsigned	rowIndex,
		unsigned	columnIndex,
		char *	str
	)

Definition at line 486 of file DS_Table.cpp.

Here is the call graph for this function:

bool Table::UpdateCellByIndex	(	unsigned	rowIndex,
		unsigned	columnIndex,
		int	value
	)

Definition at line 474 of file DS_Table.cpp.

Here is the call graph for this function:

bool Table::UpdateCellByIndex	(	unsigned	rowIndex,
		unsigned	columnIndex,
		int	byteLength,
		char *	data
	)

Definition at line 498 of file DS_Table.cpp.

Here is the call graph for this function:

Member Data Documentation

DataStructures::List<ColumnDescriptor> DataStructures::Table::columns [protected]

Definition at line 335 of file DS_Table.h.

DataStructures::BPlusTree<unsigned, Row*, _TABLE_BPLUS_TREE_ORDER> DataStructures::Table::rows [protected]

Definition at line 332 of file DS_Table.h.

The documentation for this class was generated from the following files:

DataStructures::Table Class Reference

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
