RakNet: HuffmanEncodingTree Class Reference

This generates special cases of the huffman encoding tree using 8 bit keys with the additional condition that unused combinations of 8 bits are treated as a frequency of 1. More...

#include <DS_HuffmanEncodingTree.h>

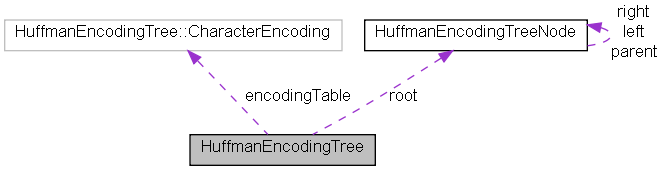

Collaboration diagram for HuffmanEncodingTree:

Collaboration graph

[legend]

List of all members.

Classes
struct	CharacterEncoding
	Used to hold bit encoding for one character.
Public Member Functions
	HuffmanEncodingTree ()
	~HuffmanEncodingTree ()
void	EncodeArray (unsigned char input, size_t sizeInBytes, RakNet::BitStream output)
	Pass an array of bytes to array and a preallocated BitStream to receive the output.
unsigned	DecodeArray (RakNet::BitStream input, BitSize_t sizeInBits, size_t maxCharsToWrite, unsigned char output)
void	DecodeArray (unsigned char input, BitSize_t sizeInBits, RakNet::BitStream output)
void	GenerateFromFrequencyTable (unsigned int frequencyTable[256])
	Given a frequency table of 256 elements, all with a frequency of 1 or more, generate the tree.
void	FreeMemory (void)
	Free the memory used by the tree.

Detailed Description

This generates special cases of the huffman encoding tree using 8 bit keys with the additional condition that unused combinations of 8 bits are treated as a frequency of 1.

Definition at line 19 of file DS_HuffmanEncodingTree.h.

Constructor & Destructor Documentation

HuffmanEncodingTree::HuffmanEncodingTree ( )

Definition at line 17 of file DS_HuffmanEncodingTree.cpp.

HuffmanEncodingTree::~HuffmanEncodingTree ( )

Definition at line 22 of file DS_HuffmanEncodingTree.cpp.

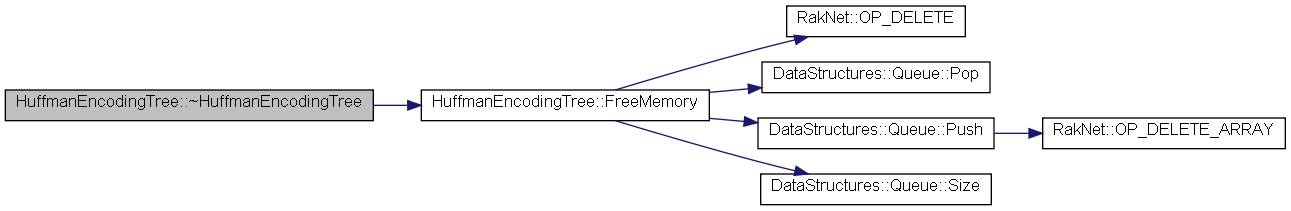

Here is the call graph for this function:

Member Function Documentation

unsigned HuffmanEncodingTree::DecodeArray	(	RakNet::BitStream *	input,
		BitSize_t	sizeInBits,
		size_t	maxCharsToWrite,
		unsigned char *	output
	)

Definition at line 197 of file DS_HuffmanEncodingTree.cpp.

Here is the call graph for this function:

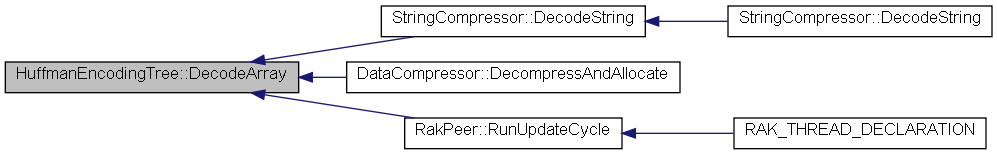

Here is the caller graph for this function:

void HuffmanEncodingTree::DecodeArray	(	unsigned char *	input,
		BitSize_t	sizeInBits,
		RakNet::BitStream *	output
	)

Definition at line 230 of file DS_HuffmanEncodingTree.cpp.

Here is the call graph for this function:

void HuffmanEncodingTree::EncodeArray	(	unsigned char *	input,
		size_t	sizeInBytes,
		RakNet::BitStream *	output
	)

Pass an array of bytes to array and a preallocated BitStream to receive the output.

Parameters:

`[in]`	input	Array of bytes to encode
`[in]`	sizeInBytes	size of input
`[out]`	output	The bitstream to write to

Definition at line 166 of file DS_HuffmanEncodingTree.cpp.

Here is the call graph for this function:

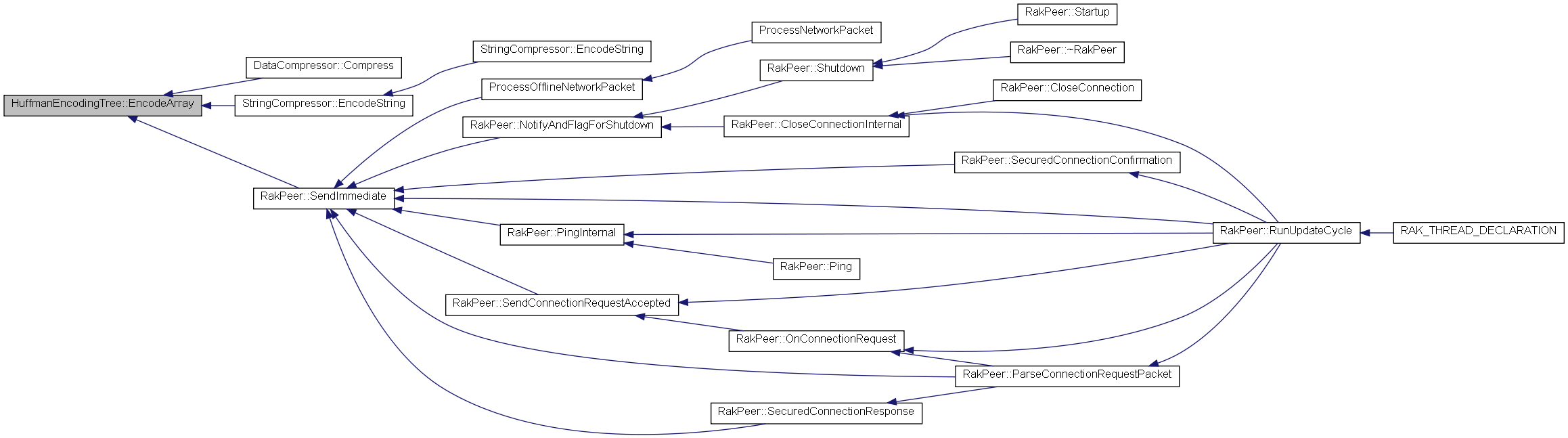

Here is the caller graph for this function:

void HuffmanEncodingTree::FreeMemory ( void )

Free the memory used by the tree.

Definition at line 27 of file DS_HuffmanEncodingTree.cpp.

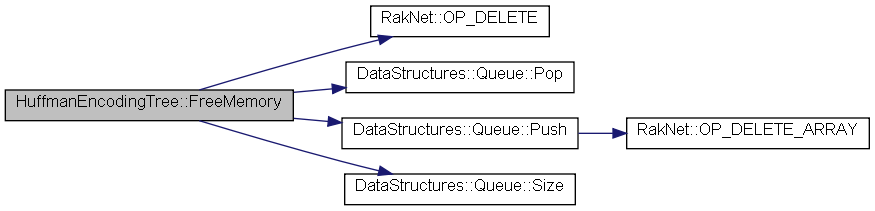

Here is the call graph for this function:

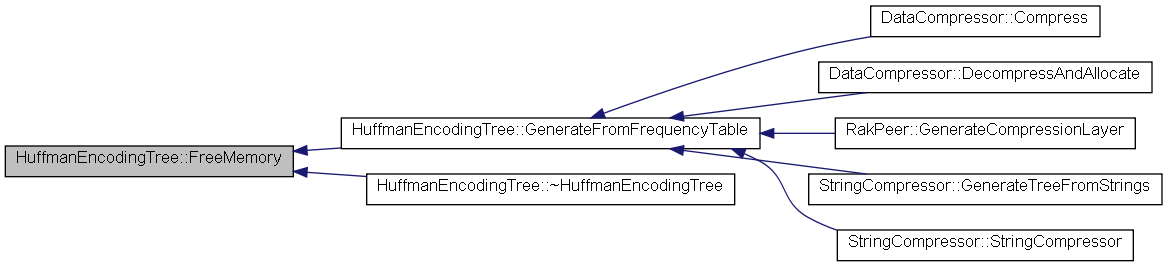

Here is the caller graph for this function:

void HuffmanEncodingTree::GenerateFromFrequencyTable ( unsigned int frequencyTable[256] )

Given a frequency table of 256 elements, all with a frequency of 1 or more, generate the tree.

Definition at line 63 of file DS_HuffmanEncodingTree.cpp.

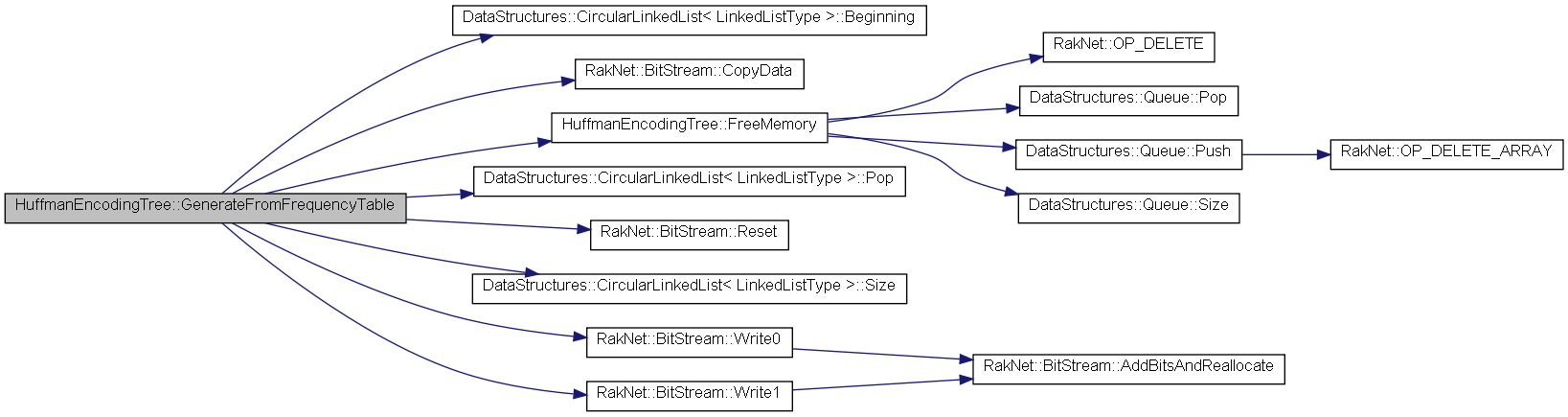

Here is the call graph for this function:

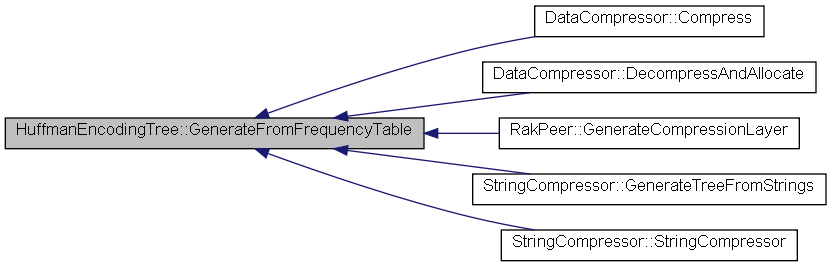

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
