RakNet::VariableDeltaSerializer Class Reference

Class to compare memory values of variables in a current state to a prior state Results of the comparisons will be written to a bitStream, such that only changed variables get written
Can be used with ReplicaManager3 to Serialize a Replica3 per-variable, rather than comparing the entire object against itself
Usage:
BR> 1. Call BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize(). In the case of Replica3, this would be in the Serialize() call
2. For each variable of the type in step 1, call Serialize(). The same variables must be serialized every tick()
3. Call EndSerialize()
4. Repeat step 1 for each of the other categories of how to send varaibles. More...

#include <VariableDeltaSerializer.h>

Collaboration diagram for RakNet::VariableDeltaSerializer:
Collaboration graph
[legend]

List of all members.

Classes

struct  ChangedVariablesList
struct  DeserializationContext
struct  RemoteSystemVariableHistory
struct  SerializationContext

Public Member Functions

 VariableDeltaSerializer ()
 ~VariableDeltaSerializer ()
void BeginUnreliableAckedSerialize (SerializationContext *context, RakNetGUID _guid, BitStream *_bitStream, uint32_t _sendReceipt)
 Call before doing one or more SerializeVariable calls when the data will be sent UNRELIABLE_WITH_ACK_RECEIPT The last value of each variable will be saved per remote system. Additionally, a history of _sendReceipts is stored to determine what to resend on packetloss. When variables are lost, they will be flagged dirty and always resent to the system that lost it Disadvantages: Every variable for every remote system is copied internally, in addition to a history list of what variables changed for which _sendReceipt. Very memory and CPU intensive for multiple connections. Advantages: When data needs to be resent by RakNet, RakNet can only resend the value it currently has. This allows the application to control the resend, sending the most recent value of the variable. The end result is that bandwidth is used more efficiently because old data is never sent.
void BeginUniqueSerialize (SerializationContext *context, RakNetGUID _guid, BitStream *_bitStream)
 Call before doing one or more SerializeVariable calls for data that may be sent differently to every remote system (such as an invisibility flag that only teammates can see) The last value of each variable will be saved per remote system. Unlike BeginUnreliableAckedSerialize(), send receipts are not necessary Disadvantages: Every variable for every remote system is copied internally. Very memory and CPU intensive for multiple connections. Advantages: When data is sent differently depending on the recipient, this system can make things easier to use and is as efficient as it can be.
void BeginIdenticalSerialize (SerializationContext *context, bool _isFirstSerializeToThisSystem, BitStream *_bitStream)
 Call before doing one or more SerializeVariable calls for data that is sent with the same value to every remote system (such as health, position, etc.) This is the most common type of serialization, and also the most efficient Disadvantages: A copy of every variable still needs to be held, although only once Advantages: After the first serialization, the last serialized bitStream will be used for subsequent sends.
void EndSerialize (SerializationContext *context)
 Call after BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize(), then after calling SerializeVariable() one or more times.
void BeginDeserialize (DeserializationContext *context, BitStream *_bitStream)
 Call when you receive the BitStream written by SerializeVariable(), before calling DeserializeVariable().
void EndDeserialize (DeserializationContext *context)
void AddRemoteSystemVariableHistory (RakNetGUID guid)
void RemoveRemoteSystemVariableHistory (RakNetGUID guid)
void OnPreSerializeTick (void)
void OnMessageReceipt (RakNetGUID guid, uint32_t receiptId, bool messageArrived)
template<class VarType >
void SerializeVariable (SerializationContext *context, const VarType &variable)
template<class VarType >
bool DeserializeVariable (DeserializationContext *context, VarType &variable)

Protected Member Functions

void FreeVarsAssociatedWithReceipt (RakNetGUID guid, uint32_t receiptId)
void DirtyAndFreeVarsAssociatedWithReceipt (RakNetGUID guid, uint32_t receiptId)
unsigned int GetVarsWrittenPerRemoteSystemListIndex (RakNetGUID guid)
void RemoveRemoteSystemVariableHistory (void)
RemoteSystemVariableHistory * GetRemoteSystemVariableHistory (RakNetGUID guid)
ChangedVariablesList * AllocChangedVariablesList (void)
void FreeChangedVariablesList (ChangedVariablesList *changedVariables)
void StoreChangedVariablesList (RemoteSystemVariableHistory *variableHistory, ChangedVariablesList *changedVariables, uint32_t sendReceipt)
RemoteSystemVariableHistory * StartVariableHistoryWrite (RakNetGUID guid)
unsigned int GetRemoteSystemHistoryListIndex (RakNetGUID guid)

Static Protected Member Functions

static int UpdatedVariablesListPtrComp (const uint32_t &key, ChangedVariablesList *const &data)

Protected Attributes

DataStructures::List
< RemoteSystemVariableHistory * > 		remoteSystemVariableHistoryList
DataStructures::MemoryPool
< ChangedVariablesList > 		updatedVariablesMemoryPool
bool didComparisonThisTick
RakNet::BitStream identicalSerializationBs

Detailed Description

Class to compare memory values of variables in a current state to a prior state Results of the comparisons will be written to a bitStream, such that only changed variables get written
Can be used with ReplicaManager3 to Serialize a Replica3 per-variable, rather than comparing the entire object against itself
Usage:
BR> 1. Call BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize(). In the case of Replica3, this would be in the Serialize() call
2. For each variable of the type in step 1, call Serialize(). The same variables must be serialized every tick()
3. Call EndSerialize()
4. Repeat step 1 for each of the other categories of how to send varaibles.

On the receiver:

1. Call BeginDeserialize(). In the case of Replica3, this would be in the Deserialize() call 2. Call DeserializeVariable() for each variable, in the same order as was Serialized() 3. Call EndSerialize()

See also:
The ReplicaManager3 sample

Definition at line 30 of file VariableDeltaSerializer.h.

Constructor & Destructor Documentation

VariableDeltaSerializer::VariableDeltaSerializer (  )

Definition at line 5 of file VariableDeltaSerializer.cpp.

VariableDeltaSerializer::~VariableDeltaSerializer (  )

Definition at line 6 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Member Function Documentation

void VariableDeltaSerializer::AddRemoteSystemVariableHistory ( RakNetGUID  guid  )

BeginUnreliableAckedSerialize() and BeginUniqueSerialize() require knowledge of when connections are added and dropped Call AddRemoteSystemVariableHistory() and RemoveRemoteSystemVariableHistory() to notify the system of these events

Parameters:
[in] _guid Which system we are sending to

Definition at line 118 of file VariableDeltaSerializer.cpp.

VariableDeltaSerializer::ChangedVariablesList * VariableDeltaSerializer::AllocChangedVariablesList ( void   )  [protected]

Definition at line 222 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void VariableDeltaSerializer::BeginDeserialize ( DeserializationContext *  context,
BitStream *  _bitStream
)

Call when you receive the BitStream written by SerializeVariable(), before calling DeserializeVariable().

Parameters:
[in] context Holds the context of this group of deserialize calls. This can be a stack object just passed to the function.
[in] _bitStream Pass the bitStream originally passed to and written to by serialize calls

Definition at line 108 of file VariableDeltaSerializer.cpp.

void VariableDeltaSerializer::BeginIdenticalSerialize ( SerializationContext *  context,
bool  _isFirstSerializeToThisSystem,
BitStream *  _bitStream
)

Call before doing one or more SerializeVariable calls for data that is sent with the same value to every remote system (such as health, position, etc.) This is the most common type of serialization, and also the most efficient Disadvantages: A copy of every variable still needs to be held, although only once Advantages: After the first serialization, the last serialized bitStream will be used for subsequent sends.

Precondition:
Call OnPreSerializeTick() before doing any calls to BeginIdenticalSerialize() for each of your objects, once per game tick
Parameters:
[in] context Holds the context of this group of serialize calls. This can be a stack object just passed to the function.
[in] _isFirstSerializeToThisSystem Pass true if this is the first time ever serializing to this system (the initial download). This way all variables will be written, rather than checking against prior sent values.
[in] _bitSteam Which bitStream to write to

Definition at line 51 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

void VariableDeltaSerializer::BeginUniqueSerialize ( SerializationContext *  context,
RakNetGUID  _guid,
BitStream *  _bitStream
)

Call before doing one or more SerializeVariable calls for data that may be sent differently to every remote system (such as an invisibility flag that only teammates can see) The last value of each variable will be saved per remote system. Unlike BeginUnreliableAckedSerialize(), send receipts are not necessary Disadvantages: Every variable for every remote system is copied internally. Very memory and CPU intensive for multiple connections. Advantages: When data is sent differently depending on the recipient, this system can make things easier to use and is as efficient as it can be.

Precondition:
AddRemoteSystemVariableHistory() and RemoveRemoteSystemVariableHistory() must be called for new and lost connections
Parameters:
[in] context Holds the context of this group of serialize calls. This can be a stack object just passed to the function.
[in] _guid Which system we are sending to
[in] _bitSteam Which bitStream to write to

Definition at line 36 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

void VariableDeltaSerializer::BeginUnreliableAckedSerialize ( SerializationContext *  context,
RakNetGUID  _guid,
BitStream *  _bitStream,
uint32_t  _sendReceipt
)

Call before doing one or more SerializeVariable calls when the data will be sent UNRELIABLE_WITH_ACK_RECEIPT The last value of each variable will be saved per remote system. Additionally, a history of _sendReceipts is stored to determine what to resend on packetloss. When variables are lost, they will be flagged dirty and always resent to the system that lost it Disadvantages: Every variable for every remote system is copied internally, in addition to a history list of what variables changed for which _sendReceipt. Very memory and CPU intensive for multiple connections. Advantages: When data needs to be resent by RakNet, RakNet can only resend the value it currently has. This allows the application to control the resend, sending the most recent value of the variable. The end result is that bandwidth is used more efficiently because old data is never sent.

Precondition:
Upon getting ID_SND_RECEIPT_LOSS or ID_SND_RECEIPT_ACKED call OnMessageReceipt()
AddRemoteSystemVariableHistory() and RemoveRemoteSystemVariableHistory() must be called for new and lost connections
Parameters:
[in] context Holds the context of this group of serialize calls. This can be a stack object just passed to the function.
[in] _guid Which system we are sending to
[in] _bitSteam Which bitStream to write to
[in] _sendReceipt Returned from RakPeer::IncrementNextSendReceipt() and passed to the Send() or SendLists() function. Identifies this update for ID_SND_RECEIPT_LOSS and ID_SND_RECEIPT_ACKED

Definition at line 21 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

template<class VarType >
bool RakNet::VariableDeltaSerializer::DeserializeVariable ( DeserializationContext *  context,
VarType &  variable
) [inline]

Call to deserialize into a variable

Precondition:
You have called BeginDeserialize()
Note:
Be sure to call EndDeserialize() after finishing all deserializations
Parameters:
[in] context Same context pointer passed to BeginDeserialize()
[in] variable A variable to write to the bitStream passed to context

Definition at line 198 of file VariableDeltaSerializer.h.

Here is the call graph for this function:

void VariableDeltaSerializer::DirtyAndFreeVarsAssociatedWithReceipt ( RakNetGUID  guid,
uint32_t  receiptId
) [protected]

Definition at line 171 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void VariableDeltaSerializer::EndDeserialize ( DeserializationContext *  context  )
Parameters:
[in] context Same context pointer passed to BeginDeserialize()

Definition at line 113 of file VariableDeltaSerializer.cpp.

void VariableDeltaSerializer::EndSerialize ( SerializationContext *  context  )

Call after BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize(), then after calling SerializeVariable() one or more times.

Parameters:
[in] context Same context pointer passed to BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize()

Definition at line 63 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

void VariableDeltaSerializer::FreeChangedVariablesList ( ChangedVariablesList *  changedVariables  )  [protected]

Definition at line 229 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void VariableDeltaSerializer::FreeVarsAssociatedWithReceipt ( RakNetGUID  guid,
uint32_t  receiptId
) [protected]

Definition at line 153 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int VariableDeltaSerializer::GetRemoteSystemHistoryListIndex ( RakNetGUID  guid  )  [protected]

Definition at line 258 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

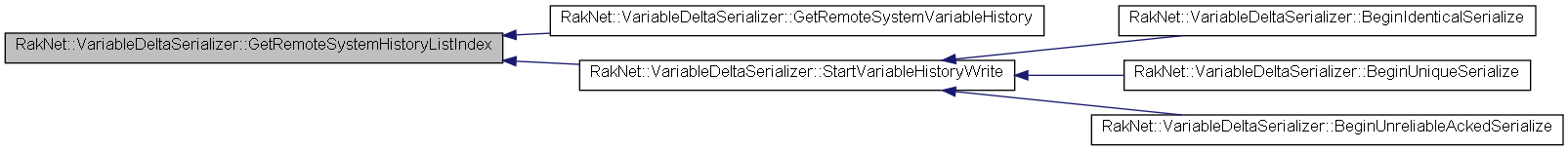

Here is the caller graph for this function:

VariableDeltaSerializer::RemoteSystemVariableHistory * VariableDeltaSerializer::GetRemoteSystemVariableHistory ( RakNetGUID  guid  )  [protected]

Definition at line 216 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

unsigned int VariableDeltaSerializer::GetVarsWrittenPerRemoteSystemListIndex ( RakNetGUID  guid  )  [protected]

Definition at line 191 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void VariableDeltaSerializer::OnMessageReceipt ( RakNetGUID  guid,
uint32_t  receiptId,
bool  messageArrived
)

Call when getting ID_SND_RECEIPT_LOSS or ID_SND_RECEIPT_ACKED for a particular system Example:

uint32_t msgNumber; memcpy(&msgNumber, packet->data+1, 4); DataStructures::Multilist<ML_STACK, Replica3*> replicaListOut; replicaManager.GetReplicasCreatedByMe(replicaListOut); DataStructures::DefaultIndexType idx; for (idx=0; idx < replicaListOut.GetSize(); idx++) { ((SampleReplica*)replicaListOut[idx])->NotifyReplicaOfMessageDeliveryStatus(packet->guid,msgNumber, packet->data[0]==ID_SND_RECEIPT_ACKED); }

Parameters:
[in] guid Which system we are sending to
[in] receiptId Encoded in bytes 1-4 inclusive of ID_SND_RECEIPT_LOSS and ID_SND_RECEIPT_ACKED
[in] messageArrived True for ID_SND_RECEIPT_ACKED, false otherwise

Definition at line 11 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

void VariableDeltaSerializer::OnPreSerializeTick ( void   )

BeginIdenticalSerialize() requires knowledge of when serialization has started for an object across multiple systems This way it can setup the flag to do new comparisons against the last sent values, rather than just resending the last sent bitStream For Replica3, overload and call this from Replica3::OnUserReplicaPreSerializeTick()

Definition at line 272 of file VariableDeltaSerializer.cpp.

void VariableDeltaSerializer::RemoveRemoteSystemVariableHistory ( RakNetGUID  guid  )

BeginUnreliableAckedSerialize() and BeginUniqueSerialize() require knowledge of when connections are added and dropped Call AddRemoteSystemVariableHistory() and RemoveRemoteSystemVariableHistory() to notify the system of these events

Parameters:
[in] _guid Which system we are sending to

Definition at line 123 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

void VariableDeltaSerializer::RemoveRemoteSystemVariableHistory ( void   )  [protected]

Definition at line 201 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

template<class VarType >
void RakNet::VariableDeltaSerializer::SerializeVariable ( SerializationContext *  context,
const VarType &  variable
) [inline]

Call to Serialize a variable Will write to the bitSteam passed to context true, variableValue if the variable has changed or has never been written. Otherwise will write false.

Precondition:
You have called BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize()
Will also require calling OnPreSerializeTick() if using BeginIdenticalSerialize()
Note:
Be sure to call EndSerialize() after finishing all serializations
Parameters:
[in] context Same context pointer passed to BeginUnreliableAckedSerialize(), BeginUniqueSerialize(), or BeginIdenticalSerialize()
[in] variable A variable to write to the bitStream passed to context

Definition at line 150 of file VariableDeltaSerializer.h.

Here is the call graph for this function:

VariableDeltaSerializer::RemoteSystemVariableHistory * VariableDeltaSerializer::StartVariableHistoryWrite ( RakNetGUID  guid  )  [protected]

Definition at line 239 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void VariableDeltaSerializer::StoreChangedVariablesList ( RemoteSystemVariableHistory *  variableHistory,
ChangedVariablesList *  changedVariables,
uint32_t  sendReceipt
) [protected]

Definition at line 233 of file VariableDeltaSerializer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int VariableDeltaSerializer::UpdatedVariablesListPtrComp ( const uint32_t &  key,
ChangedVariablesList *const &  data
) [static, protected]

Definition at line 144 of file VariableDeltaSerializer.cpp.

Member Data Documentation

bool RakNet::VariableDeltaSerializer::didComparisonThisTick [protected]

Definition at line 236 of file VariableDeltaSerializer.h.

RakNet::BitStream RakNet::VariableDeltaSerializer::identicalSerializationBs [protected]

Definition at line 237 of file VariableDeltaSerializer.h.

DataStructures::List<RemoteSystemVariableHistory*> RakNet::VariableDeltaSerializer::remoteSystemVariableHistoryList [protected]

A list of RemoteSystemVariableHistory indexed by guid, one per connection that we serialize to List is added to when SerializeConstruction is called, and removed from when SerializeDestruction is called, or when a given connection is dropped

Definition at line 231 of file VariableDeltaSerializer.h.

DataStructures::MemoryPool<ChangedVariablesList> RakNet::VariableDeltaSerializer::updatedVariablesMemoryPool [protected]

Definition at line 234 of file VariableDeltaSerializer.h.

The documentation for this class was generated from the following files:
Generated on Thu Sep 30 2010 01:28:41 for RakNet by  doxygen 1.7.1
