#include <SocketLayer.h>

Collaboration diagram for SocketLayer:

Public Member Functions
	SocketLayer ()
	Default Constructor.
	~SocketLayer ()
SOCKET	Connect (SOCKET writeSocket, unsigned int binaryAddress, unsigned short port)
SOCKET	CreateBoundSocket (unsigned short port, bool blockingSocket, const char *forceHostAddress, unsigned int sleepOn10048)
SOCKET	CreateBoundSocket_PS3Lobby (unsigned short port, bool blockingSocket, const char *forceHostAddress)
const char *	DomainNameToIP (const char *domainName)
bool	AssociateSocketWithCompletionPortAndRead (SOCKET readSocket, unsigned int binaryAddress, unsigned short port, RakPeer *rakPeer)
void	Write (const SOCKET writeSocket, const char *data, const int length)
int	RecvFrom (const SOCKET s, RakPeer rakPeer, int errorCode, RakNetSmartPtr< RakNetSocket > rakNetSocket, unsigned short remotePortRakNetWasStartedOn_PS3)
void	RawRecvFromNonBlocking (const SOCKET s, unsigned short remotePortRakNetWasStartedOn_PS3, char dataOut, int bytesReadOut, SystemAddress systemAddressOut, RakNetTimeUS timeRead)
RakNet::RakString	GetSubNetForSocketAndIp (SOCKET inSock, RakNet::RakString inIpString)
void	SetNonBlocking (SOCKET listenSocket)
void	GetMyIP (char ipList[MAXIMUM_NUMBER_OF_INTERNAL_IDS][16], unsigned int binaryAddresses[MAXIMUM_NUMBER_OF_INTERNAL_IDS])
int	SendTo (SOCKET s, const char *data, int length, const char ip[16], unsigned short port, unsigned short remotePortRakNetWasStartedOn_PS3)
int	SendToTTL (SOCKET s, const char *data, int length, const char ip[16], unsigned short port, int ttl)
int	SendTo (SOCKET s, const char *data, int length, unsigned int binaryAddress, unsigned short port, unsigned short remotePortRakNetWasStartedOn_PS3)
void	SetSocketLayerOverride (SocketLayerOverride *_slo)
SocketLayerOverride *	GetSocketLayerOverride (void) const
int	SendTo_PS3Lobby (SOCKET s, const char *data, int length, unsigned int binaryAddress, unsigned short port, unsigned short remotePortRakNetWasStartedOn_PS3)
int	SendTo_360 (SOCKET s, const char data, int length, const char voiceData, int voiceLength, unsigned int binaryAddress, unsigned short port)
int	SendTo_PC (SOCKET s, const char *data, int length, unsigned int binaryAddress, unsigned short port)
Static Public Member Functions
static SocketLayer *	Instance ()
static bool	IsPortInUse (unsigned short port, const char *hostAddress=0)
static void	RecvFromBlocking (const SOCKET s, RakPeer rakPeer, unsigned short remotePortRakNetWasStartedOn_PS3, char dataOut, int bytesReadOut, SystemAddress systemAddressOut, RakNetTimeUS *timeRead)
static unsigned short	GetLocalPort (SOCKET s)
static SystemAddress	GetSystemAddress (SOCKET s)
static void	SetDoNotFragment (SOCKET listenSocket, int opt)

Detailed Description

Definition at line 42 of file SocketLayer.h.

Constructor & Destructor Documentation

SocketLayer::SocketLayer ( )

Default Constructor.

Definition at line 67 of file SocketLayer.cpp.

Here is the call graph for this function:

SocketLayer::~SocketLayer ( )

Definition at line 75 of file SocketLayer.cpp.

Here is the call graph for this function:

Member Function Documentation

bool SocketLayer::AssociateSocketWithCompletionPortAndRead	(	SOCKET	readSocket,
		unsigned int	binaryAddress,
		unsigned short	port,
		RakPeer *	rakPeer
	)

Start an asynchronous read using the specified socket. The callback will use the specified SystemAddress (associated with this socket) and call either the client or the server callback (one or the other should be 0)

Note:: Was used for deprecated IO completion ports.

SOCKET SocketLayer::Connect	(	SOCKET	writeSocket,
		unsigned int	binaryAddress,
		unsigned short	port
	)

Parameters:

`[in]`	writeSocket	The local socket.
`[in]`	binaryAddress	The address of the remote host.
`[in]`	port	the remote port.

Returns:: A new socket used for communication.

Definition at line 82 of file SocketLayer.cpp.

SOCKET SocketLayer::CreateBoundSocket	(	unsigned short	port,
		bool	blockingSocket,
		const char *	forceHostAddress,
		unsigned int	sleepOn10048
	)

Creates a bound socket to listen for incoming connections on the specified port

Parameters:

`[in]`	port	the port number
`[in]`	blockingSocket

Returns:: A new socket used for accepting clients

Definition at line 257 of file SocketLayer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

SOCKET SocketLayer::CreateBoundSocket_PS3Lobby	(	unsigned short	port,
		bool	blockingSocket,
		const char *	forceHostAddress
	)

Definition at line 245 of file SocketLayer.cpp.

Here is the caller graph for this function:

const char * SocketLayer::DomainNameToIP ( const char * domainName )

Definition at line 360 of file SocketLayer.cpp.

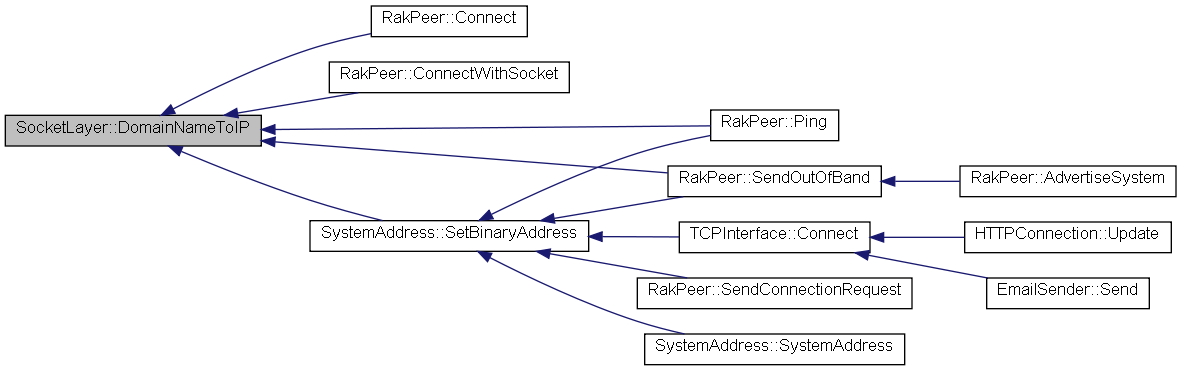

Here is the caller graph for this function:

unsigned short SocketLayer::GetLocalPort ( SOCKET s ) [static]

Returns the local port, useful when passing 0 as the startup port.

Parameters:

[in] s The socket whose port we are referring to

Returns:: The local port

Definition at line 1106 of file SocketLayer.cpp.

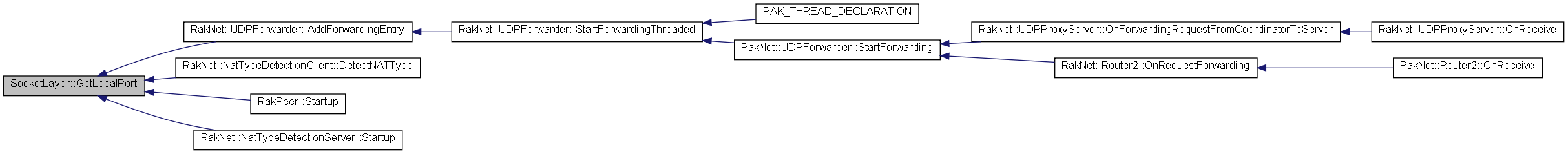

Here is the caller graph for this function:

void SocketLayer::GetMyIP	(	char	ipList[MAXIMUM_NUMBER_OF_INTERNAL_IDS][16],
		unsigned int	binaryAddresses[MAXIMUM_NUMBER_OF_INTERNAL_IDS]
	)

Retrieve all local IP address in a string format.

Parameters:

`[in]`	s	The socket whose port we are referring to
`[in]`	ipList	An array of ip address in dotted notation.

Definition at line 1094 of file SocketLayer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

SocketLayerOverride* SocketLayer::GetSocketLayerOverride ( void ) const [inline]

Definition at line 168 of file SocketLayer.h.

Here is the caller graph for this function:

RakNet::RakString SocketLayer::GetSubNetForSocketAndIp	(	SOCKET	inSock,
		RakNet::RakString	inIpString
	)

Given a socket and IP, retrieves the subnet mask, on linux the socket is unused

Parameters:

`[in]`	inSock	the socket
`[in]`	inIpString	The ip of the interface you wish to retrieve the subnet mask from

Returns:: Returns the ip dotted subnet mask if successful, otherwise returns empty string ("")

Definition at line 908 of file SocketLayer.cpp.

SystemAddress SocketLayer::GetSystemAddress ( SOCKET s ) [static]

Definition at line 1130 of file SocketLayer.cpp.

Here is the caller graph for this function:

static SocketLayer* SocketLayer::Instance ( ) [inline, static]

Returns:: unique instance

Definition at line 55 of file SocketLayer.h.

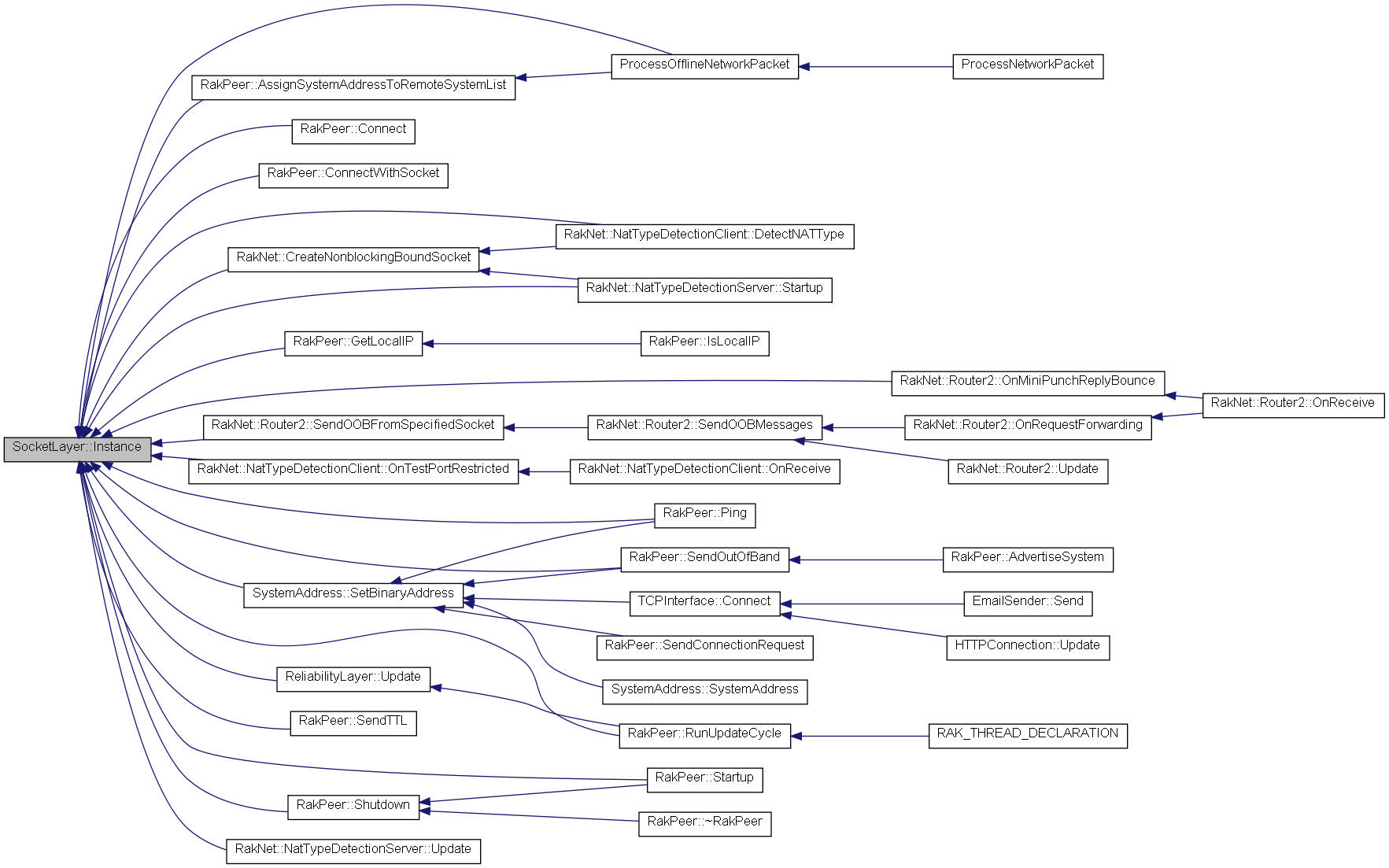

Here is the caller graph for this function:

bool SocketLayer::IsPortInUse	(	unsigned short	port,
		const char *	hostAddress = `0`
	)			`[static]`

Returns if this specified port is in use, for UDP

Parameters:

[in] port the port number

Returns:: If this port is already in use

Definition at line 109 of file SocketLayer.cpp.

void SocketLayer::RawRecvFromNonBlocking	(	const SOCKET	s,
		unsigned short	remotePortRakNetWasStartedOn_PS3,
		char *	dataOut,
		int *	bytesReadOut,
		SystemAddress *	systemAddressOut,
		RakNetTimeUS *	timeRead
	)

Read raw unprocessed data from the socket

Parameters:

`[in]`	s	the socket
`[in]`	remotePortRakNetWasStartedOn_PS3	was started on the PS3?
`[out]`	dataOut	The data read
`[out]`	bytesReadOut	Number of bytes read, -1 if nothing was read
`[out]`	systemAddressOut	Who is sending the packet
`[out]`	timeRead	Time that thre read occured

Definition at line 620 of file SocketLayer.cpp.

Here is the call graph for this function:

int SocketLayer::RecvFrom	(	const SOCKET	s,
		RakPeer *	rakPeer,
		int *	errorCode,
		RakNetSmartPtr< RakNetSocket >	rakNetSocket,
		unsigned short	remotePortRakNetWasStartedOn_PS3
	)

Read data from a socket

Parameters:

`[in]`	s	the socket
`[in]`	rakPeer	The instance of rakPeer containing the recvFrom C callback
`[in]`	errorCode	An error code if an error occured .
`[in]`	connectionSocketIndex	Which of the sockets in RakPeer we are using

Returns:: Returns true if you successfully read data, false on error.

Definition at line 394 of file SocketLayer.cpp.

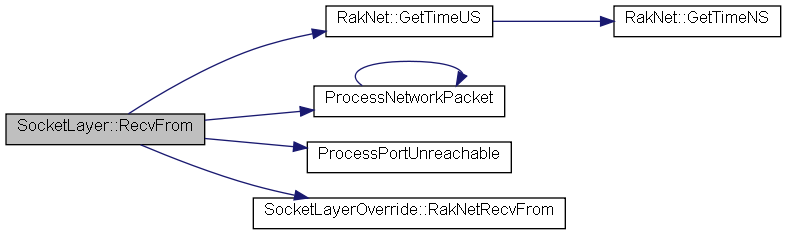

Here is the call graph for this function:

void SocketLayer::RecvFromBlocking	(	const SOCKET	s,
		RakPeer *	rakPeer,
		unsigned short	remotePortRakNetWasStartedOn_PS3,
		char *	dataOut,
		int *	bytesReadOut,
		SystemAddress *	systemAddressOut,
		RakNetTimeUS *	timeRead
	)			`[static]`

Definition at line 539 of file SocketLayer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

int SocketLayer::SendTo	(	SOCKET	s,
		const char *	data,
		int	length,
		unsigned int	binaryAddress,
		unsigned short	port,
		unsigned short	remotePortRakNetWasStartedOn_PS3
	)

Call sendto (UDP obviously)

Parameters:

`[in]`	s	the socket
`[in]`	data	The byte buffer to send
`[in]`	length	The length of the data in bytes
`[in]`	binaryAddress	The address of the remote host in binary format.
`[in]`	port	The port number to send to.

Returns:: 0 on success, nonzero on failure.

Definition at line 777 of file SocketLayer.cpp.

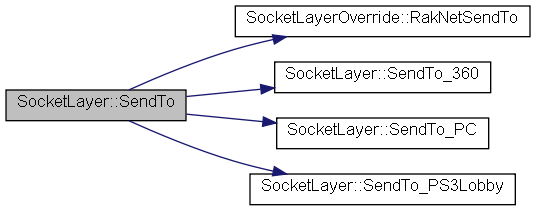

Here is the call graph for this function:

int SocketLayer::SendTo	(	SOCKET	s,
		const char *	data,
		int	length,
		const char	ip[16],
		unsigned short	port,
		unsigned short	remotePortRakNetWasStartedOn_PS3
	)

Call sendto (UDP obviously)

Parameters:

`[in]`	s	the socket
`[in]`	data	The byte buffer to send
`[in]`	length	The length of the data in bytes
`[in]`	ip	The address of the remote host in dotted notation.
`[in]`	port	The port number to send to.

Returns:: 0 on success, nonzero on failure.

Definition at line 843 of file SocketLayer.cpp.

Here is the caller graph for this function:

int SocketLayer::SendTo_360	(	SOCKET	s,
		const char *	data,
		int	length,
		const char *	voiceData,
		int	voiceLength,
		unsigned int	binaryAddress,
		unsigned short	port
	)

Definition at line 692 of file SocketLayer.cpp.

Here is the caller graph for this function:

int SocketLayer::SendTo_PC	(	SOCKET	s,
		const char *	data,
		int	length,
		unsigned int	binaryAddress,
		unsigned short	port
	)

Definition at line 731 of file SocketLayer.cpp.

Here is the caller graph for this function:

int SocketLayer::SendTo_PS3Lobby	(	SOCKET	s,
		const char *	data,
		int	length,
		unsigned int	binaryAddress,
		unsigned short	port,
		unsigned short	remotePortRakNetWasStartedOn_PS3
	)

Definition at line 677 of file SocketLayer.cpp.

Here is the caller graph for this function:

int SocketLayer::SendToTTL	(	SOCKET	s,
		const char *	data,
		int	length,
		const char	ip[16],
		unsigned short	port,
		int	ttl
	)

Call sendto (UDP obviously) It won't reach the recipient, except on a LAN However, this is good for opening routers / firewalls

Parameters:

`[in]`	s	the socket
`[in]`	data	The byte buffer to send
`[in]`	length	The length of the data in bytes
`[in]`	ip	The address of the remote host in dotted notation.
`[in]`	port	The port number to send to.
`[in]`	ttl	Max hops of datagram

Returns:: 0 on success, nonzero on failure.

Definition at line 849 of file SocketLayer.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void SocketLayer::SetDoNotFragment	(	SOCKET	listenSocket,
		int	opt
	)			`[static]`

Definition at line 135 of file SocketLayer.cpp.

Here is the caller graph for this function:

void SocketLayer::SetNonBlocking ( SOCKET listenSocket )

Sets the socket flags to nonblocking

Parameters:

[in] listenSocket the socket to set

Definition at line 161 of file SocketLayer.cpp.

void SocketLayer::SetSocketLayerOverride ( SocketLayerOverride * _slo )

Definition at line 1158 of file SocketLayer.cpp.

void SocketLayer::Write	(	const SOCKET	writeSocket,
		const char *	data,
		const int	length
	)

Write data of length length to writeSocket

Parameters:

`[in]`	writeSocket	The socket to write to
`[in]`	data	The data to write
`[in]`	length	The length of data

Definition at line 386 of file SocketLayer.cpp.

The documentation for this class was generated from the following files:
